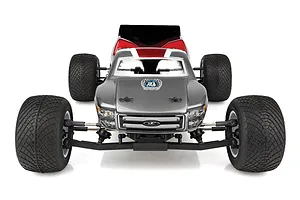

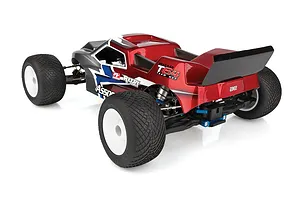

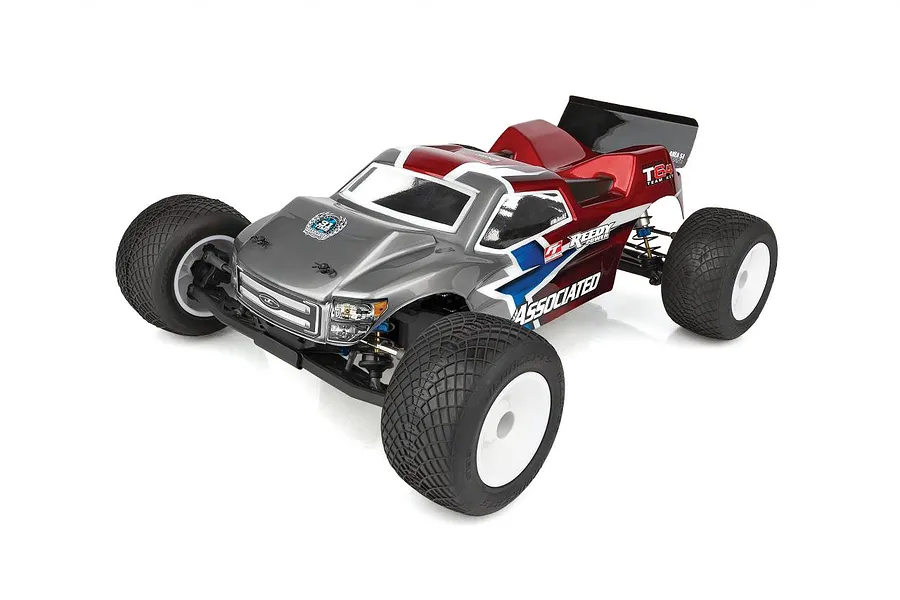

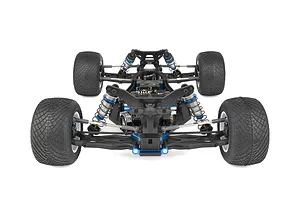

Name: Team Associated RC10T6.4 Team RC Stadium Truck Electric 2WD 1/10 Scale Kit
Brand: Team Associated
SKU: ASS-70004
Price: 565.22 AUD
Availability: OutOfStock

Recommended products

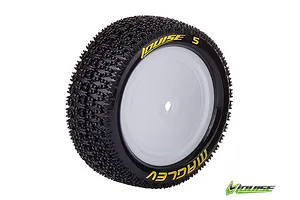

Louise 2.2" E-Maglev Tyres on White Dished Rims - Glued Wheels 2Pcs
$31.78
Tamiya PS-12 Silver Polycarbonate Spray Paint 100ml
4 reviews
$12.82
Yeah Racing 185x75mm LiPo Safe/Protection Bag
24 reviews
$19.95
FlySky NB4+ Noble 2.4Ghz 8ch Radio with Receiver
8 reviews
$455.68
Sold out
HPI Firestorm 1/10 DSX-1 Unpainted Body Shell
$68.94
Sold out
Tamiya PS-2 Red Polycarbonate Spray Paint 100ml
2 reviews
$12.88
Expected 1 Dec
MKS Black Aluminium HBL575SL Low Profile 16.8kg 7.4V Brushless Metal Geared Servo
$249.99
Discontinued
SkyRC E680 AC/DC Smart Charger
3 reviews
$86.85
View
Discontinued
Gens Ace 7.4V 5000mAh 60C Hard Case LiPo Battery Shorty Pack with 4.0mm Bullet To Deans Plug
$106.51
View

Overview

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.

The RC10T6.4 shares components with the RC10B6.4, RC10B6.4D, and RC10B74.2 Team Kits, making it easier to run multiple classes. It has large-volume 13mm big bore shocks with new truck springs for suspension and jumping. The new chassis design is based on the RC10B6.4 buggy and has an angled steering system for improved consistency. Racers can tune the steering height, axle trail, and caster inserts for front end feel, and the rear end grip is improved with optional C and D mounts and 93.5mm CVA bones. The suspension linkage rides on new 3.5mm diameter rod ends and turnbuckles. The RC10T6.4 is updated to the latest racing specs for a competitive edge.

Note

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Transmitter.

Features

13mm big bore shocks and springs for improved handling
13mm machined shock pistons, 2x1.6mm front, 2x1.8mm rear

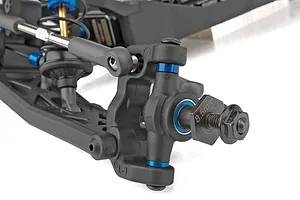

Angled steering system for improved steering consistency
3.5mm heavy-duty ball cups and turnbuckles
Updated rear suspension with wider C and D mounts
Longer 92.5mm CVA driveshafts for more rear grip
7.0mm blue aluminium rear clamping hexes
Chassis side rails with RC10B6.4 fan mount system
Truck length aluminium chassis with 22.5 deg. kick-up
Moulded bulkheads included for range of caster and kick up options

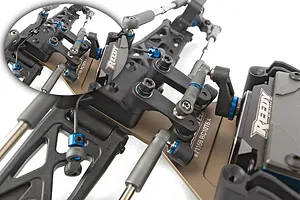

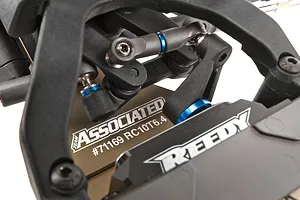

B6.4 adjustable height steering bell crank and rack system
B6.4 -1mm kingpin offset steering and caster block set
Aluminium RC10B6.4 ESC mounting tray shifted forward
Genuine Team Associated Product

In the box

1x 1/10 RC10T6.4 Team 2WD Electric RC Truggy Kit

You'll need

Compatible 7.4V LiPo Battery
Compatible Charger
Compatible 1/10 Scale ESC
Compatible 1/10 Scale Motor
Compatible 1/10 Scale Servo
2+ Channel Transmitter & Receiver
PS Series Polycarbonate Safe Paint
AA Batteries for Transmitter
Compatible Body Shell
Compatible Pinion Gear
Compatible Wheels

Highlights

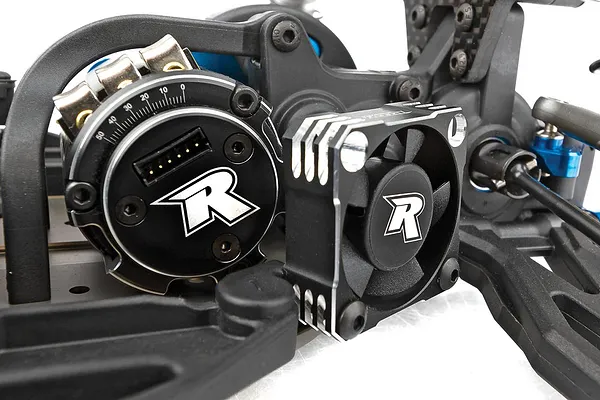

New Chassis Side Rails with Integrated Fan Mount

The RC10T6.4 features new chassis side rails with an integrated fan mount system, improving cooling and airflow for enhanced performance and reliability.

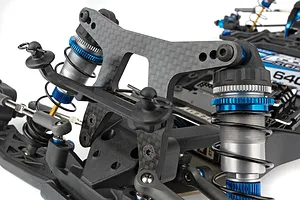

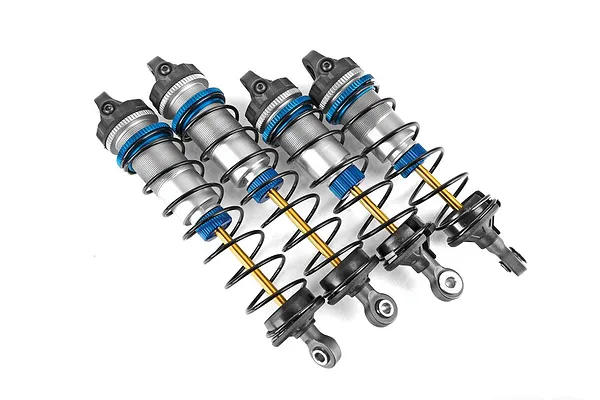

13mm Big Bore Threaded Aluminium Shocks

Experience smooth and consistent damping with the new 13mm big bore threaded aluminium shocks. These high-quality shocks feature machined pistons and provide precise adjustability for optimal handling on various surfaces.

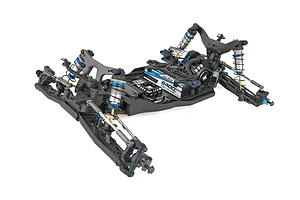

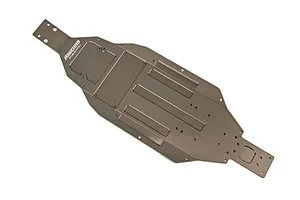

New Aluminium Chassis with Updated Geometry

The RC10T6.4 features a new aluminium chassis with a 22.5-degree kick-up, designed to complement the updated front-end geometry and provide improved handling and stability.

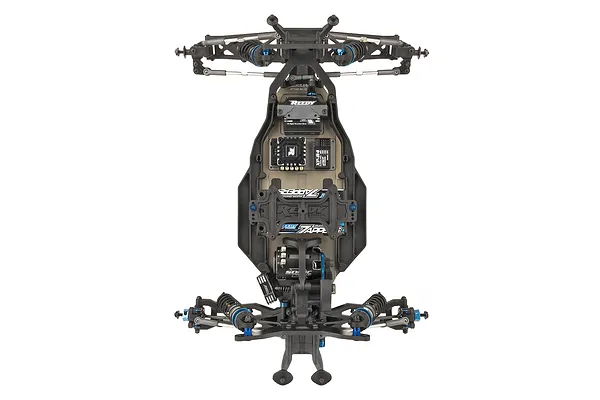

Forward-Positioned ESC Tray for Optimised Weight Balance

The aluminium ESC mounting tray is shifted forward in the chassis and features a wider footprint to accommodate various electronics. This design optimises weight distribution for improved handling and balance.

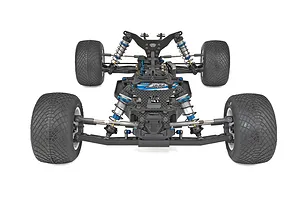

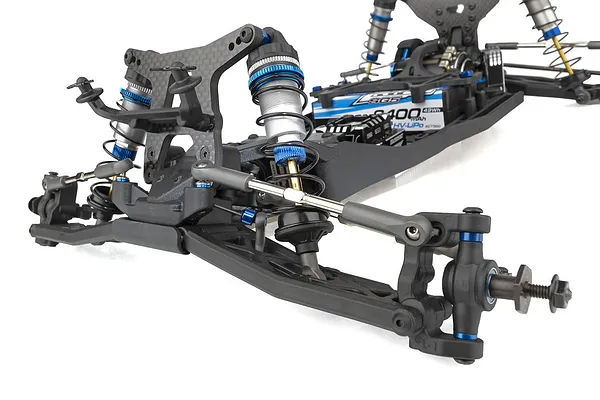

Gull Wing Suspension for Enhanced Traction

The RC10T6.4 utilises gull wing front and rear arms and shock towers, providing increased traction and improved handling on high-grip surfaces.

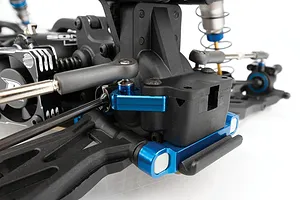

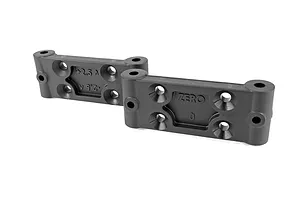

Multiple Bulkhead Options for Customised Caster and Kick-Up

The kit includes 20, 22.5, and 25-degree moulded bulkheads, offering a wide range of caster and kick-up options for fine-tuning the vehicle's handling characteristics.

Specifications

Length	368mm (14.49in)
Width	Varies
Height	N/A
Wheelbase	325mm (12.8in)
Weight	Varies
Wheel Diameter	Not Included
Chassis	Stadium Truggy
Drivetrain	2WD
Suspension	13mm Big Bore Coil-Over Shocks
Gear Ratio	2.6:1
Motor	Not Included
ESC	Not Included
