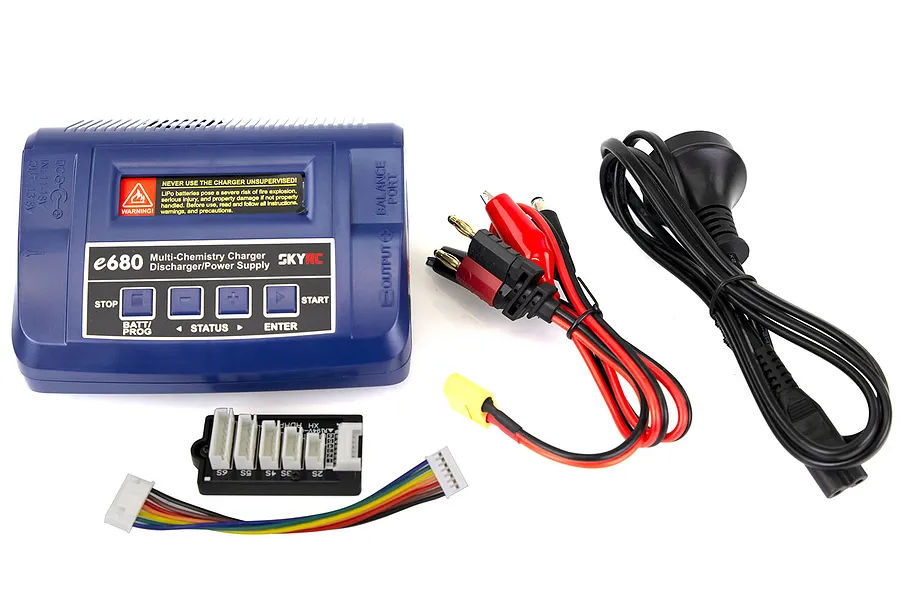

The SkyRC e680 Universal Charger is easy to use and at the same time offers a variety of features.

All popular battery types such as LiPo/LiIon/LiFe/LiHV/NiMH/NICd/Pb and the system battery of the DJI Mavic are supported by the microprocessor controlled SkyRC e680.

All common loading and unloading modes such as charge, ballance charge, fast charge, storage and discharge are mastered. Especially in the Pb program, the charger offers an AGM and cold charging mode. Also DJI Mavic batteries are supported with their own mode (optional charging cable SK600023-06 necessary).

In addition, the e680 can directly supply consumers such as tire sander, LED pit lights, motor testers etc. with 13.8V and 80W max power via the power supply function.

• Excellent performance max. 8A / 80W
• Integrated power supply functionn 13.8V/80W
• 10 battery memory
• TVC Terminal Voltage Control
• Internal balancer with XH connector
• Simplest 4-key operation
• AGM and Pb cold charging modes
• Suitable for LiPo/LiHV/Lilon/LiFe/NiCd/NiMH/Pb and DJI Mavic batteries

• Input Voltage AC: 100V -240V
• Input Voltage DC: 11V - 18V
• Max Charge Power: 80W
• Max Discharge Power: 10W
• Charge Current Range: 0.1A - 8.0A
• Discharge Current Range: 0.1A - 2.0A
• Balancer current: max. 300mAh
• Cells: LiPo/LiFe/LiIon/LiHV 1s - 6s
• Cells: NiMH/NiCd 1s - 15s
• Pb Battery Voltage: 2V - 20V
• Weight: 390g
• Dimension: 135x110x60mm
