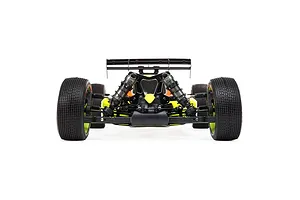

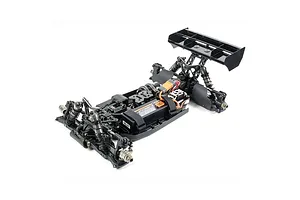

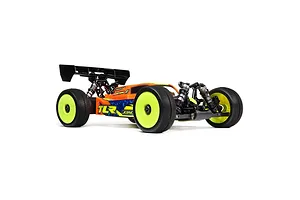

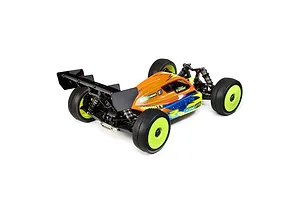

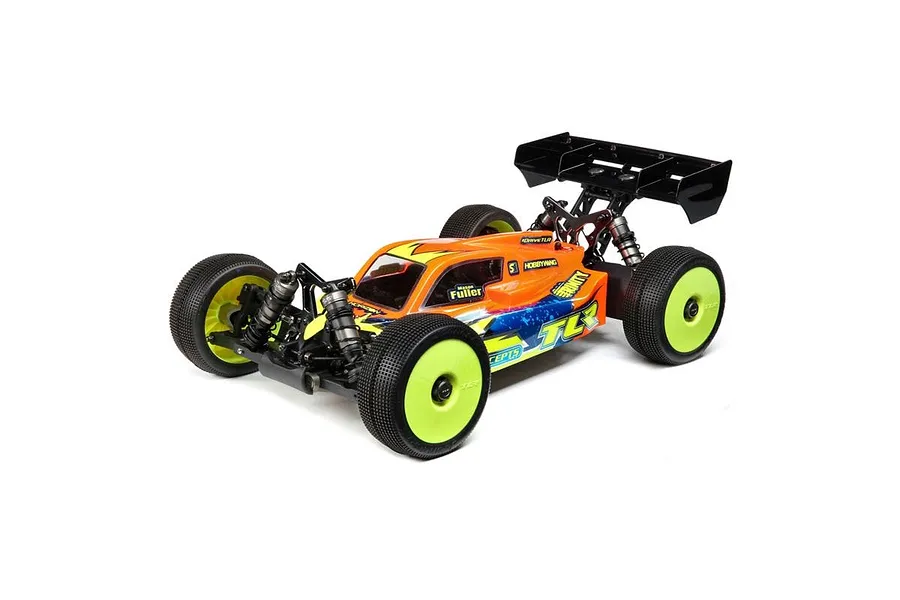

TLR 8ight-XE Elite Competition RC Buggy Electric 4WD 1/8 Scale Kit

TLR 8ight-XE Elite Competition RC Buggy Electric 4WD 1/8 Scale Kit

TLR 8ight-XE Elite Competition RC Buggy Electric 4WD 1/8 Scale Kit

Brand: TLR | SKU: TLR04011
discontinued
Shop replacement & upgrade parts for this model
Shop Parts
Description

The all-new Team Losi Racing® 8IGHT-XE ELITE buggy builds on the championship-winning heritage of its predecessors with updates to the suspension geometry and drivetrain as well as the chassis layout that make it both easier to drive and tougher to beat. Plus, it includes the option parts our award-winning race team uses to win races around the world. It’s ready for high-level competition right out of the box. The 8IGHT-XE ELITE has a combination of features second-to-none including carbon centre diff brace, 3.5mm shock shafts, aluminium front brace, front universals, 10mm wing riser, wider hexes, new pistons, carbon fibre arm inserts, poly-carbonate wing, updated rear CVA axles, and so much more. In a class all by itself, the 8IGHT-XE ELITE buggy is designed for the elite racer and podium-ready.


Pro-Level Race Ready

The 8IGHT-XE ELITE includes the option parts our elite level race team utilizes to win races around the world, thus creating a vehicle that is high-level competition-ready right out of the box. Included option parts are carbon centre diff brace, 3.5mm shock shafts, aluminium front brace, front universals, 10mm wing riser, wider hexes, new pistons, carbon fibre arm inserts, poly-carbonate wing, and updated rear CVA axles.

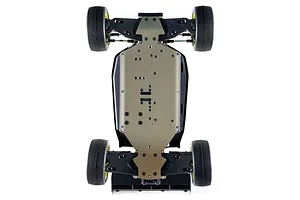

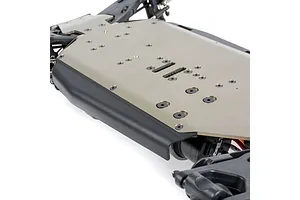

7075 - 3mm Aluminum Chassis

The ELITE chassis moves weight forward and decreases the wheelbase to give the car more overall grip. Chassis width has been increased to aid in stability and give the buggy a more neutral feel.

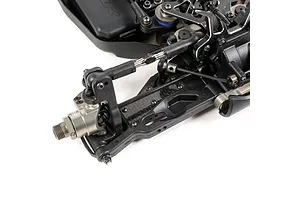

Updated Rear CVAs

The 8IGHT-XE ELITE includes rear CVAs with an updated axle and shaft providing more overall rear grip to the car and better tracking through the bumpy conditions.

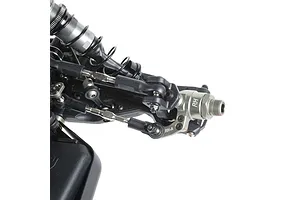

Front Universals included

The 8IGHT-XE ELITE includes universals for the front which makes the car smoother exiting turns and aids in the flow in bumpy track conditions.

Carbon Center Diff Brace

The ELITE version includes the carbon centre diff brace for increased rigidity.

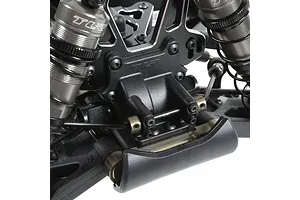

Aluminum Front Brace

The 8IGHT-XE ELITE includes the aluminium front brace providing smoother steering response.

+1 Hexes

+1mm width hexes are included for the rear of the 8IGHT-XE ELITE to add stability in high-speed turns.

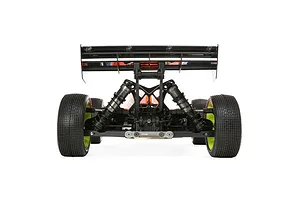

Two Wings and Wing Riser

The 8IGHT-XE ELITE includes both the IFMAR wing as well as our polycarbonate wing. We also include a 10mm wing riser for added rear grip.

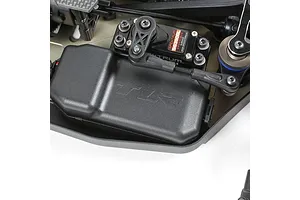

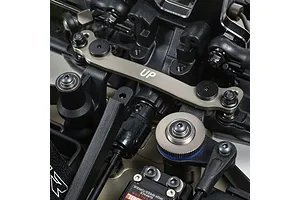

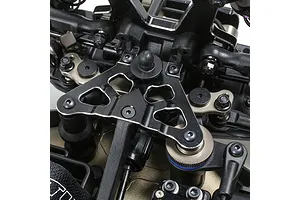

Steering Rack Updated

The steering rack allows more ackerman adjustments and an improved servo saver to eliminate bellcrank bind during high loads.

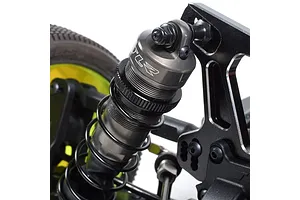

Bleeder Shock Caps

Machined aluminium shock caps with threaded bleeder holes for easy and consistent bleeding of oil. New bladders are also included for better bump handling.

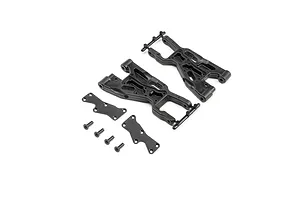

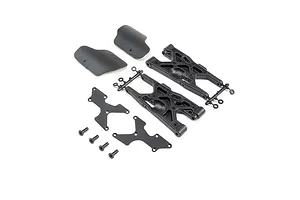

Suspension Arms

Webbing added between inner mounting tabs to ensure hinge pin fit. Mould updated to increase strength. Suspension arms have been designed to accept stiffener plates allowing racers to tune the flex of the suspension. The ELITE includes both moulded plates and carbon plates.

Shock Towers

Machined 7075-T6 aluminium shock towers.

Better Diff Access

The front and rear diff case have been altered to allow easier access to the differentials without removing the bulkheads from the vehicle. The front diff case has been updated to allow better fitment of the front arms while the rear case has been updated to increase the strength of the area holding the shock tower.

Optimized Shocks

The 8IGHT-XE ELITE shocks are optimized and lightened to decrease the centre of gravity and lower the weight of the car as well as offer the use of both 3.5mm and 4.0mm shock shafts.

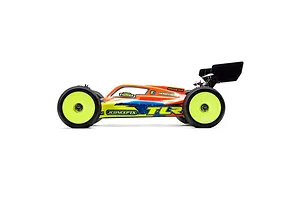

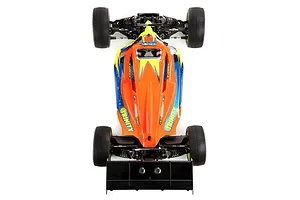

Cab Forward Style Body

A cab-forward design helps with overall downforce, which improves steering and overall stability. Cut lines have been updated for ease of installation and changing of settings.

Equalized driveline

The centre driveshaft angles have been modified so they are equal front to rear allowing for a more 4WD feel to the vehicle.

Improved Suspension Geometry

The 8IGHT-XE ELITE Next Gen suspension geometry has been completely revamped making a car that is fast, nimble, and easy to drive. This includes a myriad of updates including wider front and rear arms, wider front pivot with less scrub radius, narrower rear pivot, and updated hub offset.

Larger Pinion Bearing

The pinion bearing size inside the front and rear gearboxes has been increased for added durability.

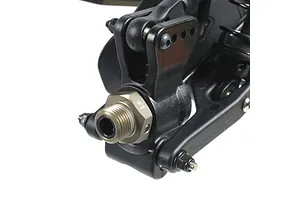

Adjustable Castor Blocks

17.5 deg castor blocks are included allowing the height of the spindle to be adjusted up and down for more or less high-speed stability.

Sway Bar System

The sway bar system has collars eliminating side to side play to provide a more consistent suspension package.

Chassis Side Guards

The chassis side guards have an improved fit onto the chassis.


Features
  • Pro Level Race Ready
  • 7075 - 3mm Aluminium Chassis
  • Updated Rear CVAs
  • Front Universals included
  • Carbon Center Diff Brace
  • Aluminum Front Brace
  • +1 Hexes
  • Two Wings and Wing Riser
  • Steering Rack Updated
  • Bleeder Shock Caps
  • Suspension Arms
  • Shock Towers
  • Better Diff Access
  • Optimized Shocks
  • Cab Forward Style Body
  • Equalized driveline
  • Improved Suspension Geometry
  • Larger Pinion Bearing
  • Adjustable Castor Blocks
  • Sway Bar System
  • Chassis Side Guards


Required Items
  • Motor
  • Electronic Speed Control
  • Servo
  • Radio System
  • Charger
  • Battery
  • Paint
  • Tools
  • CA Glue

Specifications
  • Type: Electric 4WD Buggy
  • Completion Level: Kit
  • Scale: 1/8
  • Length: 19.6 in (497mm)
  • Width: 12.1 in (308mm)
  • Height: 7.1 in (180mm)
  • Weight: Varies on equipment used
  • Ground Clearance: 2.4 in (60mm)
  • Wheelbase: 12.8 in - 13 in (326mm-329mm)
  • Track: 12.1 in (308mm)
  • Front Track: 12.1 in (308mm)
  • Rear Track: 12.1 in (308mm)
  • Chassis: 3mm, 7075 T-6 Aluminum, Hard Anodized
  • Suspension: Independent
  • Shock Type: Aluminum Oil Filled
  • Wheel Type: TLR® 22™ Dish, 12mm Hex
  • Drivetrain: 4WD
  • Differential: Sealed viscous filled gear differential
  • Wheel Type: Dish
  • Wheel Diameter: 3.3" (83.5mm)
  • Wheel Width: 1.7" (42mm)

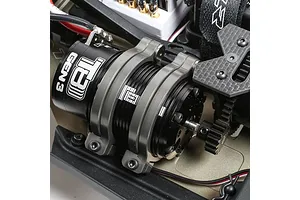

  • Motor Size: 670 Sized 8th Motor
  • Pinion: 15T
  • Spur Gear: 46T
  • Gear Pitch: MOD1
  • Internal Gear Ratio: 3.23:1
  • Body: 8XE Unpainted
  • Ball Bearings: Yes
  • Experience Level: Advanced
  • Recommended Environment: Closed Course Competition
  • Is Assembly Required: Yes
  • Approx. Assembly Time: 3-5 Hours


Specifications
Factory Specs
Pinion Gear
15T 1Mod
Spur Gear
46T 1Mod
Rear Differential Oil
4000w
Wheel Hex Size
17mm
Rear Shock Oil
32w
Front Differential Oil
7000w
Battery Connector
Max LiPo Power
Front Shock Oil
Centre Differential Oil
7000w
RC Car
Skill Level
Expert
Max LiPo Power
4S (14.8v)
Completion
Kit
Drivetrain
4WD
On/Off Road
Off Road
Chassis Type
Buggy
Scale
1/8
