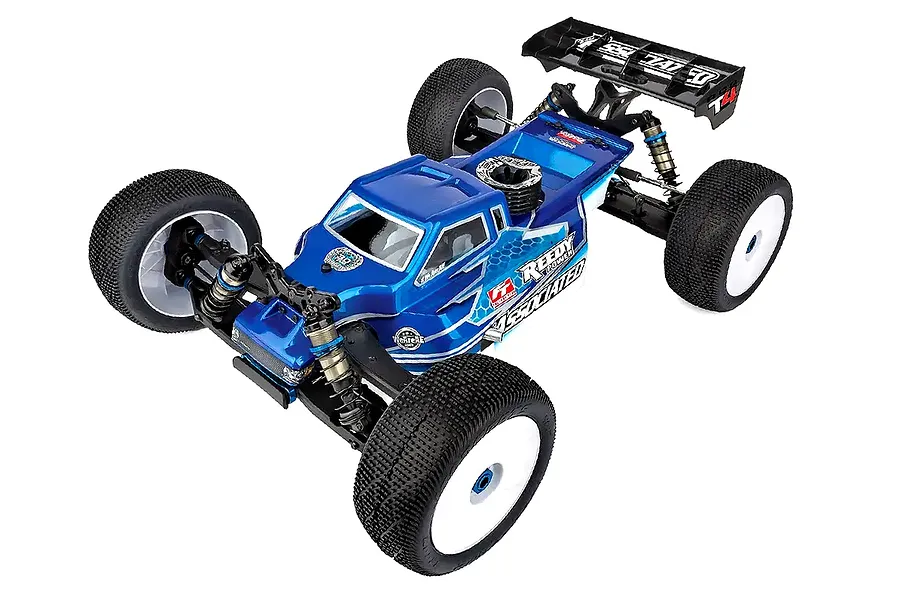

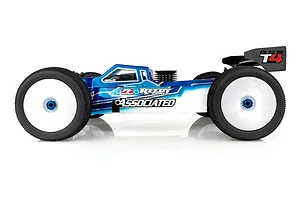

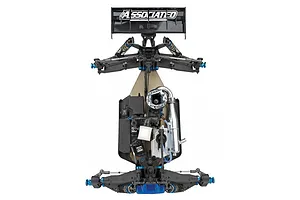

Name: Team Associated RC8T4 Team Kit RC Truggy Nitro 4WD 1/8 Scale Kit
Brand: Team Associated
SKU: ASS-80947
Price: 908.11 AUD
Availability: InStock

Overview

Please Note: No body is included with RC8T4e kit. Racers can use AE #81324 RC8T3 body or choose from a variety of current bodies from aftermarket companies. This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

1:8 scale off road racing is one of the hobby's most challenging disciplines; it requires a high standard and demands attention to detail. The latest development to come from Associated Electrics' Area 51 is designed to push boundaries of performance and build upon the number of accolades accumulated by the RC8 series.

Note

No body is included with the RC8T4 kit. Racers can use AE #81324 RC8T3 body or choose from a variety of current bodies from aftermarket companies. This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

Features

Innovative front-end geometry with reduced kingpin inclination — places the wheel pivot in the centre of the front tyre for increased stability and consistent steering through the entire steering throw
Paired with a new wider upper suspension arm pivot
New gearboxes specific to front and rear: front gearbox has a 3.5 deg. inclined pinion gear angle; rear gearbox has a 0 deg. pinion gear angle and centre-mounted rear chassis brace mount
Both gearboxes feature larger bearing sizes (6x13x5mm flanged, up from 6x12x4mm non-flanged) for longer bearing and ring-and-pinion life
Reduced hardware on anti-roll bar cap for easy assembly and maintenance
Increased strength around pinion gear and outer cap bearing fitment areas
Updated front upper suspension arm with added moulded hinge pin bushing to reduce slop and increase suspension dynamics
New rear wing mount with adjustable wing angle shims, significant strength improvements, aerodynamic shape, and extra clearance for shock position adjustment
Two wing height options and three wing angle positions: 0, -2, and -4 deg.
New rear wing with more vertical fins for increased straight-line stability and taller rear wickerbill height for increased downforce
Two wing buttons included: one traditional flat button and one vertical stabilising fin

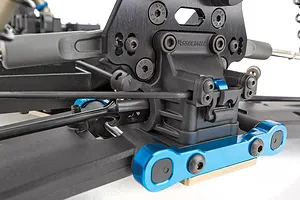

New rear chassis brace centrally mounted to the gearbox with three chassis flex options and optional turnbuckle ball
New +1mm offset rear hub with symmetrical left/right common design and axle height inserts for adjustable roll centre tuning
New two-piece clamping motor mounts — gear mesh adjusted from the bottom of the chassis
New +2 mm taller front shock tower with body mount positions for bruggy, truggy, and buggy front-end body styles
New longer shock shafts: 35.5mm front and 44.5mm rear; 0mm, +2mm, and +4mm shock rod ends included
V3 differentials with 46T ring and 10T pinion gears
RC8T3.2 split centre diff mounts with aluminium centre top plate
16mm shocks with locking spring cups, V2 springs, stiff-style shock bladder, combination bleeder/emulsion caps, and blue aluminium threaded collars
RC8B3.2 narrow C and D arm mounts

In the box

1x Team Associated RC8T4 Team Kit
1x Instruction Manual

You'll need

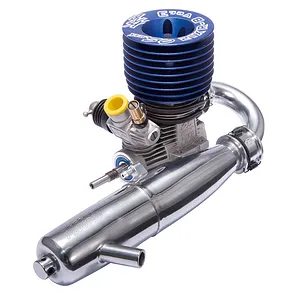

1:8 scale nitro motor (.21 class rear exhaust engine)
Exhaust system (muffler and header)
4.8V–7.6V receiver battery
Battery charger (suited for batteries mentioned above)
2-channel surface transmitter, 2-channel receiver, throttle and steering servos
1:8 body
Lexan-specific spray paint for body
1:8 scale off-road wheels and tyres
4x AA batteries

Add them from the buy box

Highlights

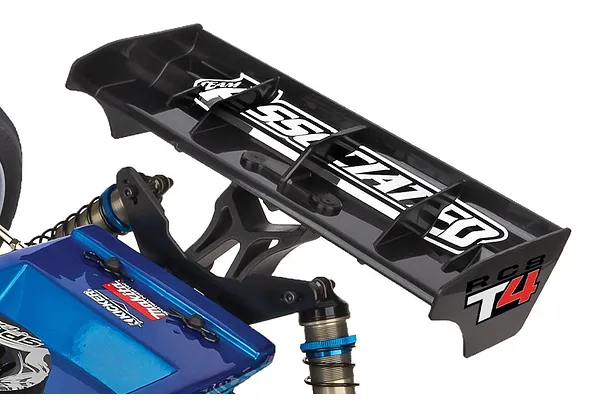

Enhanced Wing Design

Experience enhanced stability and control with the redesigned wing, featuring vertical rear fins and a taller rear lip for increased downforce and improved handling at high speeds.

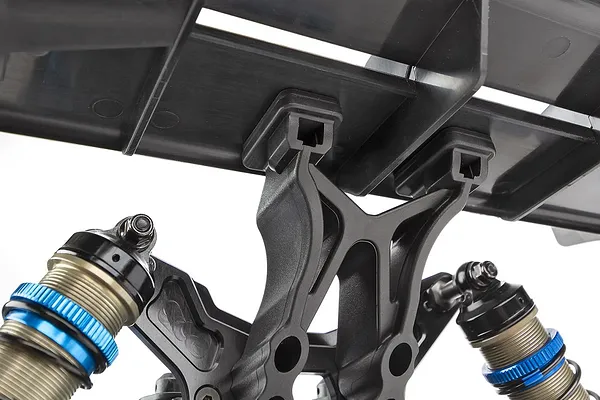

Adjustable Wing Mount

Fine-tune your wing angle with the adjustable wing mount, complete with shims for precise customisation. This Team Kit also features strength and aerodynamic improvements for increased durability and efficiency.

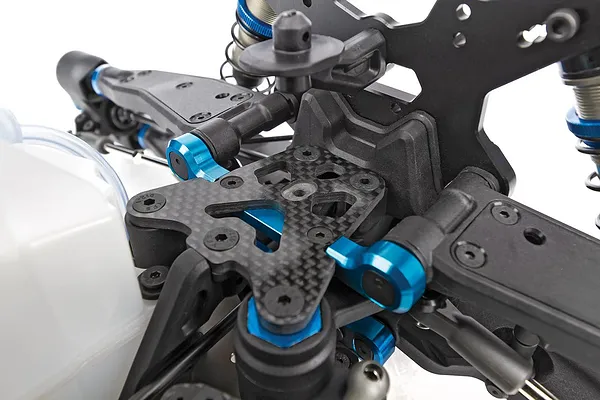

Balanced Chassis Flex with Carbon Fibre Top Plate

Achieve balanced flex in all directions with the carbon fibre front top plate, which centralises the front chassis brace for improved handling and responsiveness.

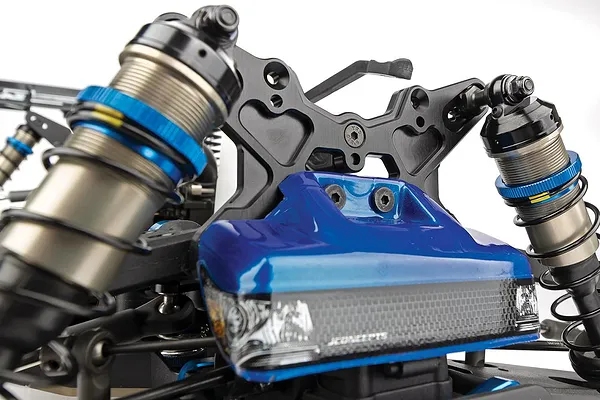

Updated Front Shock Tower and Suspension Geometry

Enjoy enhanced steering response and overall handling thanks to the new front shock tower design with updated suspension geometry and body mount positions.

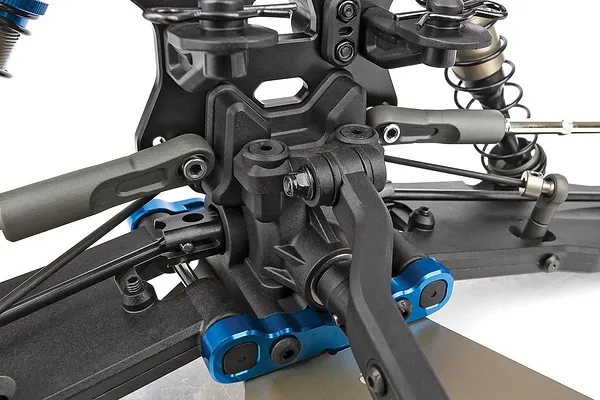

Durable Rear Chassis Brace

A centrally mounted rear chassis brace reduces material fatigue and increases durability for long-lasting performance.

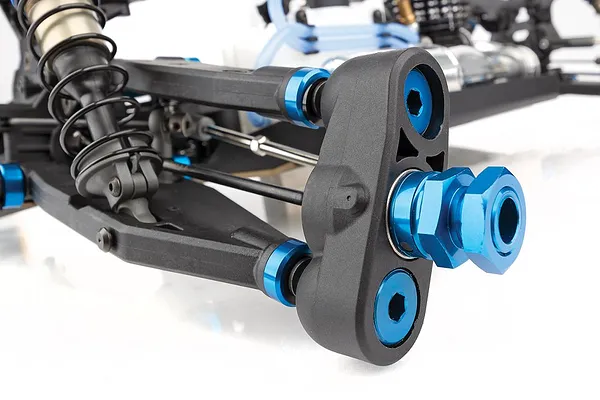

Innovative Front-End Geometry

Experience improved steering precision and control with the innovative front-end geometry and new 8° steering blocks.

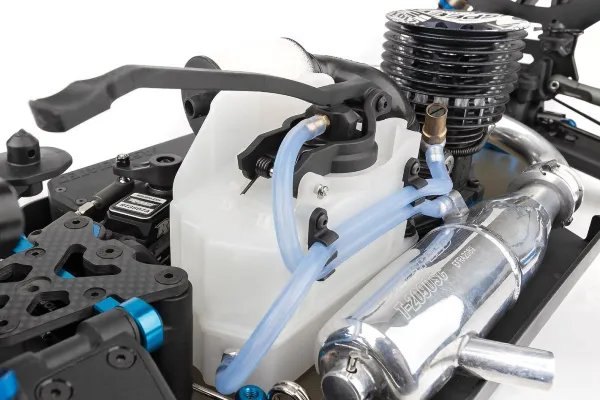

User-Friendly Fuel Tank

Refuel with ease using the ergonomically designed fuel tank, featuring a high capacity and quick-reference fuel markings for convenient monitoring.

Specifications

Length	560mm (22.05")
Width	Varies
Height	N/A
Wheelbase	Varies
Weight	Varies
Chassis	N/A
Suspension	Independent Double Wishbone
Drivetrain	4WD
Motor	Nitro (Sold Separately)
ESC	N/A
