Losi

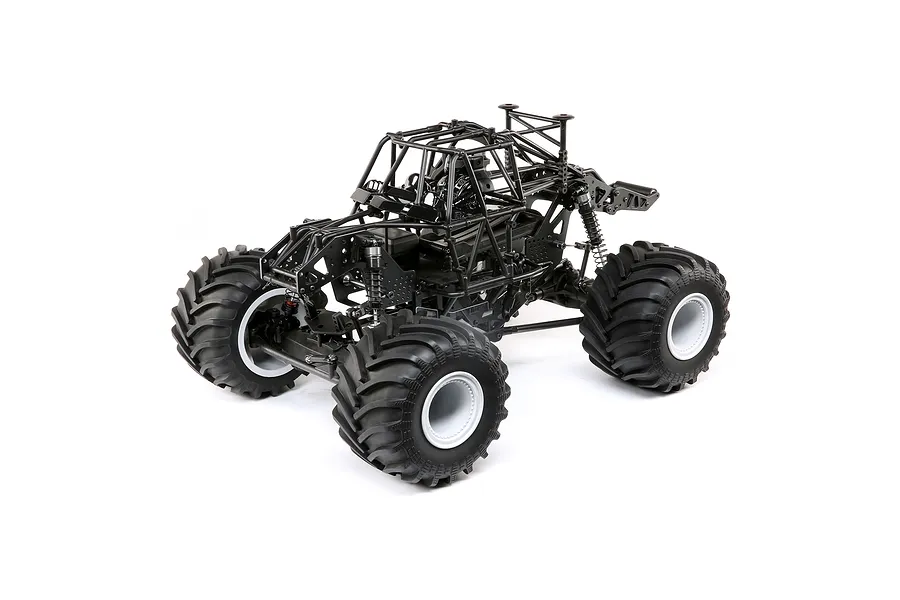

Losi LMT Solid Axle RC Monster Truck Electric 4WD 1/10 Scale Roller

  • 1/8
  • 4WD
  • Brushless

Part no. LOS04022

DiscontinuedWrite a review
1 / 16
1 / 16

Part Support

Replacement & upgrade parts that fit this model

Overview

Completely designed from the ground up, the Losi LMT 4WD Solid Axle Monster Truck Roller is the first of its kind on the market combining all-out performance with incredible scale detail.

Starting with the chassis, a twin vertical plate is designed to provide all the performance adjustments needed to tune the truck for any situation. Whether you are a scale driver, a basher or a racer, the chassis is designed to accommodate multiple shock setups keeping you tracking straight, no matter the terrain. New multi-piece axle housings surround the 1/8th scale drivetrain. The easy access centre transmission comes stock with a centre differential and allows for quick changes with the optional spool for wheel standing action. The axles also allow for optional 4-wheel steering and a new adjustable servo saver. A composite flip top cage adds scale realism and protection, as well as functionality so you can easily access your battery and electronics. Choose your preferred peripherals such as a transmitter, battery, charger, motor and more for a complete custom setup.

Features

  • Solid Axle Monster Truck Roller
  • Twin Vertical Plate Aluminium Chassis — provides extreme strength, durability, and multiple suspension configurations
  • Composite Flip Top Cage
  • Multi-Piece Scale Axle Housing
  • Long Travel Coil Over Shocks with rubber bump stops for superior dampening
  • Centre Differential with Cush Drive — fluid filled, allows tuning of power bleed front to rear
  • 1/8th Scale Differentials
  • Short Course Style Wheel with replaceable centre hub (optional 12mm hub available)
  • Scale Monster Truck Tyre
  • Adjustable Servo Saver — adjustable tension for maximum steering and servo protection
  • Scale Details and Driver Insert
  • Preset motor plate for easy, precise gear mesh
  • Elastomer battery mounting for a versatile battery hold-down system

In the box

  • 1x LMT 4WD Solid Axle Monster Truck Roller
  • 4x BKT Monster Truck Tyres
  • 4x Rims
  • 1x Instruction Manual

You'll need

  • 130A or more ESC
  • Brushless Motor
  • 5-Channel Radio Transmitter and Receiver
  • Body Shell
  • Assorted tools (see manual for details)
  • 2–3S LiPo Battery with IC5/EC5 Connector
  • LiPo Compatible Charger

Highlights

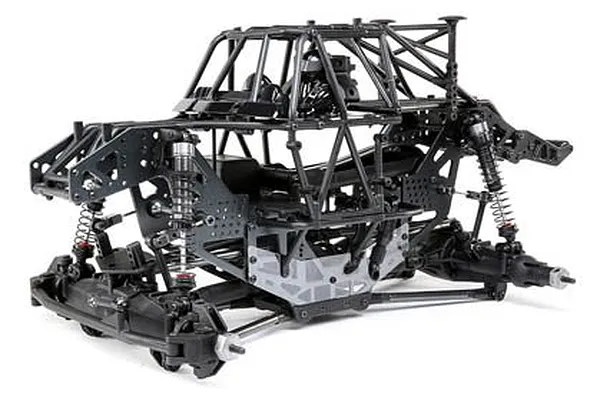

Losi LMT Solid Axle Monster Truck Roller — overview

Losi LMT Solid Axle Monster Truck Roller — overview

The Losi LMT 4WD Solid Axle Monster Truck Roller is the first of its kind on the market combining all-out performance with incredible scale detail.

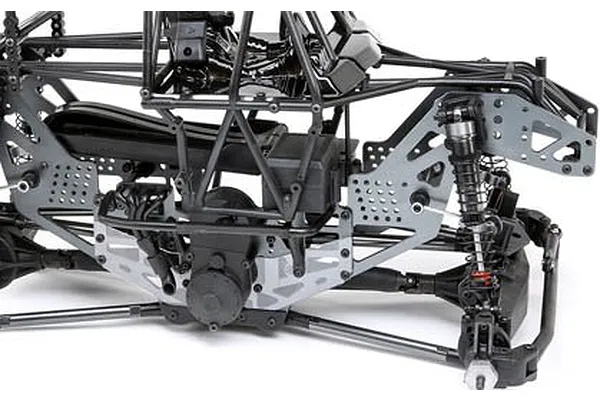

Twin Vertical Plate Aluminium Chassis detail

Twin Vertical Plate Aluminium Chassis detail

Twin Vertical Plate Aluminium Chassis not only provides extreme strength and durability, it also allows for multiple suspension configurations so you can dial your truck into any situation.

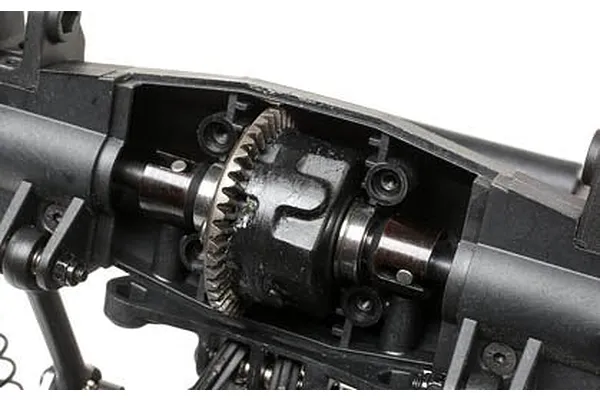

1/8 scale monster truck differentials

1/8 scale monster truck differentials

Fluid filled differentials allow multiple tuning options for optimal performance on any surface.

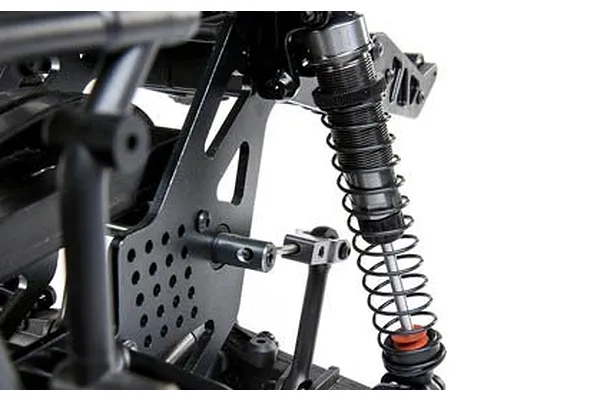

Long travel coil-over shocks

Long travel coil-over shocks

Long Travel Coil Over shocks with rubber bump stops to provide superior dampening.

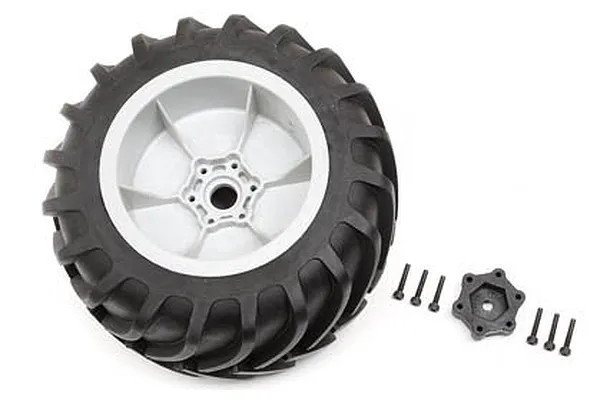

Short course style wheel with replaceable centre hub

Short course style wheel with replaceable centre hub

Short course style wheels with 17mm wheel hex reduce the rotating mass of the tyre while providing additional clearance for all of the steering components.

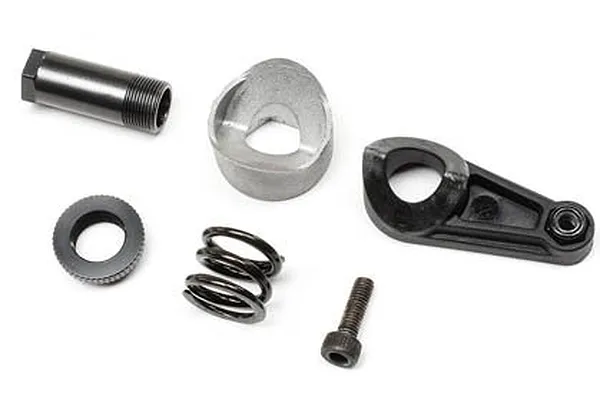

Adjustable servo saver detail

Adjustable servo saver detail

An adjustable servo mounted servo saver allows you to adjust the tension on the servo saver for maximum steering and protection to the servo.

Specifications

Approximate Assembly Time1–3 hours
Ball BearingsFull set
Chassis6061-T6 Aluminium Twin Vertical Plates
DifferentialBevel gear, sealed
Drivetrain4WD
Drive TypeForward/Brake/Reverse
Final Drive Ratio18.76:1
Power TypeElectric
Gear PitchMOD 1.0
Internal Gear Ratio10.16:1
Motor TypeBrushless
Product Height11.8" (300mm)
Product Length22" (559mm)
Product Width15.4" (391mm)
Scale1/8 Roller
Shock TypeAluminium body oil-filled coil-over
SuspensionSolid Axle 4-link
Tyre CompoundFirm
Tyre TreadBKT Monster Truck
Tyre TypeAll-terrain
Vehicle TypeMonster Truck
Wheelbase13.5" (342.9mm)
Wheel Hex Size17mm
Wheel Width4" (101.6mm)

RC Car

Scale1/10
Max LiPo Power3S (11.1v)
CompletionRoller
Skill LevelExperienced
Power SourceElectric Brushless
Chassis TypeMonster Truck
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Rear Shock Oil25w
Front Differential Oil100000
Centre Differential Oil100000
Rear Differential Oil100000
Pinion Gear14T
Wheel Hex Size17mm, 12mm
