Trail Beetle

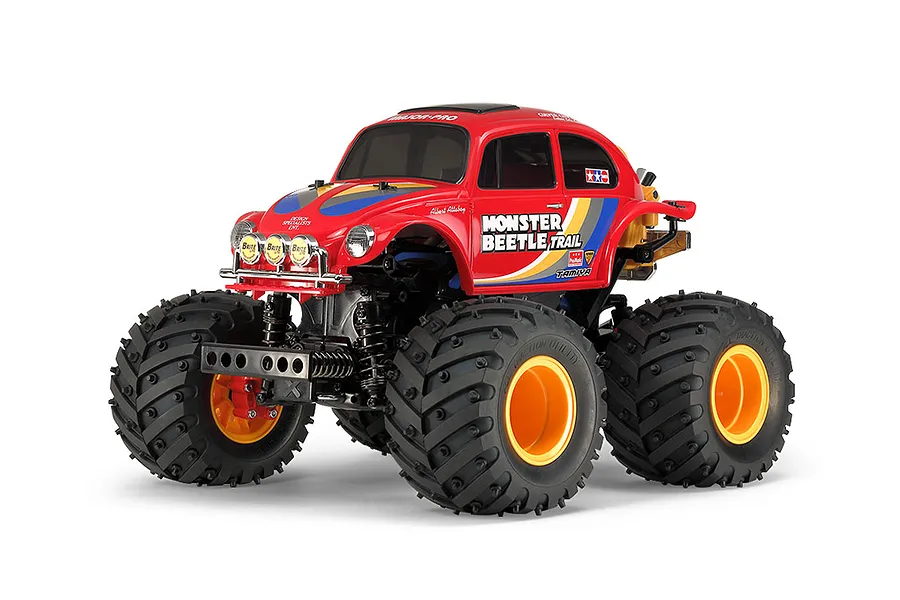

This RC model assembly kit creates a vehicle which offers an excellent off-road drive. Moulded in detailed ABS plastic, its racy body is inspired by customised Volkswagen Beetles, and features exaggerated fenders, a simplified rear end, triple auxiliary lights and more. Metal-plated parts recreate headlights, auxiliary lights and the rear depiction of the engine. The GF-01TR chassis provides a dynamic off-road drive.

4WD GF-01TR Chassis

The GF-01TR gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Reduction gears on each axle slow drive shaft rotation for immense traction, great ground clearance, and the ability to take on tough off-road terrain. The gearbox is sealed to protect from dust and debris, and integrated into the frame; built-in differential gears provide superb traction and durability with the use of included diff putty. 4-wheel double wishbone suspension utilises friction shocks, while a 2-piece tie rod steering setup with the servo on the left gives excellent response. Yellow rims are fitted with 115mm diameter hybrid pin spike/lug pattern tyres for superior cushioning and grip. The chassis utilises a ‘square’ setup with similar tread and wheelbase lengths.

 Key Features

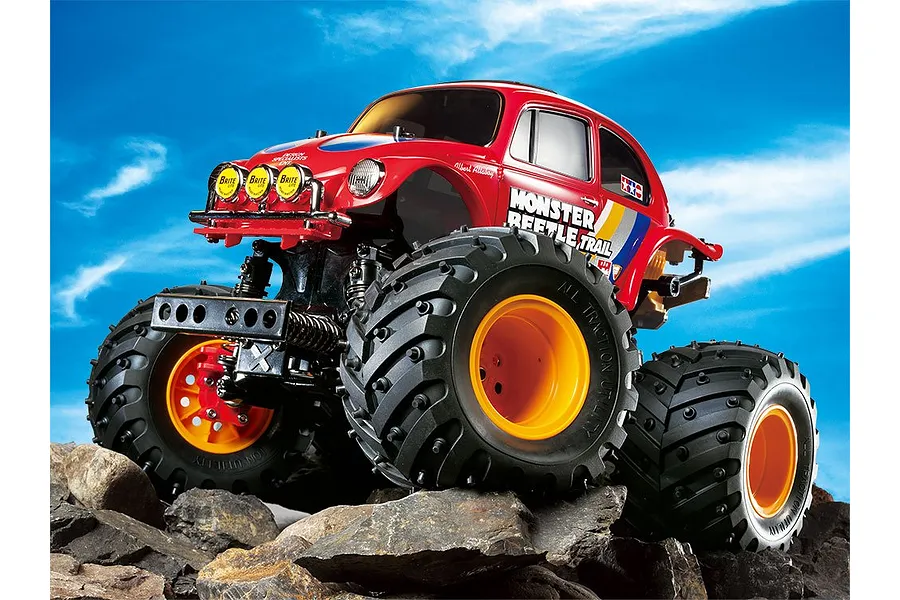

The Monster Beetle Trail offers immense traction that will take it over all kinds of obstacles

Moulded in ABS plastic, the body offers plenty of detail. Metal-plated parts add another layer of realism

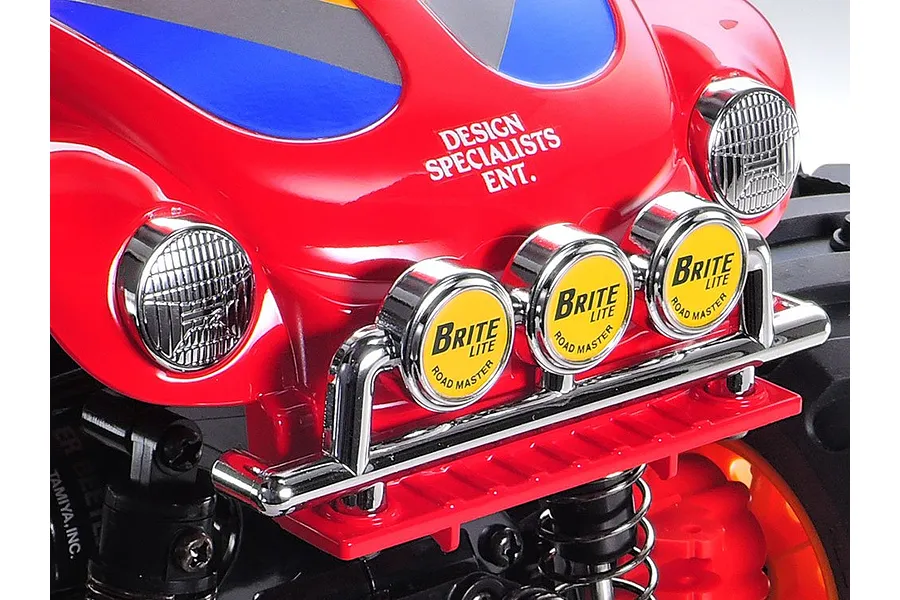

The front is adorned with triple auxiliary lamps, which are metal-plated parts with stickers for decoration

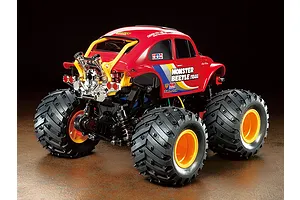

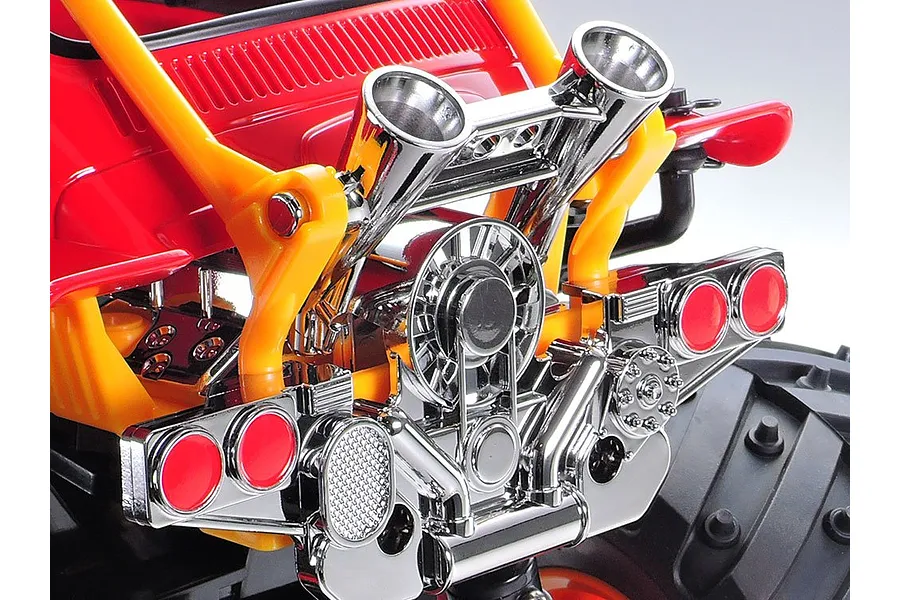

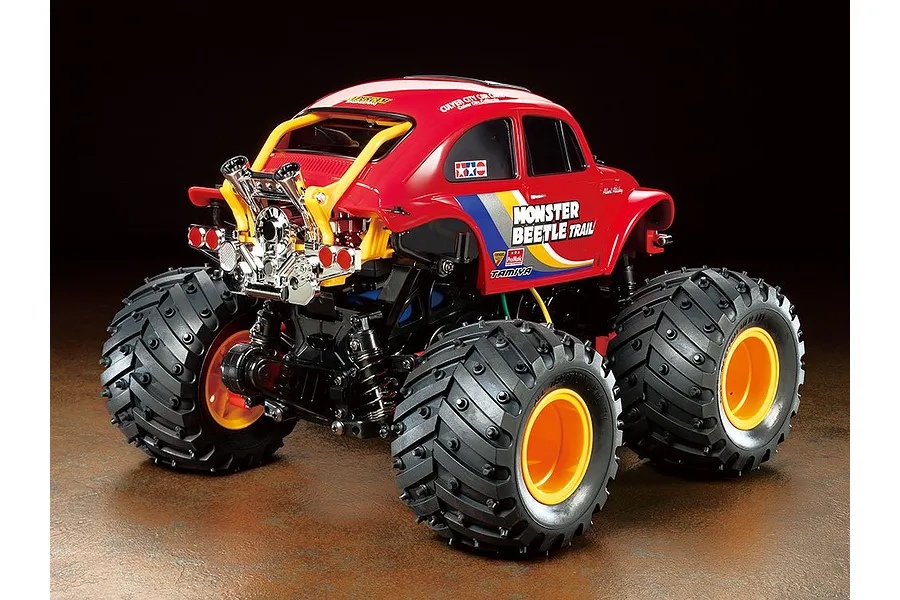

Depictions of engine and muffler are also metal-plated parts. The body also features a sporty roll bar

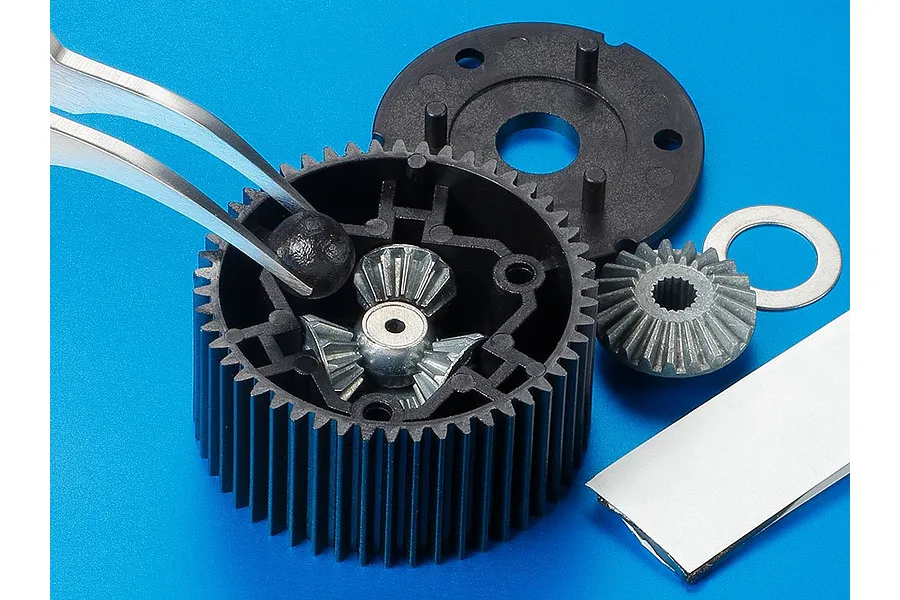

Use the included putty in the gear differentials to help endow this model with superb traction

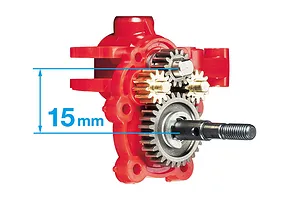

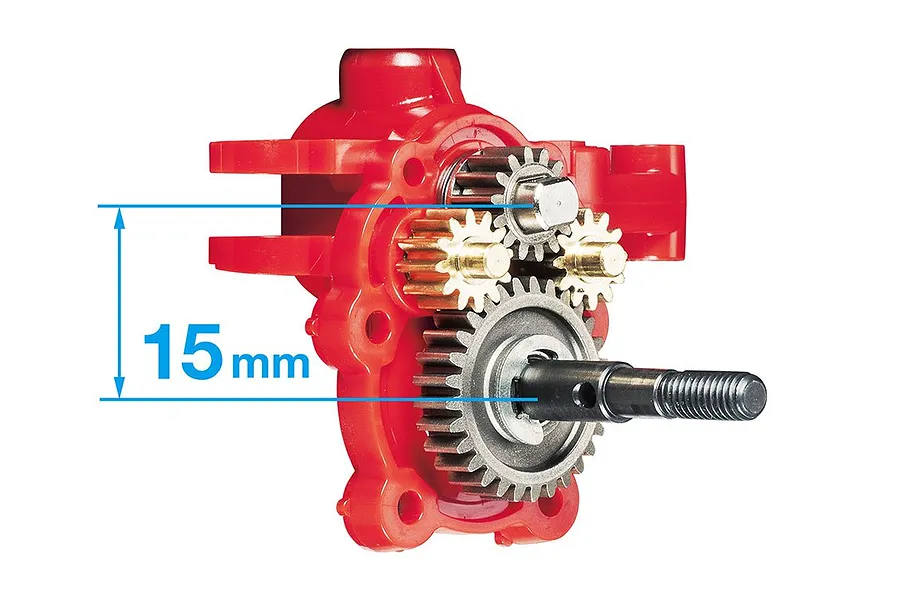

All wheels have hub reduction units, which slow down drive shaft output for greater torque

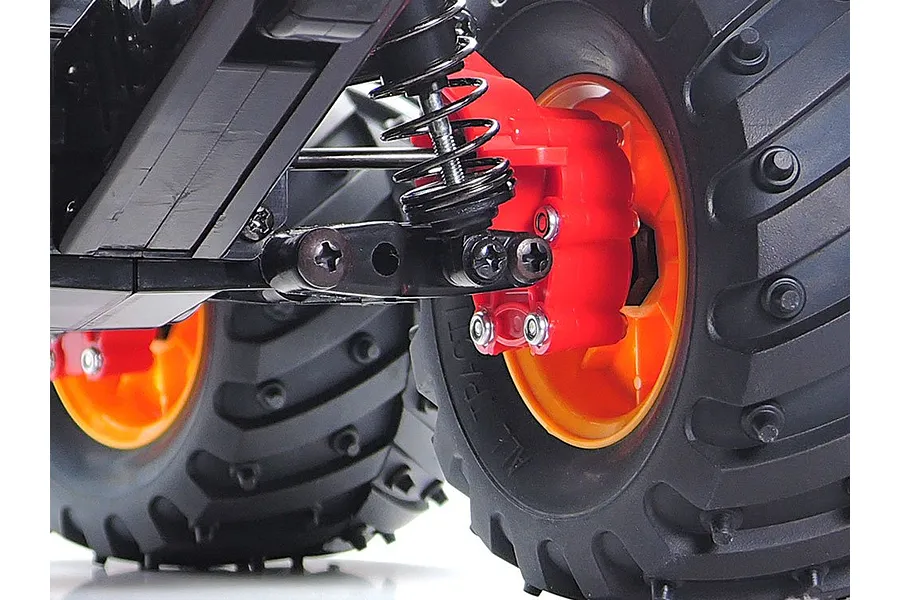

The chassis has higher ground clearance that further boosts its capabilities on tough terrain

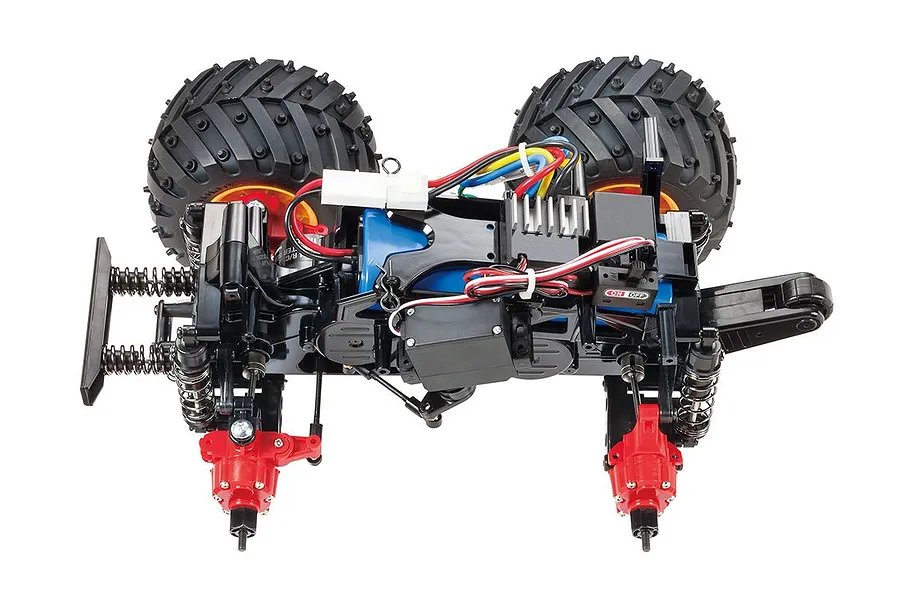

At the core of the GF-01TR chassis is a slimline monocoque which doubles as a gear case

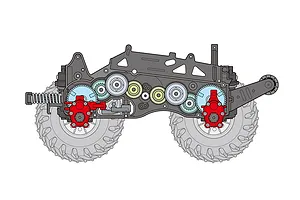

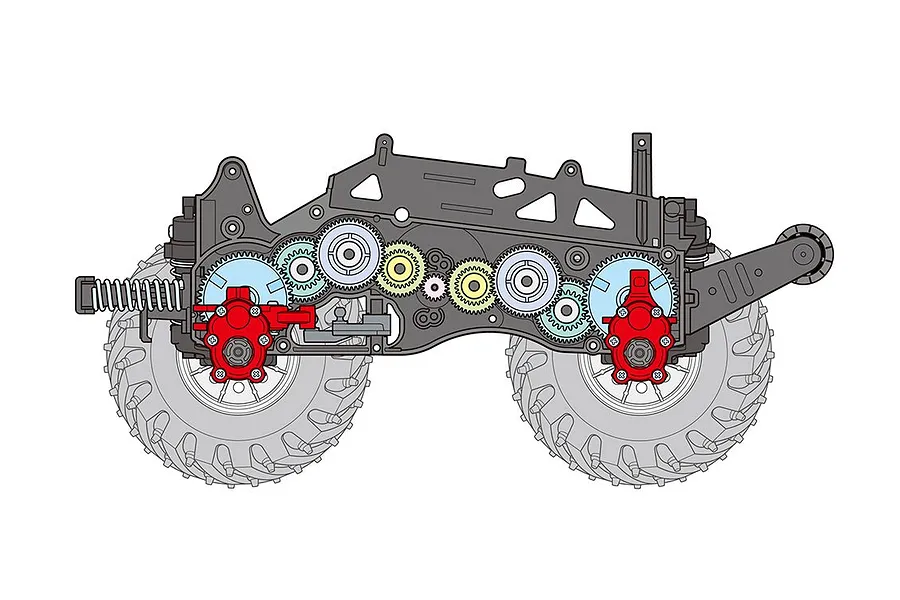

A closer look at the complex drivetrain, shown here in this profile view of the chassis

• The detailed body is moulded in red resin. It depicts a customised Beetle with gaping fenders, triple auxiliary lights and a shortened rear end.
• Metal-plated parts for headlights, auxiliary lights and engine make for a superbly realistic look.
• The model is based upon the tough, reduction gear-fitted GF-01TR variant chassis, for an accomplished off-road ride.
• 37.35:1 gear ratio (with the kit-standard 18T pinion gear) gives great drive. The model is also compatible with 20T pinion gears (for a 33.61:1 gear ratio).
• Yellow rims are joined by 115mm diameter hybrid pin spike/lug pattern tyres for superior cushioning and grip
• Four-Wheel Independent Double Wishbone Suspension
• Includes Type 450 Motor

• Scale: 1/14
• Length: 333mm (13.1")
• Width: 270mm (10.6")
• Height: 215mm (8.46")
• Wheelbase: 174mm (6.85")
• Body Shell: ABS Resin
• Chassis Type: GF-01TR
• Construction Type: Assembly Kit
• Motor: 540-Brushed Type
• Electronic Speed Control (ESC): Not Included
• Motor Position: Centre
• Wheel Drive: 4WD
• Gear Ratio: 37.35:1
• Shocks: Friction Front & Rear
• Suspension: 4-Wheel Double-Wishbone
• Terrain Use: Off Road

• 7.2V NiMH Battery & Compatible Charger
• Standard Sized Servo
• Electronic Speed Controller (ESC)
• 2Ch Transmitter & Receiver
• Tamiya TS Paint

• The Body Shell is constructed with ABS Plastic and requires Tamiya TS paints if you wish to change the colour.
