Tamiya 1/8 T3-01 Dancing Rider RC Trike Kit

Tamiya 1/8 T3-01 Dancing Rider RC Trike Kit

Tamiya 1/8 T3-01 Dancing Rider RC Trike Kit

Brand: Tamiya | SKU: 57405
discontinued
Description

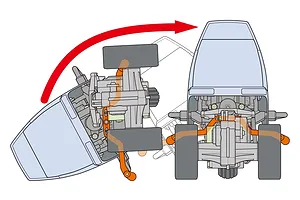

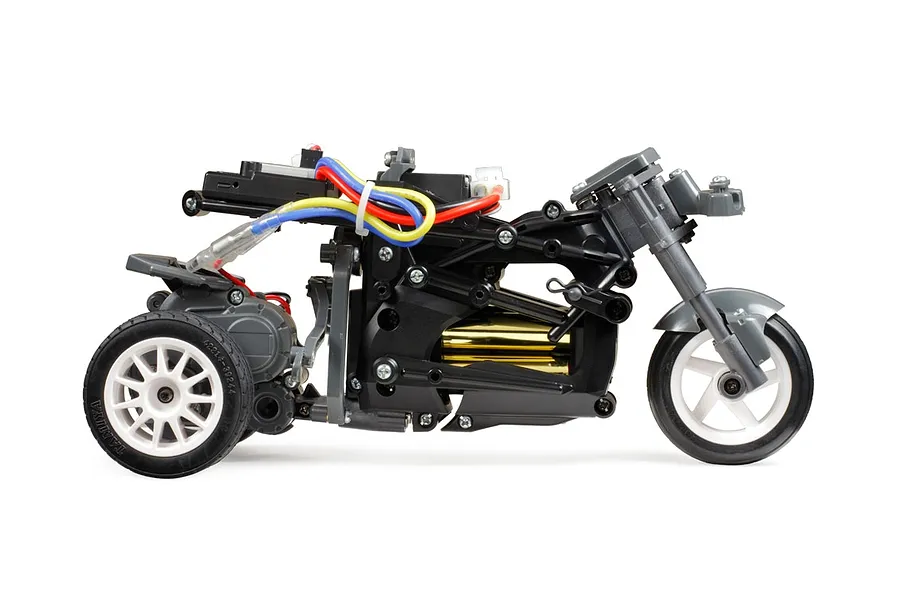

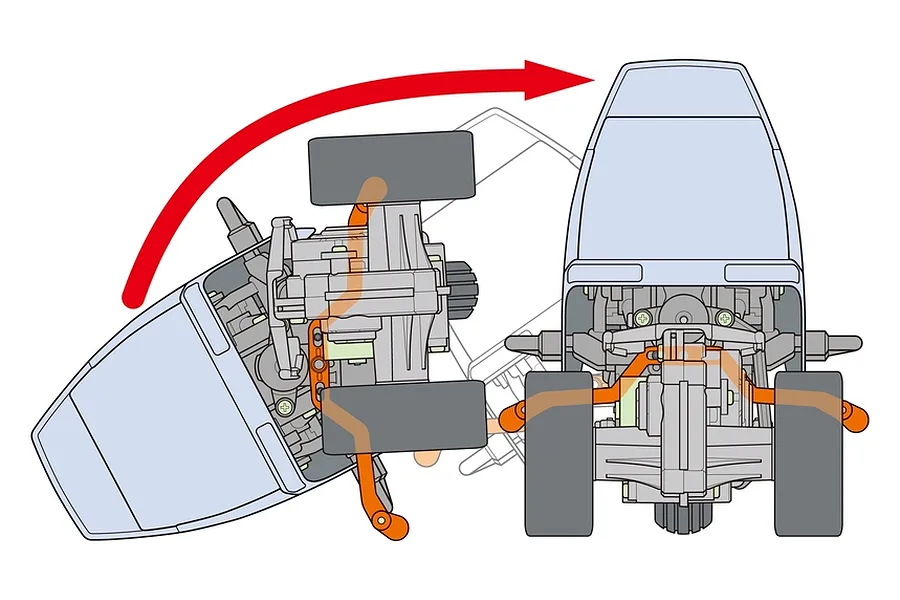

This radio control model replicates delivery trikes widely seen making deliveries in Japan. When the model turns, the 3-wheel chassis "leans" into the corner much like their full-size counterparts. The 3-wheel chassis features the motor in the rear section, with the battery in the front. The two sections are linked in the middle, and a steering servo leans the entire front section left and right to effect turns. Furthermore, support arms are linked to the steering servo, and help to right the model if it happens to tip over.

Specifications

?Length: 260mm

?Width: 135mm

?Height: 175mm

?Wheelbase: 196mm

?Tread (Rear): 91mm

?Tire Width/Diameter 21/61mm (Front), 25/59mm (Rear)

Features

?Monocoque Chassis

?Rear-Wheel Drive

?Planetary Differential Gear

?Front Suspension: Telescopic Fork

?Rear Suspension: Cam-Slide

?Gear Ratio = 10.7:1

?Requires: 2-channel radio, steering servo, Electronic Speed Controller, battery pack & charger (sold separately)

?Type 370 Motor included


Note: Battery pack size must be under 66x36x15mm


Separately sold Item 51610 T3-01 Battery Case allows use of AA batteries to power the chassis.

Specifications
Motorcycles
Max LiPo Power
2S (7.4V)
Scale
1/8
Power Source
Electric
On/Off Road
On Road
Factory Specs
Centre Differential Oil
Spur Gear
Max LiPo Power
2S (7.4v)
Wheel Hex Size
mm
Pinion Gear
Rear Differential Oil
Front Differential Oil
Rear Shock Oil
Front Shock Oil
Battery Connector
