Name: Tamiya GF-01TR Monster Beetle Trail RC Rock Crawler Electric 4WD 1/14 Scale Kit
Brand: Tamiya
SKU: TAM-58672
Price: 404.01 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter.

ABS Body Shell

This body shell can be painted using The Tamiya TS series of lacquer paints. Polycarbonate paints such as the Tamiya PS series will not adhere and/or cause damage to the body shell's surface. To view our range of compatible paints, please CLICK HERE.

This RC model assembly kit creates a vehicle which offers an excellent off-road drive. Moulded in detailed ABS plastic, its racy body is inspired by customised Volkswagen Beetles and features exaggerated fenders, a simplified rear end, triple auxiliary lights and more. Metal-plated parts recreate headlights, auxiliary lights and the rear depiction of the engine.

The GF-01TR gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Reduction gears on each axle slow drive shaft rotation for immense traction, great ground clearance and the ability to take on tough off-road terrain. The gearbox is sealed to protect from dust and debris and integrated into the frame; built-in differential gears provide superb traction and durability with the use of included diff putty. Four-wheel double wishbone suspension utilises friction shocks, while a 2-piece tie rod steering setup with the servo on the left gives excellent response. Yellow rims are fitted with 115mm diameter hybrid pin spike/lug pattern tyres for superior cushioning and grip.

Note

The body shell is constructed with ABS plastic and requires Tamiya TS paints if you wish to change the colour.

Features

Detailed body moulded in ABS plastic, depicting a customised Beetle with gaping fenders, triple auxiliary lights and a shortened rear end
Metal-plated parts for headlights, auxiliary lights and engine for a realistic look
Based on the tough, reduction gear-fitted GF-01TR variant chassis for an accomplished off-road ride
37.35:1 gear ratio (with kit-standard 18T pinion gear); also compatible with 20T pinion gears (33.61:1 gear ratio)
Yellow rims with 115mm diameter hybrid pin spike/lug pattern tyres for superior cushioning and grip
Four-wheel independent double wishbone suspension
Includes Type 450 Motor

In the box

1x 1/14 GF-01TR Monster Beetle Trail Crawler Kit
1x Decals set
1x Product Manual

You'll need

7.2V NiMH Battery & Compatible Charger
Standard Sized Servo
2-Channel Transmitter & Receiver
Tamiya TS Paint

Highlights

Comical Design with Powerful Performance

The GF-01TR Monster Beetle Trail features a fun and comical design with its lifted stance and oversized tyres, while also delivering impressive off-road capabilities.

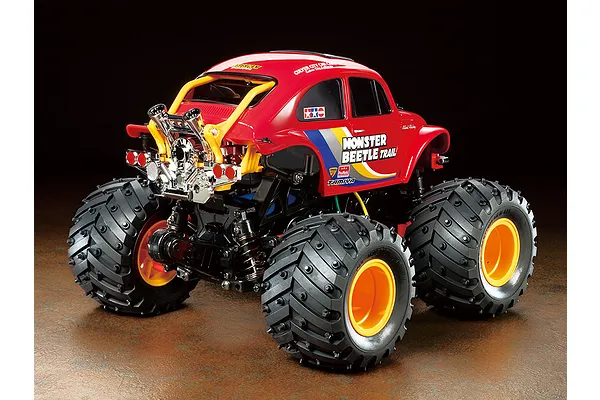

Detailed ABS Resin Body with Plated Accents

The Monster Beetle Trail's body is meticulously crafted from ABS resin, capturing the iconic shape and details of the original Monster Beetle. Plated parts, such as the auxiliary lamps, engine components, and muffler, enhance the realism and add a touch of style.

High-Traction Gear Differential

The Monster Beetle Trail utilises a gear differential with high-traction gum, providing excellent grip and control on challenging terrain.

Hub Reduction Units for Increased Torque

Hub reduction units on all four wheels reduce driveshaft rotation and increase torque, enhancing the Monster Beetle Trail's climbing and crawling abilities.

Enhanced Ground Clearance

The lowered wheel axle position increases the minimum ground clearance, allowing the Monster Beetle Trail to navigate rough terrain with ease.

Efficient Vertical Battery Layout

The battery is positioned vertically at the rear of the slim monocoque chassis, optimising weight distribution and maximising space for the electronics.

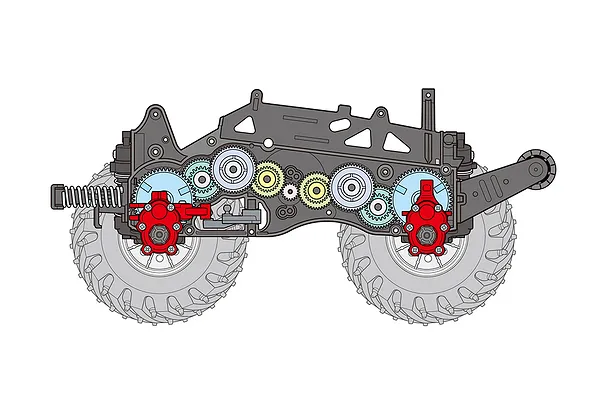

Centrally Mounted Motor with Gear-Driven Drivetrain

The centrally mounted motor and gear-driven drivetrain ensure efficient power delivery to all four wheels, providing smooth and reliable performance.

Red Resin Custom Beetle Body

The detailed body is moulded in red resin, depicting a customised Beetle with gaping fenders and triple auxiliary lights.

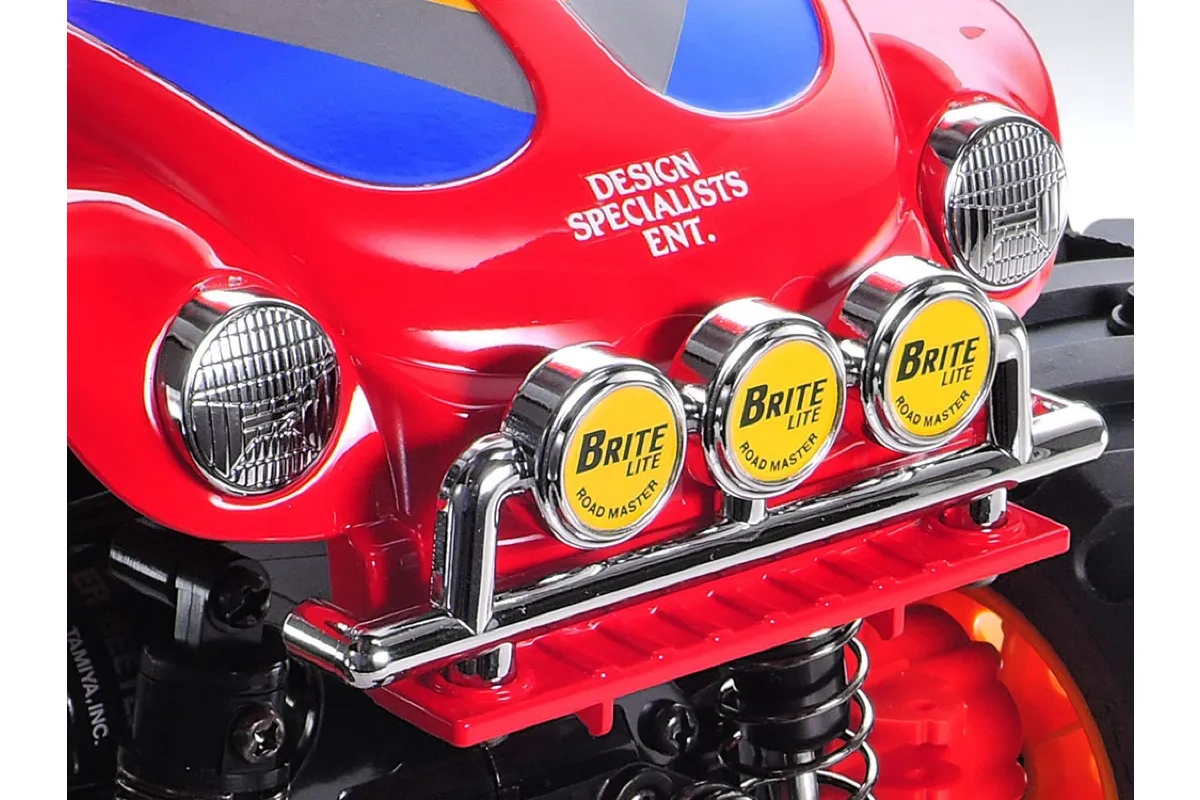

Monster Beetle Trail body detail — front auxiliary lights

The front is adorned with triple auxiliary lamps, which are metal-plated parts with stickers for decoration.

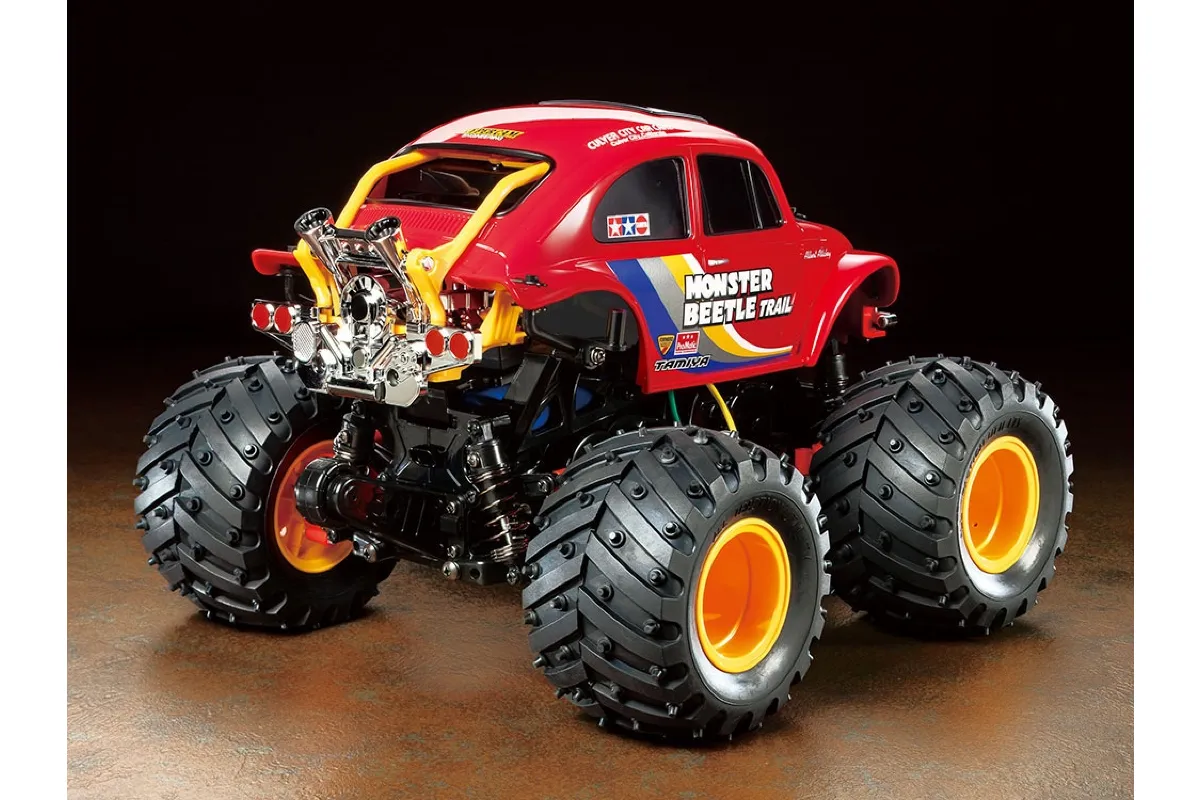

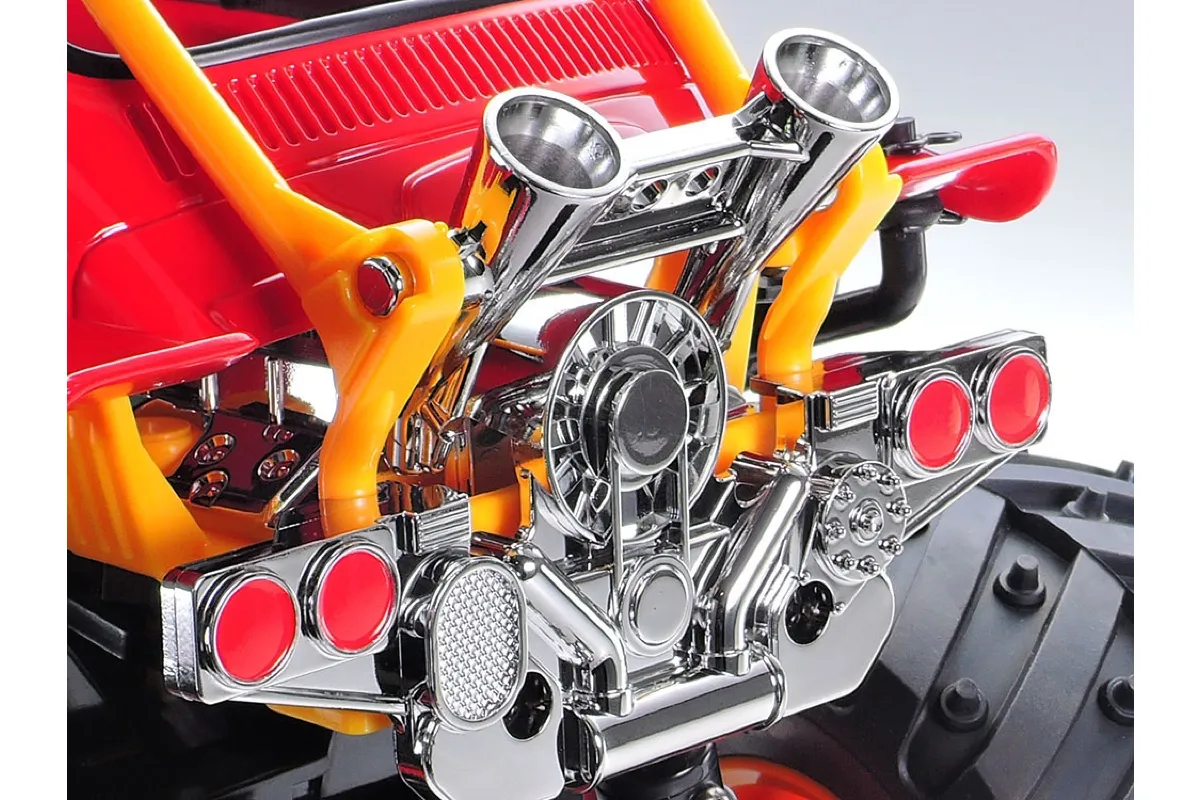

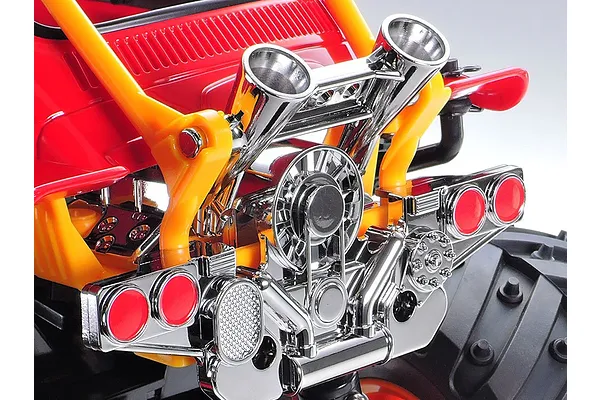

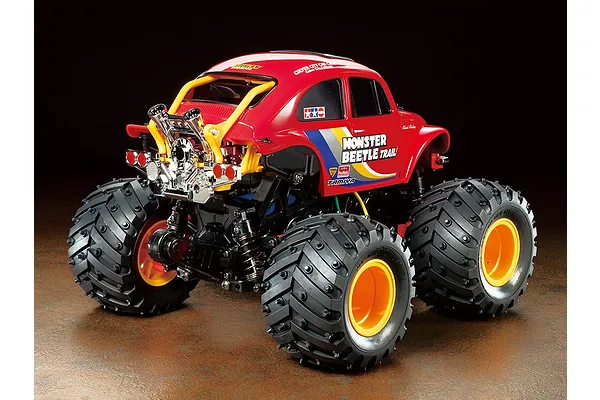

Monster Beetle Trail rear engine and muffler detail

Depictions of engine and muffler are metal-plated parts; the body also features a sporty roll bar.

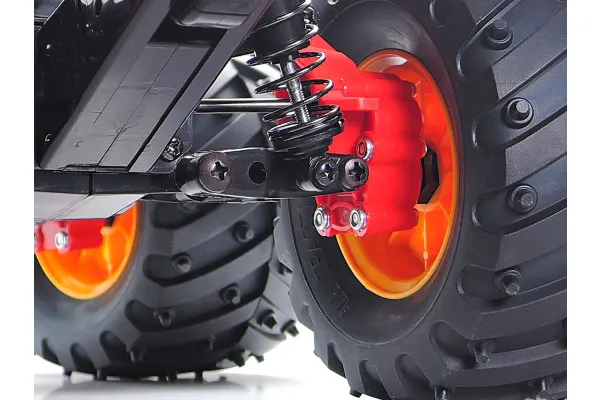

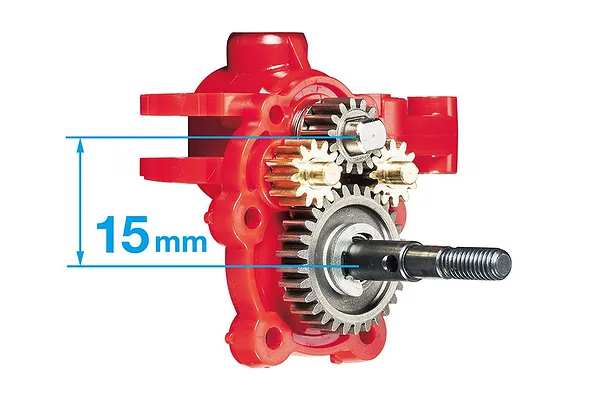

GF-01TR chassis hub reduction units

All wheels have hub reduction units, which slow down drive shaft output for greater torque.

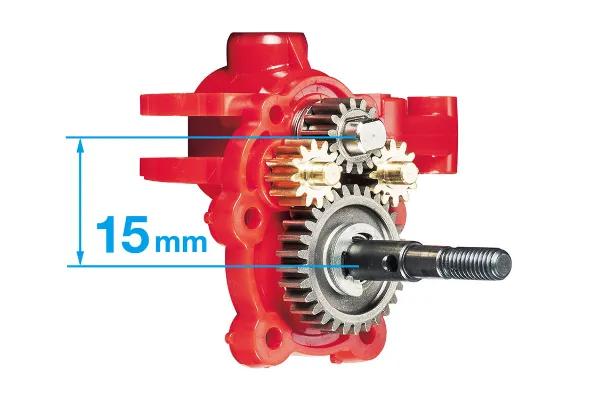

GF-01TR chassis ground clearance detail

The chassis has higher ground clearance that further boosts its capabilities on tough terrain.

GF-01TR monocoque chassis and gear case

At the core of the GF-01TR chassis is a slimline monocoque which doubles as a gear case.

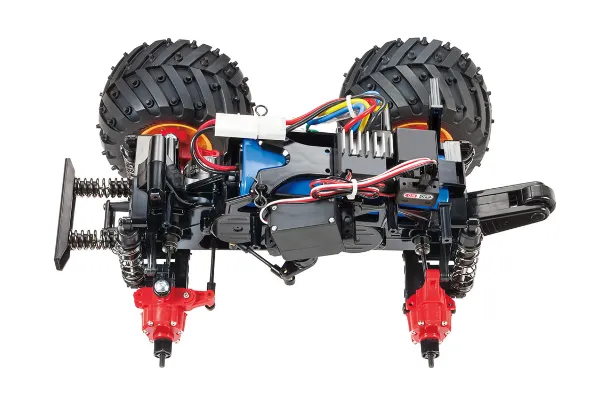

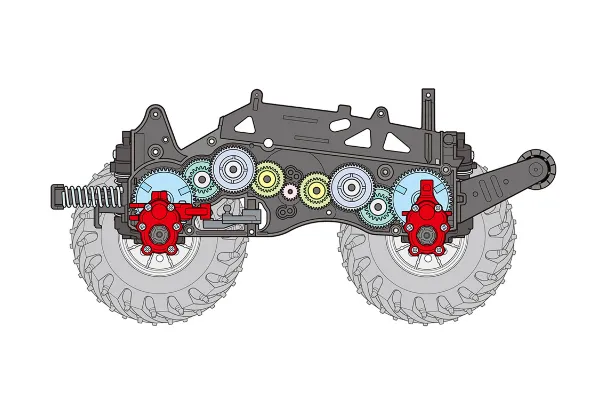

GF-01TR chassis profile view with drivetrain

A closer look at the complex drivetrain, shown here in this profile view of the chassis.

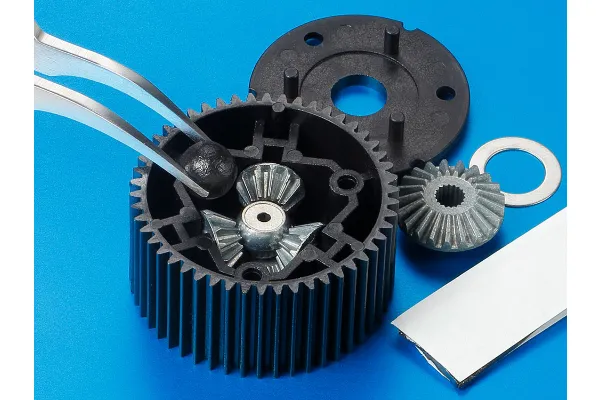

Monster Beetle Trail differential gear and putty

Use the included putty in the gear differentials to help endow this model with superb traction.

Monster Beetle Trail tyre and rim detail

Yellow rims are fitted with 115mm diameter hybrid pin spike/lug pattern tyres for superior cushioning and grip.

Specifications

Scale	1/14
Length	333mm (13.1")
Width	270mm (10.6")
Height	215mm (8.46")
Wheelbase	174mm (6.85")
Body Shell	ABS Resin
Chassis Type	GF-01TR
Construction Type	Assembly Kit
Motor	540-Brushed Type
Electronic Speed Control (ESC)	Included
Motor Position	Centre
Wheel Drive	4WD
Gear Ratio	37.35:1
Shocks	Friction Front & Rear
Suspension	4-Wheel Double-Wishbone
Terrain Use	Off Road
