Tamiya

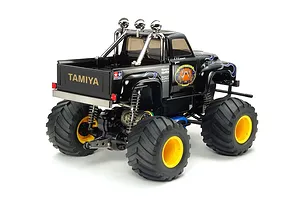

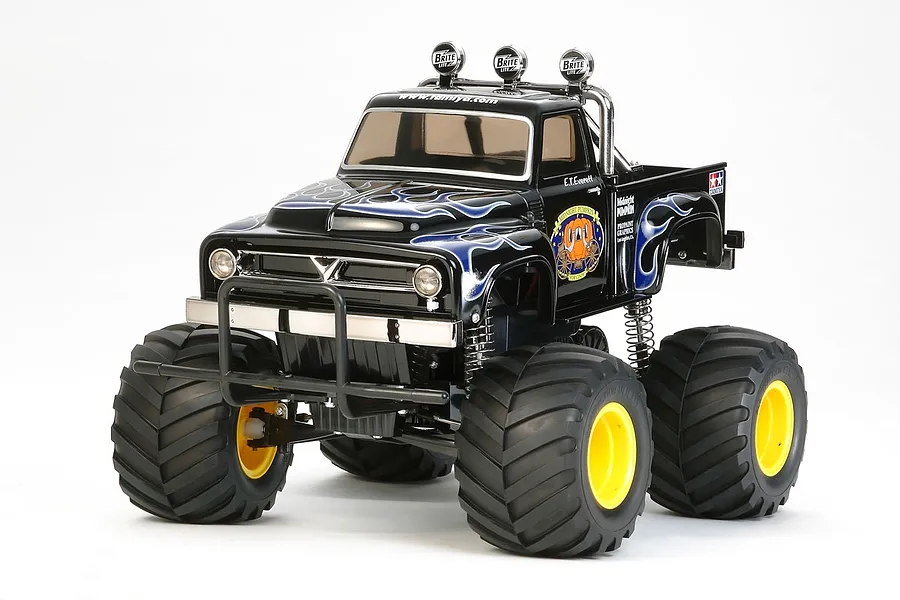

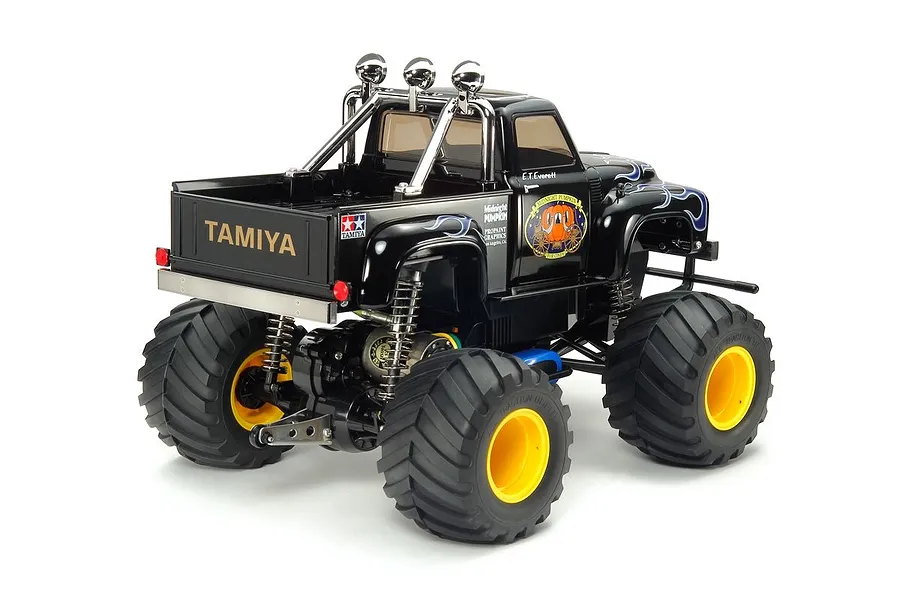

Tamiya CW-01 Midnight Pumpkin RC Truck Electric 2WD 1/12 Scale Kit (No ESC) - Black Edition

  • 1/12
  • 2WD
  • Kit
  • Brushed

Part no. 58547A

DiscontinuedNo reviews yet
1 / 6
1 / 6

This product has been discontinued.

Contact us

Overview

The Midnight Pumpkin Black Edition (first released in 1987) features a highly detailed pick-up truck body reminiscent of classic 1950s American designs. The special Black Edition body comes moulded in black and is accentuated by a metal plated front grille, overhanging fenders, dampers, and roll bar — all sitting on big 115mm diameter tyres.

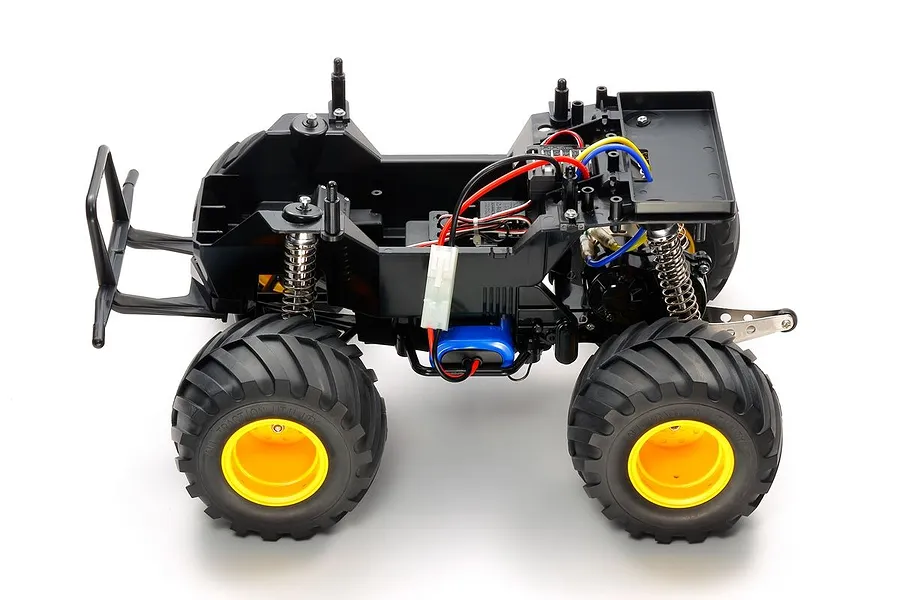

The CW-01 is a simple and easy-to-assemble 2WD chassis. The bathtub-type frame and suspension support 115mm hollow tyres with an independent front swing axle and rear rolling rigid coil spring, enabling dynamic driving even on rough roads. The reliable gearbox is sealed with a built-in differential gear. Hard acceleration on a grippy surface will let you lift the front wheels with the included rear wheelie bar.

The highly detailed body is made of impact-resistant styrene resin. The roll bar, auxiliary lamps, and front and rear bumpers are metal parts. The main frame is a lightweight and strong ABS resin bathtub chassis that allows easy installation and maintenance of internal parts, with the battery mounted at the lowest position for a lowered centre of gravity.

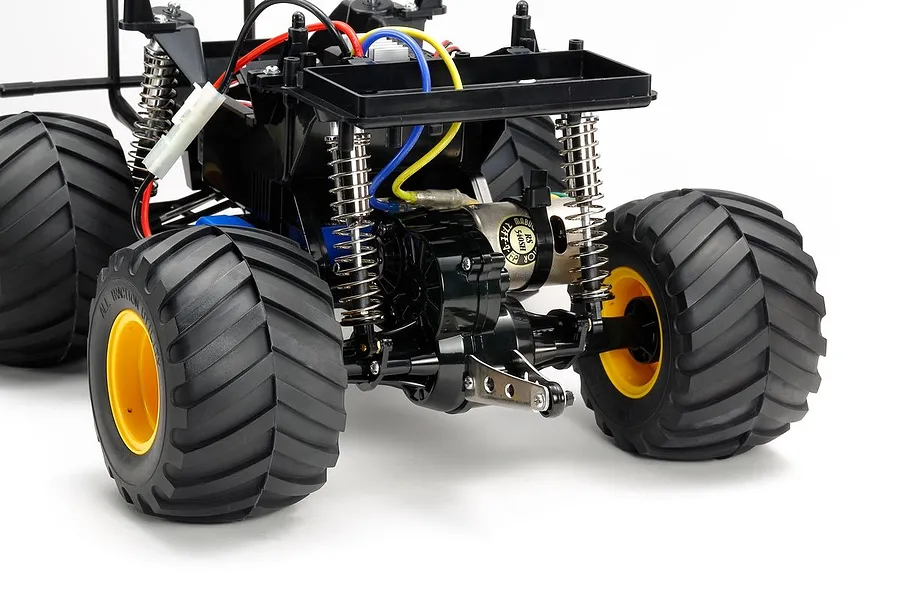

The front suspension is an independent type swing axle system. The steering system is equipped with the servo mounted diagonally and uses a 2-split rod. The rear suspension is a strong rolling rigid type, equipped with a bar to prevent the vehicle from tipping over while performing wheelies. 115mm diameter hollow rubber rug pattern tyres are attached to yellow one-piece rims.

Note

This kit comes without an Electronic Speed Control (ESC).

Features

  • 1/12 scale assembly kit
  • Features a stylish, tough styrene body, which comes with markings already applied
  • Yellow rims
  • Includes decals
  • Box type frame 2WD chassis is equipped with front swing axle and rear rolling rigid suspension
  • Fully-enclosed gearbox protects against dirt and debris
  • 115mm diameter tyres
  • Both front and rear wheels can be replaced with ball bearings
  • Metal Wheelie bar included

In the box

  • 1x Black 1/12 Midnight Pumpkin 2WD Electric Off Road RC Monster Truck Kit
  • 1x Set of Decals
  • 1x Product Manual

You'll need

  • 7.2V NiMH Battery & Compatible Charger
  • Standard Sized Servo
  • Electronic Speed Controller (ESC)
  • 2Ch Transmitter & Receiver

Highlights

Classic 1950s Pickup Body

Classic 1950s Pickup Body

The assembly kit of the Midnight Pumpkin features a highly detailed pick-up truck body reminiscent of classic 1950s American designs.

Black Body With Chrome Accents

Black Body With Chrome Accents

The special Black Edition body comes moulded in black and is accentuated by the metal plated front grille, overhanging fenders, dampers, and roll bar.

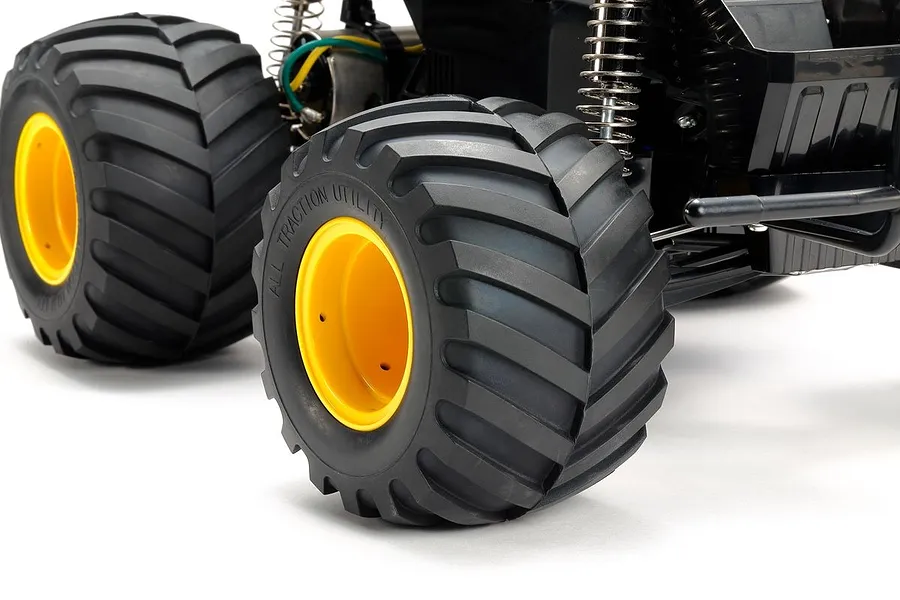

CW-01 Chassis With Rug Tyres

CW-01 Chassis With Rug Tyres

The CW-01 is a simple and easy-to-assemble 2WD chassis with big 115mm diameter hollow rubber rug pattern tyres attached to yellow one-piece rims.

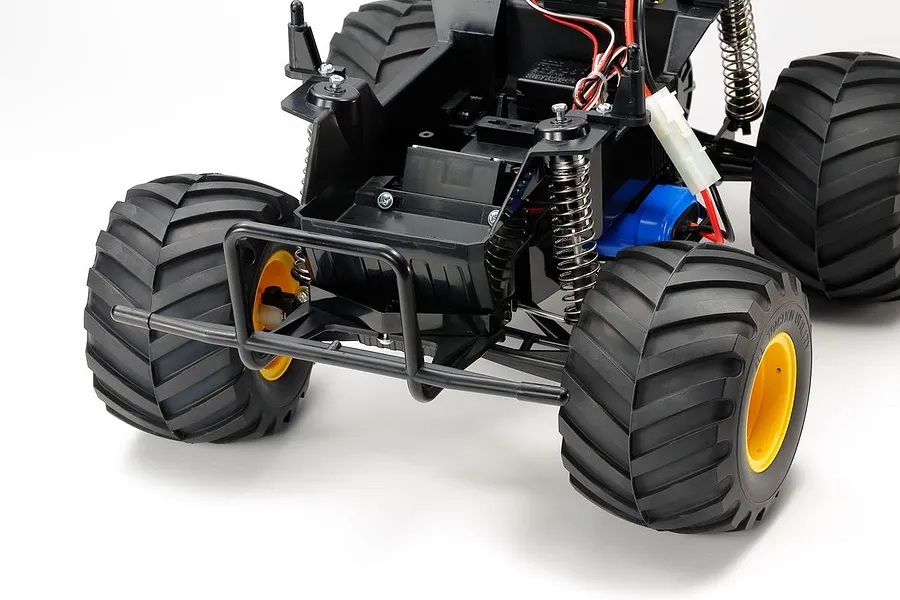

Front Swing Axle Rear Rigid Suspension

Front Swing Axle Rear Rigid Suspension

115mm diameter tyres sit on the CW-01 chassis with independent front swing axle and rear rolling rigid suspension.

Included Metal Wheelie Bar

Included Metal Wheelie Bar

A metal wheelie bar is included, enabling dynamic driving even on rough roads.

Specifications

Scale1/12
Length385mm (15.1")
Width290mm (11.4")
Height260mm (10.2")
Wheelbase207mm (8.14")
Body ShellBlack Painted Styrene
Chassis TypeCW-01
Construction TypeAssembly Kit
Motor540-Brushed Type
Electronic Speed Control (ESC)Not Included
Motor PositionRear
Wheel Drive2WD
Gear Ratio14.7:1
ShocksFriction Front & Rear
SuspensionIndependent Front / Solid Axle Rear
Terrain UseOn & Off Road

RC Car

Scale1/12
CompletionKit
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeTruck
On/Off RoadOff Road
Drivetrain2WD
