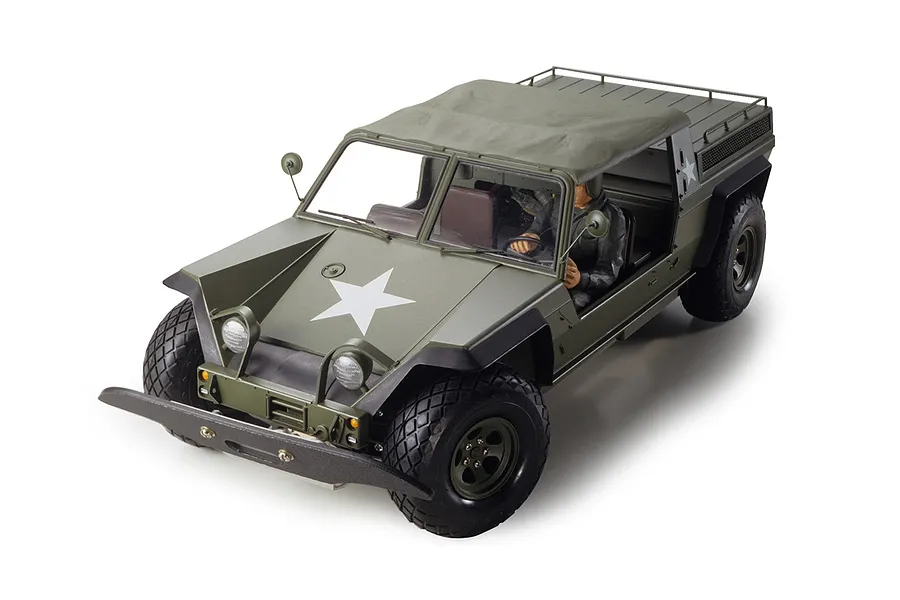

Tamiya FMC XR311 RC Truck Electric 2WD 1/12 Scale Kit (No ESC)

Tamiya FMC XR311 RC Truck Electric 2WD 1/12 Scale Kit (No ESC)

Tamiya FMC XR311 RC Truck Electric 2WD 1/12 Scale Kit (No ESC)

Brand: Tamiya | MPN: 58004A
discontinued
This product has been replaced by the product below.
Description
Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

This is a re-release version of the 1/12 scale R/C XR311, Tamiya's first R/C model with a suspension system, originally released in 1977. While maintaining the basic layout of the original, this re-release version incorporates modern improvements. The injection-molded body captures the vehicle's purposeful look. Interior parts and a driver figure are included for even greater realism.

The 2WD duralumin chassis frame features a rear-mounted motor rear-wheel drive layout. The battery is positioned down the center of the chassis with the receiver and ESC on either side for exceptional balance. 4-wheel double wishbone suspension features upper and lower H-arms and adjustable metal torsion bar springs. The fully-enclosed gearbox may be assembled with one of three different gear ratios.

Features
  • 1/12 scale re-release of Tamiya's first R/C model with a suspension system
  • Injection-molded body captures the vehicle's purposeful look
  • Interior parts and driver figure included for greater realism
  • Rear-wheel drive with a 2WD duralumin chassis frame and rear-mounted motor
  • Battery positioned down the center of the chassis with receiver and ESC on either side for exceptional balance
  • 4-wheel double wishbone suspension with upper and lower H-arms and adjustable metal torsion bar springs
  • Fully-enclosed gearbox with choice of three gear ratios (9.3:1, 16:1, 21:1)
  • Type 540 motor
  • 2-piece steering tie-rod
  • 3-bevel differential
Included Items
  • 1x Tamiya 1/12 XR311 Chassis Kit
  • 1x Type 540 Brushed Motor
Required Items
  • 2-channel radio
  • Steering servo
  • Electronic Speed Controller (ESC)
  • 7.2V battery and compatible battery charger
  • Tamiya TS paint
Note

This kit comes without an Electronic Speed Controller (ESC).

Specifications
Scale
1/12
Length
400mm
Width
168mm
Height
139mm
Wheelbase
256mm
Weight
1,800g
Motor
Type 540 Brushed
Drivetrain
Rear-Wheel Drive (2WD)
Suspension
4-Wheel Double Wishbone with Metal Torsion Bar Springs
Tire Width/Diameter (F/R)
29/77mm
Tread (F/R)
138mm
Gear Ratios
9.3:1, 16:1, 21:1
Chassis
Duralumin Frame
ESC
Not Included

RC Car
Scale
1/12
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Intermediate
Power Source
Electric Brushed
Chassis Type
Truck
On/Off Road
On Road, Off Road
Drivetrain
2WD
Factory Specs
Max LiPo Power
2S (7.4v)
Battery Connector
Not Included
Pinion Gear
15T
