Tamiya Hotshot RC Buggy Electric 4WD 1/10 Scale Kit (no ESC)

Tamiya Hotshot RC Buggy Electric 4WD 1/10 Scale Kit (no ESC)

Tamiya Hotshot RC Buggy Electric 4WD 1/10 Scale Kit (no ESC)

Brand: Tamiya | MPN: 58391A
discontinued
Shop replacement & upgrade parts for this model
Shop Parts
Description
Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

This kit comes without an Electronic Speed Control. Click Here to view our range of ESCs.

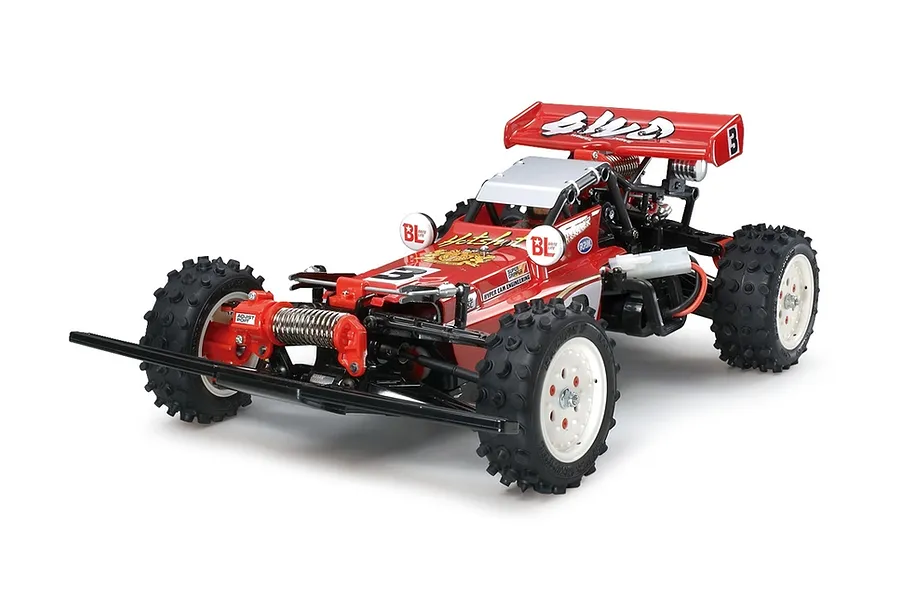

This is a re-issued R/C assembly kit of the Hot Shot. It originally debuted in 1985 as Tamiya's first 4WD off-road buggy.

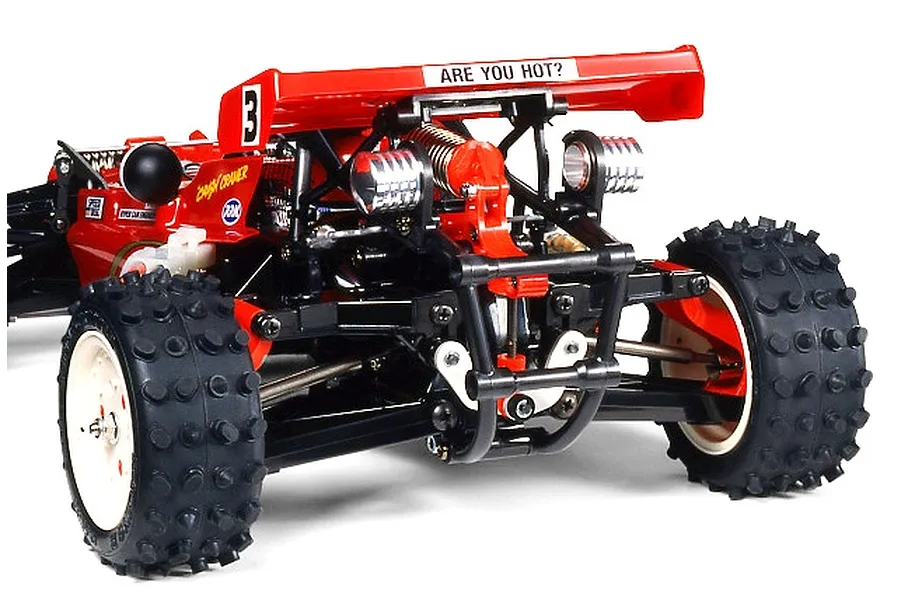

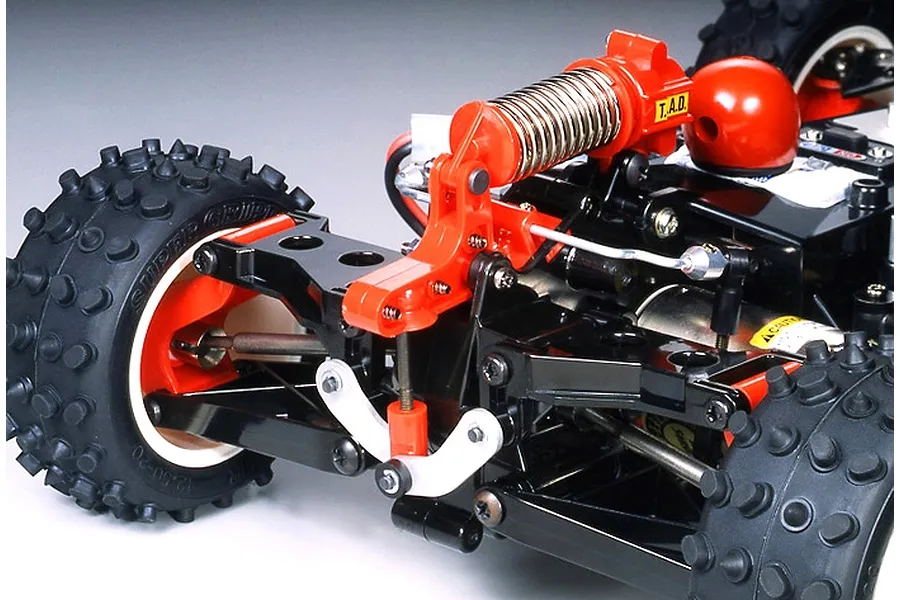

With its aggressive-looking body design and low center of gravity, the Hotshot was Tamiya's first shaft-driven 4WD R/C buggy. The unique 3-piece chassis featured front/rear mono-shock oil dampers, 4-wheel double wishbone suspension equipped with stabilizers, and front/rear fully-enclosed gearboxes equipped with thrust ball bearings and differential gears. A wide array of Option Parts were produced especially for modifying the Hotshot.

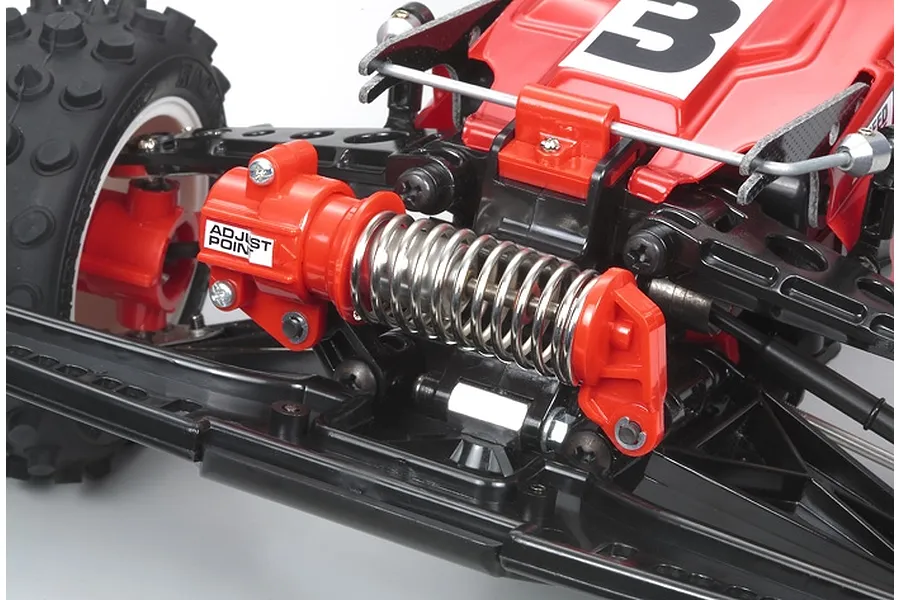

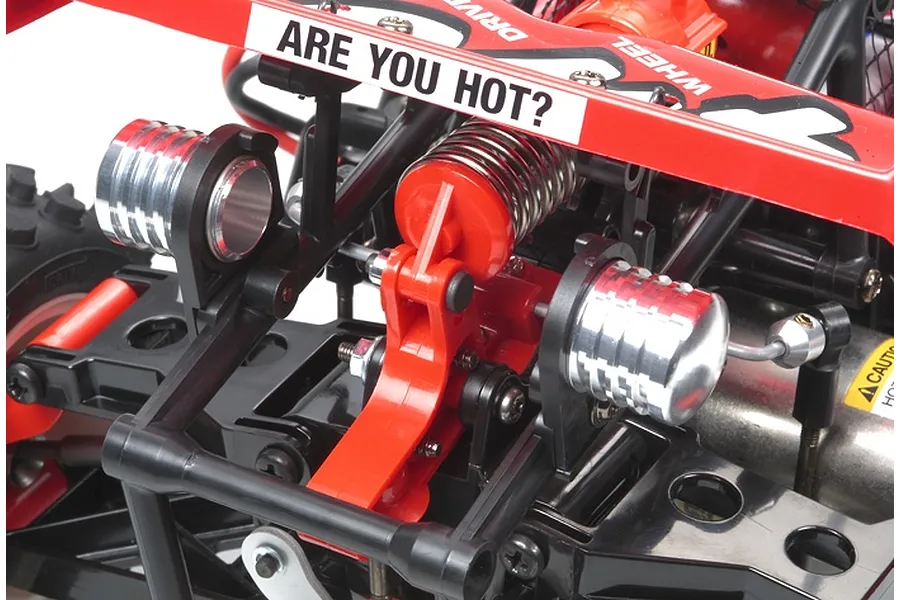

Tamiya designers have given the Hotshot a makeover, replacing older, harder to assemble parts with modern equivalents while keeping true to the spirit of the original. The drivetrain features modern dog bone type propeller shafts, and the oil dampers have been changed to the more modern diaphragm type. A dummy aluminium heat sink part has been installed to remain faithful to the original look.

Included Items
  • 1x Tamiya 1/10 Electric RC Car Kit
  • 1x Decal Set
  • 1x Product Manual
Required Items
  • 7.2V NiMH Battery & Compatible Charger
  • Electronic Speed Controller (ESC)
  • 2Ch Transmitter & Receiver
  • Tamiya PS Paint
Note

This kit comes without an Electronic Speed Control.

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Specifications
Length
390mm
Width
235mm
Height
150mm
Weight
1270g
Tread
(Front/Rear) 194mm
Tire Width/Diameter
(Front) 28/82mm, (Rear) 34/82mm
Frame
ABS Resin Monocoque
Drivetrain
Shaft-driven 4WD
Diff. Gear
3-bevel
Steering
2-piece Tie Rod
Suspension
4-wheel Double Wishbone
Gear Ratio
8.1:1, 10.04:1
Motor
Type RS540

RC Car
Scale
1/10
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Intermediate
Power Source
Electric Brushed
Chassis Type
Car
On/Off Road
Off Road
Drivetrain
2WD
RC Kit
Suited Motor/ESC Type
Electric
Factory Specs
Max LiPo Power
2S (7.4v)
Battery Connector
Not Included
Front Shock Oil
400cSt
Rear Shock Oil
400cSt
Pinion Gear
13T, 15T
