Tamiya Boomerang RC Buggy Electric 4WD 1/10 Scale Kit (no ESC) - White
This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

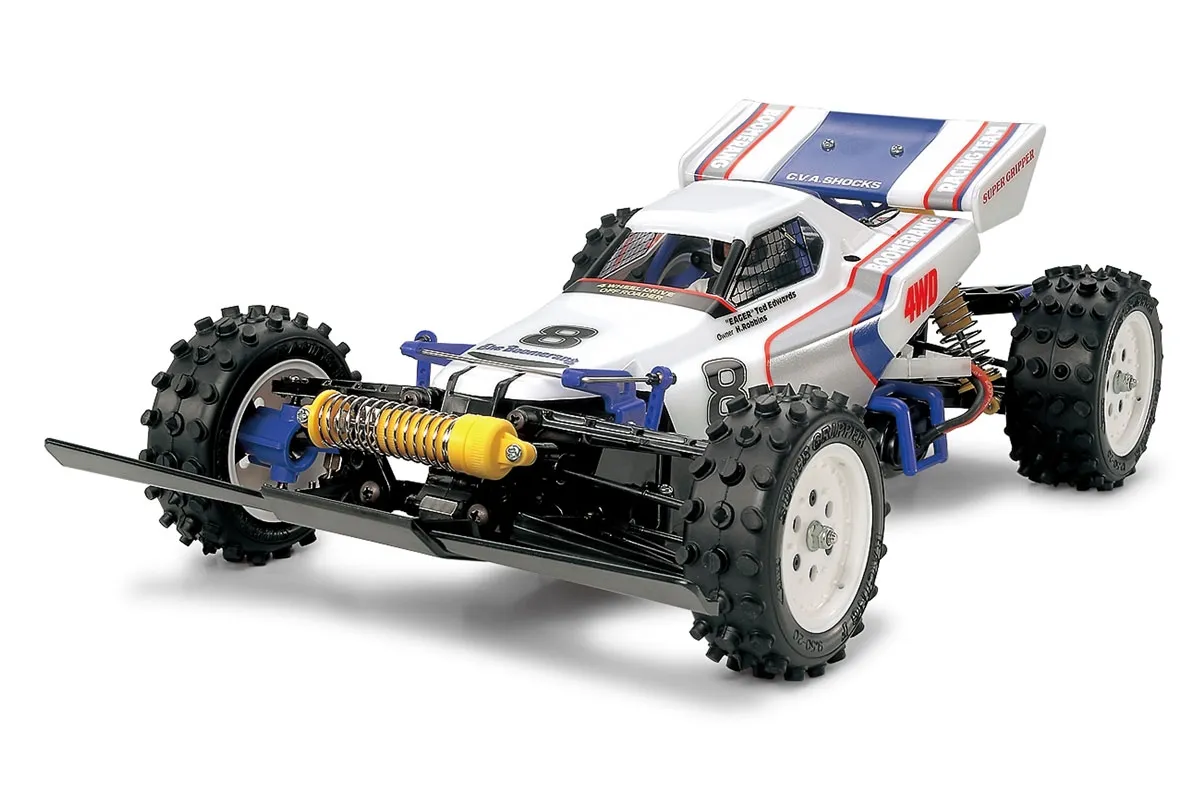

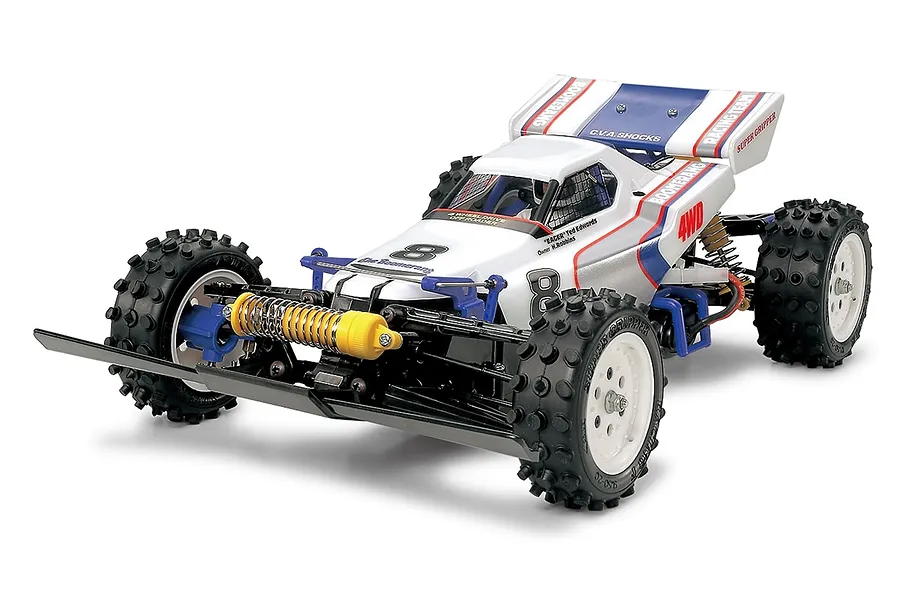

The Boomerang, originally released in 1986, is now available as a 1/10 scale re-release assembly RC kit. It features a wedge-shape form, large-sized rear wing, and ball bearings installed in the gearboxes. The newly designed polycarbonate chassis cover ensures easy maintenance and prevents dirt and debris from entering.
The Boomerang inherits the chassis and shaft-driven 4WD powertrain of the famous Hotshot. The 3-piece bathtub chassis, consisting of a centre frame with front and rear gearboxes, ensures easy maintenance. It has a mono-shock oil shock and a stabiliser in the front, and CVA long oil shocks in the rear. A newly included polycarbonate chassis cover protects the chassis from dirt and debris. It can be upgraded with option parts such as the DF-02 Assembly Universal Shaft (Item 53791) and the DF-03 Aluminium Shock Set (Item 53926).

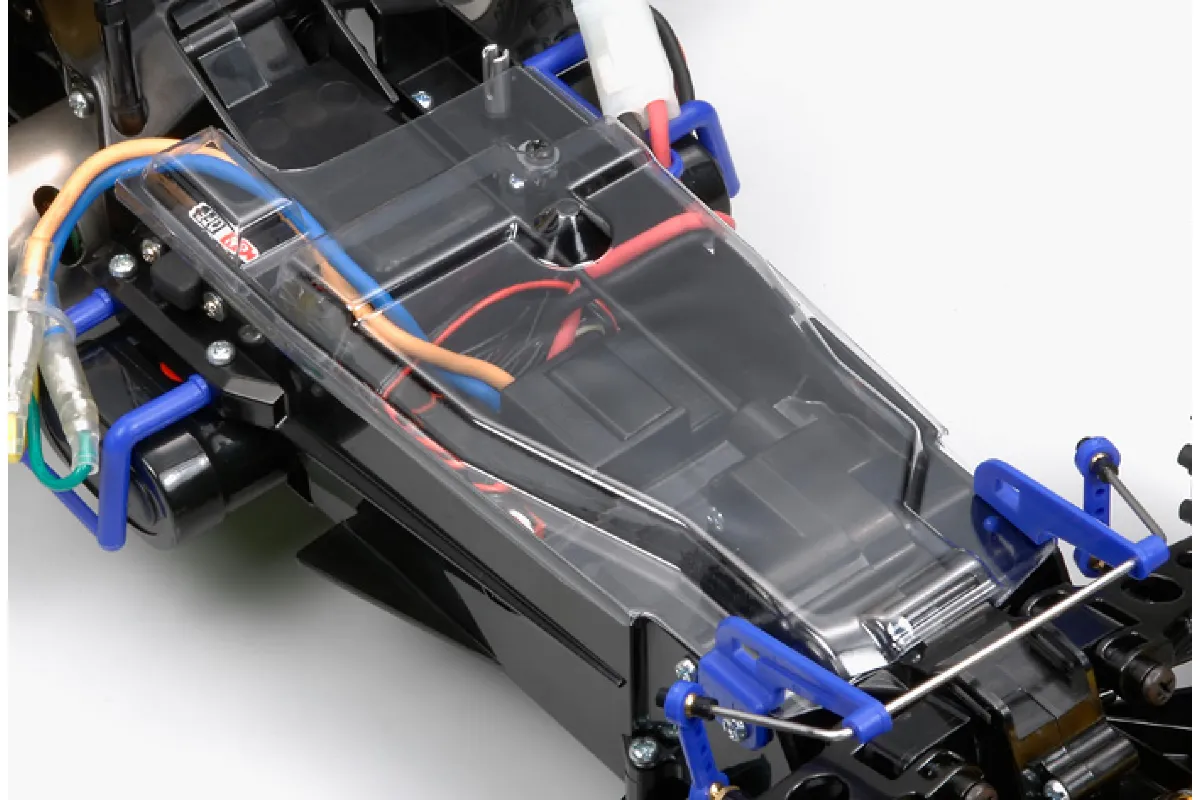

In addition to the dust cover on top of the steering servo, the polycarbonate chassis cover prevents dirt and debris from entering the inside of the chassis

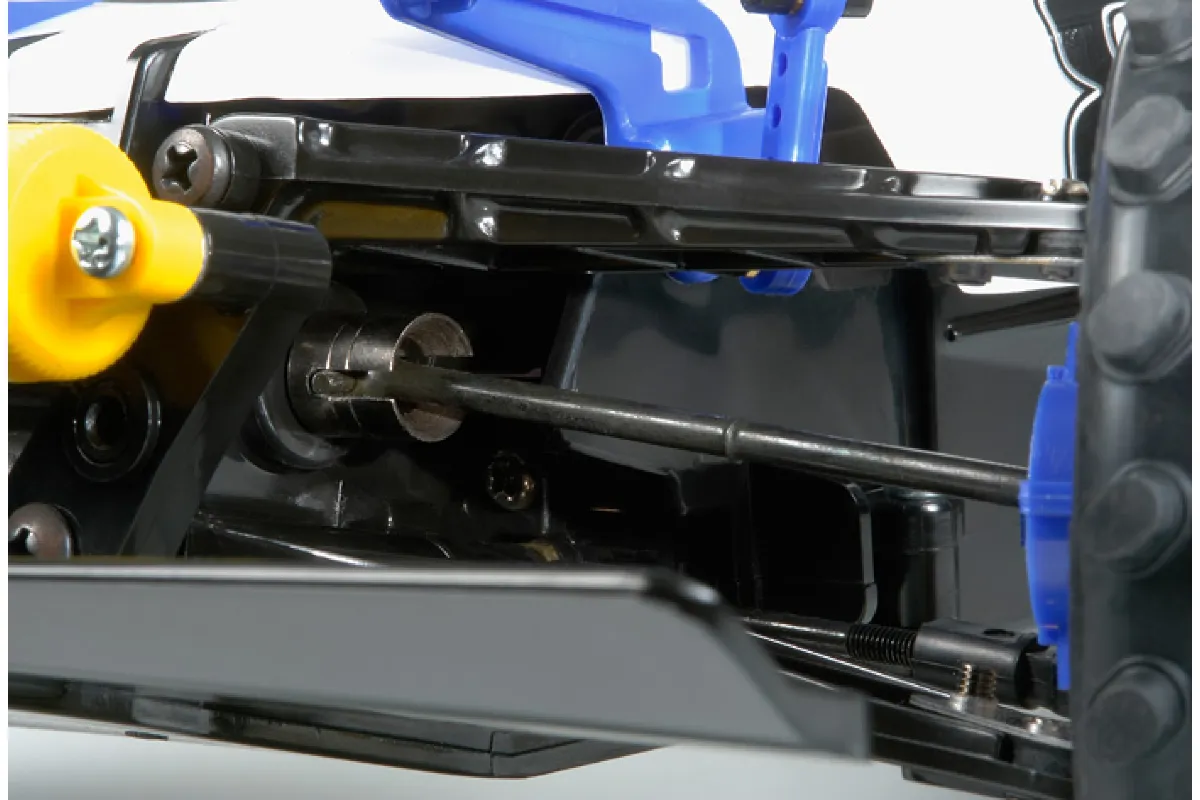

The reliable dog-bone type propeller shaft transmits the power. Front suspension features an oil shock and a stabiliser

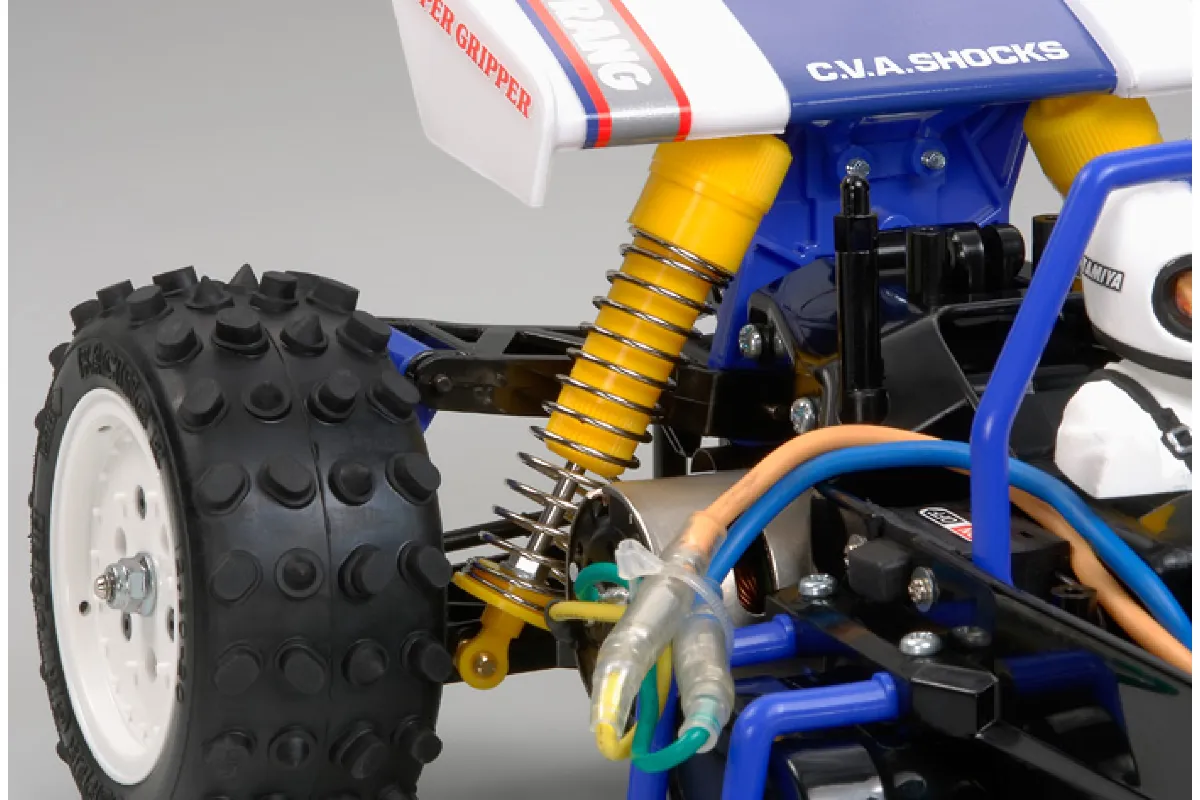

Rear features CVA oil-filled shocks which effectively absorb shocks from off-road tracks and improve traction
- New and improved gearbox, driveshafts, and axle joints for better steering control
- Driveshaft placement helps to minimise effects of abrupt shocks
- Polycarbonate chassis cover included to prevent interference from dirt and debris
- Based on the popular Hotshot's chassis and shaft-driven 4WD powertrain
- Mono-shock oil damper and stabiliser in the front, CVA long oil dampers in the rear
- Option to upgrade with a range of option parts, such as the DF-02 Assembly Universal Shaft and Aluminium Shock Set
- 3-piece bathtub chassis for easy maintenance
- Ball bearings installed in the gearboxes
- Dog-bone type propeller shaft transmits power; front suspension features an oil shock and a stabiliser
- 1x 1/10 Boomerang (2008) 4WD Electric Off Road RC Buggy Kit
- 7.2V NiMH Battery & Compatible Charger
- Standard Sized Servo
- Electronic Speed Controller (ESC)
- 2-Channel Transmitter & Receiver
- Tamiya PS Paint
This kit does not include an Electronic Speed Controller. This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series; standard paints will not adhere and/or may cause damage to the body shell's surface.
-
Length
- 385mm (15.1")
-
Width
- 234mm (9.21")
-
Height
- 153mm (6.02")
-
Weight
- approx. 1,160g (2.54 lbs)
-
Tread F/R
- 7.71" / 7.63"
-
Tyre Width/Diameter F/R
- 30/88mm (1.18"/3.46") / 38/88mm (1.49"/3.46")
-
Chassis
- ABS Resin Bathtub
-
Drivetrain
- Shaft-Driven 4WD
-
Gears
- Front and Rear 3-Bevel Differential
-
Steering
- 3-Piece Tie-Rod
-
Suspension
- 4-Wheel Double Wishbone
-
Gear Ratio
- 8.7:1, 10.04:1
-
Motor
- RS540 Type Motor
-
Scale
- 1/10
-
Max LiPo Power
- 2S (7.4v)
-
Completion
- Kit
-
Skill Level
- Intermediate
-
Power Source
- Electric
-
Chassis Type
- Buggy
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Suited Motor/ESC Type
- Electric
-
Max LiPo Power
- 2S (7.4v)
-
Battery Connector
- Not Included
-
Front Shock Oil
- 400cSt
-
Rear Shock Oil
- 400cSt
-
Pinion Gear
- 13T, 15T
