Kyosho Fantom PZF T-33 Legendary Series RC Pan Car Electric 4WD 1/12 Scale Kit
- 1/12
- 4WD
- Kit
- Brushless
Part no. 30640
$434.40
or 4 fortnightly payments of $108.60 with afterpay
Kyosho's Fantom PZF T-33 RC Pan Car Is a 1/12 4WD Kit With a Carbon Chassis and 3P Suspension! Ready to Build a Legend!
- 4WD Ladder Chain & 3P Suspension Hybrid
- Rigid Carbon Fibre Main Chassis Plate
- Kingpin Coil Front & Oil Shock Rear Suspension
- Includes Pre-Glued & Pre-Trimmed Tyres
- A Rewarding Build for Collectors & Vintage Racers
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
In stock now: similar
- Maverick Quantum R Flux 4S RC Muscle Car Electric Brushless 4WD 1/8 Scale RTR - Blue
Now $471.17
was $582.27Save $111
Overview
As the 19th instalment in the Kyosho Vintage Series, the Fantom PZF T-33 is a special machine that realizes a dream from the 1980s. Back then, 1/12 scale racing was split between 4WD chain-drive cars, like the Kyosho Fantom, and 2WD cars with 3-point (3P) suspension, like the Plasma. Pro drivers discovered that combining the Fantom's 4WD drivetrain with the Plasma's high-grip 3P rear suspension created a dominant hybrid, famously known as the "Plasma Phantom." This specification was never sold as a kit, requiring drivers to convert and assemble the parts themselves. Now, after decades of requests, Kyosho has officially kitted this legendary car.

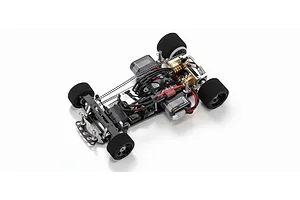

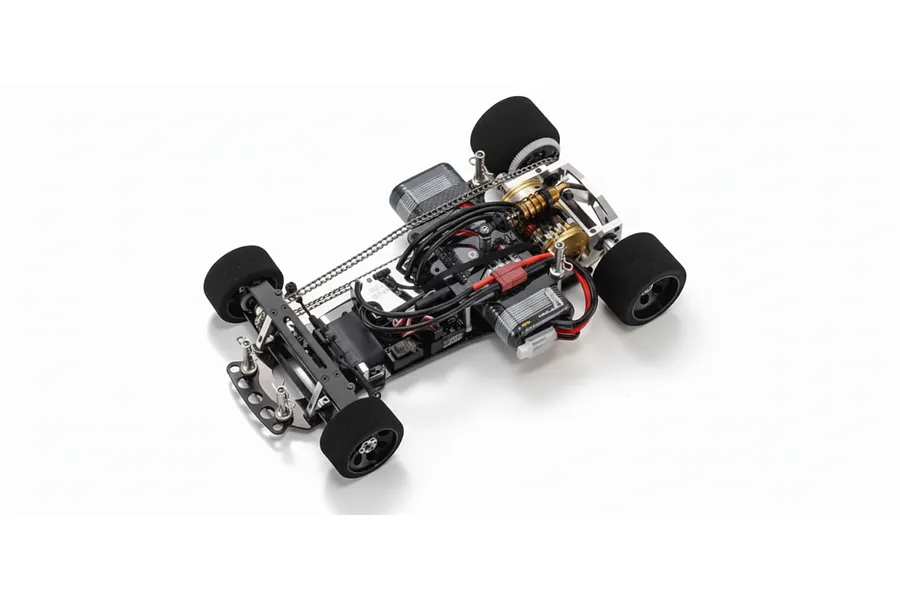

This is not just a simple fusion of re-released parts. The Fantom PZF T-33 is a high-performance machine, featuring a rigid carbon main chassis and upper plate. The front end uses a kingpin coil suspension, while the rear features the Plasma's FRP A-bar with a newly developed metal ball-connect joint for smooth, controlled flex. A ball differential with a 6mm carbon shaft comes as standard. In a huge benefit for racers, the foam tyres come pre-glued and, most importantly, pre-trimmed, eliminating the need for a costly tyre setter. Topped with the classic, quick-handling T-33 body, this kit is a must-have for vintage racing enthusiasts and collectors.
Note
Please refer to the instruction manual for safety precautions and operating instructions.
Features
- 19th Kyosho Vintage Series kit, recreating the 1980s "Plasma Phantom" hybrid
- Combines ladder chain 4WD with high-traction 3P rear suspension

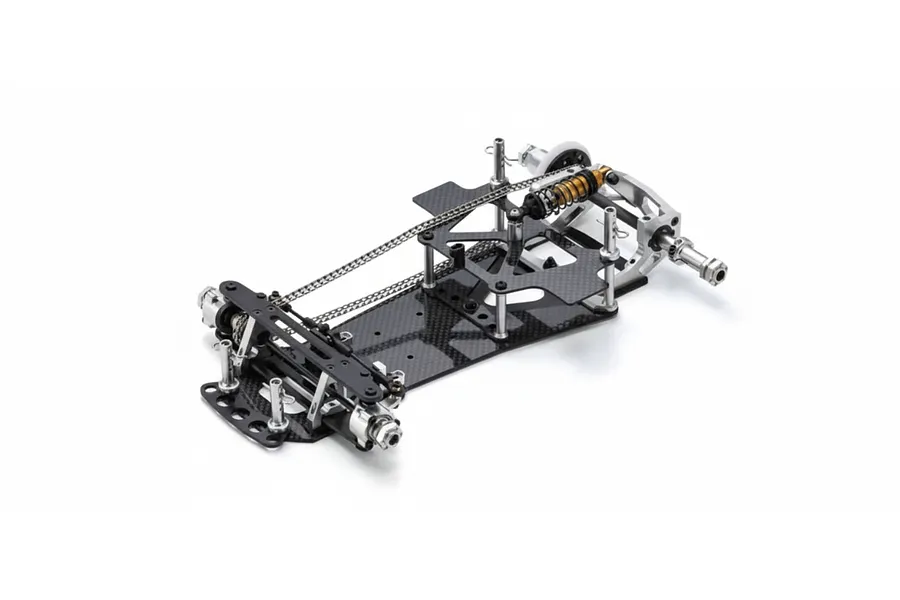

- Rigid carbon main chassis and upper plate for precise handling
- Kingpin coil front suspension for improved traction and cornering
- FRP A-bar rear suspension with newly developed metal ball-connect joints
- Ball differential with 6mm carbon shaft comes as standard equipment
- Dial-adjustable rear oil Shock for quick spring tension adjustments

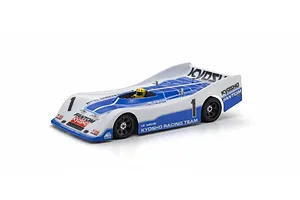

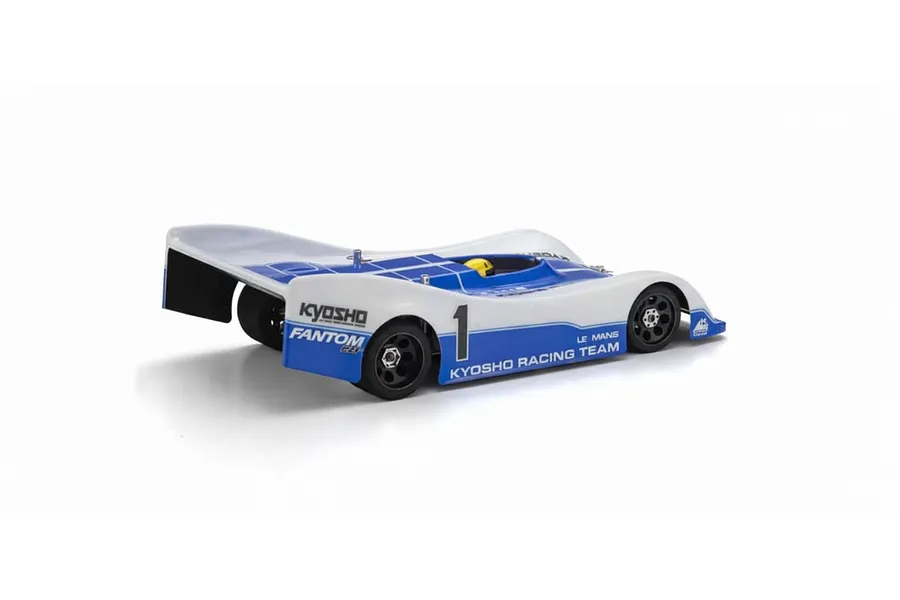

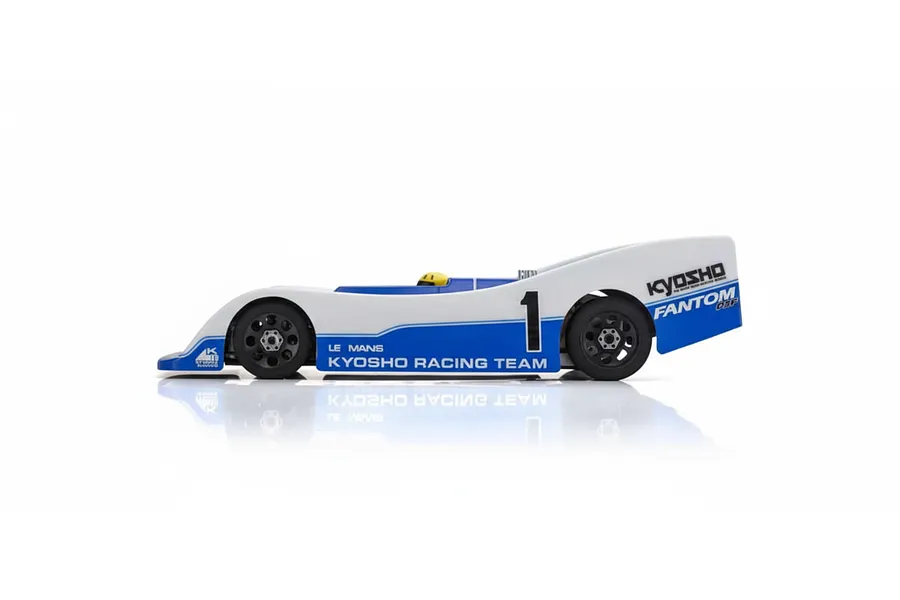

- Includes the classic T-33 body (clear) known for its quick handling
- Comes with pre-glued and pre-trimmed foam tyres on black wheels
- Genuine Kyosho Product
In the box
- 1x Kyosho Fantom PZF T-33 Kit
- 1x Unpainted T-33 Body
- 1x Decal Sheet
- 1x Set of Pre-Glued & Trimmed Tyres on Wheels
- 1x Shock Oil
- 1x Set of Wrenches
- 1x Instruction Manual
You'll need
- 1x 2-Channel Radio System (Transmitter & Receiver)
- 1x 1/12 Scale Steering Servo
- 1x 540-Size Electric Motor
- 1x Electronic Speed Control (ESC)
- 1x 7.4V 2S LiPo "Straight Pack" Battery (138x48x25mm or less)
- 1x Compatible Battery Charger
- 1x Polycarbonate Paint
- 1x Assembly Tools & Grease
Specifications
| Length | 353mm (13.90") |
|---|---|
| Width | 172mm (6.77") |
| Height | 86mm (3.39") |
| Weight | 900g (1.98lbs) (approx.) |
| Chassis | Carbon Fibre |
| Suspension | F: Kingpin Coil / R: 3P A-Bar |
| Drivetrain | 4WD Ladder Chain |
| Motor | 540-Class (Sold Separately) |
| ESC | N/A |
RC Car
| Scale | 1/12 |
|---|---|
| Max LiPo Power | 2S (7.4v) |
| Completion | Kit |
| Skill Level | Intermediate |
| Power Source | Electric Brushless |
| Chassis Type | Car |
| On/Off Road | On Road |
| Drivetrain | 4WD |
RC Kit
| Suited Motor/ESC Type | Brushless |
|---|
Factory Specs
| Battery Connector | Not Included |
|---|---|
| Rear Shock Oil | 300cSt |
| Pinion Gear | 21T 48dp/0.5Mod |
| Spur Gear | 71T 48dp/0.5Mod |
