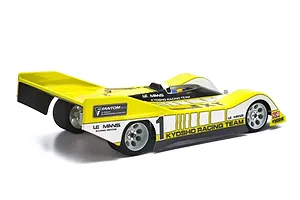

Kyosho Fantom EP 4WD Ext CRC-II RC Pan Car Electric 4WD 1/12 Scale Kit
Videos
Kyosho Fantom EP 4WD Ext CRC-II RC Pan Car Electric 4WD 1/12 Scale Kit
- Perfect for experienced kit builders
- Compatbile with brushed and brushless parts
- Highly customisable
This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

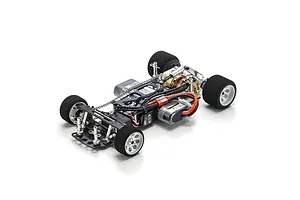

The Kyosho FANTOM EP-4WD Ext is a testament to Kyosho's legacy of innovation and performance. This 1/12 scale electric car, a reimagining of the 1985 Japan Championship winner, combines classic design with modern enhancements to deliver a thrilling RC experience.

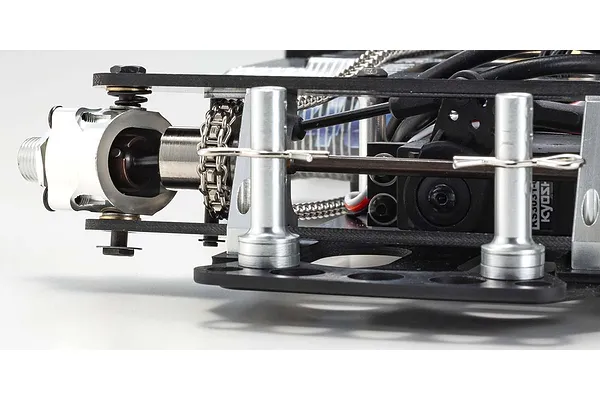

The Ext features the same groundbreaking chain + one-way 4WD system as the original, allowing for aggressive cornering and unmatched acceleration. The 3P suspension, with its specially shaped springs and progressive spring effect, ensures maximum traction and stability. The redesigned chassis, incorporating a reinforcing plate and integrated servo saver, further enhances the car's performance and responsiveness. Experience the evolution of a champion with the FANTOM EP-4WD Ext.

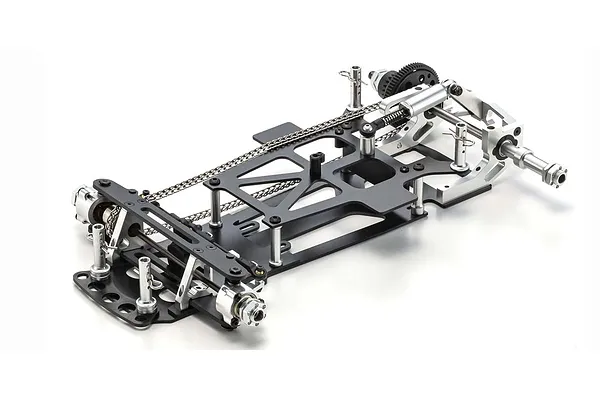

The FANTOM was the first electric R/C car in the world to adopt the ladder chain + front one-way bearing drive system, and in combination with an integrated 3P suspension system, delivered superior cornering speed and driving agility.

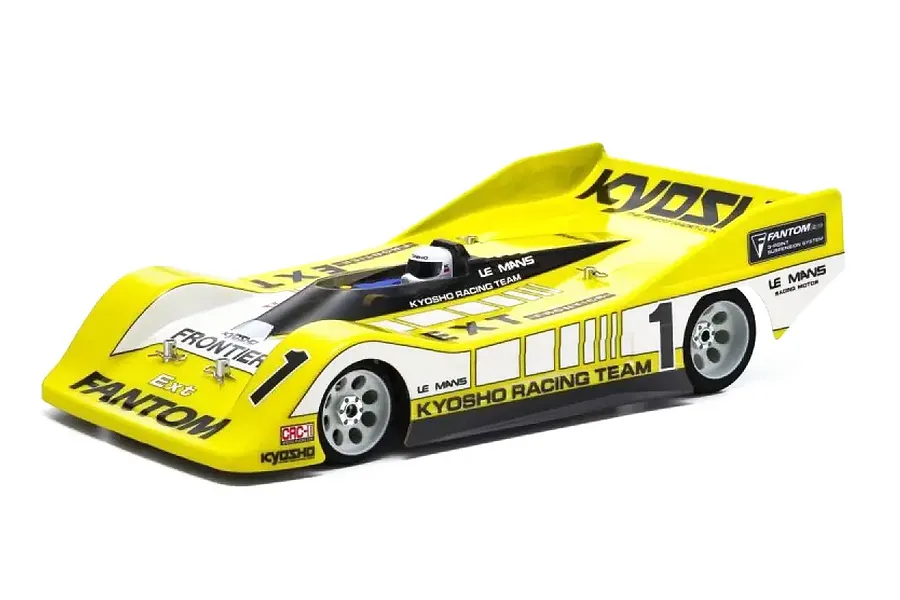

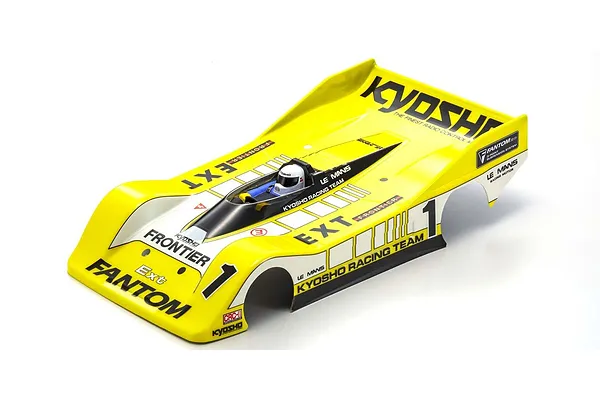

The CRC-2 body and its reputation for excellent aerodynamic performance has been faithfully reproduced. The long front overhang and full-body wedge produces handling stability with minimal aerodynamic variation due to speed. Includes decals to recreate the model on the package.

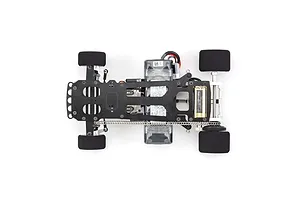

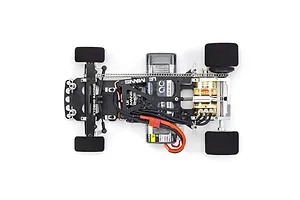

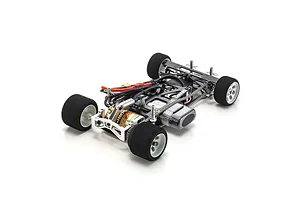

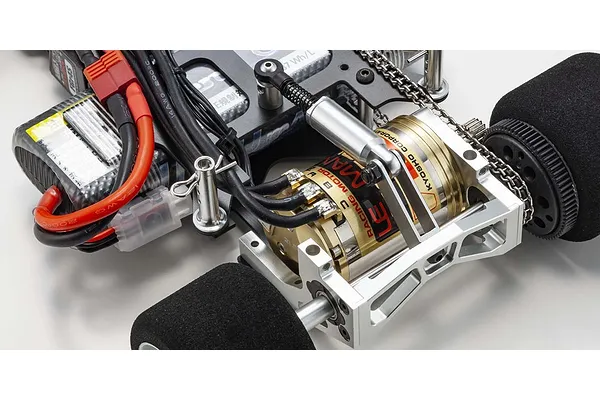

The Fantom chassis is engineered for a rear suspension effect, featuring a newly designed top mounted oil damper and high-precision motor mount for smooth, reliable operation.
That Fantom features incredible handling and maximum steering angle, thanks to the special spring and newly designed front sprocket, swing shaft, and knuckle arm.

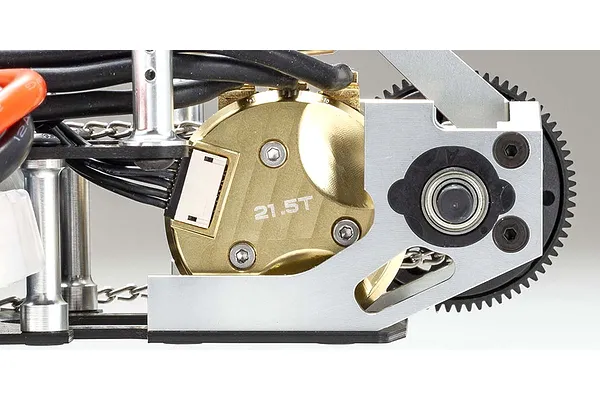

The Fantom has been designed to allow you to fine-tune the car's performance with adjustable ride height, wheelbase, and motor mounting position for optimal balance and control.

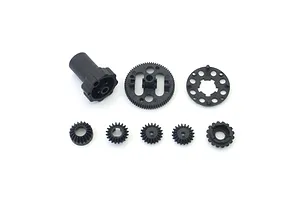

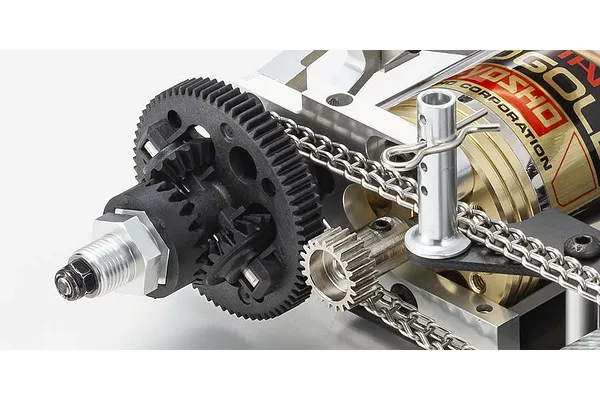

A new long-type pinion gear and ball-bearing-equipped differential have been included with the Fantom to deliver a smooth and efficient power transfer, with a wide range of optional pinion gears available for customisation.
- Faithful recreation of the iconic 1985 FANTOM EP 4WD with modern upgrades
- Classic 3P suspension and 4WD system with ladder chain and front one-way bearing
- Specially shaped front spring and machined aluminum oil damper for optimal pitching control
- Reinforced chassis with original torsion-effect design
- ESC compatible with modern brushless motors
- Adjustable aluminum steering servo for various sizes
- New direct servo saver with double ring spring for improved reliability and steering
- Adjustable rear axle height for precise vehicle setup
- Includes long-type 48 pitch 21T pinion gear; optional 14T to 27T gears available
- Modern rubber-sponge compound tires for enhanced grip and durability
- Authentic CRC-II body for superior aerodynamics
- Includes decals to recreate the original package model style
- Genuine Kyosho product
- Length: 340mm (13.3")
- Width: 172mm (6.77")
- Height: 83mm (3.26")
- Wheelbase: 199-200mm (Adjustable)
- Weight: 890g (1.96 lbs)
- Chassis: Pan Car
- Drivetrain: 4WD
- Suspension: Oil Filled Coil Over Shock Absorber
- Motor: Not Included
- ESC: Not Included
- 1x Fantom Chassis kit
- 4x Adhesive shaped tyre
- 1x Unpainted body
- 1x Decal
- 1x Wheel wrench (12/4.0)
- 1x 5.5/4.5wrench
- 1x FRP shock wrench
- 1x 7.4V LiPo Battery
- 1x Compatible LiPo Charger
- 1x Compatible Low Profile Servo
- 1x Compatible Brushed or Brushless Motor
- 1x Compatible Brushed or Brushless ESC
- 2ch+ Transmitter & Receiver
- Polycarbonate Safe Paint
-
Max LiPo Power
- 2S (7.4v)
-
Pinion Gear
- 21T 48dp/0.5Mod
-
Spur Gear
- 71T 48dp/0.5Mod
-
Rear Shock Oil
- 300cSt
-
Wheel Hex Size
- 12mm
-
Battery Connector
- Not Included
-
Suited Motor/ESC Type
- Electric
-
Completion
- Kit
-
Drivetrain
- 4WD
-
Max LiPo Power
- 2S (7.4v)
-
On/Off Road
- On Road
-
Chassis Type
- Pan Car
-
Power Source
- Electric
-
Skill Level
- Expert
-
Scale
- 1/12
