XRAY X4F'26 RC Touring Car FWD Electric 1/10 Scale Kit

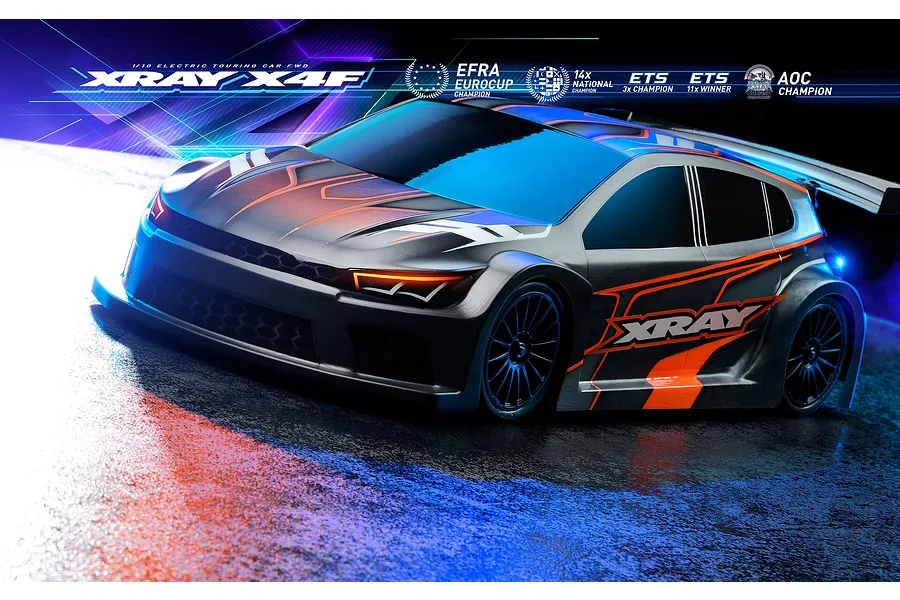

XRAY X4F&#039;26 RC Touring Car FWD Electric 1/10 Scale Kit image 123789

XRAY X4F&#039;26 RC Touring Car FWD Electric 1/10 Scale Kit image 123788

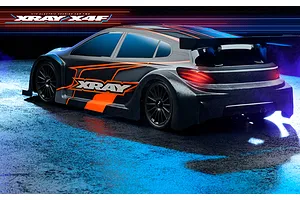

XRAY X4F&#039;26 RC Touring Car FWD Electric 1/10 Scale Kit image 123790

XRAY X4F&#039;26 RC Touring Car FWD Electric 1/10 Scale Kit image 123791

XRAY X4F'26 RC Touring Car FWD Electric 1/10 Scale Kit

Brand: XRAY | SKU: 300205

sold out

write a review

$924.99

XRAY X4F '26 FWD RC Touring Car: All-New Carbon Chassis for Improved Rotation & Steering

Ideal for Experienced Kit Builders and Racers
Lavished with Carbon Fibre for a Class Leading Edge
HIghly Customisable Design for Multiple Race Classes
World Leading Engineering and R&D

Add to Wishlist

Save Time & Add These Now

Complete your setup with these required items.

Gens Ace Redline 2.0 3.8V 8000mAh 140C HV Short Hard Case LiPo Battery

$87.65

Battery

SkyRC T100 Dual Port Smart Charger

$129.64

Charger

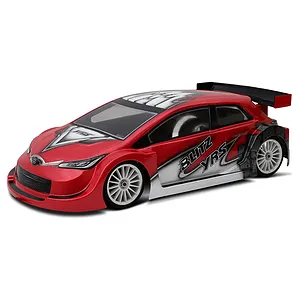

Blitz 1/10 YRS 190mm FWD Unpainted Body Shell w/ Decal Sheet

$48.95

Body Shell

FlySky FS-G11P 2.4Ghz 11Ch Radio with R11P Receiver

$290.31

Transmitter and Receiver

Power HD Silver Storm S15 Low Profile HV Brushless 16.5kg 8.4v Metal Geared Servo

$180.37

Servo

Justock XR10 G2.1 13.5T Sensored Brushless Motor & G3S 60A ESC Combo

$220.07

Motor & ESC

Solaris 1/10 28J Premounted Touring Car Rubber Tyres w/ Black Rims 4Pcs

$44.95

Wheels

Shop replacement & upgrade parts for this model

Shop Parts

Description

The next evolution in front-wheel-drive touring car performance is here with the all-new XRAY X4F '26. This premium kit is packed with design updates focused on chassis flex, adjustability, and improved handling for competitive racing.

A completely new carbon fibre chassis features strategic mid and rear cutouts, engineered to generate more rotation and steering. This design also reduces weight, allowing for more precise ballast placement. The theme of tunable flex continues throughout the car, with a redesigned "wave" style carbon rear upper arm holder, a more open rear top deck, and a new carbon body post holder, all working to improve rotation and off-power steering.

The X4F '26 introduces shorter XLP2 shock absorbers mounted 4mm lower than before, significantly improving cornering speed and stability while reducing traction roll in high-grip conditions. For maximum adjustability, the kit includes alternative link-style upper suspension arms. Steering has also been refined, with an all-new adjustable steering arm providing easy Ackermann tuning via eccentric bushings.

Designed and manufactured in Europe with meticulous attention to detail, the XRAY X4F '26 is a masterpiece of RC engineering.

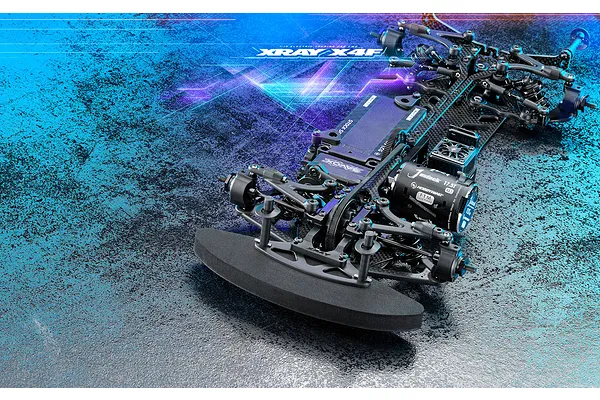

Chassis & Flex System

The X4F ’26 features an all-new carbon fibre chassis with mid and rear cut-outs, precisely engineered to generate more rotation and steering. This design achieves a 12g weight reduction, allowing racers to strategically position ballast weight on the chassis for fine-tuning weight distribution. The top deck offers Multi-Flex™ settings, enabling quick adjustments to chassis stiffness in two distinct alternatives for optimising handling across varied conditions.

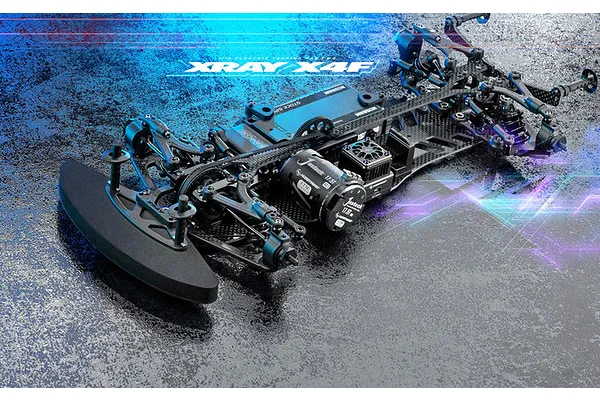

Race Shocks and Dampening Control

New XLP2 shocks, positioned 4mm lower than previous geometry, dramatically improve cornering speed, mid-corner steering, and stability, whilst minimising traction rolling in high-traction conditions. New shock holders specifically relocate the upper shock mount positions to complement this shorter shock geometry. The rear offers Active or Fixed dampening settings, providing traditional mounting or a pivoting bracket to soften rear suspension and improve off-power steering.

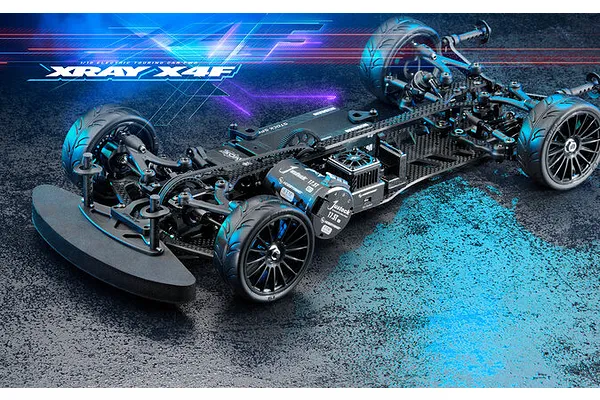

Race Spec Drivetrain Efficiency & Components

The X4F ’26 uses a short drive belt designed for a forward layshaft position, optimising traction. This 1-belt 2WD drivetrain concept offers maximum efficiency with a 3mm narrow drive belt, specially ground for minimal thickness and maximum flexibility. The drivetrain is fully equipped with high-speed, blue-sealed ball-bearings throughout for maximum efficiency. The gear differential includes steel diff outdrives for BB drive shafts, ensuring durability and consistent on-power steering.

Features

Features an all-new carbon chassis with mid and rear cut-outs creating optimised flex and a 12g weight reduction
Includes redesigned carbon rear upper holder, improving durability and increasing rear suspension flex
Shorter XLP2 shock absorbers, positioned 3mm lower, enhance cornering speed and stability
New shock holders relocate upper shock mount positions, complementing the shorter shock geometry
An all-new adjustable steering arm provides easy Ackermann tuning via eccentric bushings
Features a redesigned rear top deck with a more open section, improving rotation and off-power steering
The new motor mount is repositioned 5mm forward to generate more traction
Strategically lightened rear suspension shifts weight bias further to the front tyres
All-new inner shock mounting locations improve rolling characteristics and cornering consistency
The innovative SCS – Spring Clip System allows for super easy wheel hub installation
Genuine XRAY product

Specifications

Length: N/A
Width: N/A
Height: N/A
Wheelbase: Adjustable
Weight: Varies
Chassis: On Road FWD Touring Car
Drivetrain: 2WD
Suspension: Oil Filled Coil Over Shock Absorbers
Motor: Not Included
ESC: Not Included

Included Items

1x XRAY 2026 X4F RC Touring Car FWD Electric 1/10 Scale Kit

Required Items

1x Compatible 7.4V LiPo Battery
1x Compatible LiPo Charger
1x Compatible ESC
1x Compatible Motor
1x Compatible Servo
1x 2+ Channel Transmitter & Receiver
AA Batteries For Chosen Transmitter
1x Compatible Touring Car Body
PS Series Polycarbonate Safe Paint
Compatible 64dp Motor Pinion
Compatible 1.9" On Road Wheels

Specifications

Factory Specs

Max LiPo Power: 2S (7.4v)
Wheel Hex Size: 12mm
Spur Gear: 100T 64dp
Rear Shock Oil: 350cSt
Front Differential Oil: 500000cSt
Front Shock Oil: 350cSt

RC Car

Completion: Kit
Drivetrain: FWD
Max LiPo Power: 2S (7.4v)
On/Off Road: On Road
Chassis Type: Car
Power Source: Electric Brushless
Skill Level: Expert
Scale: 1/10

Parts

Standard

Same as the original part from the manufacturer.

XRAY Front Body Mounts Set 6mm - Hard 2Pcs

0 reviews

$20.93

Alternatives

Standard

Same as the original part from the manufacturer.

XRAY Hudy Spring Steel Spring Clip Drive Axle

0 reviews

$61.35

Standard

Same as the original part from the manufacturer.

XRAY Composite Brace For Bumper Low 2pcs

0 reviews

$10.52

Standard

Same as the original part from the manufacturer.

XRAY Composite 3x3x6x1mm/1x3x6x2mm Shims Set

0 reviews

$13.07

Standard

Same as the original part from the manufacturer.

XRAY X4 Aluminium Caster Bushing Front 3° / Rear 0.5° - 1 Dot 4Pcs

0 reviews

$48.21

Alternatives

Standard

Same as the original part from the manufacturer.

XRAY Black 7075-T6 Aluminium Rear Inner ARS Steering Plates 2Pcs

0 reviews

$44.91

Standard

Same as the original part from the manufacturer.

XRAY 1.1-1.2mm 4 Hole Delrin Shock Pistons 6 Pcs

0 reviews

$19.38

Standard

Same as the original part from the manufacturer.

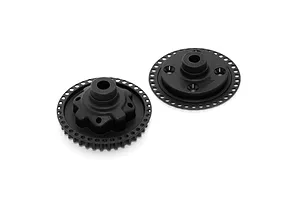

XRAY Composite 38T Differential Case
