Bathtub Chassis
The main frame is a lightweight and strong ABS resin bathtub chassis that allows easy installation and maintenance of the internal parts. The battery is mounted at the lowest position for a lowered centre of gravity.
Next Dispatch: 00d 00h31m03s
Part no. 58365A
This product has been discontinued.
Contact usPlease Note:
This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

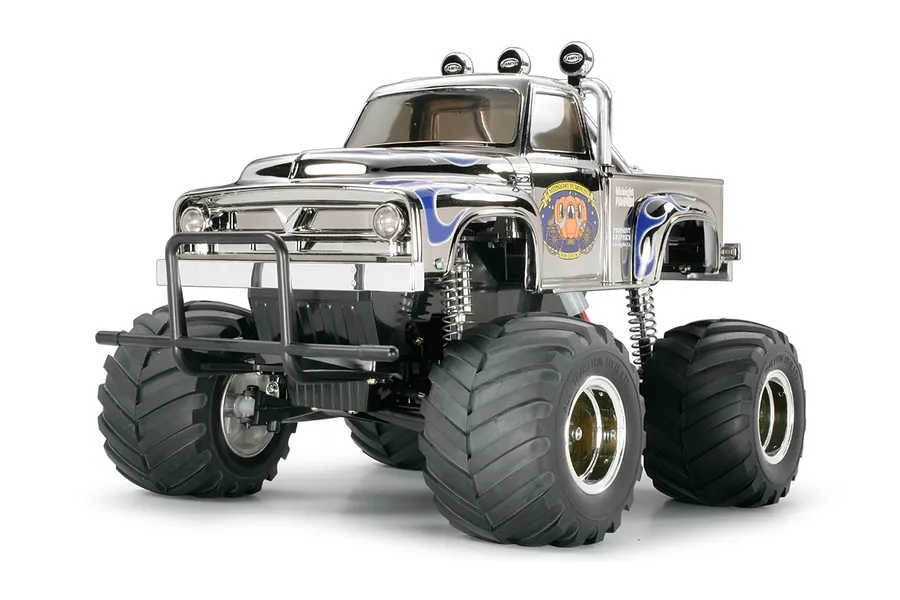

Combining a 1950s style pick-up truck body with massive monster truck tyres, the popular Midnight Pumpkin is now available with a metallic body for even more eye-catching R/C action. The super-detailed body is made with the same technology as Tamiya's high-quality plastic model kits. Metal plated wheels and damper cylinders further enhance this truck's custom look.

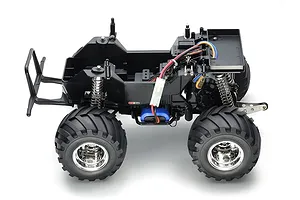

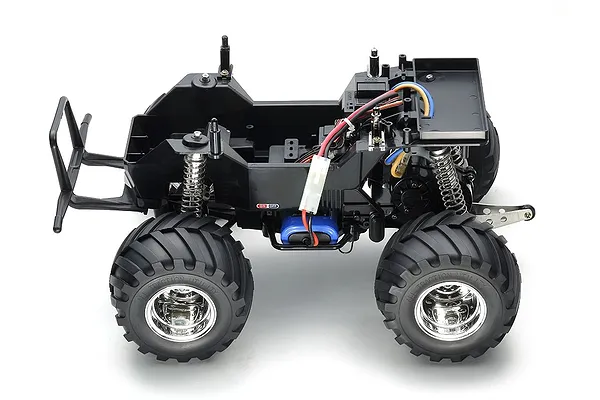

The CW-01 is a simple and easy-to-assemble 2WD chassis with big tyres. The bathtub-type frame and suspension support the hollow tyres with a diameter of 115mm and has an independent front swing axle and rear rolling rigid coil spring, enabling dynamic driving even on rough roads. The reliable gearbox is sealed with a built-in differential gear. Hard acceleration on a grippy surface will let you lift the front wheels with the included rear wheelie bar.
Note
The body shell is constructed with ABS plastic and requires Tamiya TS paints if you wish to change the colour.

The main frame is a lightweight and strong ABS resin bathtub chassis that allows easy installation and maintenance of the internal parts. The battery is mounted at the lowest position for a lowered centre of gravity.

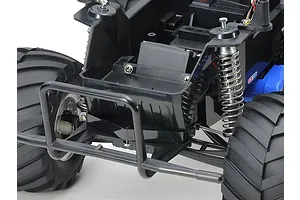

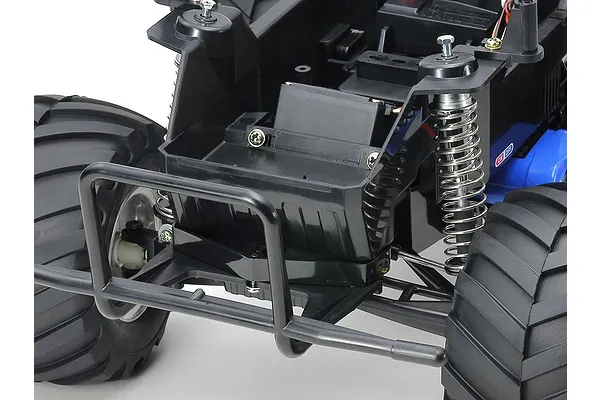

The front suspension is an independent type swing axle system. The steering system is equipped with the servo mounted diagonally and uses a 2-split rod.

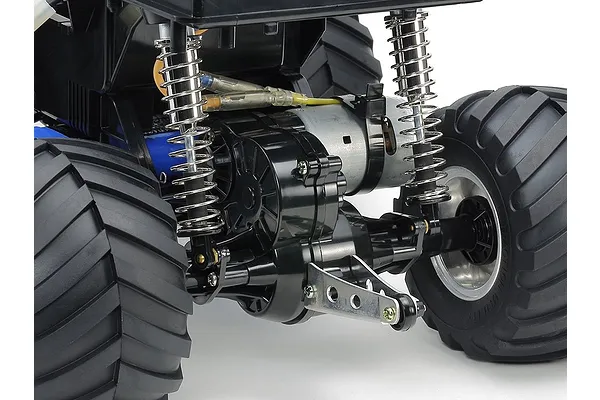

The rear suspension features a strong rolling rigid design for durability and stability, while the included wheelie bar prevents the vehicle from tipping over during wheelies, allowing for exciting stunts and safe driving.

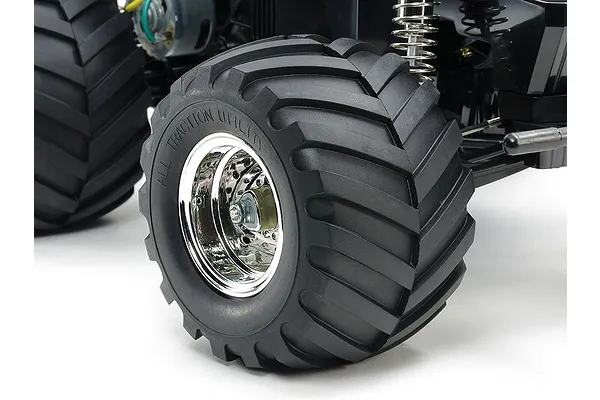

The truck is equipped with 115mm hollow rubber rug pattern tyres that provide superior grip and ground clearance for tackling challenging terrain. The stylish yellow one-piece rims enhance the truck's overall aesthetic and complement its off-road capabilities.

The chassis features independent swing axle front suspension and a rolling rigid rear suspension with coil springs and CVA oil shocks. The diagonally mounted steering servo and two-piece tie rod provide precise control, while the sealed gearbox houses the differential gear for smooth and efficient operation.

Combining a 1950s style pick-up truck body with massive monster truck tyres, the popular Midnight Pumpkin is now available with a metallic body for even more eye-catching R/C action.

The CW-01 has front swing axle independent suspension and rear rolling rigid coil spring, enabling dynamic driving even on rough roads.

The 115mm diameter hollow tyres are attached to the one-piece silver-plated rims.

The reliable gearbox is sealed with a built-in differential gear.
| Scale | 1/12 |
|---|---|
| Length | 385mm (15.1") |
| Width | 290mm (11.4") |
| Height | 260mm (10.23") |
| Body Shell | Chrome Metallic Painted ABS |
| Chassis Type | CW-01 |
| Construction Type | Assembly Kit |
| Motor | 540-Brushed Type |
| Electronic Speed Control (ESC) | Not Included |
| Motor Position | Rear |
| Wheel Drive | 2WD |
| Gear Ratio | Fixed |
| Shocks | Friction Front & Rear |
| Suspension | Independent Front / Solid Axle Rear |
| Terrain Use | On & Off Road |
| Scale | 1/12 |
|---|---|
| Max LiPo Power | 2S (7.4v) |
| Completion | Kit |
| Skill Level | Beginner |
| Power Source | Electric Brushed |
| Chassis Type | Truck |
| On/Off Road | Off Road |
| Drivetrain | 2WD |
| Suited Motor/ESC Type | Electric |
|---|
| Battery Connector | Not Included |
|---|---|
| Pinion Gear | 10T |
