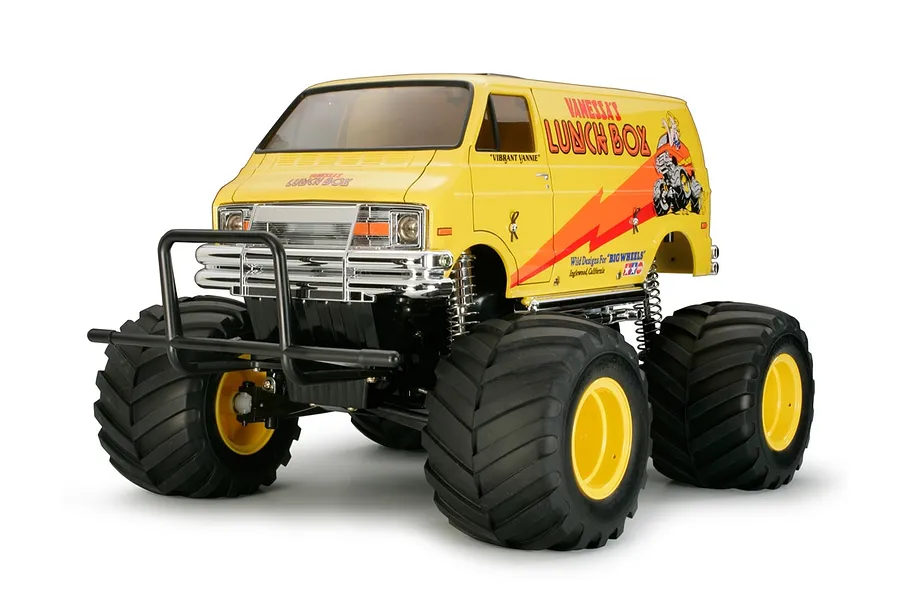

Tamiya CW-01 Lunch Box RC Monster Truck Electric 2WD 1/12 Scale Kit

Videos

Tamiya CW-01 Lunch Box RC Monster Truck Electric 2WD 1/12 Scale Kit

Brand: Tamiya | SKU: 58347

sold out

5.0

1 reviews

$205.93

Tamiya Lunch Box RC Monster Truck: The Icon Returns! Classic Design, Wheelie Action, and Fun for All.

Designed for any skill level
Compatible with a wide range of OEM and Aftermarket upgrade parts
Motor and ESC comes with kit

Add to Wishlist

Save Time & Add These Now

Complete your setup with these required items.

Traxxas Power Cell 1.5v AA Batteries 4Pcs

$10.84

Transmitter Batteries

Tornado 7.2v 5000Mah NiMH Battery

$53.85

Battery

Power HD Standard LF-13MG 13kg Metal Geared Servo

$40.33

Steering Servo

FlySky FS-GT2F 2.4Ghz 2ch Radio w/ FS-A3 Receiver

$51.92

Transmitter & Receiver

HSP Curved Hobby Scissors

$6.92

Body Shell Scissors

Yeah Racing 185x75mm LiPo Safe/Protection Bag

$19.95

LiPo Safe Charging Bag

SkyRC S100neo AC/DC Smart Charger

$103.84

Charger

Traxxas Body Reamer

$77.43

Body Shell Reamers

Shop replacement & upgrade parts for this model

Shop Parts

Description

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

The Tamiya Lunch Box is a classic RC monster truck that's back to bring smiles and wheelies to a new generation of enthusiasts. This re-release stays true to the original design, with its iconic van-shaped body and fun-loving personality. The Lunch Box is built for off-road adventures, with a tough and simple design that can handle any terrain.

The Lunch Box features a bathtub chassis, a sealed gearbox, a solid rear axle, and a powerful 540-sized brushed motor, just like the original. The updated TEU-101BK electronic speed controller provides smooth and reliable power delivery, while the large monster truck tyres and wheelie bar make it easy to pull off impressive stunts. Whether you're a seasoned RC enthusiast or new to the hobby, the Tamiya Lunch Box is a fantastic choice for experiencing the joy of classic monster truck action.

Independent Swing Axle

The chassis features independent swing axle front suspension and a rolling rigid rear suspension with coil springs and CVA oil shocks. The diagonally mounted steering servo and two-piece tie rod provide precise control, while the sealed gearbox houses the differential gear for smooth and efficient operation.

Bathtub Chassis

The main frame is a lightweight and strong ABS resin bathtub chassis that allows easy installation and maintenance of the internal parts. The battery is mounted at the lowest position for a lowered centre of gravity.

Independent Suspension

The front suspension is an independent type swing axle system. The steering system is equipped with the servo mounted diagonally and uses a 2-split rod.

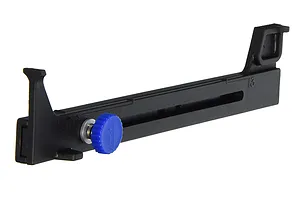

Wheelie Bar

The rear suspension features a strong rolling rigid design for durability and stability, while the included wheelie bar prevents the vehicle from tipping over during wheelies, allowing for exciting stunts and safe driving.

Eye Catching Wheels

The truck is equipped with 115mm hollow rubber rug pattern tyres that provide superior grip and ground clearance for tackling challenging terrain. The stylish yellow one-piece rims enhance the truck's overall aesthetic and complement its off-road capabilities.

Features

Bathtub chassis for a durable and stable platform
Ribbed truck front tyres and ribbed truck rear tyres for excellent traction and handling
Sealed gearbox protects the gears from dirt and debris, ensuring smooth operation and longevity
Reinforced bumper protects the chassis from impacts during off-road adventures
1/12 scale assembly kit for a fun and rewarding building experience
White ABS body and yellow ABS rims for a classic and stylish look
Includes decals for customising the appearance
Box-type frame 2WD chassis with front swing axle and rear rolling rigid suspension for a simple and robust design
Fully-enclosed gearbox protects against dirt and debris, ensuring smooth operation and longevity
115mm diameter tyres provide excellent ground clearance and traction
Both front and rear wheels can be upgraded with ball bearings for smoother and more efficient operation
Wheelie bar included for performing wheelies and stunts
Genuine Tamiya Product

Specifications

Length: 385mm (15.16")
Width: 290mm (11.42")
Height: 225mm (8.86")
Wheelbase: N/A
Weight: 1560g (3.44 lbs)
Chassis: Monocoque Tub Chassis (CW-01)
Drivetrain: 2WD
Suspension: Coil Over Shock Absorbers
Motor: Tamiya 540 Sized Brushed Motor
ESC: Tamiya Brushed ESC

Included Items

1x Tamiya CW-01 Chassis Kit
1x Tamiya 540 Sized Brushed Motor
1x Tamiya Brushed ESC
1x Unpainted 1/12 Lunch Box Body Shell

Required Items

1x Compatible 7.4V LiPo or 7.2V NiMH Battery
1x Compatible Charger
1x Compatible Servo
1x 2+ Channel Transmitter & Receiver
ABS Safe Paint
AA Batteries For Chosen Transmitter

Videos

Specifications

Factory Specs

Max LiPo Power: 2S (7.4v)
Pinion Gear: 10T
Spur Gear
Battery Connector: Tamiya

RC Kit

Suited Motor/ESC Type: Electric

RC Car

Completion: Kit
Drivetrain: 2WD
Max LiPo Power: 2S (7.4v)
On/Off Road: Off Road
Chassis Type: Monster Truck
Power Source: Electric Brushed
Skill Level: Beginner
Scale: 1/10

Parts

Standard

Same as the original part from the manufacturer.

Tamiya Lunch Box Screw Set (Parts Bag D)

0 reviews

$6.95

Standard

Same as the original part from the manufacturer.

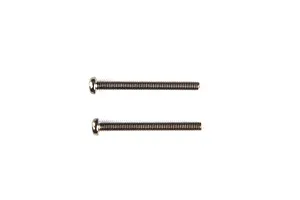

Tamiya 3x30mm Fine Button Head Screws 2Pcs

0 reviews

$4.63

Standard

Same as the original part from the manufacturer.

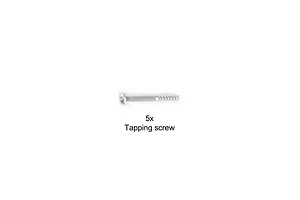

Tamiya 3x21mm Coarse Thread Binder Head Shoulder Screws 5Pcs

0 reviews

$4.86

Standard

Same as the original part from the manufacturer.

Tamiya Lunch Box Owners Instruction Manual

0 reviews

Now $10.81

Save $2.70

Standard

Same as the original part from the manufacturer.

Tamiya 3x15mm Fine Thread Binder Head Screws 4Pcs

0 reviews

$4.71

Standard

Same as the original part from the manufacturer.

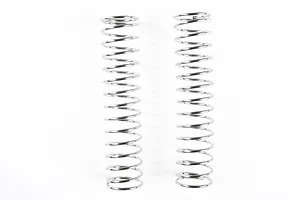

Tamiya Lunch Box Axle Spring 2Pcs

0 reviews

$4.27

Standard

Same as the original part from the manufacturer.

Tamiya Lunch Box & Grasshopper 3x22mm Suspension Pin Screw 4Pcs

0 reviews

$5.16

Standard

Same as the original part from the manufacturer.

Tamiya 3x10mm Fine Thread Binder Head Screws 10Pcs

0 reviews

$4.77

Standard

Same as the original part from the manufacturer.

Tamiya Heat Resistant Double Sided Tape

1 review

$7.70

Standard

Same as the original part from the manufacturer.

Tamiya 3mm Silver Steel Flanged Serrated Nuts 10Pcs

0 reviews

$4.92

Standard

Same as the original part from the manufacturer.

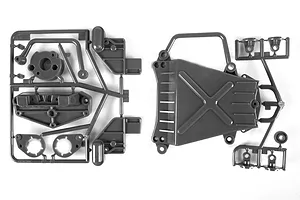

Tamiya Chassis (Parts Bag D)

1 review

$15.65

Standard

Same as the original part from the manufacturer.

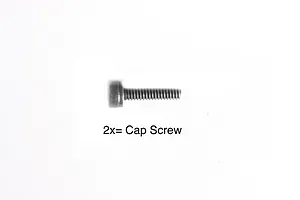

Tamiya 2x8mm Fine Thread Cap Head Screws 2Pcs

0 reviews

Now $2.49

Save 50%

Standard

Same as the original part from the manufacturer.

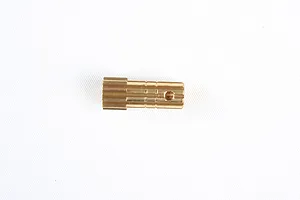

Tamiya Brass 10T 32dp/0.8Mod Pinion Gear

0 reviews

$6.26

Standard

Same as the original part from the manufacturer.

Tamiya 2x6mm Fine Thread Binder Head Screws 2Pcs

0 reviews

$5.29

Standard

Same as the original part from the manufacturer.

Tamiya 3x8mm Coarse Thread Binder Head Screws 10Pcs

0 reviews

$4.92

Standard

Same as the original part from the manufacturer.

Tamiya Black Large & Small Body Pin Set

1 review

$5.16

Standard

Same as the original part from the manufacturer.

Tamiya 2x5.8x0.3mm Steel Washers 5Pcs

0 reviews

$4.63

Standard

Same as the original part from the manufacturer.

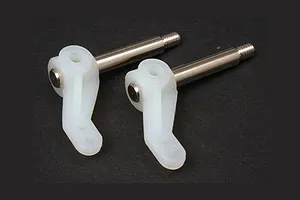

Tamiya Steering Hubs 2Pcs
