Tamiya Globe Liner RC Truck Electric 4WD 1/14 Scale Kit

Brand: Tamiya | SKU: 56304-600
1 in stock

$614.74

Tamiya Globe Liner RC Truck: Conquer the Road with Scale Trucking Detail

Key Points
  • Perfect for experienced kit builders
  • Huge range of add ons and modification compatibility
  • Highly customisable
  • Incredible scale detail
Required to Complete
TS-47 Chrome Yellow Paint
X-11 Gloss Chrome Silver Paint
Tamiya X-11 Chrome Silver Gloss Acrylic Paint 10ml
$5.31 10+ in stock
Required QTY: 1
X-18 Semi-Gloss Black Paint
XF-60 Flat Dark Yellow Paint


Important: When you're choosing your remote controller for your Tamiya semi truck, you need to figure if you want to use a MFU (Multi Function Unit). Your choice is between an analog or digital trimmed 4ch radio.If you plan on using your Tamiya semi without an MFU, you can use either analog or digital.If you plan on using your Tamiya semi with an MFU, you can only use an analog remote controller like the Tamiya Attack 4YWD.
Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

Description

The Tamiya Globe Liner is more than just a model; it's an chance to build your own trucking empire. This 1/14 scale semi-truck kit offers a rewarding assembly experience, allowing you to create a personalised masterpiece.

Start with the detailed chassis and body, then customise your rig with optional chrome parts, trailers, and the Multi-Function Control Unit (MFC) for realistic lights, sounds, and vibrations. With its impressive size and attention to detail, the Globe Liner is the perfect platform for unleashing your creativity and building the ultimate RC trucking experience.

Features
  • Front and rear suspension equipped with metal leaf springs and metal dampers
  • Propeller shaft driven rear axles
  • Detailed cab interior with dashboard and seats
  • Plated front bumper, radiator grille, and sun visor
  • Etched mesh air cleaner
  • Metal exhaust pipe
  • Adjustable side mirrors with circular under-mirrors
  • Coupler for connecting semi-trailers with sound effects
  • Variety of lights can be added, including headlights, roof lamps, stop lamps, turn signals, and hazard lights
  • Genuine Tamiya Product
3 Speed Gearbox
3 Speed Gearbox

The included 3 speed gearbox allows you to shift on the fly!

  • Low (forwards and backwards)
  • Medium (forwards and backwards)
  • High  (forwards and backwards)
MFU (Multi Function Unit) (Sold Separately)
MFU (Multi Function Unit) (Sold Separately)

The must have multi function unit gives your Tamiya 1/14 semi truck some attitude by lighting it up with LED lights (which work with the operation of the vehicle for example, when the truck is turning left the left indicator flashes), adding realistic vibrations (idle and starting vibrations etc), and of course, the sounds!

  • 24 different sounds
  • 9 different types of lights
  • Vibrations synchronised with the motor output
Specifications
  • Length: 500mm (19.69")
  • Width: 183mm (7.2")
  • Height: N/A
  • Wheelbase: 350mm (13.78")
  • Weight: Varies
  • Chassis: Aluminium + Polycarbonate Resin Ladder Frame (Truck)
  • Drivetrain: 4WD
  • Suspension: Front and Rear Leaf Rigid with Aluminium Friction Dampers
  • Motor: Tamiya 540 Sized Brushed Motor
  • ESC: Not Included
Included Items
  • 1x Tamiya Globe Liner RC Truck Electric 4WD 1/14 Scale Kit
  • 1x 540 Sized Brushed Motor
Required Items
  • 1x Compatible Steering servo
  • 1x Compatible Shift servo (for changing gears)
  • 1x Compatible Stick Transmitter

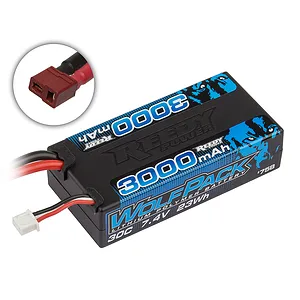

  • 1x Compatible 7.4V LiPo Battery

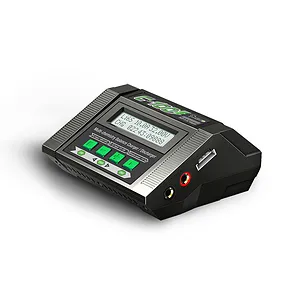

  • 1x Compatible Charger
  • 1x Polycarbonate Safe Paint
  • 1x ABS Safe Paint
  • 1x Compatible ESC (or the optional multi function unit)
Note

 Important: When you're choosing your remote controller for your Tamiya semi truck, you need to figure if you want to use a MFU (Multi Function Unit). Your choice is between an analog or digital trimmed 4ch radio.If you plan on using your Tamiya semi without an MFU, you can use either analog or digital.If you plan on using your Tamiya semi with an MFU, you can only use an analog remote controller like the Tamiya Attack 4YWD.

How can I tell if my remote has analog or digital trim?

  • Analog remote trims slide from one end to the other
  • Digital remote trims are switches and click in either direction (no sliding)
Specifications
RC Car
Suited Motor Type: Brushed
Max LiPo Power: 2S (7.4v)
Completion: Kit
Scale: 1/14
Skill Level: Expert
Power Source: Electric Brushed
Chassis Type: Truck
On/Off Road: On Road
Drivetrain: 4WD
Factory specs
Battery connector: Not Included
Max LiPo power: 2S (7.4v)
Pinion gear: 10T
Spur gear: 36T
Wheel hex size: 12
