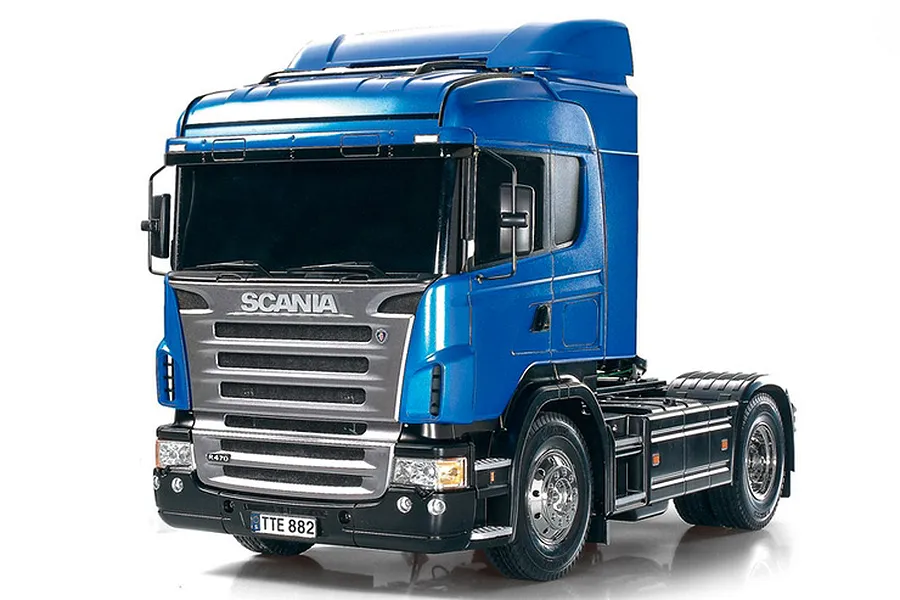

Tamiya Scania R470 Highline RC Truck Electric 2WD 1/14 Scale Kit

  • 1/14
  • 2WD
  • Kit

Part no. 56318

Sold out5.0
1 review
1 / 6
1 / 6

$535.45

or 4 fortnightly payments of $133.86 with afterpay or PayPal, or zip

Tamiya Scania R470 Highline RC Truck: 1/14 scale electric 2WD kit with realistic details and a 3-speed transmission.

  • 3-speed transmission for realistic gear changes via transmitter

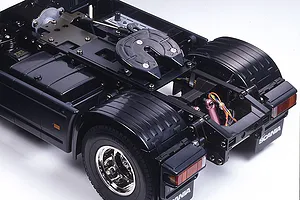

  • Durable ladder frame chassis with aluminium side channels and plastic cross members
  • Leaf spring suspension for authentic truck handling

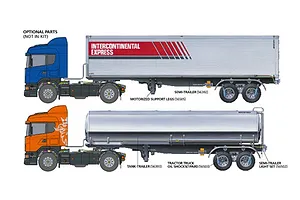

  • Compatible with Tamiya 1/14 scale semi-trailers for versatile configurations
  • Requires separate Multi-Function Control Unit for lights, sounds, and vibration
$535.45

Overview

Important: When you're choosing your remote controller for your Tamiya semi truck, you need to figure if you want to use a MFU (Multi Function Unit). Your choice is between an analog or digital trimmed 4ch radio.If you plan on using your Tamiya semi without an MFU, you can use either analog or digital.If you plan on using your Tamiya semi with an MFU, you can only use an analog remote controller like the Tamiya Attack 4YWD.Also, You will need to purchase separately available longer-cabled LEDs (Items 56549-56551) if using MFCs.

ABS Body Shell

This body shell can be painted using The Tamiya TS series of lacquer paints. Polycarbonate paints such as the Tamiya PS series will not adhere and/or cause damage to the body shell's surface. To view our range of compatible paints, please CLICK HERE.

The Tamiya Scania R470 Highline RC Truck recreates the award-winning Scania R Series with exceptional detail and functionality. This 1/14 scale kit features a realistic body and a chassis with numerous metal parts for added volume and authenticity. The 3-speed transmission allows for realistic gear changes, enhancing the driving experience. The ladder frame chassis, with its aluminium side channels and plastic cross members, provides a solid foundation. The leaf spring suspension ensures authentic truck handling. For an immersive experience, a separate Multi-Function Control Unit can be added to enable realistic lights, sounds, and vibration.

This kit is designed for enthusiasts who appreciate detailed scale models and realistic functionality. The 3-speed transmission and robust chassis make it suitable for on-road driving. The option to add a Multi-Function Control Unit allows for a truly immersive RC truck experience, with engine sounds, air horn, and various light functions. The compatibility with Tamiya's 1/14 scale semi-trailers offers a wide range of play and display possibilities.

Note

Assembly is required. Multi-Function Control Unit and trailers sold separately. Consult the manual for detailed setup and maintenance instructions.

Features

  • 3-gear transmission (gear shifting operated via transmitter)
  • Aluminium & polycarbonate resin ladder frame
  • Front/rear leaf spring suspension
  • Aluminium dummy shocks (front/rear)
  • Rear wheel drive
  • 3-bevel differential gears
  • Type 540 motor

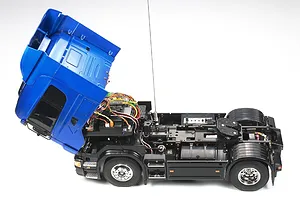

  • Realistic cab with tilting function
  • Detailed exterior and interior
  • 22mm/83mm tyre width/diameter
  • Optional Multi-Function Control Unit for lights, sounds, and vibration
  • Compatible with Tamiya's 1/14 scale trailers
  • ABS Plastic Body Material
  • Metal and Plastic Bushings
  • Genuine Tamiya Product

In the box

  • 1x Tamiya Scania R470 Highline RC Truck Electric 2WD 1/14 Scale Kit

You'll need

  • 1x 4-Channel Tamiya Attack Radio
  • 2x Servos
  • 1x Electronic Speed Control (ESC)
  • 1x 7.2V Battery with Charger
  • 1x Tamiya TS Paint
  • 4x AA Batteries (for Transmitter)
  • 1x Multi-Function Control Unit (MFC-01) (Optional)

Highlights

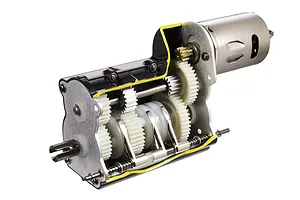

3 Speed Gearbox

3 Speed Gearbox

Experience the versatility of a 3-speed gearbox! Shift between low, medium, and high gears on the fly to create realistic big rig performance for different terrains and driving styles. Enjoy the flexibility of forward and reverse in each gear, giving you complete control over your RC adventures.

MFC Unit - Multi Function Control Unit (Sold Separately)

MFC Unit - Multi Function Control Unit (Sold Separately)

Transform your Tamiya 1/14 semi-truck into a true-to-life masterpiece with the must-have Multi-Function Control Unit (MFC Unit). This incredible unit adds a symphony of realistic sounds, synchronised vibrations that react to the truck's movement, and dazzling LED lights that illuminate every manoeuvre. With 24 different sounds, 9 types of lights, and vibrations that mimic engine idle and acceleration, the MFC Unit brings an unparalleled level of realism to your RC experience.

Specifications

Wheelbase272mm (10.71")
WeightApprox. 3.2kg (7.05 lb)
ChassisAluminium & Polycarbonate Resin Ladder Frame
SuspensionFront/Rear Leaf Springs
DrivetrainRear Wheel Drive
MotorType 540 Brushed
ESCN/A

Dimensions

Length452mm (17.8")
Width187mm (7.36")
Height293mm (11.54")

RC Car

Scale1/14
Chassis TypeSemi Truck
CompletionKit
Skill LevelExperienced

Factory Specs

Max LiPo Power2S (7.4v)

Manuals

Reviews (1)

5.0

Based on 1 review

  • 5 stars1
  • 4 stars0
  • 3 stars0
  • 2 stars0
  • 1 star0
  • Mark D

    Verified buyer

    26 Mar 2026

    Great fun kit to build can't wait to finish it

Questions & Answers

Have a question, or an answer? Our team and other owners both reply.

No questions yet. Ask the first one.
