Thunder & Flame

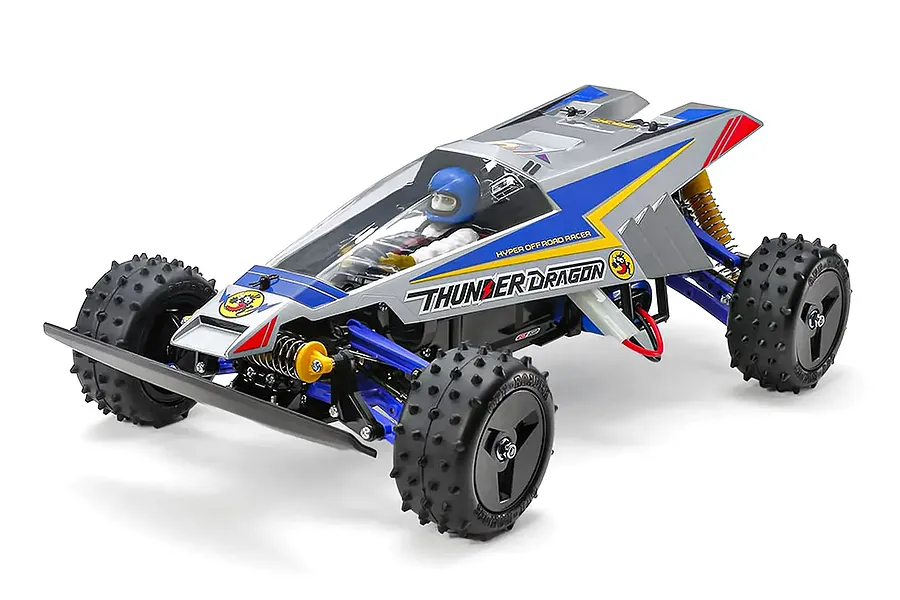

This assembly kit creates an updated re-release version of the classic R/C off-road buggy Thunder Dragon, which appeared in a Japanese cartoon in the 1980s. Its ABS bathtub frame is tough and allows easy maintenance, while 4-wheel double wishbone suspension uses CVA oil dampers and a front stabilizer for a superior ride. Sealed gearboxes front and rear contain differentials with die-cast 3-bevel types for smooth, superior handling feel, and semi-pneumatic spike tires give great grip. The streamlined body is molded in polycarbonate, with non-canopy sections painted in silver. It is pre-cut for convenience.

Tough Shaft-Driven 4WD

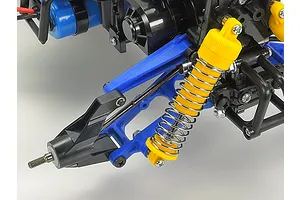

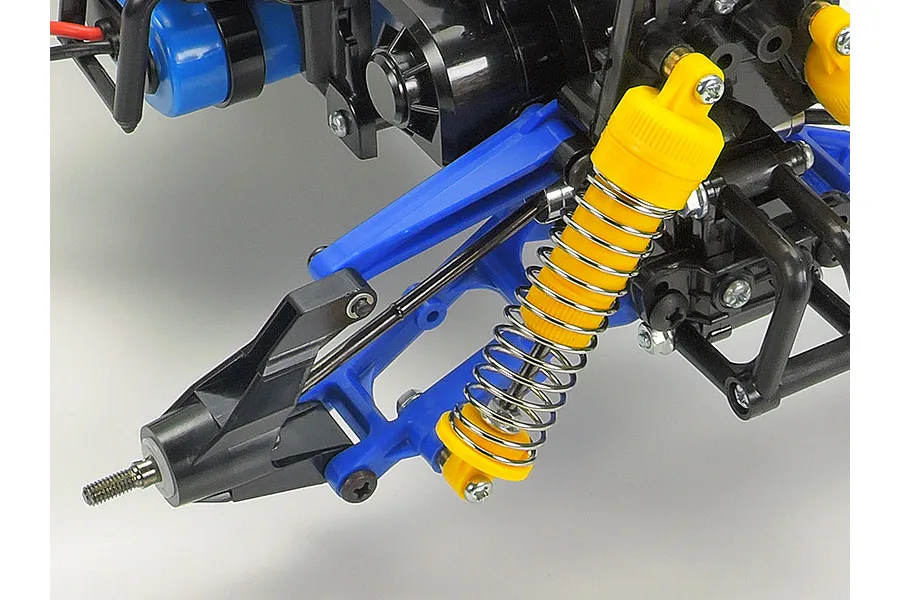

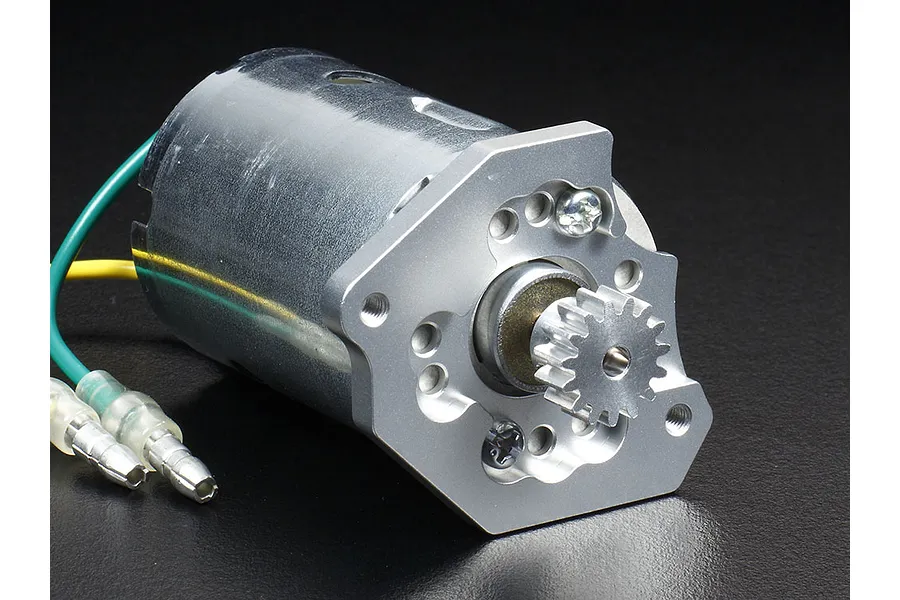

The midship motor, shaft-driven 4WD chassis is based around a lightweight and tough monocoque, with 4-wheel independent double wishbone suspension attached to gearboxes: an easy maintenance layout using upper "I" and lower "H" arms. Dual CVA oil dampers at the rear and a single one in the front monoshock setup are joined by a front stabilizer for optimal flex. Gear differential units front and rear are in sealed gearboxes, and an aluminum motor mount further improves reliability.

---

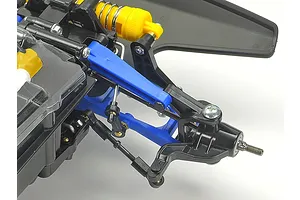

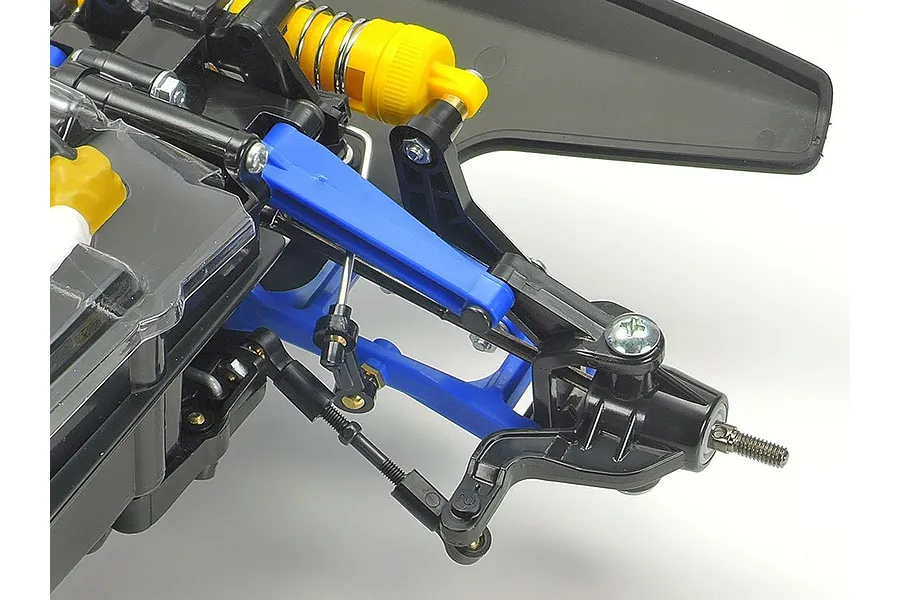

Front double wishbone suspension utilizes upper "I" arms and lower "H" arms for a ground hugging drive.

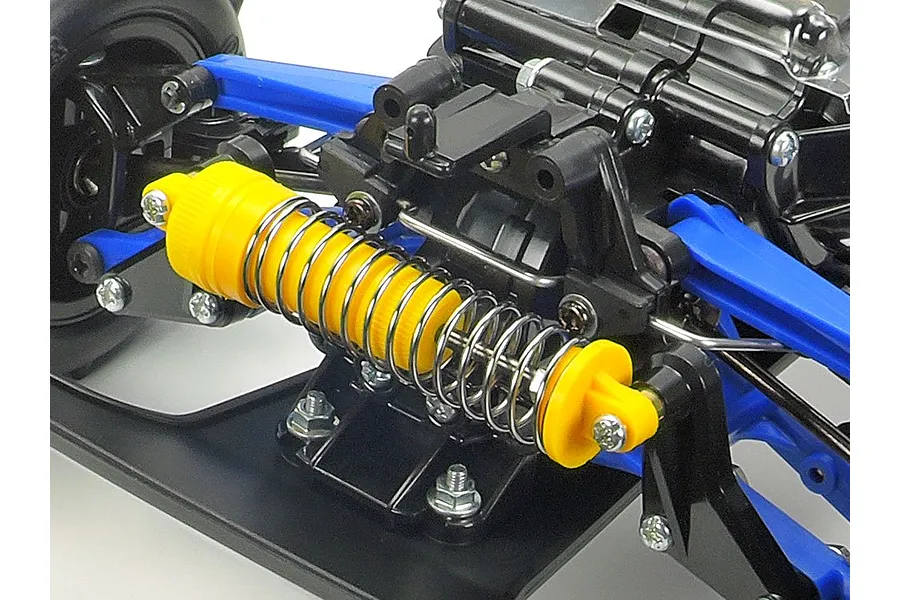

A front monoshock setup employs a CVA oil damper and helps limit roll when your buggy is cornering.

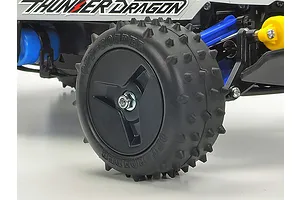

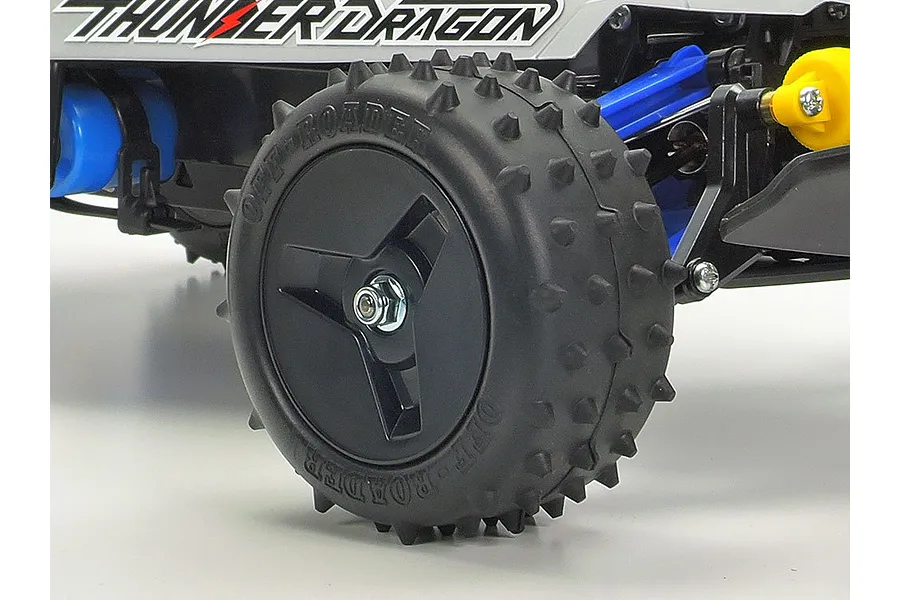

Dish design wheels help mud and dirt to slide right off, and are paired with grippy spike tires.

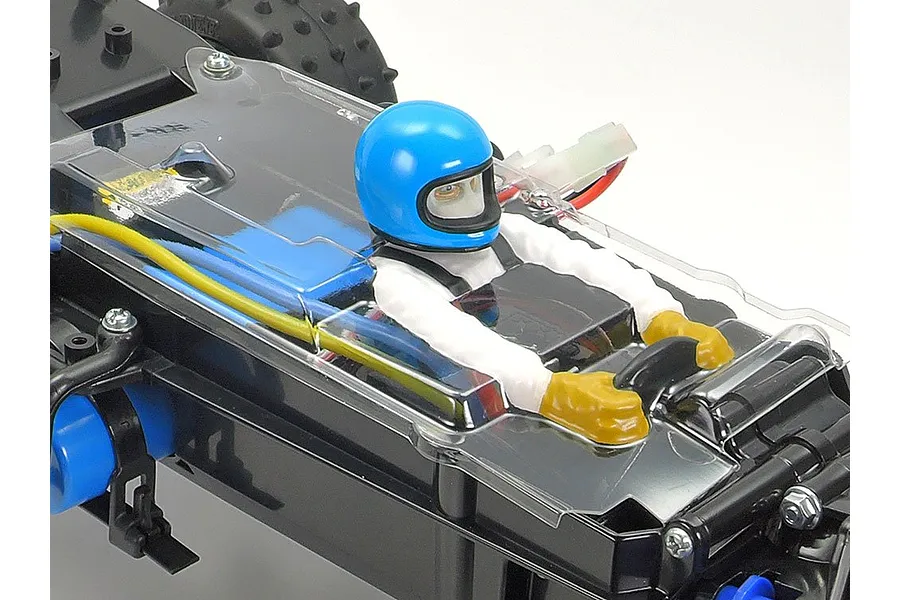

A polycarbonate chassis cover provides protection from dirt, and features a driver figure for realism.

---

Features

• The chassis is based around an ABS plastic bathtub frame for excellent durability and ease of maintenance

• 4-wheel double wishbone suspension uses CVA oil shock-dampers and a front stabilizer for a superior ride

• Features shaft-driven 4WD with front and rear die-cast 3-bevel differentials for smooth, superior handling feel

• Semi-pneumatic spike tyres give great grip and are paired with large-diameter ABS wheels

• Thunder Dragon body is moulded in polycarbonate, with non-canopy sections pre-painted in silver. It is pre-cut for convenience

• Includes 540 brushed type motor

---

Specifications

• Length: 390mm, width: 240mm, height: 130mm. Wheelbase: 260mm

• Adjustable Gear Ratio: Fixed

• Bearings: Plastic bushing

• Body Material: Polycarbonate

• Body Stickers: Included

• Chassis Material: ABS Plastic

• Construction Type: Assembly Kit

• Differential Type: Gear

• Drive Type: 4WD

• Motor: 540-brushed type

• Shock Damper: CVA Oil Filled

• Suspension: 4-wheel fully independent double wishbone

• Terrain Use: Off-Road

---

Included items

Description	QTY
1/10 Thunder Dragon (2021) 4WD Electric Off Road RC Buggy Kit	1

---

Required Items

• 2Ch Radio System (Transmitter & Receiver) & Batteries

• Compatible Battery Pack & Charger

• Servo

• ESC (Electronic Speed Controller)

• Paint

Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. To view the entire range of polycarbonate safe paints, please CLICK HERE
