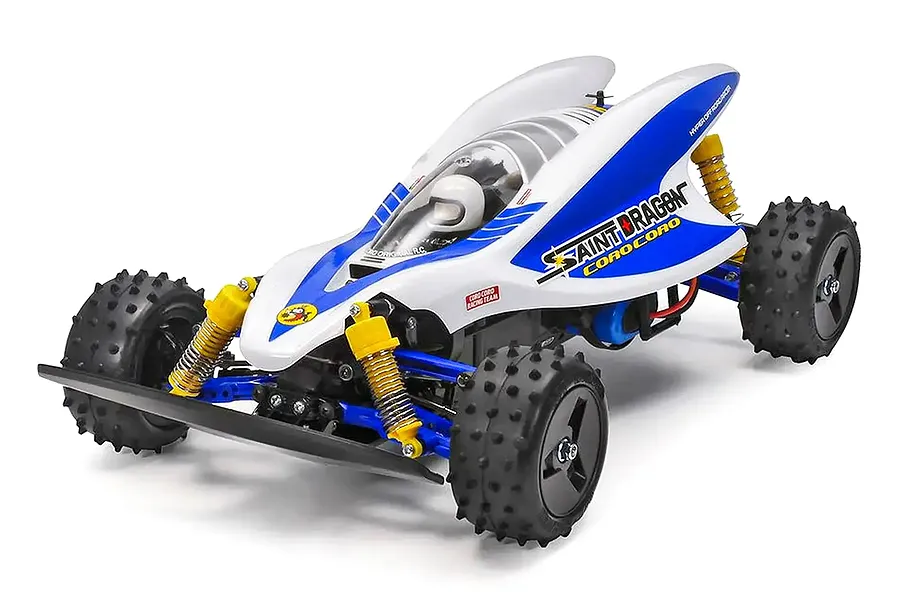

Tamiya Saint Dragon RC Buggy Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit
  • Brushed

Part no. 47459A

DiscontinuedNo reviews yet
1 / 9
1 / 9

This product has been discontinued.

Contact us

Overview

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter.

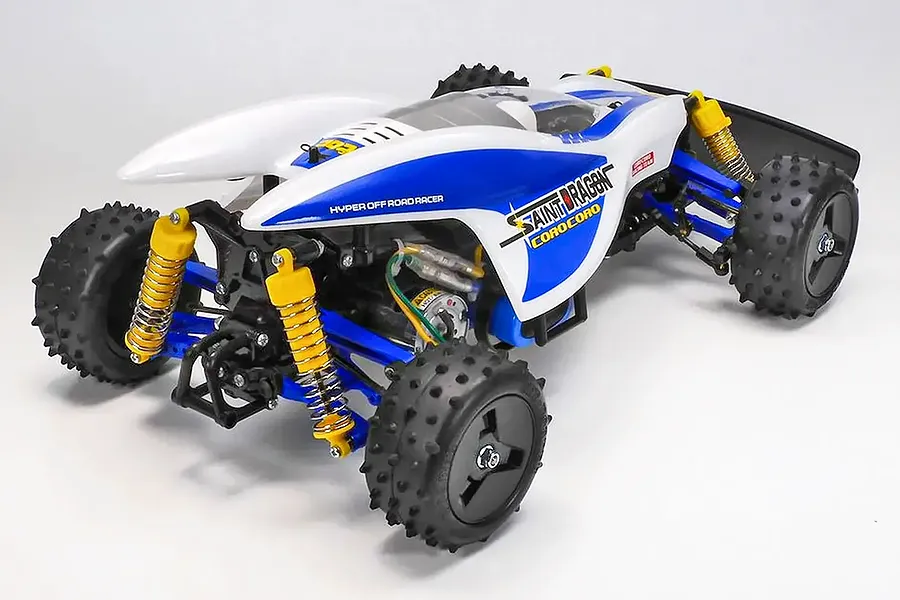

Get ready for exciting 4WD off-road fun with the Tamiya Saint Dragon RC Buggy Kit! This RC kit recreates a popular 1980s comic car, the famous Saint Dragon. Mounted on a capable 4WD off-road chassis, this limited-edition re-creation features a stylish polycarbonate body, pre-painted white and ready for stickers. Enjoy the fun of building this unique legend!

Efficient shaft-driven 4WD drivetrain & lightweight, tough bathtub frame. Suspension uses upper 'I', lower 'H' arms with CVA oil shocks & front stabiliser for firm, ground-hugging drive. Front & rear sealed gearboxes house die-cast 3-bevel diffs for superior handling. Aluminium motor mount ensures heat dissipation. Includes 540-type brushed motor. Build this unique icon for rewarding 4WD off-road fun!

Features

  • Accurate replica 1980s comic car, the famous Saint Dragon
  • Capable 4WD chassis with efficient shaft-driven drivetrain
  • Lightweight, tough bathtub frame with plentiful ground clearance
  • 4-wheel double wishbone suspension with CVA oil shocks & front stabiliser
  • Front & rear sealed gearboxes house die-cast 3-bevel differentials
  • Aluminium motor mount for superior heat dissipation
  • Includes 540-type brushed motor
  • Pre-assembled, pre-painted white polycarbonate body with stickers
  • Your chance to build a unique piece of comic book history!
  • Genuine Tamiya Product

In the box

  • 1x Tamiya Saint Dragon RC Buggy Kit (Requires Assembly)
  • 1x Pre-Assembled & Pre-Painted Polycarbonate Bodyshell (White)
  • 1x Set Of Body Stickers
  • 1x Driver Figure
  • 1x 540-Type Brushed Motor
  • 1x Set Of One-Piece Wheels
  • 1x Set Of Grooved Front Tyres
  • 1x 1x Set Of Spike Rear Tyres
  • 1x Set Of Instructions / Manual

You'll need

  • 1x 2-Channel Radio System (Transmitter & Receiver)
  • 1x ESC
  • 1x Steering Servo
  • 1x 7.4V LiPo or 7.2v NiMH Battery
  • 1x Compatible Battery Charger

Highlights

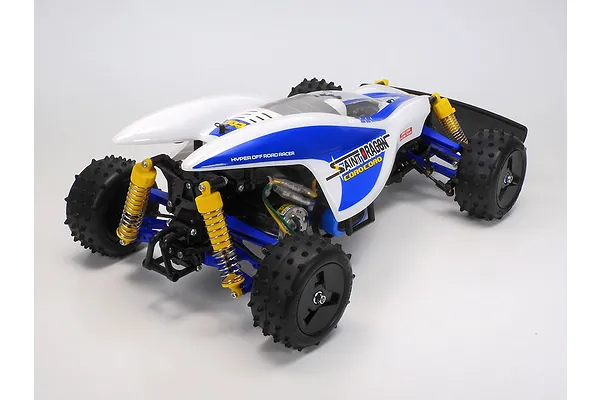

Pre-Painted & Pre-Cut Body

Pre-Painted & Pre-Cut Body

The Saint Dragon features flowing, dynamic body lines, pre-painted in striking white and pre-cut for convenience. Simply apply the included stickers to complete its fantastic look, getting you ready to race faster.

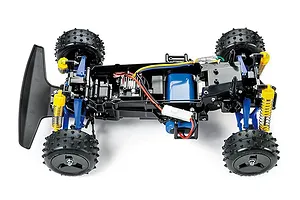

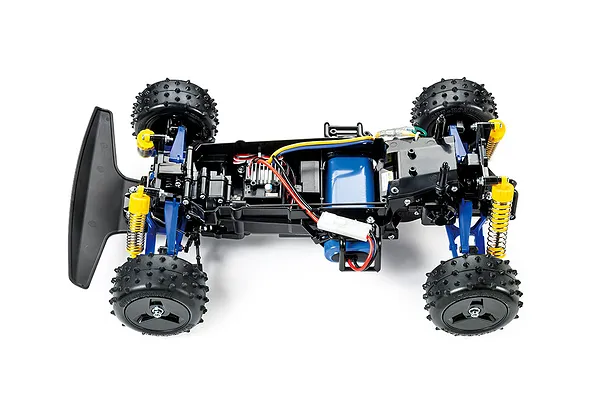

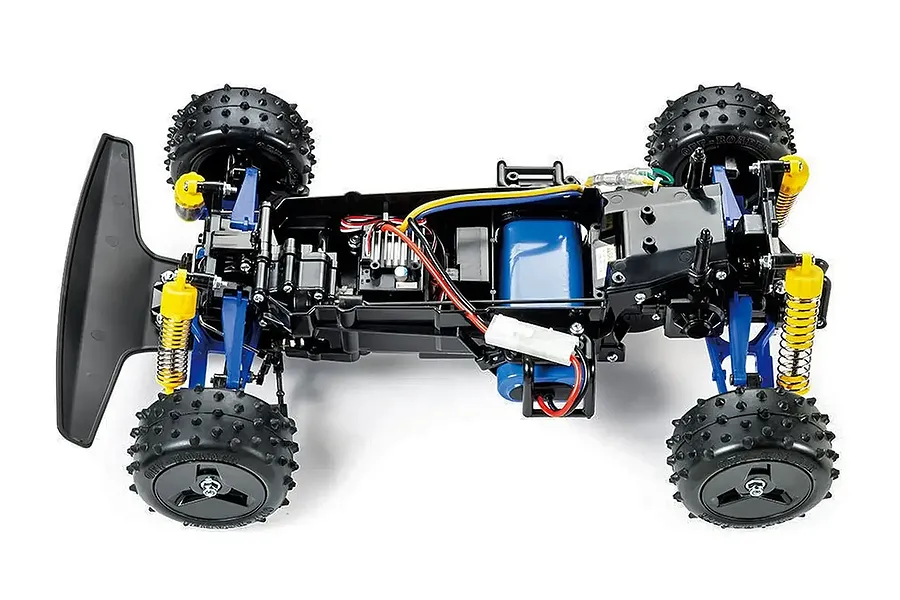

Durable Bathtub Frame Chassis

Durable Bathtub Frame Chassis

Its robust, easy-maintenance layout uses a strong bathtub frame chassis. Both front and rear gearboxes are securely screw-attached, ensuring durability and allowing for straightforward upkeep to keep your buggy performing optimally.

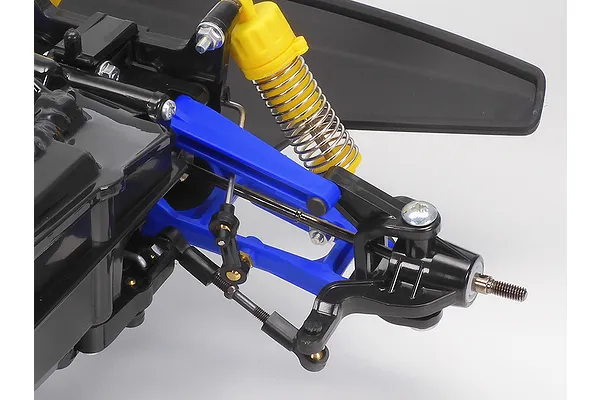

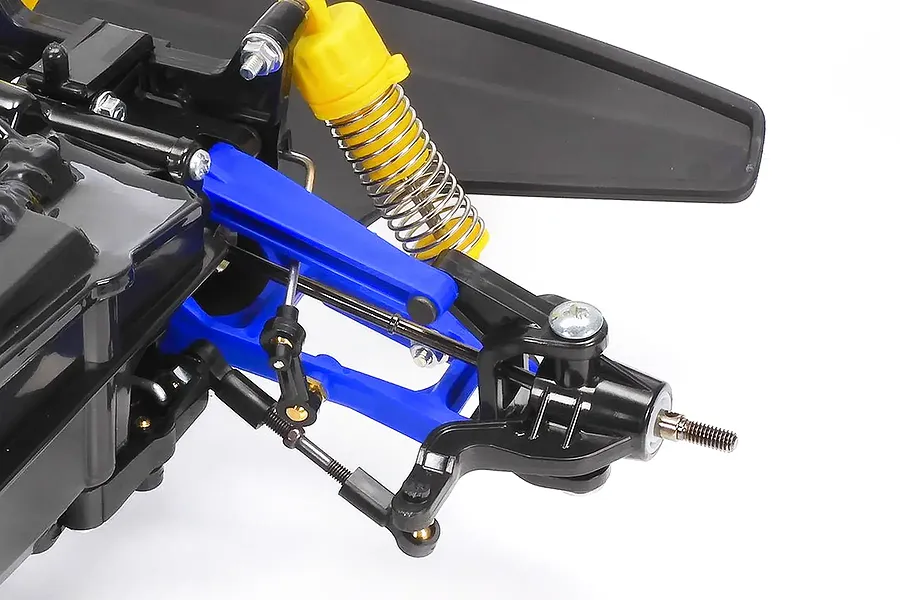

Advanced Double Wishbone Suspension

Advanced Double Wishbone Suspension

Experience superior handling with the double-wishbone suspension, featuring upper 'I' and lower 'H' arms. A front stabiliser minimises body roll when cornering, ensuring stable and predictable control on diverse terrains.

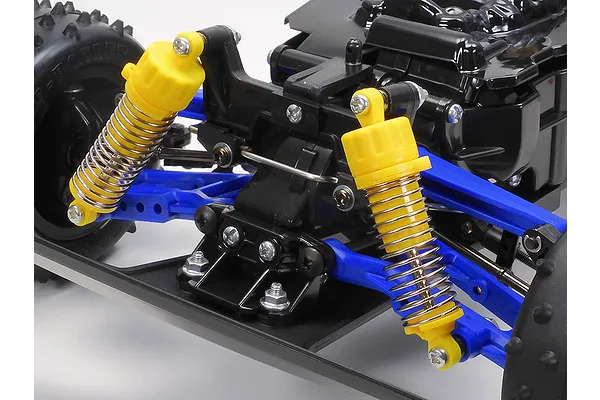

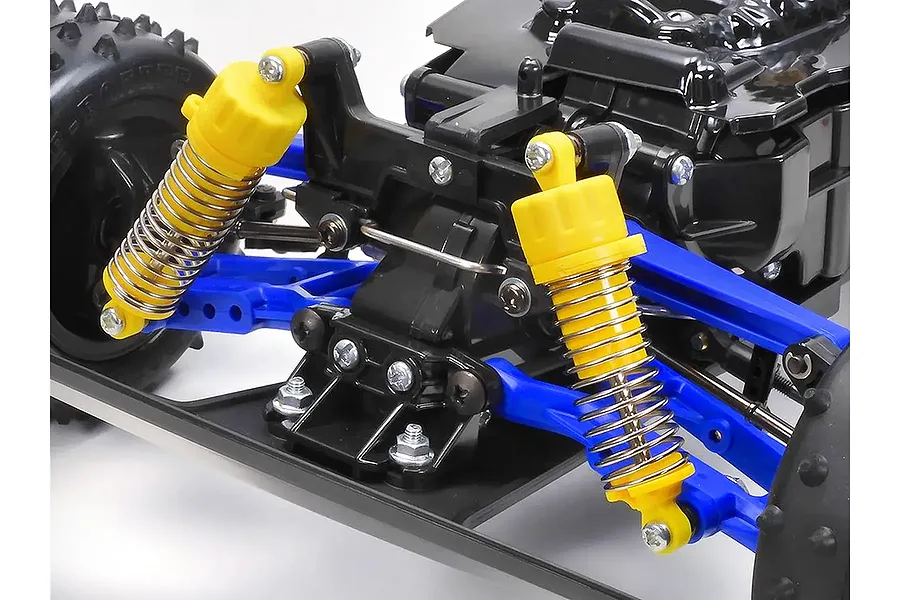

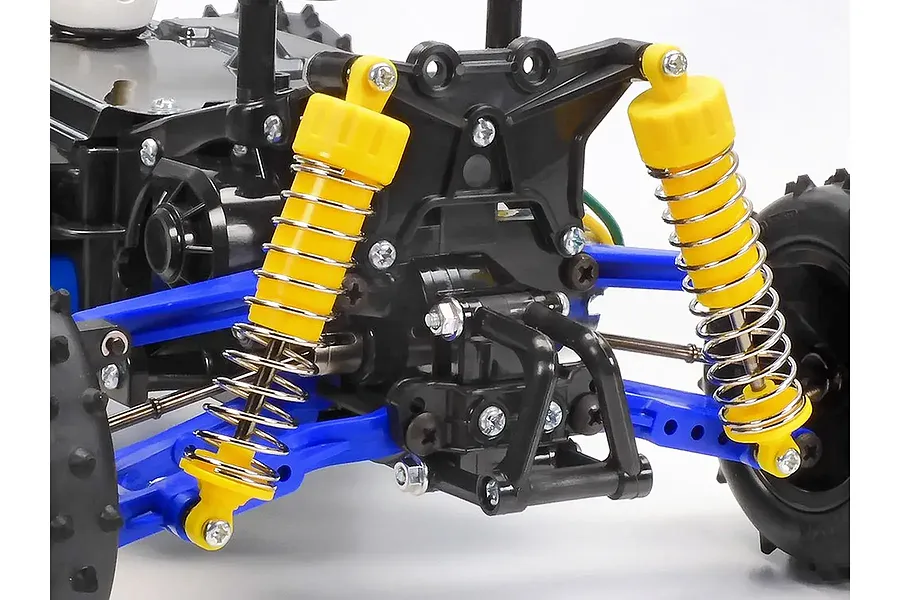

High-Performance CVA Oil Shocks

High-Performance CVA Oil Shocks

High-performance CVA oil shocks provide exemplary shock absorption, directly translating into a highly controllable drive. They effectively cushion impacts, ensuring your buggy maintains stability and responsiveness over rough surfaces for peak performance.

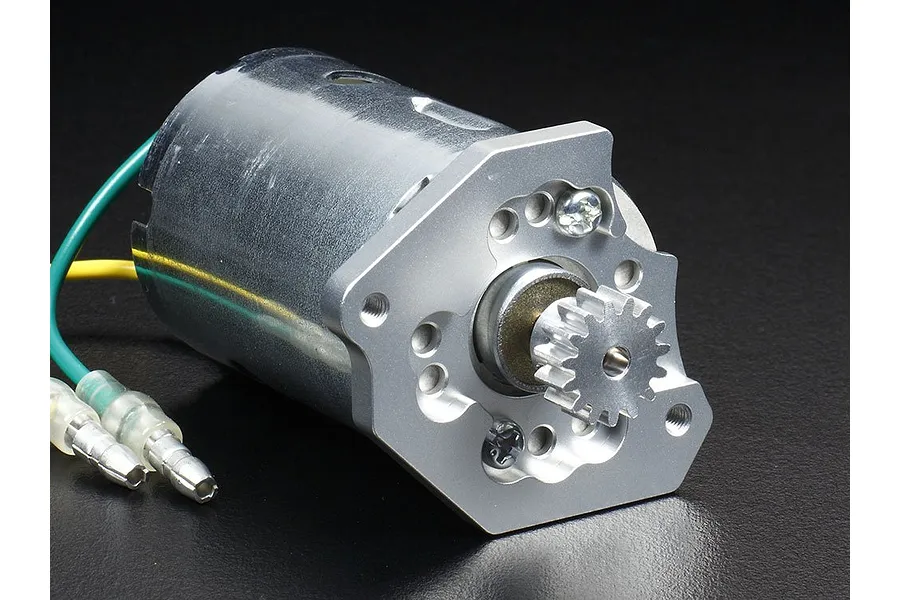

Rigid Aluminium Motor Mount

Rigid Aluminium Motor Mount

An aluminium motor mount significantly boosts the model's overall rigidity. This robust component also effectively helps with motor heat dissipation, ensuring your motor stays cool and performs reliably during intense driving sessions.

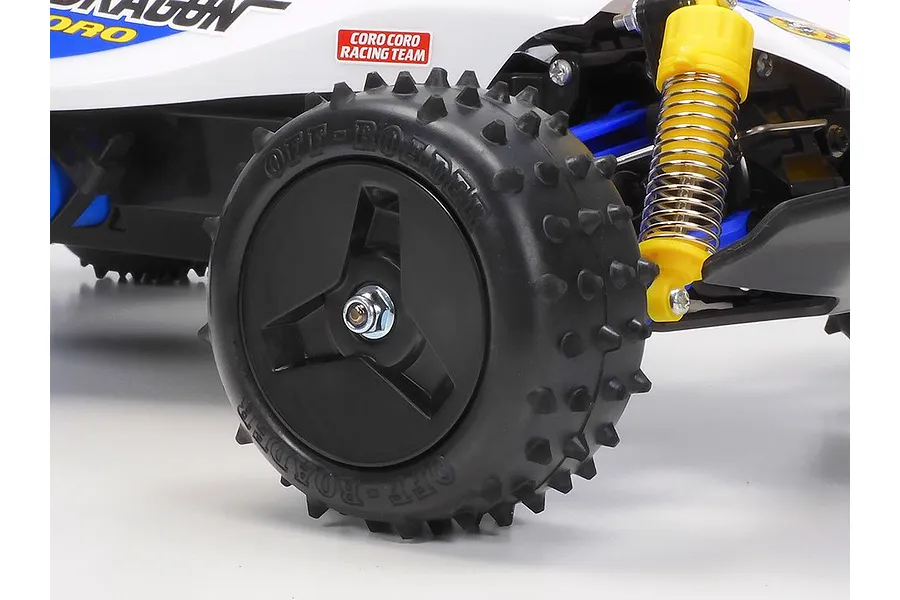

Grippy Dish Wheels & Spike Tyres

Grippy Dish Wheels & Spike Tyres

Dish wheels are designed to attract less mud, keeping your buggy cleaner during drives. They're paired with grippy spike tyres, providing excellent traction and control on various off-road surfaces for a superior driving experience.

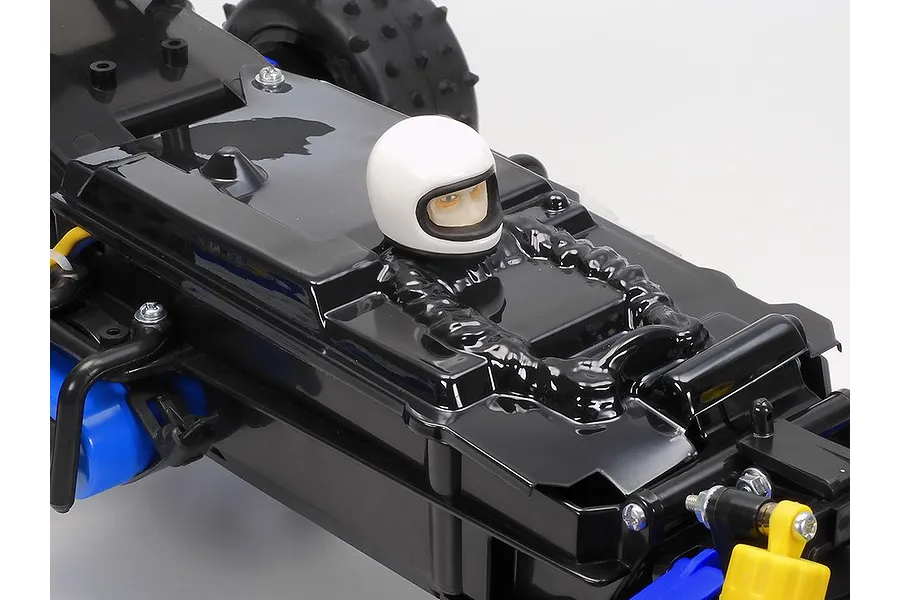

Realistic Driver Figure Details

The polycarbonate chassis cover uniquely includes a depiction of driver arms, adding a touch of realism. The helmet is a separate part, allowing for detailed painting to complete the authentic look of your Saint Dragon's pilot.

Specifications

Length390mm (15.35")
Width240mm (9.45")
Height135mm (5.31")
Wheelbase260mm (10.24")
Weight760g (1.68lbs) approx.
ChassisABS Plastic Bathtub Frame
Suspension4-Wheel Independent Double Wishbone, CVA Oil Shocks
DrivetrainShaft-Driven 4WD, 3-Bevel Differential
Motor540-Type Brushed
ESCN/A

RC Car

Scale1/10
CompletionKit
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeBuggy
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorNot Included
