Tamiya Fighting Buggy (2014) RC Buggy Electric 2WD 1/10 Scale Kit

  • 1/10
  • 2WD
  • Kit

Part no. 47304

DiscontinuedWrite a review
1 / 8
1 / 8

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

Tamiya is delighted to welcome the Fighting Buggy back to its product line-up with this re-release version of the 1982 R/C buggy classic. It retains the unique suspension and drivetrain setups employed on the original model and pairs them with a newly-designed chassis. The ABS resin body keeps the shape and design theme from its predecessor, accenting it with updated markings. It is equipped with an aluminum roof wing part and side nets for an authentic buggy-esque look.

The original 2mm-thick FRP and duralumin chassis plate is replaced with a new 2.5mm-thick FRP plate, finished in black like the 1.5mm-thick mechanism deck. The model can be powered by the separately sold Tamiya LF Battery LF1100-6.6V Racing Pack (M-Size), which will fit neatly underneath the mechanism deck. The die cast arms remain the same on the 2014 version, while the separate reserve tank is still used on the rear suspension. A sealed direct drive gear case also houses the motor and protects it from dust and dirt.

Stability is provided by ribbed front tyres, and the rear gives excellent grip thanks to tyres with tread patterns that extend to the sidewalls. 3-piece wheels are used both front and rear. Comes in nostalgic blister pack style packaging.

Features

  • The classic body of the original is reproduced in durable ABS resin with an aluminum roof panel with wing
  • Newly-designed stickers retain many of the themes of the classic model while also adding some new motifs
  • Lightweight and durable 2.5mm thick FRP chassis plate is compatible with Item 55105 Tamiya LF Battery LF1100-6.6V Racing Pack (M-Size) (sold separately)
  • Original transverse damper rear suspension setup with progressive spring and separate oil reserve tank is again employed
  • Front suspension is double trailing arm type
  • Front/rear suspension arms are die-cast
  • Employs durable die-cast sealed gear case with direct drive setup, which also houses the motor
  • Ribbed front and rear spike tyres, fitted securely to 3-piece wheels
  • Type 540 motor included
  • Comes in nostalgic blister pack style packaging

In the box

  • 1x 1/10 Fighting Buggy (2014) 2WD Electric Off Road RC Buggy Kit

You'll need

  • 2Ch Radio System (Transmitter & Receiver) & Batteries
  • Compatible Battery Pack & Charger
  • ESC
  • Servo

Highlights

Nostalgic Blister Pack Packaging

Nostalgic Blister Pack Packaging

Comes in nostalgic blister pack style packaging.

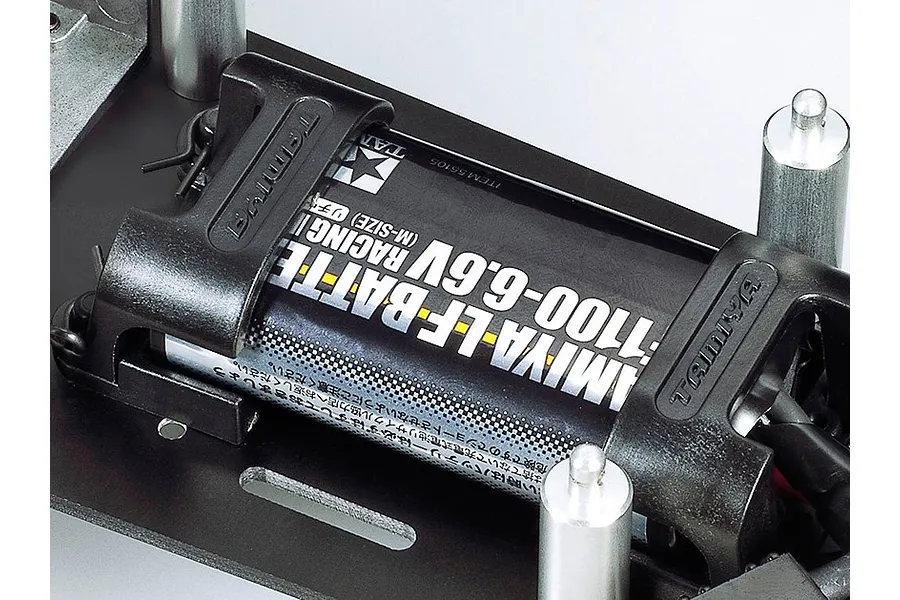

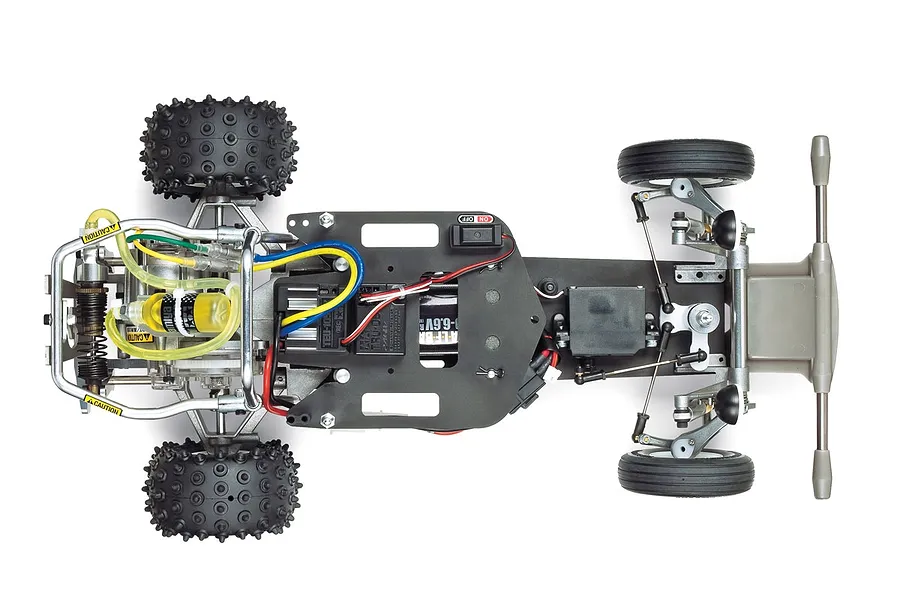

Tamiya Fighting Buggy 2014 — chassis detail

Tamiya Fighting Buggy 2014 — chassis detail

The original 2mm-thick FRP and duralumin chassis plate is replaced with a new 2.5mm-thick FRP plate, finished in black.

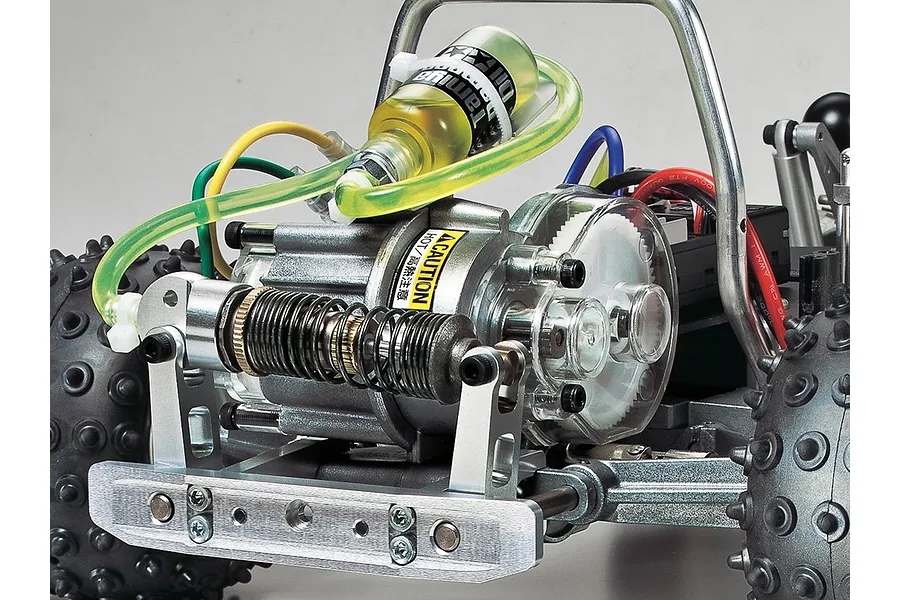

Tamiya Fighting Buggy 2014 — rear monoshock suspension detail

Tamiya Fighting Buggy 2014 — rear monoshock suspension detail

The rear monoshock setup utilises a striking setup which features a separate oil reserve tank connected to the damper via tubing.

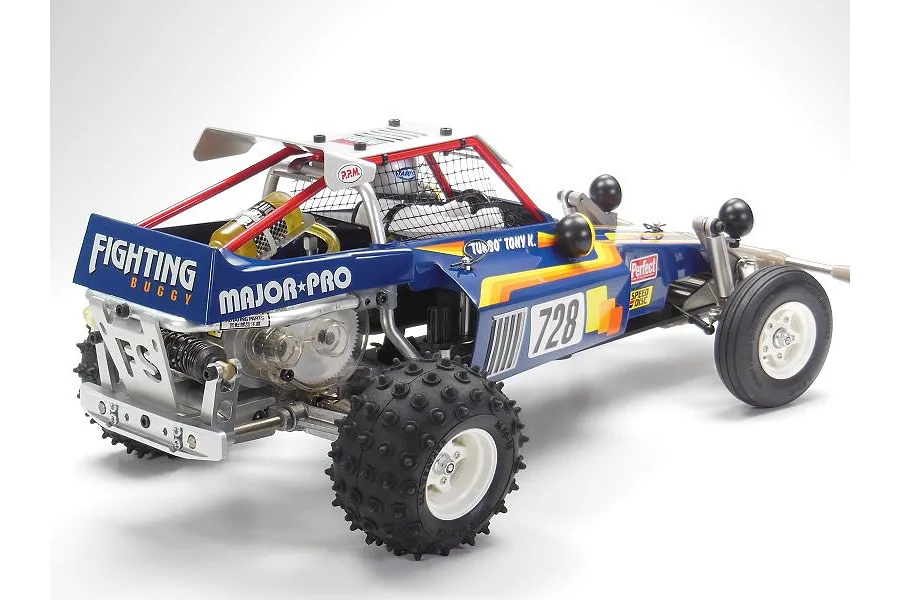

1982 Classic Buggy Re-Release

1982 Classic Buggy Re-Release

Tamiya is delighted to welcome the Fighting Buggy back with this re-release of the 1982 R/C buggy classic.

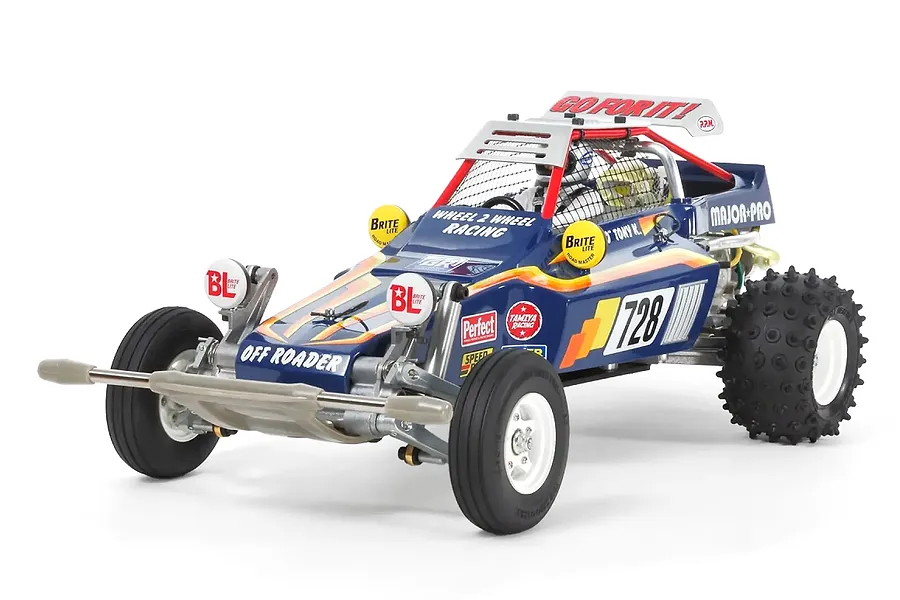

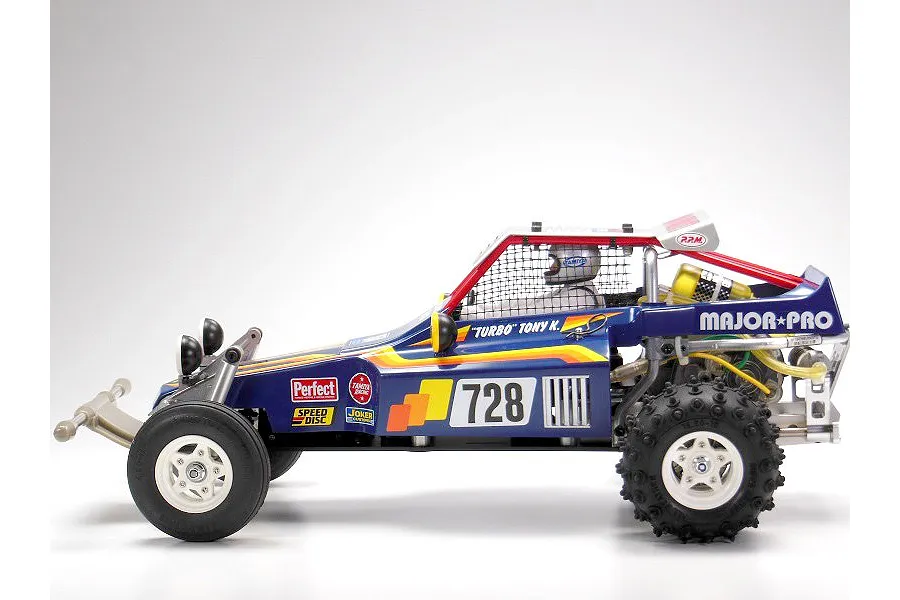

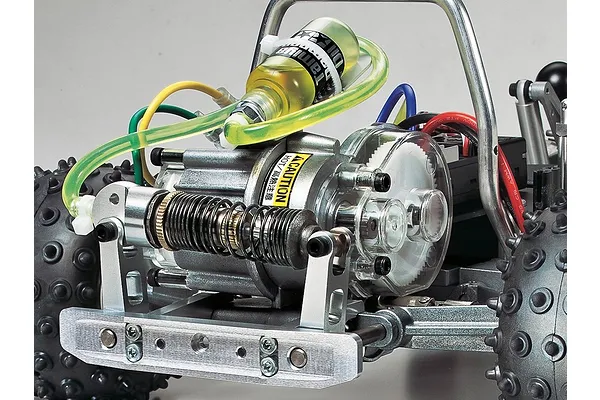

ABS Resin Body with Updated Markings

ABS Resin Body with Updated Markings

The ABS resin body keeps the shape and design theme from its predecessor, accenting it with updated markings.

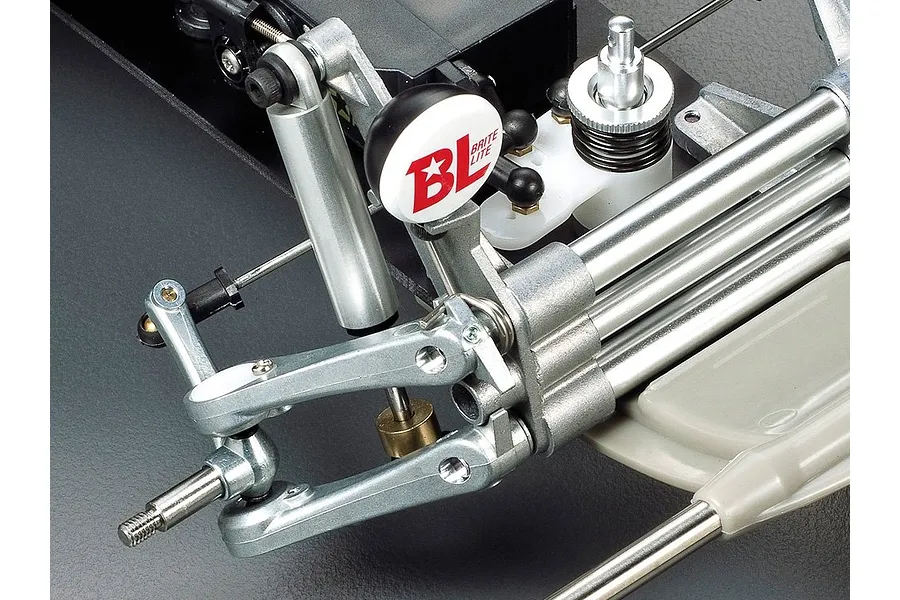

Tamiya Fighting Buggy 2014 — front suspension detail

Tamiya Fighting Buggy 2014 — front suspension detail

Front double trailing arm independent suspension employs tough die-cast metal arms sprung and fitted with aluminum oil dampers.

Specifications

Length410mm, Width: 230mm, Height: 160mm
Wheelbase250mm
Tread165mm (Front), 180mm (Rear)
FRP Double Deck Chassis Frame
Rear Wheel Direct Drive 2WD
2-Piece Steering Tie-Rod
Front SuspensionDouble Trailing Arm; Rear Suspension: Swing Axle & Transverse Monoshock
Tyre Width/Diameter21/73mm (Front), 49/86mm (Rear)
Aluminum Oil Dampers
Full Ball Bearings
Gear Ratio10:1 or 6.5:1
Type 540 Motor included

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelBeginner
Power SourceElectric
Chassis TypeBuggy
On/Off RoadOff Road
Drivetrain2WD

RC Kit

Suited Motor/ESC TypeElectric

Factory Specs

Front Shock Oil400cSt
Rear Shock Oil400cSt
Pinion Gear20T
Spur Gear70T
