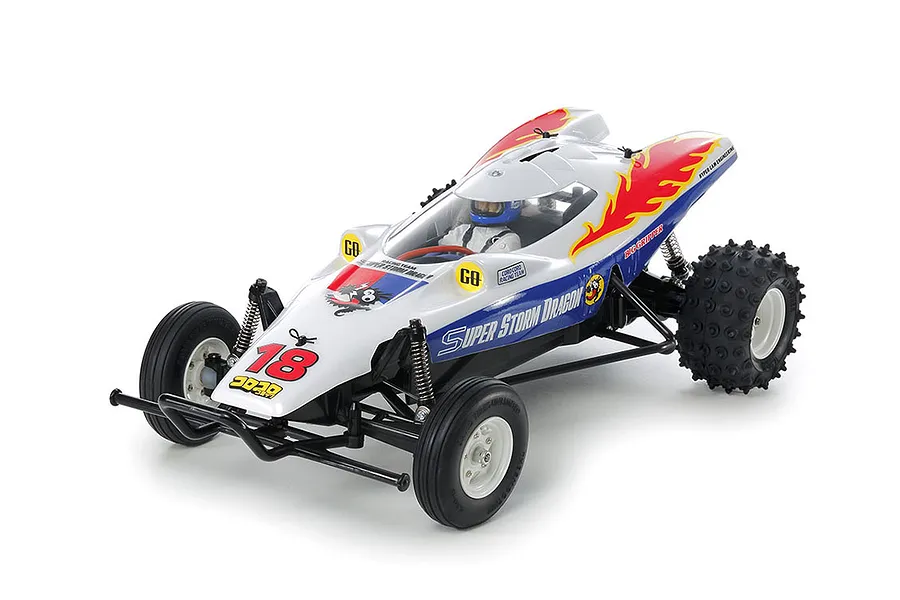

Tamiya Super Storm Dragon RC Buggy Electric 2WD 1/10 Scale Kit

  • 1/10
  • 2WD
  • Kit
  • Brushed

Part no. 47438

DiscontinuedNo reviews yet
1 / 6
1 / 6

Videos

This product has been discontinued.

Contact us

Videos

Overview

This assembly kit creates a buggy inspired by the star vehicle of the classic 1980s Japanese comic "R/C Boy". The Super Dragon body was originally sold in 1989 as a spare body parts set; this is the first time it has been made available in a complete kit with a chassis. The body is pre-cut and pre-painted in white — only stickers are required to finish it. The lightweight and durable bathtub-type chassis is based on the proven rear-wheel drive platform of the legendary Hornet. Front swing-axle suspension with friction dampers and a rear rolling rigid axle setup with oil dampers provide excellent shock absorption, while a sealed gearbox keeps dust and dirt away from the differential. Three-piece wheels are paired with grooved front tyres and spike rear tyres for strong on- and off-road performance. The slimline polycarbonate body features stylish extended rear fenders inspired by dragon wings.

Features

  • Pre-cut & pre-painted white polycarbonate body
  • Bathtub-type chassis based on the Hornet platform
  • Type 540 brushed motor
  • Grooved front tyres
  • Spiked rear tyres
  • Sealed gearbox
  • Reinforced bumper
  • Enjoyable kit build

In the box

  • 1x Super Storm Dragon 2WD Electric Off Road RC Buggy Kit

You'll need

  • 2ch+ Radio System
  • Steering Servo
  • 7.2V Battery & Compatible Charger

Highlights

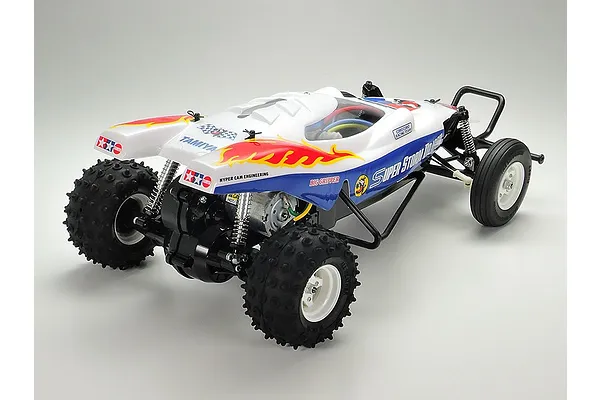

Super Storm Dragon body overview

Super Storm Dragon body overview

Pre-cut and pre-painted in white, all that is required to finish the body is the application of stickers.

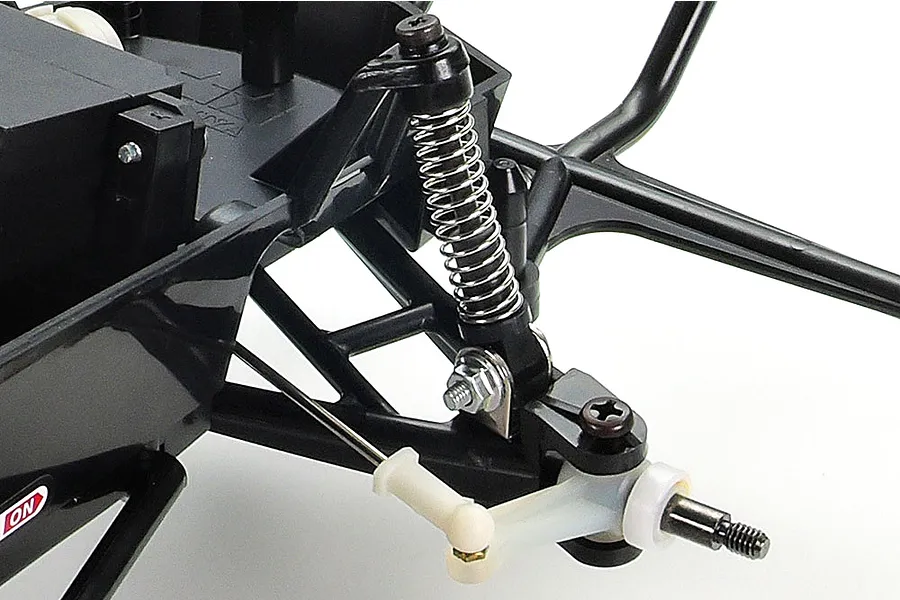

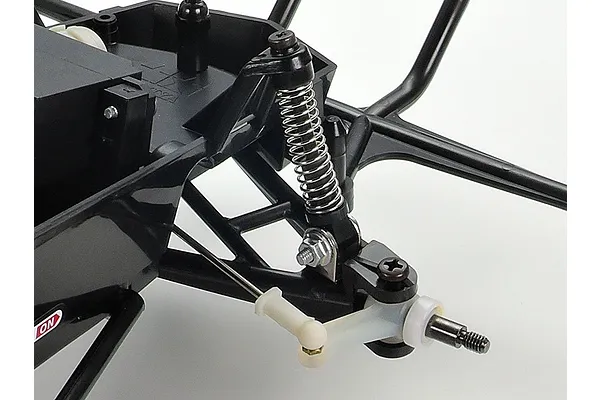

Front swing-axle suspension detail

Front swing-axle suspension detail

The Super Storm Dragon front suspension employs a simple yet highly effective swing axle setup.

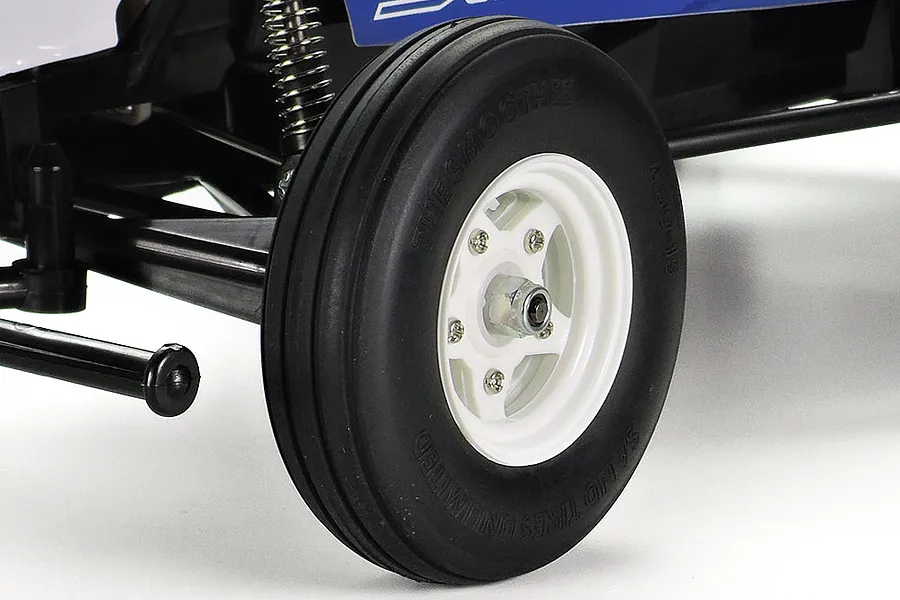

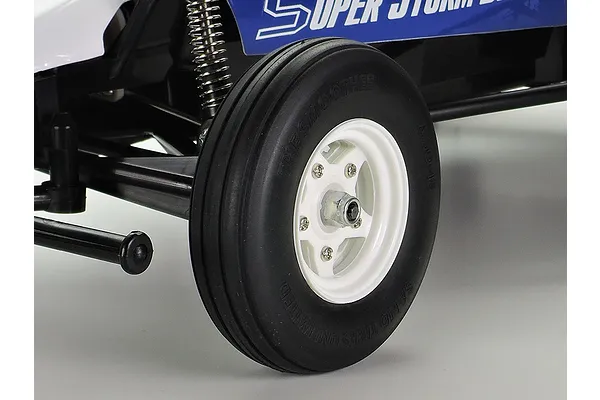

Three-piece wheels with grooved front tyres

Three-piece wheels with grooved front tyres

Assembly type three-piece wheels are paired with grooved tyres to give the buggy excellent performance.

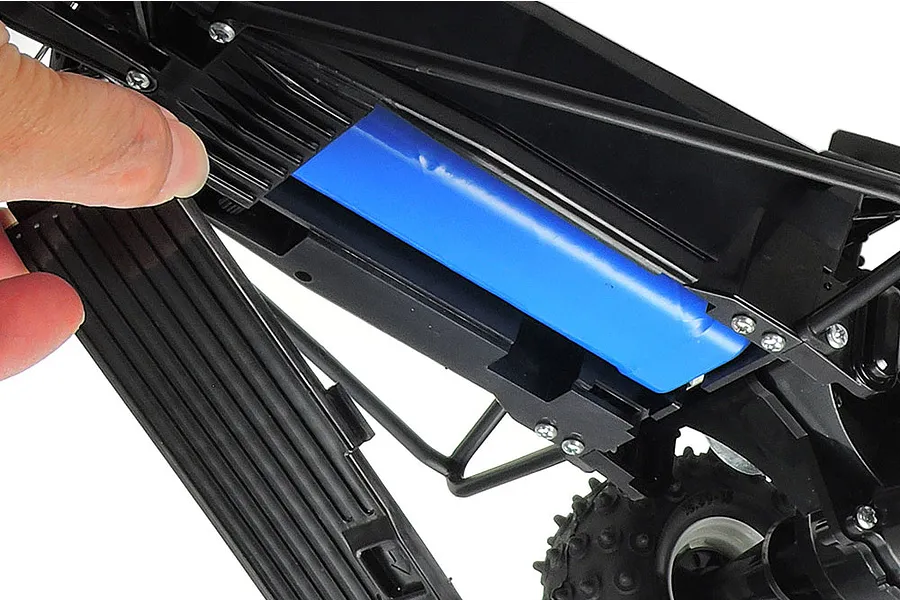

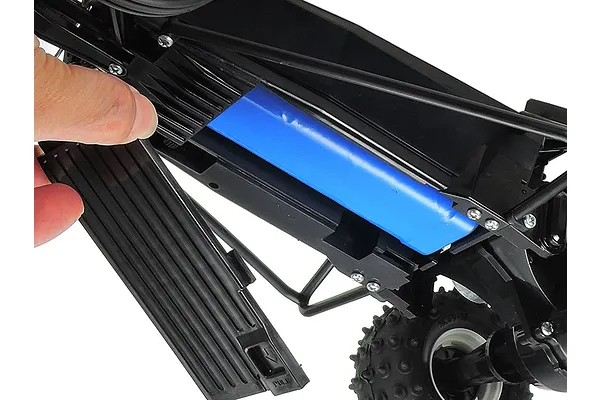

Battery pack access hatch on chassis underside

Battery pack access hatch on chassis underside

The longitudinally-positioned battery pack is accessed via a hatch on the underside of the chassis.

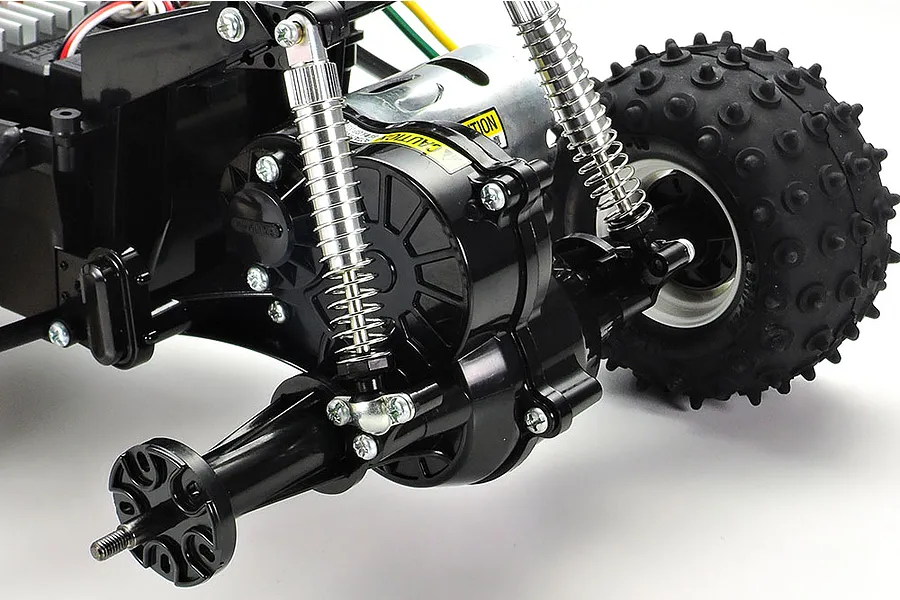

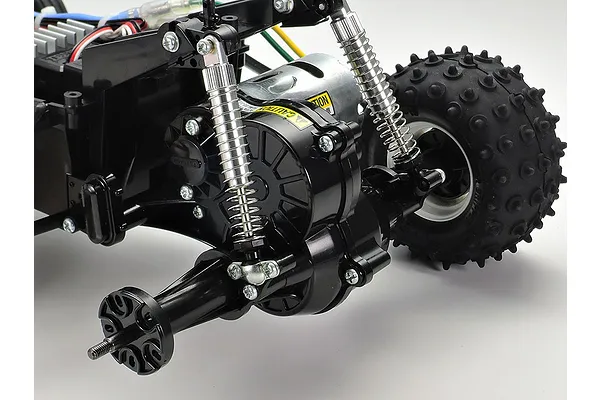

Rear rolling rigid suspension with oil dampers

Rear rolling rigid suspension with oil dampers

At the rear of the car, a rolling rigid suspension design is combined with oil dampers.

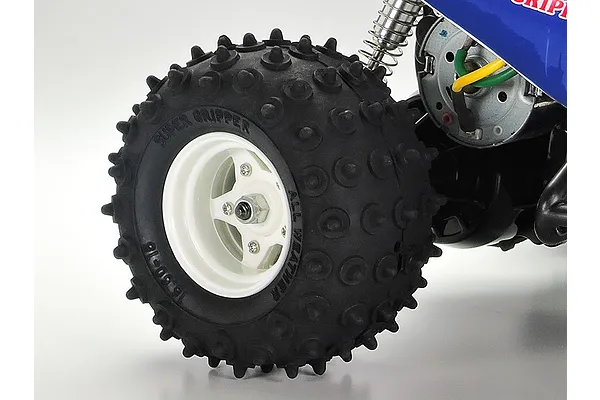

Spiked rear tyres for superior grip

Spiked rear tyres for superior grip

Superior grip comes courtesy of the spiked tyres employed on the rear of the model.

Specifications

Length410mm (16.14")
Width230mm (9.05")
Height130mm (5.11")
Wheelbase251mm (9.88")
Ground Clearance16mm (0.62")
Weight860g (1.89 lbs)
Tread172mm (Front), 185mm (Rear)
Tyre Width/Diameter21/73mm (Front), 49/86mm (Rear)
DrivetrainRear-Wheel Drive
Differential3-Bevel Differential
Steering2-Piece Steering Tie-Rod
SuspensionFront swing axle & Rear rolling rigid
Gear Ratio8.2:1
MotorType 540

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeBuggy
On/Off RoadOff Road
Drivetrain2WD
