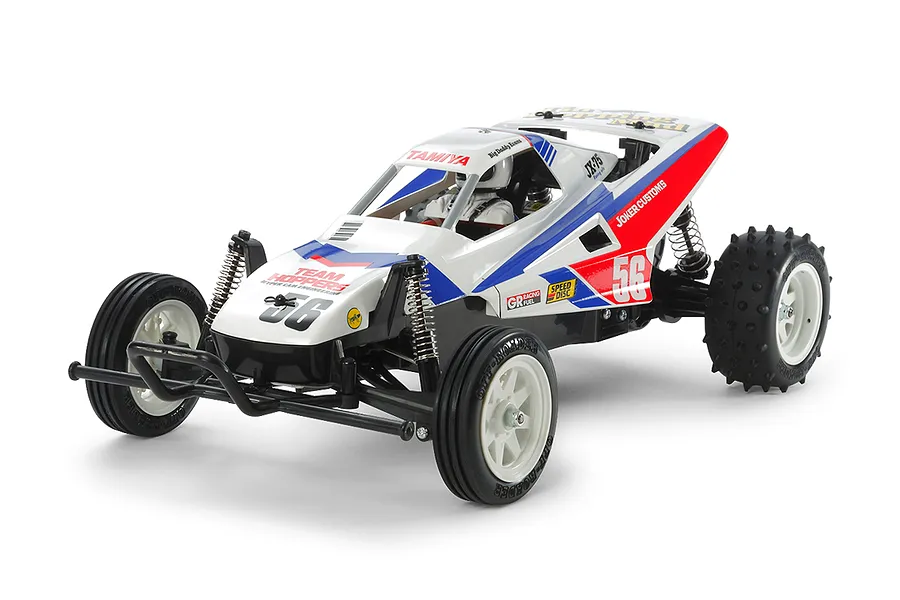

Tamiya Grasshopper II RC Buggy Electric 2WD 1/10 Scale Kit

Hop II It!

The Grasshopper II is one of Tamiya's iconic radio control car kits from the late 1980's. It was an enhanced follow up release to the original Grasshopper kit. This re-release (2017) kit features a number of updates while keeping largely faithful to the original model. Its streamlined construction process makes this kit perfect for less experienced users and R/C veterans alike, while separately sold option parts can be used to enhance the model.

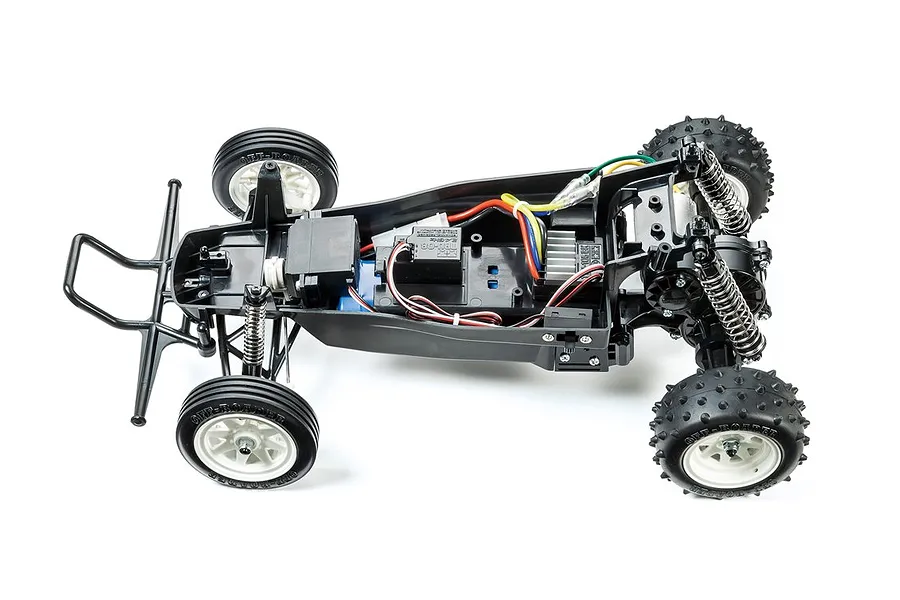

Grasshopper II Chassis

A rugged ABS resin chassis is more than up to the stresses of off-road driving, and features lightweight durable plastic suspension arms, gearboxes and so on - the result is a lightweight and durable unit. Front swing axle and rear rolling rigid suspension combine for a responsive drive, while a fully enclosed gearbox is integrated with the rear axle and has a built-in differential gear to aid smooth cornering. One-piece wheels are paired with front grooved and rear spike tires for solid performance.

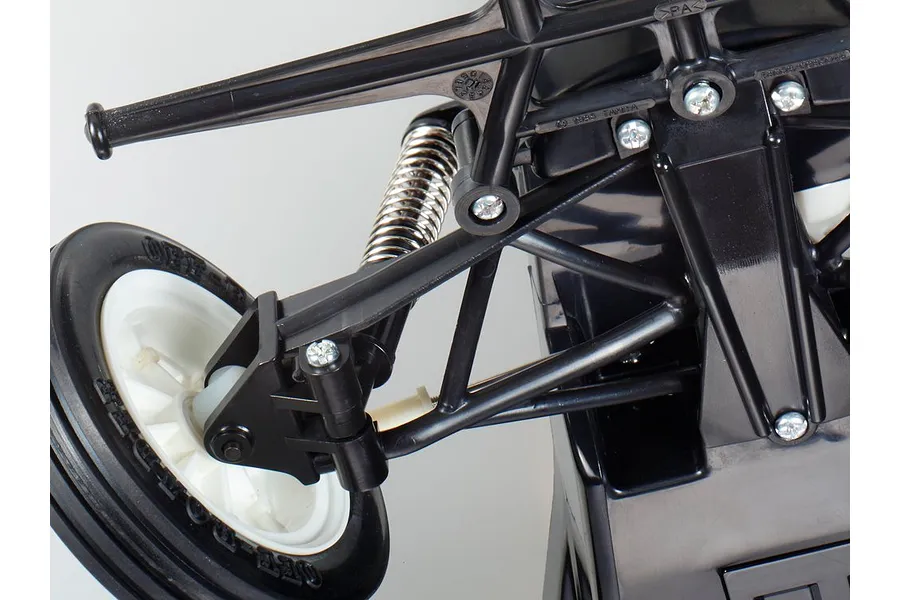

At the front, the model is equipped with a swing arm setup and tough resin front bumper to help resist impacts.

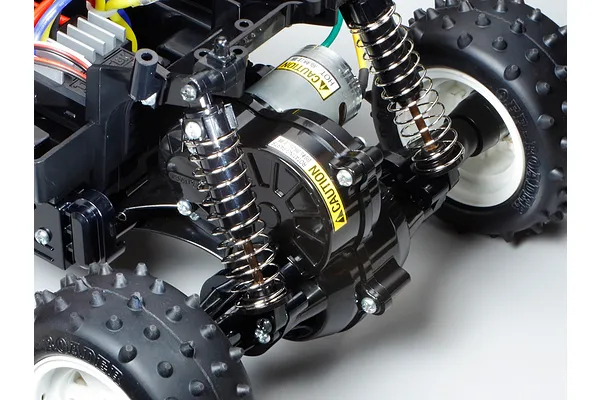

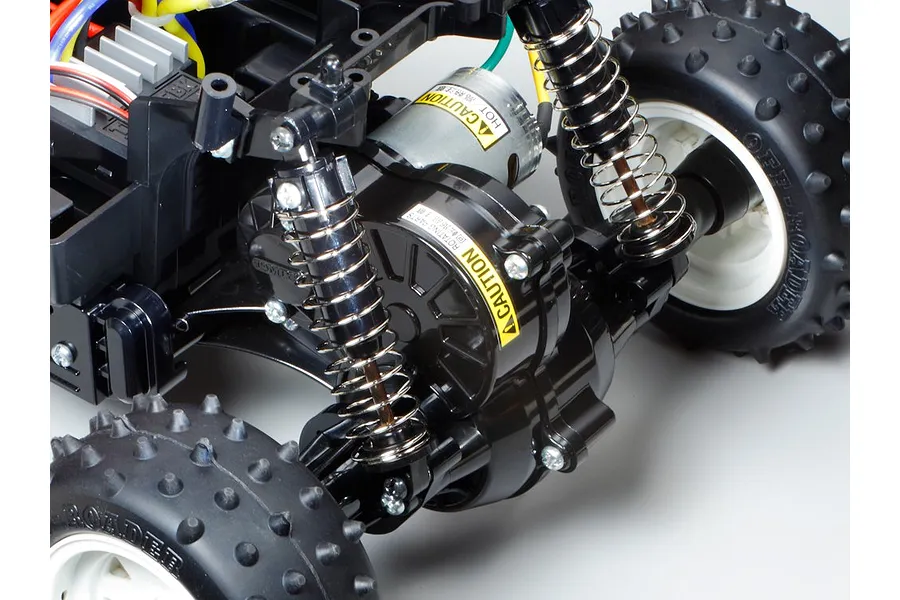

Integrated with the rear axle, the fully enclosed gearbox has a built-in differential gear for smooth corners.

A streamlined construction process means that you'll be ready to hit the road with this chassis in no time!

The Grasshopper II body is moulded in durable white polystyrene resin Includes a driver figure for attachment to the body Features a rugged ABS resin bathtub chassis to withstand the rough-and-tumble fun of off-road driving Front swing axle and rear rolling rigid suspension setups are actuated by coil-spring friction dampers Fully enclosed rear gearbox contains a differential gear to aid smooth cornering Front ribbed tyres give great straight-line grip, and rear spike tires provide powerful drive. They are matched with 8-spoke one-piece lightweight wheels Compatible with tune-up parts such as standard Type 540 motors (requires nine 1150 ball bearings & one 850 ball bearing) and CVA mini oil dampers Includes 380 size motor Includes the Tamiya TBLE-02S ESC (brushless motor and brushed motor compatible)

• Length: 400mm, Width: 223mm, Height: 136mm. Weight: 760g (excluding R/C equipment)
• Wheelbase: 253mm
• Tread (Front & Rear): 186mm
• Tire Width/Diameter: 19mm/74mm (Front), 36mm/82mm (Rear)
• Frame Type: ABS Bathtub
• Drive: Rear-Wheel Drive
• 3-Bevel Differential
• 2-Piece Steering Tie-Rod
• Suspension: Front Swing Axle, Rear Rolling Rigid
• Gear Ratio: 14.7:1
• Motor: Type 380

• 2Ch Radio System (Transmitter & Receiver) & Batteries
• Compatible Battery Pack & Charger
• Servo
