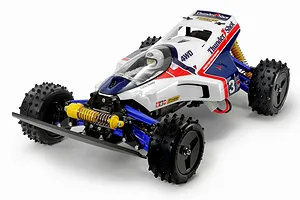

Name: Tamiya Thunder Shot RC Buggy Electric 4WD 1/10 Scale Kit (No ESC)
Brand: Tamiya
SKU: TAM-58706A
Price: 270.19 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an, ESC, Servo, Battery, Charger, or Transmitter and will come with a painted body that may require cutting and drilling.

Following the Fire Dragon, Scorcher, and Thunder Dragon, Tamiya presents the Thunder Shot as a re-released and updated version of the 1987 classic. This R/C model assembly kit inherits basic specifications from Item 58361 but features different CVA oil dampers and an aluminium motor mount for improved motor performance and structural rigidity.

The compact, futuristic polycarbonate body is pre-cut and pre-painted in white and blue with a transparent canopy. The chassis is built around a sturdy ABS bathtub with 4-wheel independent double wishbone suspension and CVA oil dampers, sealed front and rear gearboxes with die-cast 3-bevel differential gears, and semi-pneumatic spike tyres. A driver figure and separate rear wing are also included.

Features

Re-released and updated version of Thunder Shot, originally released in 1987
Polycarbonate body is pre-cut and pre-painted in white and blue, with transparent canopy
Body requires application of stickers, assembly and painting of driver figure, and other work
ABS bathtub chassis
4-wheel independent double wishbone suspension with CVA oil dampers II (updated from Type I in the original)
Front stabiliser helps suppress roll
Front and rear sealed gearboxes with compact, durable die-cast 3-bevel differential gears
Aluminium motor mount acts as heat sink for improved motor performance and structural rigidity
Semi-pneumatic spike tyres
One-piece dish wheels
Separate rear wing included (pre-painted in white)
Driver figure included
Type 540 motor included

In the box

1x 1/10 2022 Thunder Shot 4WD Electric Off-Road RC Buggy Kit
1x 540-type motor
1x Pre-painted polycarbonate body (white and blue)
1x Separate rear wing (pre-painted in white)
1x Driver figure

You'll need

7.2V NiMH Battery and compatible charger
Standard sized servo
Electronic Speed Controller (ESC)
2-channel transmitter and receiver

Highlights

Futuristic Body Shell

Blast off with the Thunder Shot's sleek and futuristic body design. The lightweight polycarbonate construction provides durability and enhances the car's aerodynamic performance.

ABS Bathtub Chassis

The Thunder Shot's chassis is designed for both strength and ease of maintenance. The sturdy ABS bathtub construction provides a solid foundation, while the ergonomic design makes it easy to access and work on the car's components.

Double Wishbone Suspension

The Thunder Shot's double wishbone suspension, with its upper "I" and lower "H" arms, delivers precise handling and a smooth, responsive ride. This sophisticated suspension system ensures optimal control and stability on a variety of surfaces.

Front Monoshock

The Thunder Shot's front suspension is designed for optimal performance and stability. The monoshock setup, featuring a CVA oil shock and stabiliser bar, provides precise damping and minimises body roll, ensuring a confident and controlled driving experience.

One Piece Dish Wheels

The Thunder Shots One-piece dish wheels attract less mud, and are paired with semi-pneumatic spike tyres that provide grip on a wide range of different surfaces, helping you stay in control.

Polycarbonate Chassis Cover

The Thunder Shot's chassis is protected by a durable polycarbonate cover that helps to keep dirt and debris out. The included driver figure adds a touch of realism and enhances the visual appeal.

Lightweight Polycarbonate Body

The compact, futuristic body is moulded in lightweight and durable polycarbonate.

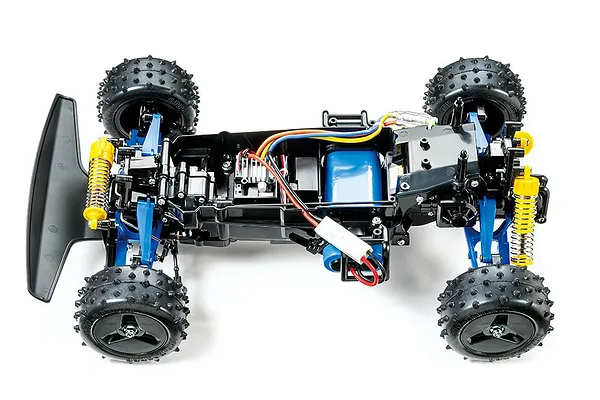

Thunder Shot chassis detail

Sturdy and easy to work on, the chassis has an ergonomic design based around an ABS bathtub.

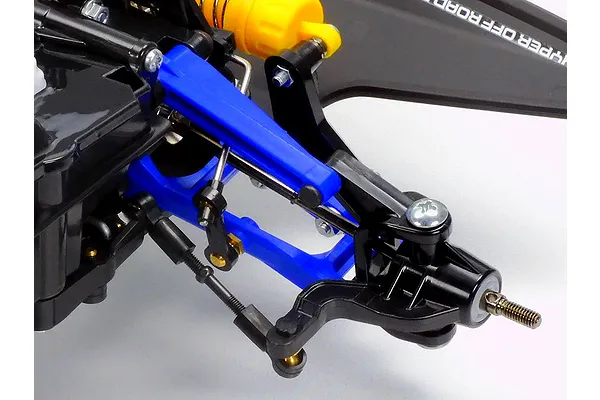

Front double-wishbone suspension with monoshock

The front double-wishbone suspension employs upper 'I' and lower 'H' arms, with a CVA oil damper laid on its side.

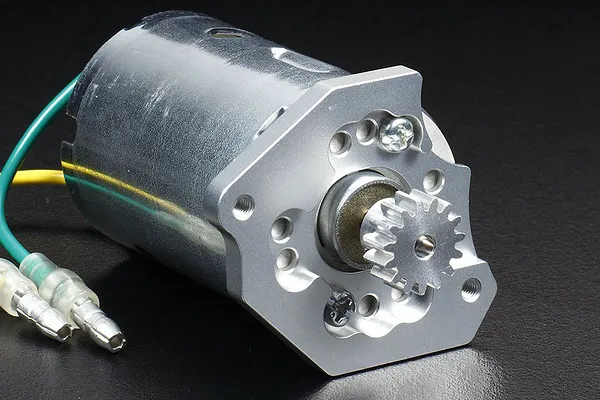

Aluminium motor mount detail

An aluminium motor mount not only keeps the motor securely attached, it also acts as a heat sink.

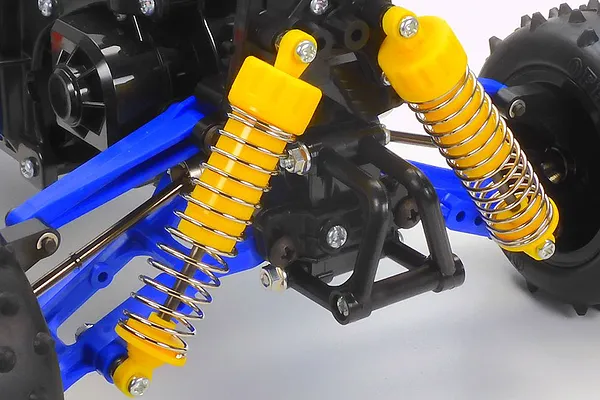

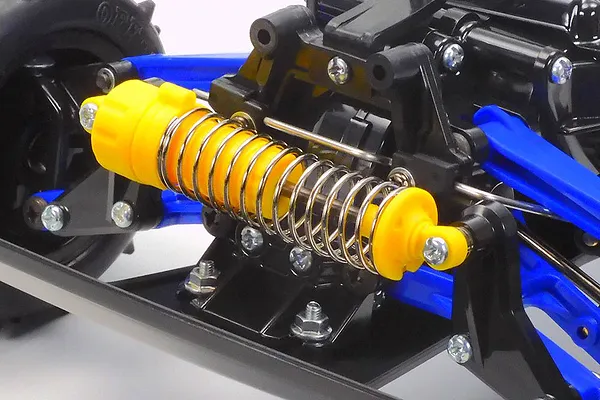

Rear double-wishbone suspension with CVA dampers

The rear of the chassis also uses double-wishbone suspension, with a pair of CVA oil dampers.

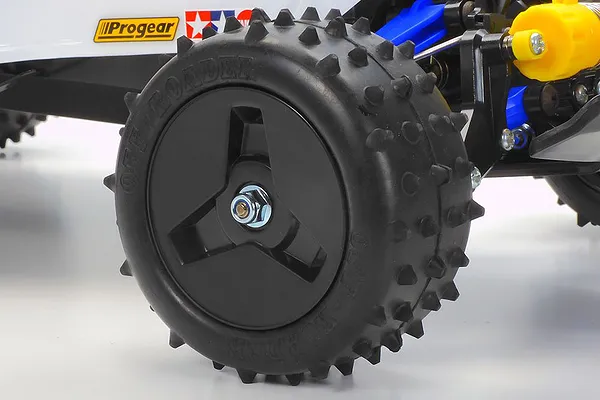

Dish wheels with semi-pneumatic spike tyres

One-piece dish wheels will attract less mud, and are paired with semi-pneumatic spike tyres.

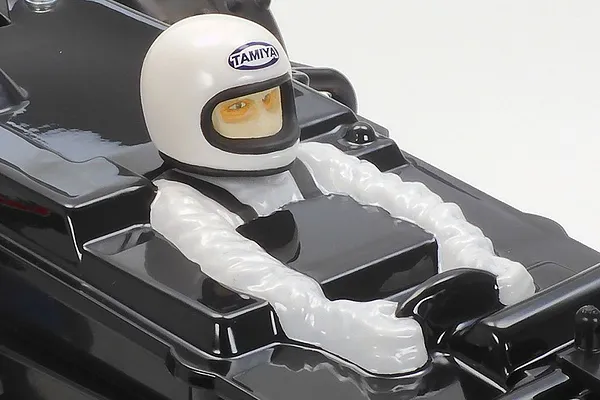

Polycarbonate chassis cover with driver figure

A polycarbonate cover helps minimise debris getting into the chassis, and even features a driver figure.

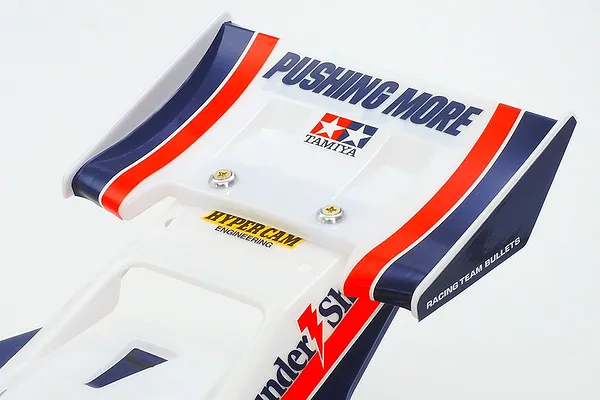

Optional rear wing attachment

A separate rear wing is also included for optional attachment to the Thunder Shot (2022).

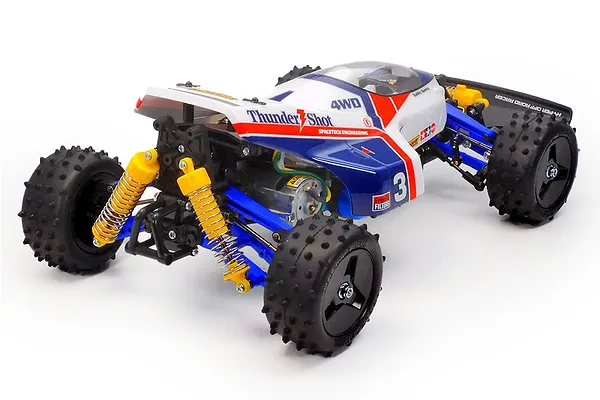

Thunder Shot completed model — action or overview

This R/C model assembly kit is a re-released and updated version of Thunder Shot, the original of which was first released in 1987.

Thunder Shot kit contents overview

Kit contents showing the pre-painted polycarbonate body, ABS chassis, and components.

Specifications

Scale	1/10
Length	390mm (15.3")
Width	240mm (9.44")
Height	135mm (5.31")
Wheelbase	260mm (10.2")
Chassis Material	ABS Plastic
Drive Type	4WD
Suspension	4-wheel independent double wishbone, CVA oil dampers
Differential	Die-cast 3-bevel gear
Motor	540-brushed type
Bearings	Plastic bushing
Body Material	Polycarbonate
Terrain	Off-Road
Gear Ratio	Fixed
ESC	Not included
