Part no. 58583

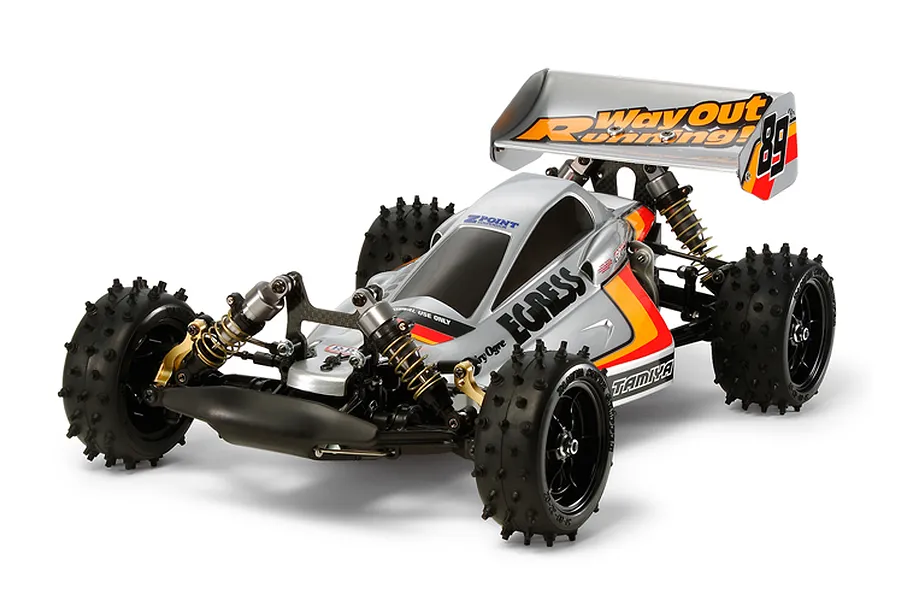

Tamiya Egress: racing-spec 4WD buggy with carbon fibre double deck frame, brushless motor, and re-designed ball differentials. 1/10 scale assembly kit.
Checking delivery dates…
Free 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Please Note:
This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.
Tamiya is pleased to welcome back the Egress, successor to the famed Avante. The Avante was originally launched in 1988 and Tamiya used the experience and know-how of the Tamiya Racing Factory (TRF; founded in 1989) to create a racing version: the Egress. It featured carbon fibre plates, ball differentials, high-capacity oil dampers, and lightweight titanium screws. Now, the shaft-driven Egress receives a makeover to bring it right up to date.
This shaft-driven 4WD chassis features a longitudinally-positioned motor and full ball bearings, while carbon fibre upper and lower decks ensure superb strength. Re-designed front and rear ball differentials offer excellent reliability and easy maintenance, working in tandem with the built-in centre one-way. The one-way bearing can be locked. Universal drive shafts follow the same design as those used in the current TRF series parts. Four-wheel double wishbone suspension is supported by 4 oil dampers with aluminium cylinders, and front and rear stabilisers are fitted. Aluminium front uprights and ball bearings in steering linkage arms combine with 2mm thick carbon fibre plate for linear steering response. This version also features a brushless motor.
Note
This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish the body, as standard paints will not adhere and/or may cause damage to the body shell's surface.
Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.
The Egress features a sophisticated drivetrain that's optimised for maximum traction. Newly-designed ball differentials front and rear, combined with a centre one-way unit, ensure that power is delivered effectively to all four wheels, providing exceptional grip and control.
The Egress's 4-wheel double wishbone suspension, equipped with high-capacity oiled shock absorbers, delivers a smooth and controlled ride, even on the roughest terrain. This advanced suspension system provides exceptional handling and stability, allowing you to navigate challenging obstacles with ease.
The Egress features a 15mm longer wheelbase than the Avante, providing enhanced stability and a more planted feel, especially at high speeds. Carbon fibre upper and lower decks further enhance rigidity and contribute to a balanced chassis for optimal handling.

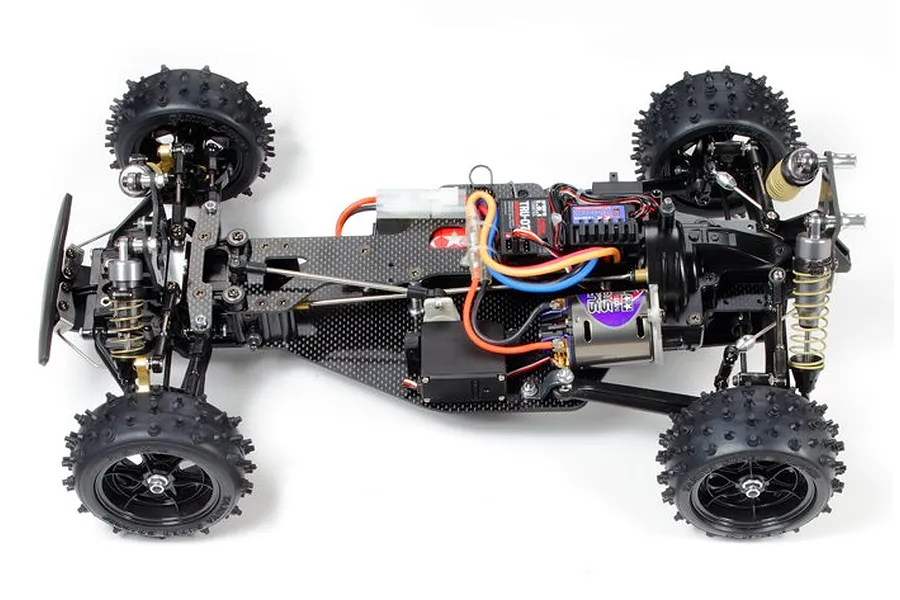

The Egress features carbon fibre upper and lower decks for superb strength and a shaft-driven 4WD chassis.

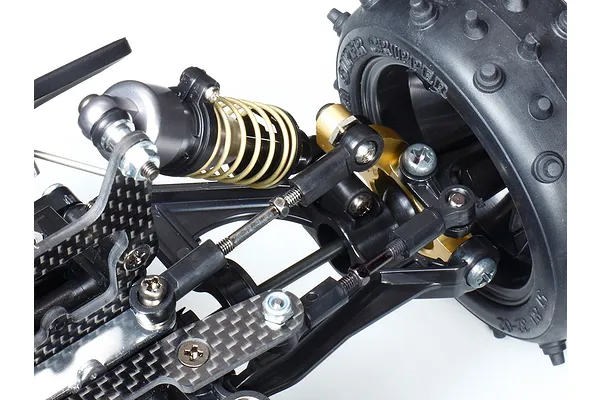

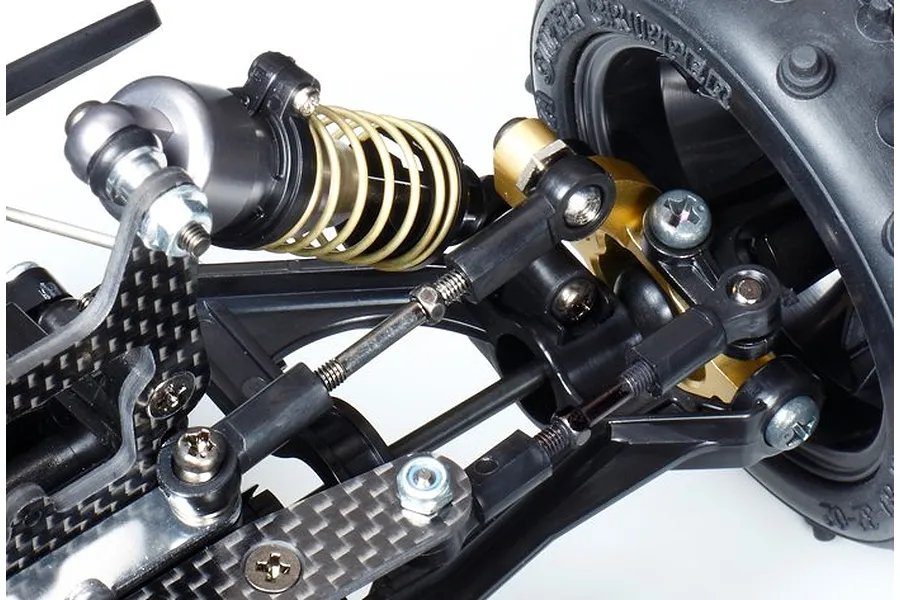

The 4-wheel double wishbone suspension is fitted with high-capacity oil dampers for excellent performance off-road.

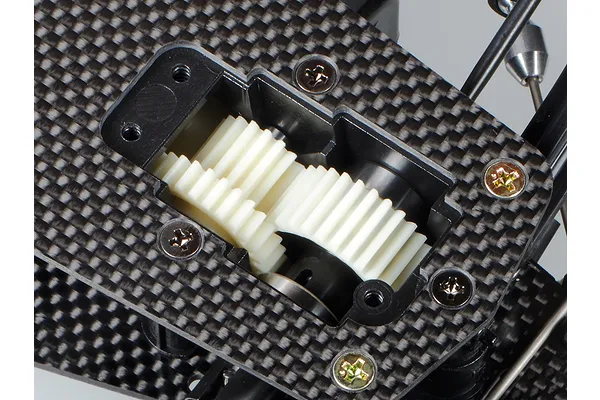

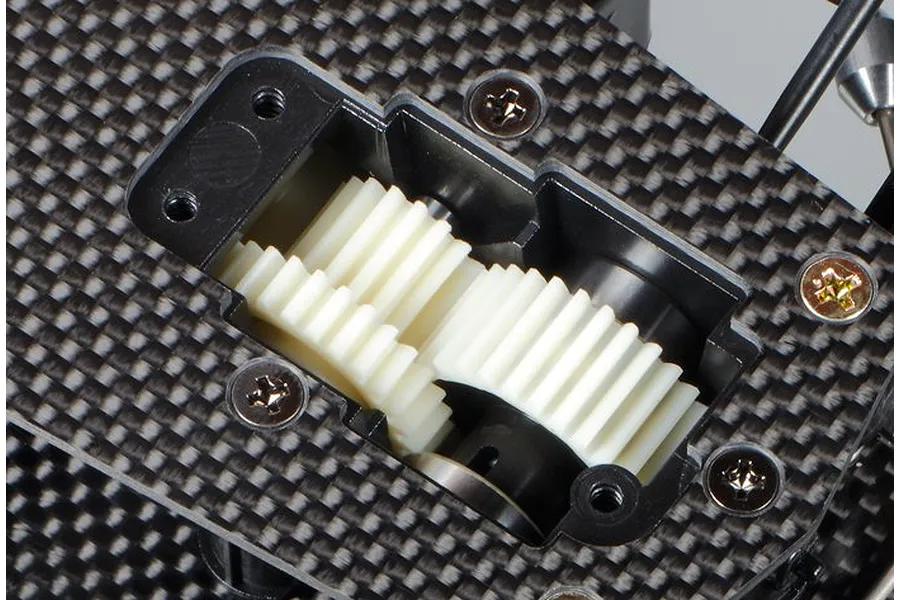

Newly-designed ball diffs are employed front and rear, and combine with a center one-way for sure-footed traction.
| Length | 430mm |
|---|---|
| Width | 243mm |
| Height | 157mm |
| Wheelbase | 275mm |
| Tread (Front & Rear) | 200mm |
| Tyre Width/Diameter | 32/88mm (Front), 40/88mm (Rear) |
| Gear Ratio | 8.25:1 (when using kit-included 22T pinion) |
| Adjustable Gear Ratio | Yes |
| Bearings | Shielded ball bearing |
| Body Material | Polycarbonate |
| Body Stickers | Included |
| Chassis Material | Carbon fibre plate |
| Carbon Fibre-Reinforced Parts | Upper/Lower Decks & Central Torque-Splitter Diff |
| Construction Type | Assembly Kit |
| Differential Type | Gear |
| Drive Type | 4WD |
| LED Light Buckets | No |
| LED Lights | No |
| Suspension | Fully Independent Double Wishbone |
| Terrain Use | Off-Road |
| Scale | 1/10 |
|---|---|
| Power Source | Electric Brushed |
| Drivetrain | 4WD |
| Chassis Type | Buggy |
| Completion | Kit |
| On/Off Road | Off Road |
| Skill Level | Experienced |
| Max LiPo Power | 2S (7.4v) |
| Suited Motor/ESC Type | Electric |
|---|
| Battery Connector | Not Included |
|---|---|
| Front Shock Oil | 400cSt |
| Rear Shock Oil | 400cSt |
| Pinion Gear | 22T |
| Wheel Hex Size | 12mm |
