HPI Baja 5B RC Buggy Petrol 2WD 1/5 Scale Kit

HPI Baja 5B RC Buggy Petrol 2WD 1/5 Scale Kit

Videos

HPI Baja 5B RC Buggy Petrol 2WD 1/5 Scale Kit

Brand: HPI Racing | MPN: 160323
sold out
5.0
1 reviews
$1,205.84
or 4 fortnightly payments of $301.46 with Afterpay

Build the legendary HPI Baja 5B — unassembled 1/5 scale petrol-powered RC buggy kit, ready for your 23–32cc engine.

  • Unassembled 1/5th scale gas-powered off-road buggy — build to your chosen spec
  • Ready for your 23–32cc RC engine with up to 30-minute runtimes
  • 4mm 6061 aluminum monocoque chassis with viscous torque differential and all-metal drivetrain
  • 3-piece beadlock wheels with metal hex hub inserts and all-terrain Dirt Buster tires
  • Adjustable HD shocks and full set of rubber-sealed ball bearings
Add to Wishlist
Save Time & Add These Now
Complete your setup with these required items.
Transmitter and Receiver
Transmitter and Receiver
Throttle Servo
Throttle Servo
LiPo Safe Charging Bag
LiPo Safe Charging Bag
Receiver Battery
Receiver Battery
Exhaust
Exhaust
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Shop replacement & upgrade parts for this model
Shop Parts
Description
Please Note:

This kit comes without a Motor, Servo, Steering Servo, Receiver, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

The HPI Baja 5B Self Build Kit (SBK) lets you build the original legendary 1/5 scale gas-powered RC buggy from the ground up. Ready for a 23–32cc 2-stroke engine with up to 30-minute runtimes, the Baja 5B features a viscous torque differential, all-metal drivetrain, and 4mm thick 6061 aluminum monocoque chassis. Extra-long adjustable HD shocks and massive 3-piece beadlock wheels with metal hex hub inserts make it ready for full-speed racing on any off-road circuit. The kit includes the classic Baja desert racer clear polycarbonate body, ready for your custom racing scheme.

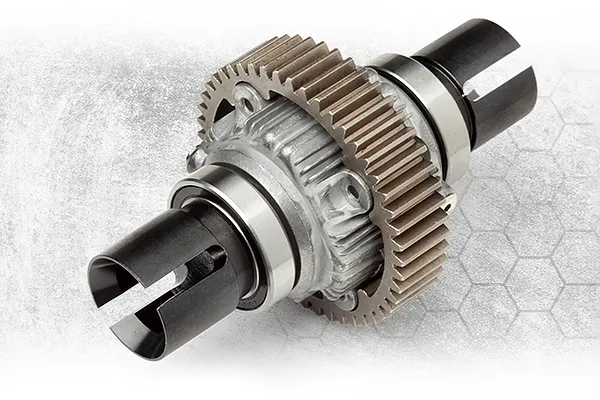

Rock Solid Drivetrain
Rock Solid Drivetrain

The legendary HPI Baja 5B Viscous Torque Control differential delivers the power to the rear wheels with smoothness and precision. The differential can be easily tuned by using differential oils of various thicknesses. The metal alloy diff case is finned for extra heat dissipation and to keep the internal gears firmly in place. The diff outdrives or cups are machined from hardened metal for reliable performance in all conditions. The internal gears are also made from hardened metal to handle 8S power, big-air jumps and huge top speeds!

Massive Capacity Fuel Tank
Massive Capacity Fuel Tank

The HPI Baja 5B SBK is built for long-lasting fun, thanks to its massive 700cc fuel tank. This high-capacity tank allows for extended run times, while its central location ensures consistent handling characteristics, even as fuel levels decrease.

Big Bore Shock Absorbers
Big Bore Shock Absorbers

The HPI Baja 5B SBK's Big Bore shocks are designed for maximum performance and durability. These long-stroke shocks feature heavy-duty construction, dual-rate springs, and threaded bodies for precise tuning and consistent control on any terrain.

Racing Chassis Design and Layout
Racing Chassis Design and Layout

The narrow channel chassis made from rigid 4mm 6061 aircraft aluminum and gives the HPI Baja 5B FLUX a classic desert racing buggy look and extreme stiffness and durability. The U-shaped chassis is protected at the rear with a thick plastic skid plate for extra protection to the motor and drivetrain.

Your Choice of Power Delivery
Your Choice of Power Delivery

Building an HPI SBK (Self Build Kit) not only gives you the joy of assembling your own custom vehicle - you'll also be able to install an engine and your own electronics package as you go! Whether you buy all-new components or use an engine or  electronics that you already have on hand, the HPI Baja 5B is ready and waiting for you to go wild!

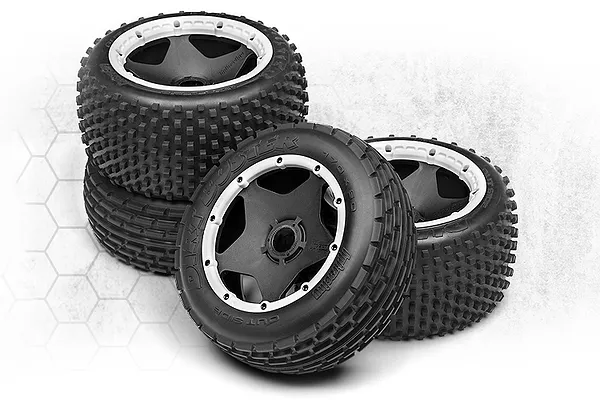

Beadlock Wheels
Beadlock Wheels

Specially constructed high-impact nylon 3-piece bead lock wheels are included, featuring NEW inset heavy-duty metal hex hub inserts for massively increased wheel durability. The contrasting beadlock ring is bolted onto the wheel with 20 screws to securely hold the tire in place. No glue is used to mount the tires, which makes changing the tires quick and easy and the wheels can be used again with brand new tires.

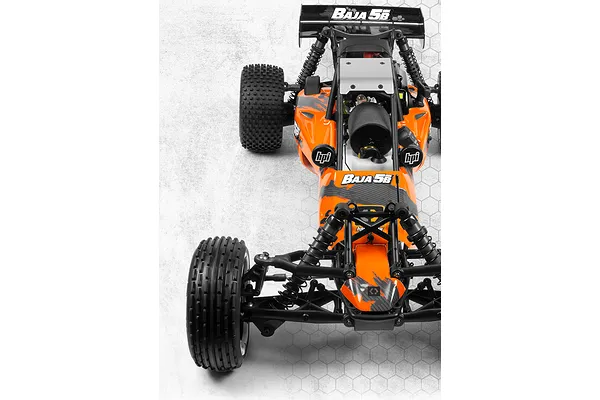

Gas-Powered Self Build Kit
Gas-Powered Self Build Kit

The HPI Baja 5B Self Build Kit: build your own 1/5 scale gas-powered off-road buggy from the ground up.

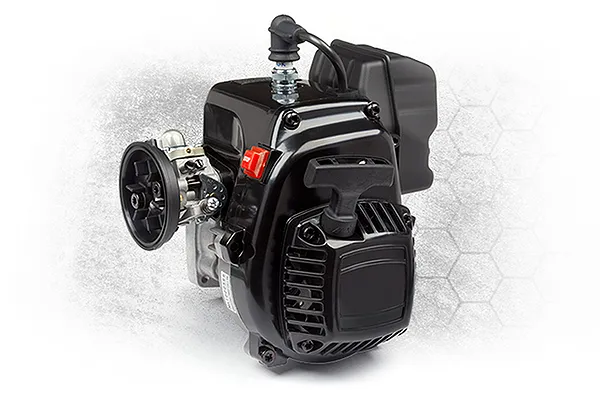

2-Stroke Engine Compatibility
2-Stroke Engine Compatibility

The Baja 5B is ready for your 23–32cc 2-stroke engine for gas-powered RC and up to 30-minute runtimes.

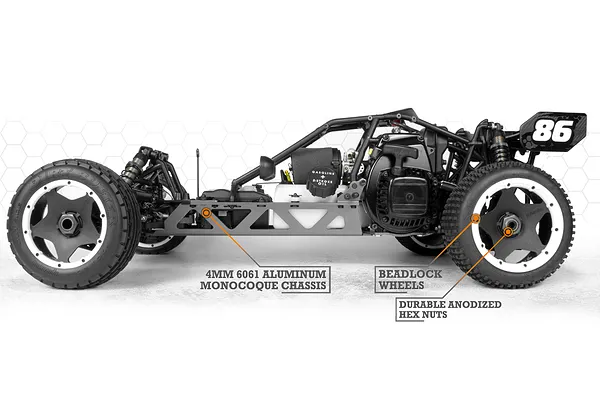

6061 Aluminium Monocoque Chassis
6061 Aluminium Monocoque Chassis

The 4mm thick 6061 aluminium monocoque chassis gives the HPI Baja 5B the classic desert racing buggy look.

HD Shocks and Beadlock Wheels
HD Shocks and Beadlock Wheels

Extra-long adjustable HD shocks and massive 3-piece beadlock wheels make the Baja 5B ready for full-speed off-road racing.

Viscous Torque Rear Differential
Viscous Torque Rear Differential

The legendary viscous torque control differential delivers power to the rear wheels with smoothness and precision.

Nylon Beadlock Wheels Metal Hubs
Nylon Beadlock Wheels Metal Hubs

Specially constructed high-impact nylon 3-piece beadlock wheels feature new inset heavy-duty metal hex hub inserts.

Features
  • Unassembled 1/5th scale off-road buggy, ready for your 23–32cc RC engine and electronics

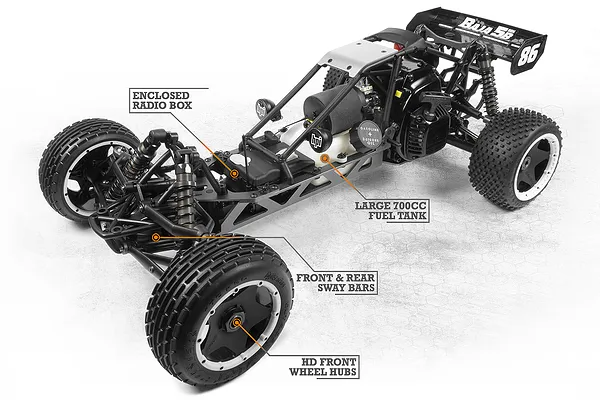

  • Enclosed radio box
  • Baja desert racing body design
  • Adjustable HD shock absorbers
  • Monocoque chassis
  • Low CG for superior handling
  • Long travel suspension
  • Viscous torque oil-filled gear differential
  • All-terrain tires
  • Beadlock wheels with metal insert hubs
  • Aluminum rear shock tower
  • Hard plastic skid plates
  • Adjustable rear wing
  • Quick access to all critical maintenance points
  • Dual bellcrank steering
  • Cam type servo saver
  • Race spec hex socket hardware
  • Gunmetal anodizing
  • Full set of rubber-sealed ball bearings
Specifications
  • Overall Length: 817mm
  • Height: 255mm
  • Width: Front 460mm / Rear 480mm
  • Tire Track (centre of tires): Front 395mm / Rear 400mm
  • Wheelbase: 570mm
  • Ride Height: 76mm
  • Suspension Travel: Front 95mm / Rear 100mm
  • Weight: 9.6kg (21.3 lb)
  • Adjustable Camber: front shims / rear screw
  • Front Caster: adjustable with shim 22 / 25.5° (stock) / 29 degrees
  • Toe-in: Front adjustable with tie rod; Rear adjustable with inserts 0–4 degrees (3 degrees stock)
  • Chassis: Aircraft aluminum 6061 T6 monocoque
  • Suspension: Double wishbone with adjustable roll centre F/R
  • Drive System: HD metal gears with sealed gear box (8.382:1 gear ratio)
  • Differential: Viscous torque control with 4 pinion gears; sealed diff case with silicone oil
  • Shock Absorber: HD aluminum coilover with fully adjustable preload collar
  • Wheel Type: 3-piece beadlock, high impact nylon with inset heavy-duty metal hex hub
Included Items
  • 1x HPI Racing Baja 5B RC Buggy Petrol 2WD 1/5 Scale Kit
Required Items
  • 1x 2Ch+ Transmitter & Receiver
  • 1x Large Scale Steering Servo
  • 1x Standard Size Throttle Servo
  • 1x 23–32cc RC Engine with Muffler or Tune Pipe
  • 1x Hump 6V Style Receiver Battery with Tamiya plug
  • 1x On/Off Switch
  • 1x Suitable Charger with Tamiya plug
  • Paint (polycarbonate/Lexan-safe, e.g. Tamiya PS series)
  • Tools
Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish this body — standard paints will not adhere and/or may cause damage to the body shell's surface.

Videos
Specifications
RC Car
Scale
1/5
Skill Level
Experienced
Power Source
Petrol
Chassis Type
Buggy
On/Off Road
Off Road
Drivetrain
2WD
Factory Specs
Max LiPo Power
2S (7.4v)
Battery Connector
Not Included
Front Shock Oil
40wt
Rear Shock Oil
40wt
Rear Differential Oil
1,000cSt
Pinion Gear
17T 1.5Mod
Spur Gear
57T 1.5Mod
Wheel Hex Size
24mm
