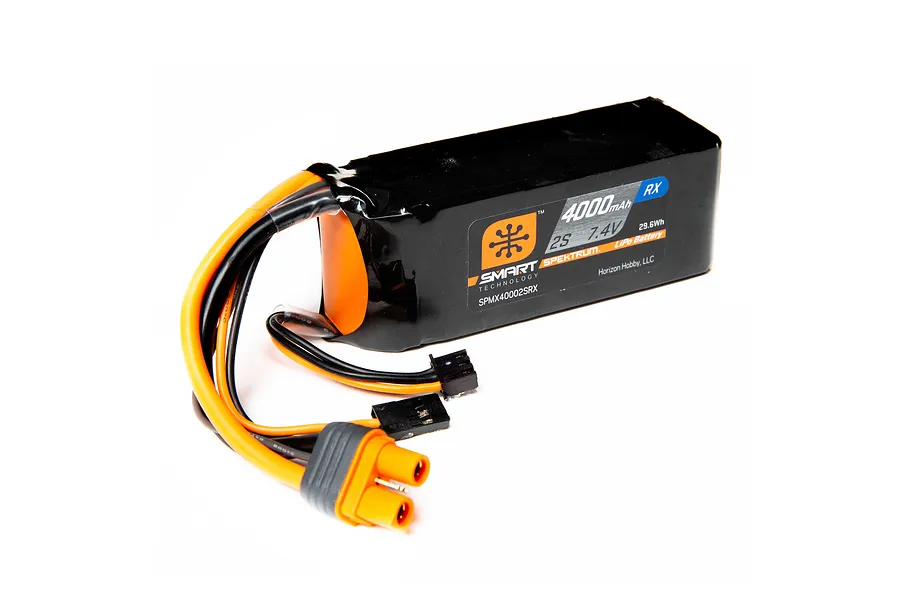

Spektrum 7.4v 4000mAh 15C RX LiPo Battery w/ Smart Technology
Spektrum 7.4v 4000mAh 15C RX LiPo Battery w/ Smart Technology
Spektrum 7.4V 4000mAh Smart LiPo receiver battery — plug in, press Start, and Smart Technology handles the rest.
- Smart Technology microchip — auto-uploads charge parameters to Spektrum Smart chargers
- Auto smart-discharge to safe storage voltage after configurable rest period
- 4000mAh capacity in a compact hardcase form factor
- IC3/IC5 connectors — backwards compatible with EC3/EC5
- Logs unhealthy events (over-charge, over-discharge, over-temperature) for battery health tracking
You will never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health data upload from the Smart memory microchip integrated into the battery. Through the charger you can view and set preferences such as charge rates, so that all you have to do each time is press the Start button. Smart Technology takes care of the rest.
Smart LiPo batteries store unique data including battery brand, type, capacity, C rating, individual cell voltage, temperature, charge/discharge cycles, and over-heat, over-charge, and over-discharge incidents.
- Integrated microchip stores unique parameters for each battery
- Smart discharge allows batteries to automatically discharge to a safe storage voltage
- Save time and hassle while improving battery life
- 15C continuous discharge rating
- Impact-resistant ABS plastic hard-case
- No soldering required — equipped with IC3 and IC5 connectors compatible with EC3 and EC5
- 1x 7.4V 4000mAh 15C LiPo Battery with Smart Technology
- 1x Instruction Manual
-
Type
- Smart LiPo
-
Capacity
- 4000mAh
-
Voltage
- 7.4V
-
Connector Type
- IC3
-
Number of Cells
- 2
-
Weight
- 170g
-
Configuration
- Hardcase
-
Length
- 86mm (3.4")
-
Width
- 34mm (1.3")
-
Height
- 30mm (1.2")
-
Application
- Receiver Pack
-
Maximum Continuous Discharge
- 15C
-
Smart Technology
- Smart Battery
-
Cell VoltageVoltage produced by each individual cell in the battery
- 3.7V
-
Total Voltage
- 7.4V
-
CapacityHow much energy is stored; higher mAh gives longer run times
- 4000mAh
-
Discharge C RatingHow fast the battery safely delivers power to your motor
- 15C
-
ChemistryBattery type that affects power, performance, and feel
- LiPo
-
ConnectorPlug style that determines what the battery connects to
- IC3
-
Length
- 86mm
-
Width
- 34mm
-
Height
- 30mm
-
WeightInfluences handling, balance, and runtime
- 170g
-
Main Connector Wire GaugeAmerican Wire Gauge - Wire thickness that affects how much current it carries
- 13AWG
-
Case TypeChoose 'Hard Case' for protection or 'Soft Case' for weight saving
- Soft Case
-
Balance Lead ConnectorPlug used by chargers to balance the battery’s cells
- JST-XH
