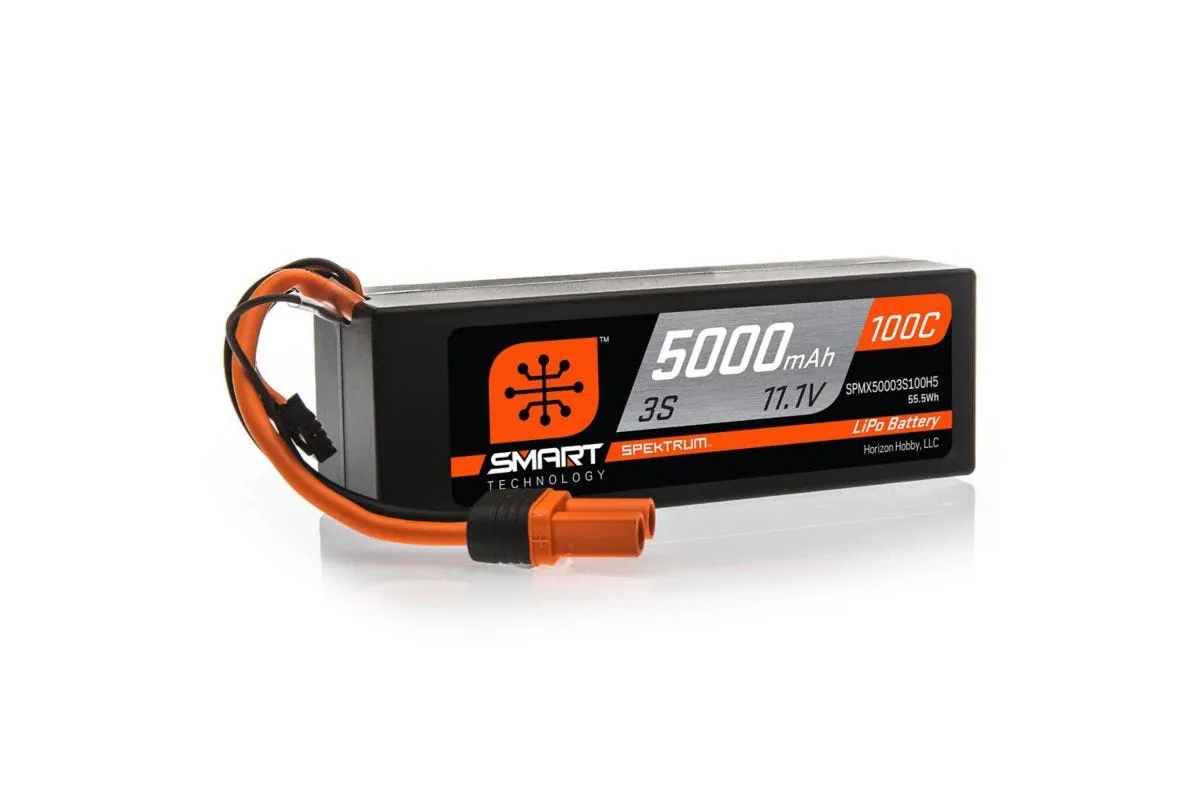

Spektrum 11.1V 5000mAh 100C Hard Case LiPo Battery w/ Smart Technology
LiPo Charging: Always use a LiPo compatible charger when charging your Lithium Polymer (LiPo) batteries. Be sure to select the correct chemistry/setting for the LiPo battery you are charging, as charging on the wrong setting can cause violent fires if left unattended. Please use extreme caution and never charge LiPo batteries unattended. We also recommend using a LiPo Safe/Protection Bag while charging your LiPo batteries.
You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.
Information at Your Fingertips
Spektrum Smart LiPo batteries store unique data, such as;
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
- Over-Heat Incidents
- Over-Charge Incidents
- Over-Discharge Incidents
Key Features
When connected to a Spektrum Smart charger, your Smart LiPo battery's unique parameters and health upload from the Smart memory microchip integrated into the battery. Through the charger, you can set and record preferred settings, such as charge rates and self-discharge options, so that all you have to do to charge the pack is press the "start" button.Smart technology will take care of the rest. Every Smart LiPo battery is factory assembled with the next-generation IC3â„¢ and IC5â„¢ output connector that utilizes a data transfer wire to relay saved information to yourSmart Chargers.
An integrated microchip allows each Smart Battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature,and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready for a day at the field or the track.
Preset charge, discharge, and storage parameters are automatically relayed to a Spektrum Smart Charger making charging as simple as pressing the"start" button. Charge rate of individual batteries can be user-customised, allowing you to take full advantage of packs with faster charge ratings.The integrated microchip on each battery will remember the last charging rate you set, so the next time you plug it in, these settings will automatically populate so all you have to do is press "Start."
The innovative Smart connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the new IC3 and IC5 connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. For those using the popular EC3and EC5 connectors, there's no need to worry. The IC connector series is entirely backwards compatible with existing connectors so you can useSmart Batteries with older systems, but only when connected to a SpektrumSmart device are all the benefits of Smart technology obvious.
LiPo batteries with Spektrum Smartâ„¢ technology practically take care of themselves. When programmed with a Spektrum Smart Charger, Smart Batteries will automatically discharge to your predetermined storage voltage when they are left to rest for a time period you choose, between 12 and 240hours. This feature will help extend your Smart Batteries' life by preventing your batteries from sitting fully charged for an extended period of time, which can damage the chemical integrity of Lithium Polymer cells. This unique feature results in longer battery life expectancy and better performance over the life of the pack.
- Integrated microchip stores unique parameters for each battery
- Smart discharge allows batteries to automatically discharge to a safe voltage
- Save time and hassle, while improving battery life
- Powerful 100C continuous discharge rating to deliver maximum performance and longevity
- Impact resistant ABS plastic hard-case
- No soldering required, equipped with IC3 and IC5 Connectors that are compatible with EC3 and EC5
- Type: Smart LiPo
- Capacity: 5000mAh
- Voltage: 11.1V
- Connector Type: IC5
- Wire Gauge: 12
- Number of Cells: 3
- Weight: 392g (.864lbs)
- Configuration: 3S1P
- Length: 138.5mm (5.45")
- Width: 46.5mm (1.83")
- Height: 35mm (1.38")
- Application: Surface
- Maximum Continuous Discharge: 100C
Description | QTY |
---|---|
11.1V 5000mAh 100C Hard Case LiPo Battery w/ Smart Technology | 1 |
Instruction Manual | 1 |
Battery | |
---|---|
Voltage: | 11.1V |
Capacity: | 5000mAh |
Discharge C Rating: | 100C |
Chemistry: | LiPo |
Length: | 138.5mm |
Width: | 46.5mm |
Height: | 35mm |
Weight: | 392g |
Cell Voltage: | 3.7v |
Connector: | IC5 |
Main Connector Wire Gauge: | 12AWG |
Lithium Case: | Hard Case |
Balance Lead Connector: | JST-XH |
