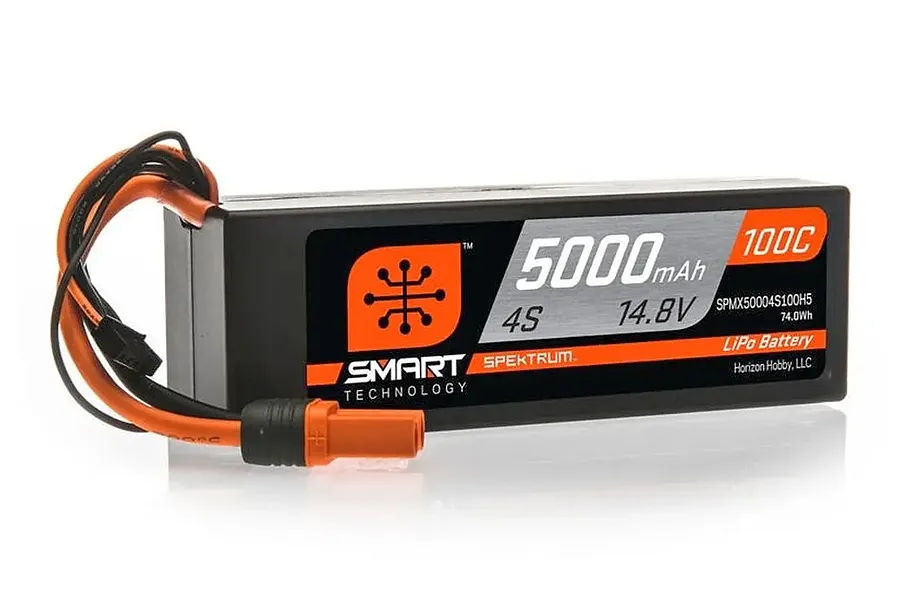

Spektrum 14.8V 5000mAh 100C Hard Case LiPo Battery w/ Smart Technology
Spektrum 14.8V 5000mAh 100C Hard Case LiPo Battery w/ Smart Technology
Spektrum 14.8V 5000mAh 100C Smart LiPo in a hard case. Integrated microchip stores parameters, enables auto-discharge to storage voltage, and simplifies charging to a single button press.
- 14.8V 5000mAh Smart LiPo with 100C continuous discharge rating
- Integrated microchip stores unique battery parameters and health history
- Auto-discharge to storage voltage when left to rest (programmable 12–240 hours)
- IC5 connector compatible with EC5; IC3 compatible with EC3 — no soldering required
- Impact resistant ABS plastic hard-case
You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, the battery's unique parameters and health upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences — such as charge rates — so that all you have to do to charge the pack every time is press the charger "Start" button.
Spektrum Smart LiPo batteries store unique data including battery brand, type, capacity, C rating, individual cell voltage, battery temperature, charge/discharge cycles, and over-heat, over-charge, and over-discharge incidents.
Every Smart LiPo battery is factory assembled with IC3 and IC5 output connectors that utilise a data transfer wire to relay saved information to Smart Chargers. The IC connector series is entirely backwards compatible with existing EC3 and EC5 connectors.
When programmed with a Spektrum Smart Charger, Smart Batteries will automatically discharge to your predetermined storage voltage when they are left to rest for a time period you choose, between 12 and 240 hours.
- Integrated microchip stores unique parameters for each battery
- Smart discharge allows batteries to automatically discharge to a safe voltage
- Save time and hassle, while improving battery life
- Powerful 100C continuous discharge rating to deliver maximum performance and longevity
- Impact resistant ABS plastic hard-case
- No soldering required, equipped with IC3 and IC5 Connectors that are compatible with EC3 and EC5
- 1x 14.8V 5000mAh 100C Hard Case LiPo Battery w/ Smart Technology
- 1x Instruction Manual
This product is classified as dangerous goods. Due to aviation safety laws, it can not be sent by air, including to New Zealand. If you add this to your cart, you will only see road delivery options, or to pick up from our store. LiPo Charging: Always use a LiPo compatible charger when charging your Lithium Polymer (LiPo) batteries. Be sure to select the correct chemistry/setting for the LiPo battery you are charging, as charging on the wrong setting can cause violent fires if left unattended. Please use extreme caution and never charge LiPo batteries unattended. We also recommend using a LiPo Safe/Protection Bag while charging your LiPo batteries.
You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.
Information at Your Fingertips
Spektrum Smart LiPo batteries store unique data, such as;
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
- Over-Heat Incidents
- Over-Charge Incidents
- Over-Discharge Incidents
-
Type
- Smart LiPo
-
Capacity
- 5000mAh
-
Voltage
- 14.8V
-
Connector Type
- IC5
-
Wire Gauge
- 12
-
Number of Cells
- 3
-
Weight
- 495g (1.09lbs)
-
Configuration
- 3S1P
-
Length
- 138.5mm (5.45")
-
Width
- 46.5mm (1.83")
-
Height
- 35mm (1.38")
-
Application
- Surface
-
Maximum Continuous Discharge
- 100C
-
Cell VoltageVoltage produced by each individual cell in the battery
- 3.7V
-
Total Voltage
- 14.8V
-
CapacityHow much energy is stored; higher mAh gives longer run times
- 5000mAh
-
Discharge C RatingHow fast the battery safely delivers power to your motor
- 100C
-
ChemistryBattery type that affects power, performance, and feel
- LiPo
-
ConnectorPlug style that determines what the battery connects to
- IC5
-
Length
- 138mm
-
Width
- 47mm
-
Height
- 40mm
-
WeightInfluences handling, balance, and runtime
- 495g
-
Main Connector Wire GaugeAmerican Wire Gauge - Wire thickness that affects how much current it carries
- 12AWG
-
Case TypeChoose 'Hard Case' for protection or 'Soft Case' for weight saving
- Hard Case
-
Balance Lead ConnectorPlug used by chargers to balance the battery’s cells
- JST-XH
