Tamiya DN-01 Zahhak RC Buggy Electric 2WD 1/10 Scale Kit
This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.
The Pure Thrill of 2WD!

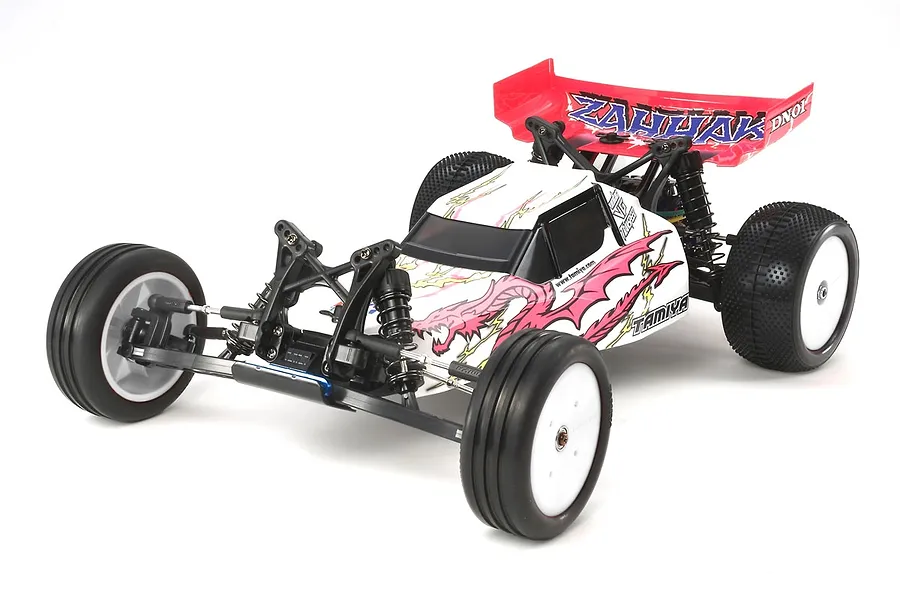

This is a 1/10 scale R/C assembly kit of the Zahhak, a 2WD buggy developed from the expert-level TRF201 buggy. The chassis features the same basic layout as the TRF201, including a longitudinal battery position, 4-wheel double wishbone suspension with long-span suspension arms, and a compact rear-mounted gearbox. The kit comes with CVA shock units and separated-type diff joints which contribute to its superb off-road performance. Front wide grooved and rear dual block pattern tires are mounted on fluorescent pink wheels. A newly designed body and rear wing completes this high-potential 2WD racing buggy.
The 2WD DN-01 has a longitudinal battery position with R/C units placed on either side for optimum balance. The flat chassis underside enables superb skid characteristics. 4-wheel double wishbone suspension is coupled with long-span suspension arms, CVA shock units, and an aluminium front suspension mount. The monocoque front chassis section features a steering crank with built-in servo saver. The drivetrain features full ball bearings and the fully-enclosed gearbox is equipped with a ball differential. Further upgrading to TRF201 specifications is possible by installing separately available Option Parts.

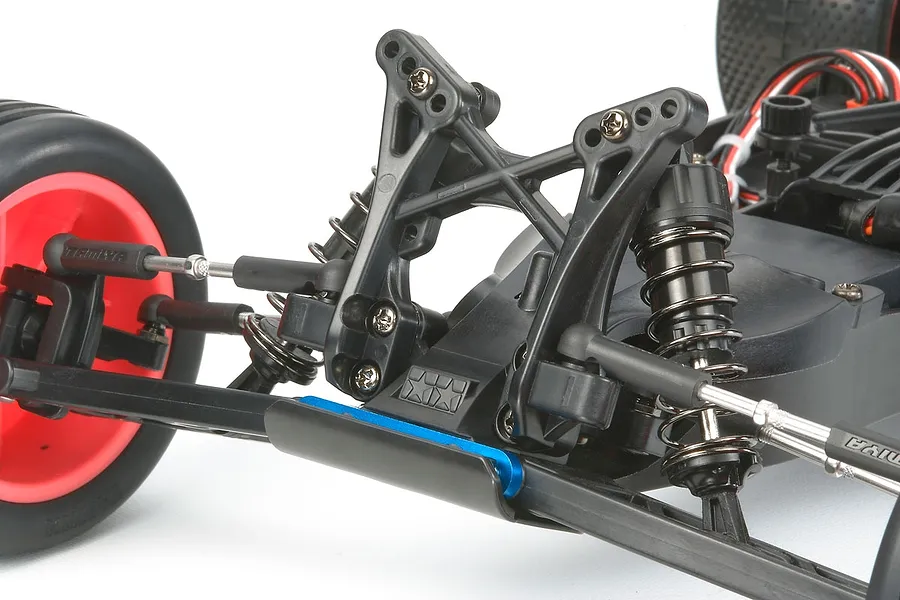

- Double wishbone suspension has the same geometry as the TRF201 and is equipped with CVA shock units.

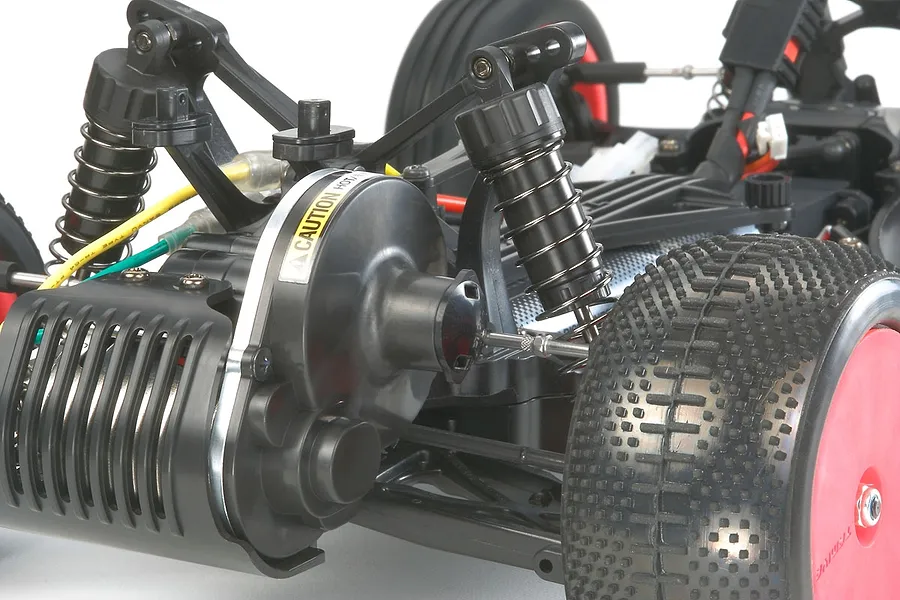

- Rear-mounted motor contributes to great traction. Compact gearbox is equipped with a ball diff.

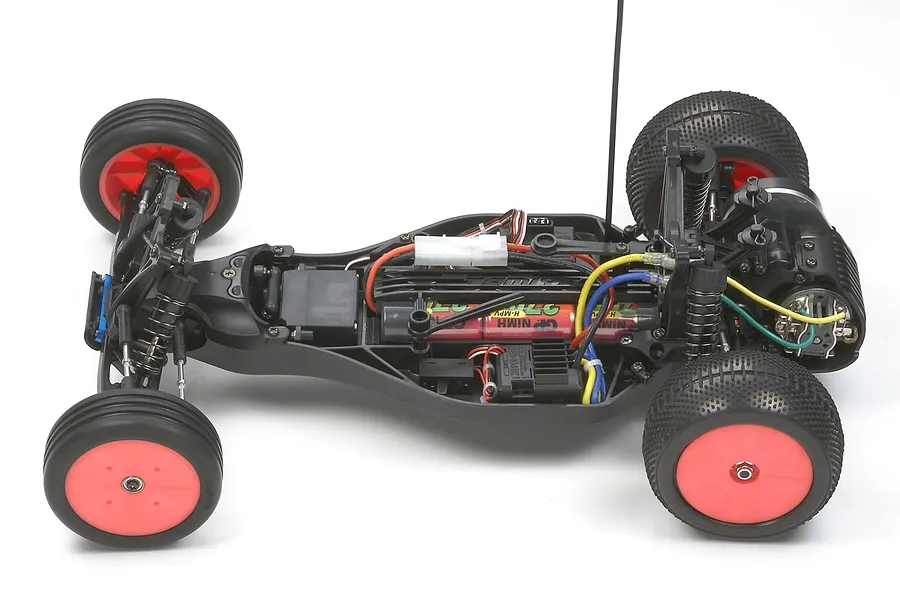

- R/C units are placed on either side of the longitudinally-mounted battery for optimum balance.
- Length: 382mm
- Width: 249mm
- Height: 136mm
- Weight: Approx. 910g
- Wheelbase: 272mm
- Tire Width/Diameter: Front = 19/60mm, Rear = 35/62mm
- Bathtub Type Chassis Frame
- Rear-Wheel Drive
- Front & Rear Double Wishbone Suspension
- CVA Shock Unit
- Gear Ratio: 8.22:1 / 10.27:1
- Steering servo
- Motor
- ESC
- Radio
- Battery
- Charger
- Paint
- Tools
This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.
-
Scale
- 1/10
-
Max LiPo Power
- 2S (7.4v)
-
Completion
- Kit
-
Skill Level
- Beginner
-
Power Source
- Electric Brushed
-
Chassis Type
- Buggy
-
On/Off Road
- Off Road
-
Drivetrain
- 2WD
-
Max LiPo Power
- 2S (7.4v)
-
Battery Connector
- Tamiya
