Description

This kit comes without an Electronic Speed Control. Click Here to view our range of ESCs.

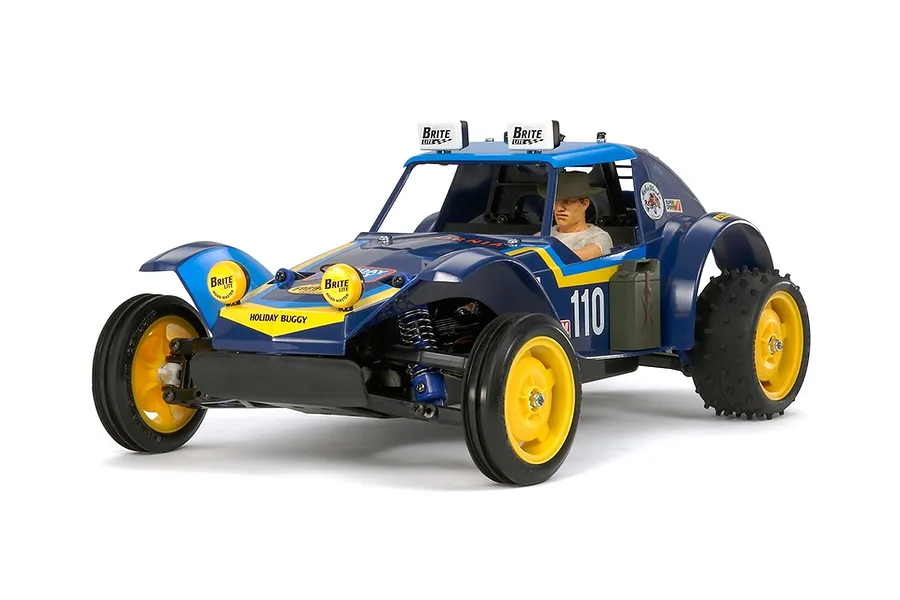

The Tamiya Holiday Buggy is back! This re-release of a classic 1980s RC car kit brings the fun and excitement of off-road driving to a new generation of enthusiasts. The Holiday Buggy features a faithful reproduction of the original body, now mounted on the capable and versatile DT-02 chassis.

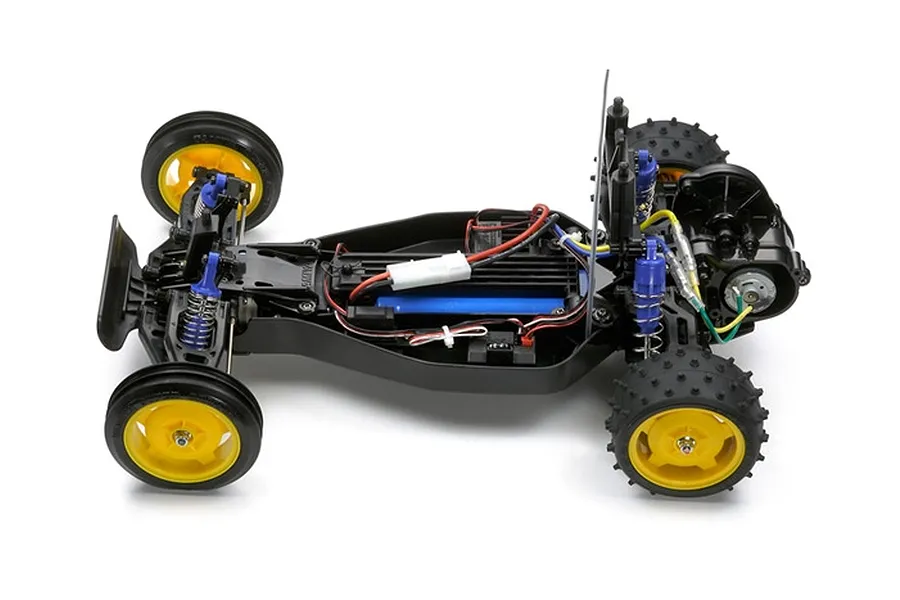

The DT-02 chassis features a bathtub-type frame with a longitudinal battery layout, providing a low centre of gravity and optimal weight distribution for stable handling. The 4-wheel double wishbone suspension and coil spring shocks ensure a smooth and comfortable ride, even on rough terrain. The sealed gearbox protects the internals from dust and debris, while the differential gears efficiently transfer power from the included Type 380 motor. For those seeking even more power, the Holiday Buggy DT-02 can be upgraded with a separately available Type 540 motor and pinion gear.

Whether you're reliving childhood memories or experiencing the thrill of classic RC racing for the first time, the Tamiya DT-02 Holiday Buggy is a fantastic choice.

Features

1/10 scale assembly kit
Includes painted driver figurine & decals
Proven 2WD DT-02 Chassis

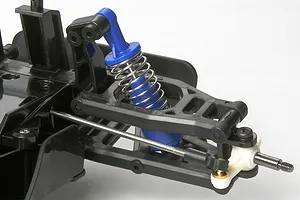

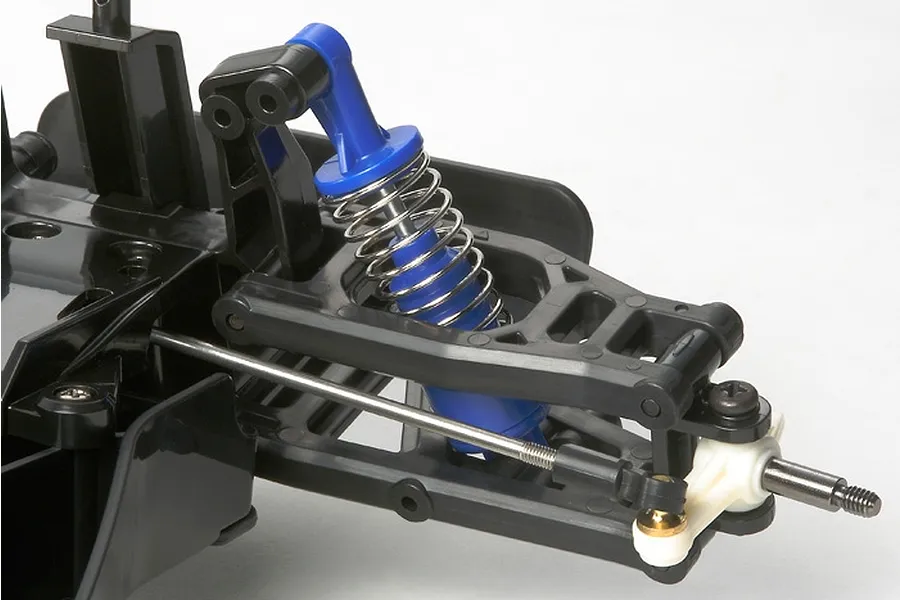

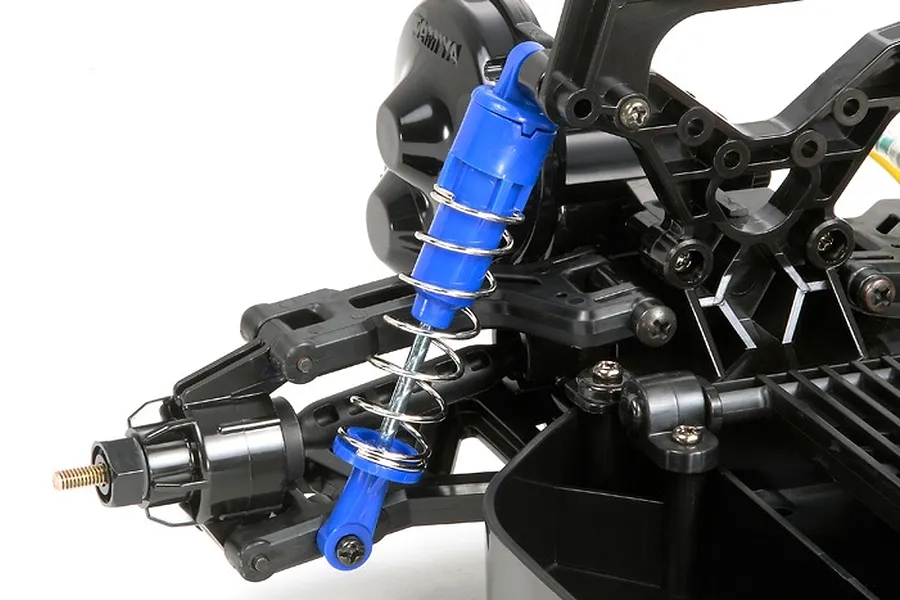

Durable front double wishbone suspension offers smooth movement
Pre-painted Blue Polyethylene (PE) body shell and is compatible with general paint
Grooved front tyres enable superb handling
Rear double wishbone suspension is equipped with spike tyres to provide the car with an ample amount of traction

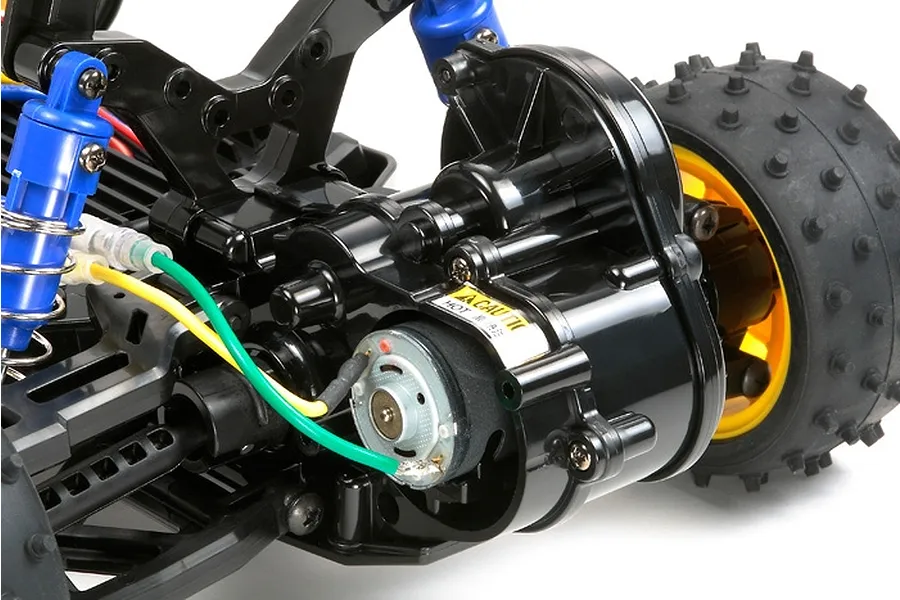

Rear mounted type 380 motor offers manageable power output
The sealed gearbox is equipped with differential gears
Extra large instruction manual
Assembly kit is designed to be enjoyed by adults & children

Specifications

Scale: 1/10
Length: 390mm (15.3")
Width: 240mm (9.44")
Height: 164mm (6.45")
Wheelbase: 260mm (10.2")
Body Shell: Blue Polyethylene (PE)
Chassis Type: DT-02
Construction Type: Assembly Kit
Motor: 380-Brushed Type
Electronic Speed Control (ESC): Not Included
Motor Position: Rear
Wheel Drive: 2WD
Gear Ratio: 15.77: 1
Shocks: Friction Front & Rear
Suspension: 4-Wheel Double-Wishbone
Terrain Use: Off Road

Included Items

1x 1/10 DT-02 Holiday Buggy 2WD Electric Off Road RC Buggy Kit
1 set of Decals
1x Product Manual

Required Items

Note

When installing a regular sized 540 motor, the follow parts are required;

17T 0.8Mod Pinion Gear
3x3mm Fine Thread Grub Screws
Motor Plate

Specifications

Factory Specs

Pinion Gear: 10T 32dp/0.8Mod

RC Car

Completion: Kit
Drivetrain: 2WD
Max LiPo Power: 2S (7.4v)
On/Off Road: Off Road
Chassis Type: Buggy
Power Source: Electric Brushed
Skill Level: Beginner
Scale: 1/10
