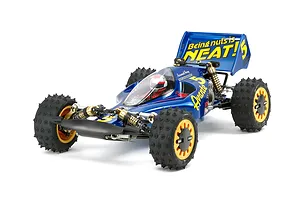

Tamiya 2011 Avante RC Buggy Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit

Part no. 58489

DiscontinuedWrite a review
1 / 13
1 / 13

This product has been discontinued.

Contact us

Overview

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

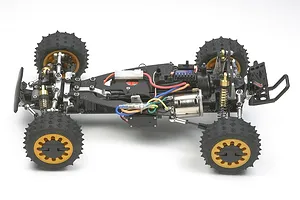

This is a re-release of a Tamiya Radio Control classic. In March 1988, Tamiya released an electric R/C 4WD racing buggy called the Avante, which has since become a special machine in Tamiya's R/C history. The machine featured a unique shaft-driven 4WD system taken from Tamiya's first 4WD R/C buggy, the Hotshot, along with a highly sophisticated design including a FRP double-deck chassis layout, longitudinal motor and battery positions, a formula-type body with chassis fairing, a compact gearbox with 3 small planetary gears, a center diff for stability, fully adjustable suspension, and cam-lock wheel caps.

In 2011 the Avante returned to the Tamiya library with updates including universal drive-shafts and machined aluminum uprights, giving the 2011 version increased durability and performance over the original.

Note

This body shell comes completely unpainted and may require body post holes to be drilled. Use only polycarbonate-style paint such as the Tamiya PS series — standard paints will not adhere and/or may damage the body shell surface.

Features

  • First released in 1988 — classic 4WD race buggy
  • Universal drive-shafts and machined aluminum uprights
  • FRP double-deck chassis layout
  • Formula-type body with chassis fairing
  • Longitudinal motor and battery positions
  • Compact gearbox with 3 planetary gears
  • Center diff increases stability
  • Fully adjustable suspension
  • Cam-lock wheel caps
  • Chassis: 2mm Thick Carbon Double Deck
  • Diff Gear F/R: Planetary, Center: Ball Diff
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Double Wishbone Suspension
  • Front and Rear Oil Dampers
  • Gear Ratio: 8.33:1
  • Type 540 Motor (25T)
  • Enjoyable kit build

In the box

  • 1x Tamiya 2011 Avante RC Buggy Electric 4WD 1/10 Scale Kit
  • 1x Tamiya 540 Sized Brushed Motor
  • 1x Hobbywing 1060 60A Brushed ESC

You'll need

  • Steering servo
  • Remote controller
  • ESC
  • Battery
  • Charger
  • Paint (polycarbonate safe, e.g. Tamiya PS series)
  • Tools

Highlights

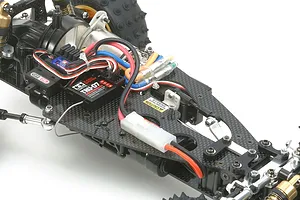

Carbon Fibre Chassis

Carbon Fibre Chassis

The car's chassis is engineered for both performance and durability, featuring a 2mm thick carbon double-deck that provides exceptional strength and rigidity.

Comp Spec Steering

Comp Spec Steering

Experience a smooth and accurate steering feel with the included racing steering set. The 2mm thick carbon plate construction ensures rigidity and responsiveness, enhancing overall handling.

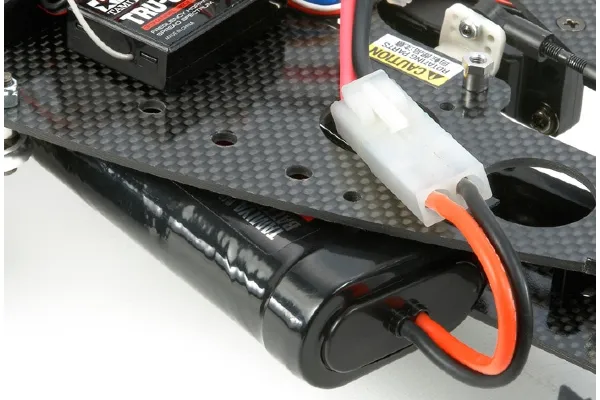

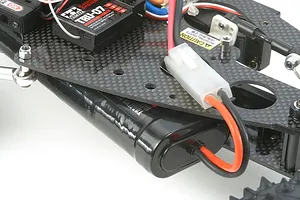

Vertical Mount Battery Tray

Vertical Mount Battery Tray

The battery is mounted vertically on the right side of the vehicle, accommodating both 7.2V racing packs and LiPo batteries for flexible power options.

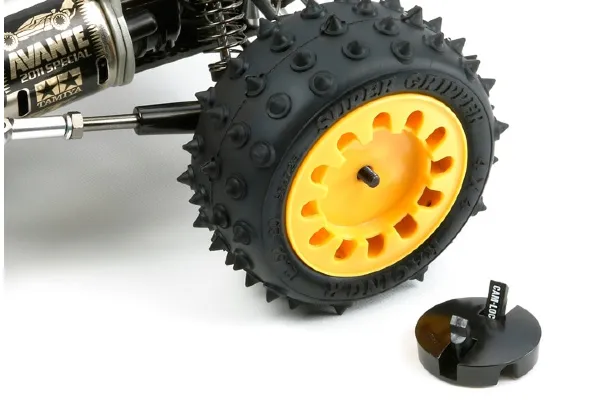

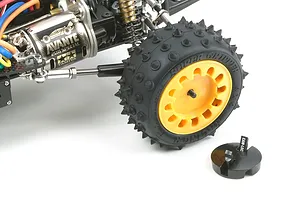

Cam-Lock Wheels

Cam-Lock Wheels

The car features cam-lock wheels that can be easily attached and detached without tools, simplifying maintenance and wheel swaps. The clamp-type pin hexagonal hubs provide a secure and reliable connection for worry-free performance.

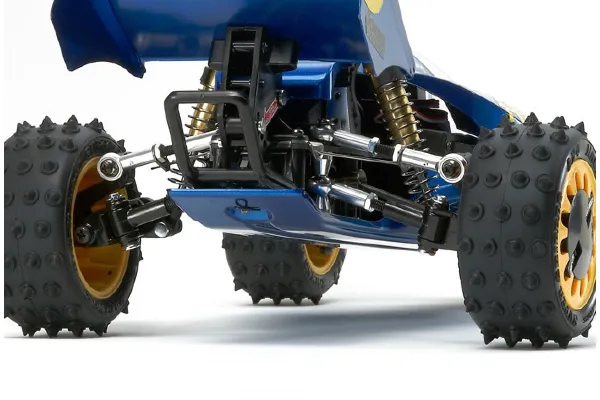

Off-Road Ready

Off-Road Ready

Experience an improved level of off-road capability with the high-clearance suspension design. This configuration allows the car to navigate challenging terrain and overcome obstacles with ease.

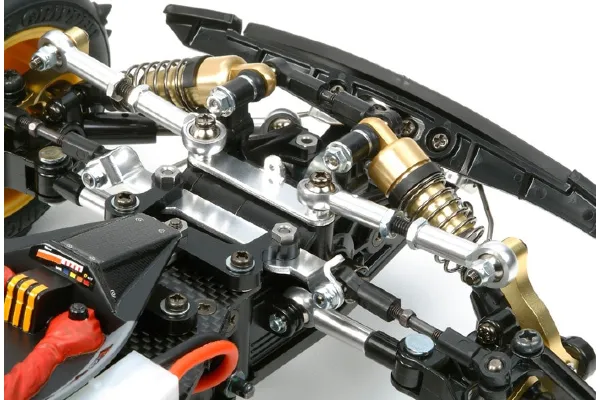

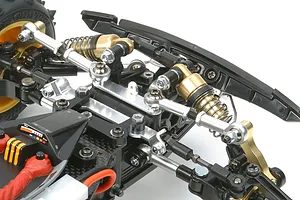

3-Piece Tie Rods

3-Piece Tie Rods

The high-strength 3-piece tie rod steering system, constructed with durable metal parts, delivers precise and reliable steering control. The included radius arm protector absorbs shocks and protects the steering components from damage.

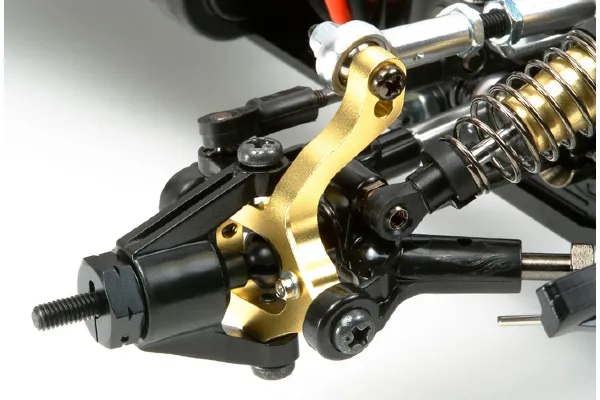

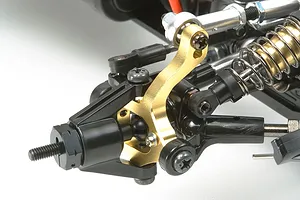

Golden Aluminium Parts

Golden Aluminium Parts

The car features high-quality components that improve both performance, aesthetic and durability. The machined aluminium uprights and metal damper cylinders with end caps contribute to a robust and easily maintainable suspension system. In addition the Avante parts have been anodised in an eye catching gold.

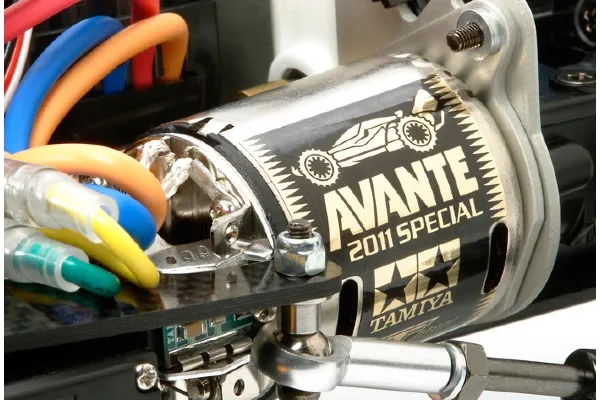

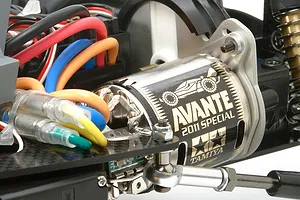

GT Tuned Motor

GT Tuned Motor

The car's drivetrain is optimised for both power and control. The 25 turn gold label motor delivers ample torque, while the spur gear with a built-in ball-type centre differential ensures smooth and predictable power distribution.

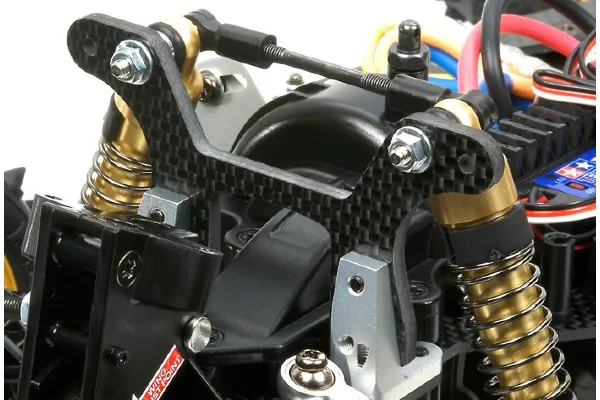

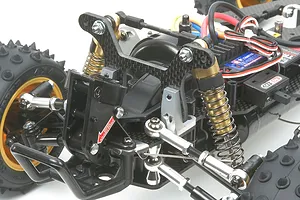

Carbon Reinforced Shock Tower

Carbon Reinforced Shock Tower

The rear suspension is reinforced with a durable carbon fibre shock tower and aluminium mounting block. This robust design ensures that the rear suspension can handle the stresses of off-road driving.

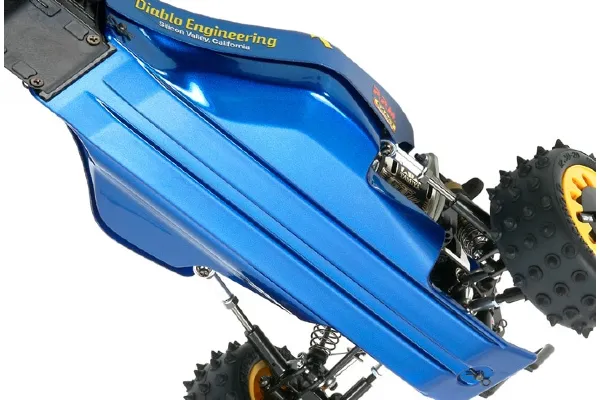

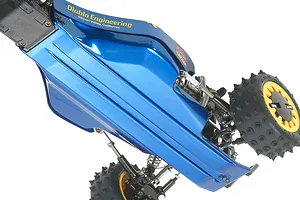

Polycarbonate Under Cowl

Polycarbonate Under Cowl

The polycarbonate under-cowl enhances the car's skidding performance, allowing for smooth and controlled slides on a variety of surfaces.

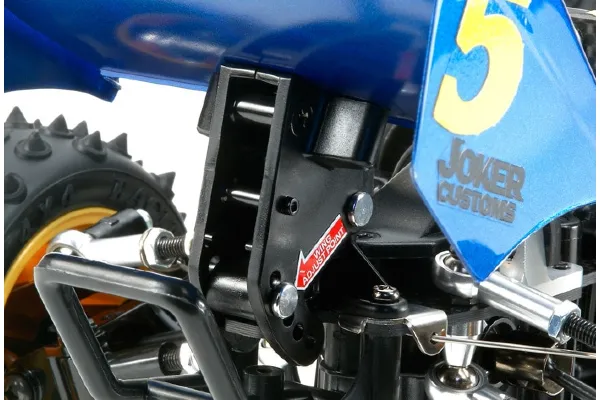

Race Inspired Wing

Race Inspired Wing

The rear wing is designed for both style and function. The polycarbonate construction provides durability, while the adjustable angle allows you to customise the downforce and control the car's posture during jumps.

Specifications

Length420mm (16.53")
Width240mm (9.44")
Height140mm (5.5")
Wheelbase260mm (10.23")
WeightComing Soon
Drivetrain4WD

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelExperienced
Power SourceElectric
Chassis TypeBuggy
On/Off RoadOff Road
Drivetrain4WD

RC Kit

Suited Motor/ESC TypeElectric

Factory Specs

Battery ConnectorTamiya
Front Shock Oil600cSt
Rear Shock Oil600cSt
Front Differential OilGrease
Centre Differential OilGrease
Rear Differential OilGrease
Pinion Gear22T
Spur Gear72T
Wheel Hex Size12mm
