Stylish Brake Disc Wheel Hubs
Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.
Tamiya TT-02D Mazda RX-7 RC Drift Car Electric 4WD 1/10 Scale Kit
- 1/10
- 4WD
- Kit
Part no. 58648
1 in stock5.0
1 review

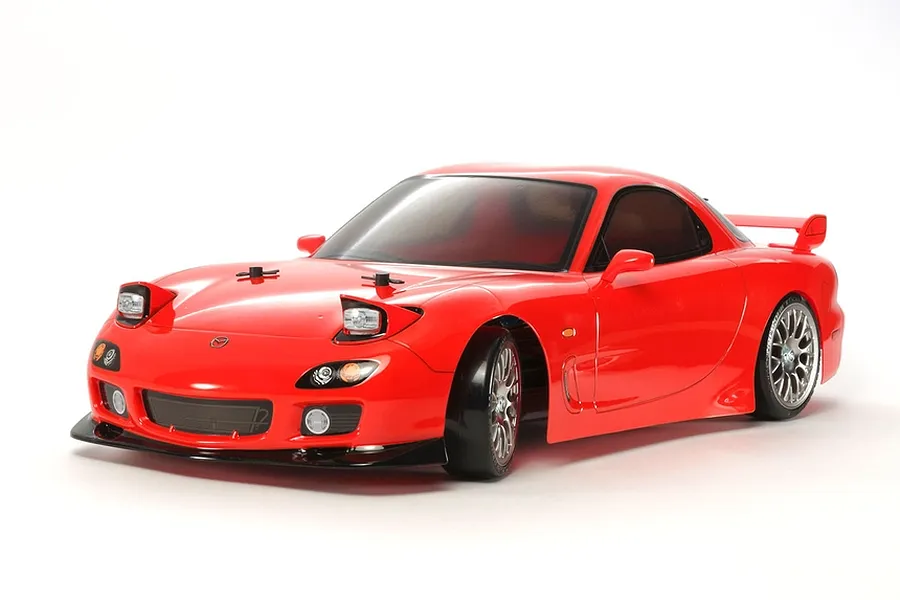

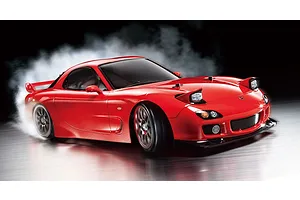

1/10 Tamiya TT-02D Mazda RX-7 FD3S drift kit with LED lights, 540 sport motor, CVA oil dampers, and drift-spec tires on mesh wheels.
- Iconic Mazda RX-7 FD3S polycarbonate body popularised by Fast and the Furious and Initial D
- LED lights included
- TT-02D drift spec chassis with CVA oil dampers and 24mm drift-spec tires on mesh wheels
- 540 Sport-Tuned brushed motor, full ball bearings, and aluminium motor heat sink
- Separately moulded side mirrors, rear wing and headlight cases
Want more than 1? and we'll email you when they're here.
1 in stock · Ships Thursday · order by Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
You'll need
Not included: Radio, Steering servo, Battery, Charger, Paint, Tools.
This item + 7 required$505.33
Not added until you choose its options: Charger.
Overview
The Mazda RX-7 is a classic fan favourite among drift event enthusiasts, popularised by movies such as Fast and the Furious: Tokyo Drift and the well-known animation series Initial D. Originally released on the Tamiya TT-01 chassis platform, the iconic body style now sits atop the updated TT-02 Drift Spec chassis. The TT-02D is the Drift Spec variant of the TT-02 entry-level 4WD full independent suspension assembly kit that offers ease of assembly and easy maintenance, with special parts to make it a fun to drive drifting machine.
Note
This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.
Features
- Highly Detailed 1/10 Mazda RX-7 Clear Body
- LEDs Included
- RX-7 (FD3S) recreated in a durable and lightweight polycarbonate body
- Separately molded parts to recreate side mirrors, rear wing and headlight cases
- Stickers included
- Aluminium Motor Heatsink
- Full Ball Bearings
- Super Tough Bathtub Type Chassis
- Balance Longitudinal Chassis Layout
- Adjustable Wheelbase
- Shaft-Driven 4WD System
- Front/Rear 4 Bevel Resin Differentials
- 3-Piece Steering Tie-Rod System for Superior Handling
- 4-Wheel Double Wishbone Suspension
- Super Driftech Tyres
- Front/Rear Oil Filled Dampers
- Powerful Brushed 540 Sport Tune Motor
- 24mm width drift-spec tires on mesh wheels, CVA oil dampers, full ball bearings, sport-tuned motor and aluminum motor heat sink
In the box
- 1x Tamiya TT-02D Mazda RX-7 RC Drift Car 1/10 Scale Kit
- 1x 540 Sport Tuned Brushed Motor
- 1x LED Light Set
- 1x Clear Polycarbonate Body Shell
- 1x Decal and Window Masking Set
- 1x Instruction Manual
You'll need
- Radio
- Steering servo
- Battery
- Charger
- Paint
- Tools
Highlights
Smooth Precision Steering Linkages
Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.
Smooth Planetary Gear Diffs
Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.
Rear Double-Wishbone Suspension
The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

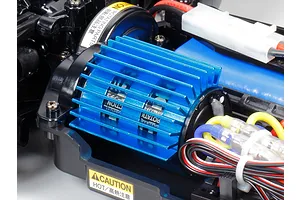

Efficient Motor Cooling Cover
The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).
Designed for Easy Maintenance
The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.
Dust and dirt-proof receiver case
To make sure the receiver keeps free of dust and dirt, the TT-02 is equipped with a cover that keeps it all out and ensures your receiver lasts longer.
Oil Filled Shocks
The TT-02D chassis incorporates a double-wishbone suspension system, equipped with oil filled CVA shock absorbers for improved handling and stability.
Sport Tuned Motor
The TT-02D comes with the more powerful sport tuned brushed motor. With a sleek black can, this motor is paired with an eye-catching aluminium heat sink to ensure long-lasting and consistent performance.
Drift Tyres
The TT-02D Comes with a full set of hard plastic tyres that are designed to make drifting easy. Simply install them on the provided rims and you'll be sideways before you know it.
Specifications
| Length | 449mm (17.67") |
|---|---|
| Width | 185mm (7.28") |
| Height | 124mm (4.88") |
| Wheelbase | 257mm (10.12") |
| Chassis | TT-02D Bathtub Type |
| Suspension | Independent Double Wishbone with CVA Oil Shock Absorbers |
| Drivetrain | 4WD |
| Motor | Brushed 540 Sized Sport Tuned Motor |
RC Car
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 2S (7.4v) |
| Completion | Kit |
| Skill Level | Beginner, Intermediate, Experienced |
| Power Source | Electric |
| Chassis Type | Drift |
| On/Off Road | On Road |
| Drivetrain | 4WD |
RC Kit
| Suited Motor/ESC Type | Electric |
|---|
Factory Specs
| Battery Included | Not Included |
|---|---|
| Battery Connector | Tamiya |
| Pinion Gear | 22T 0.6Mod |
| Spur Gear | 70T 0.6Mod |
| Wheel Hex Size | 12mm |
