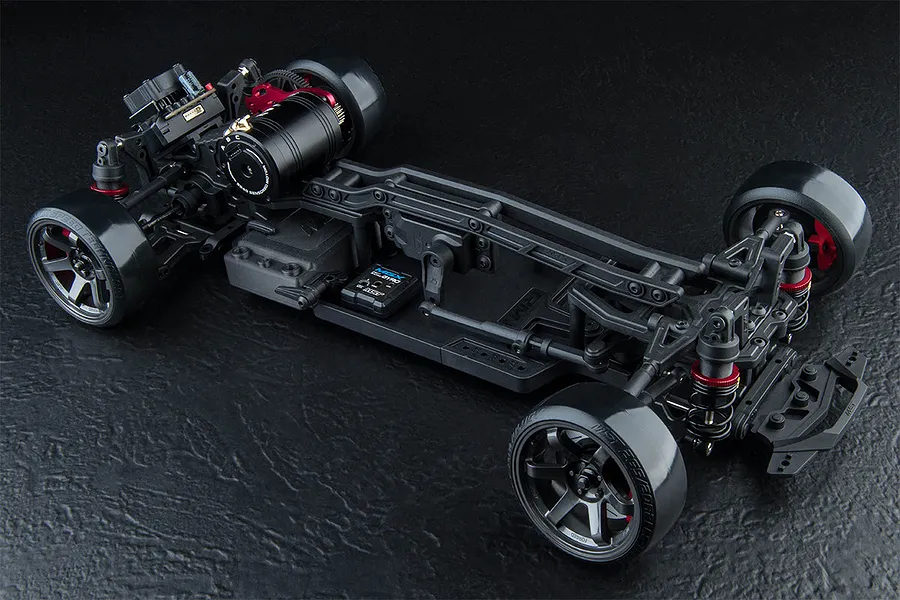

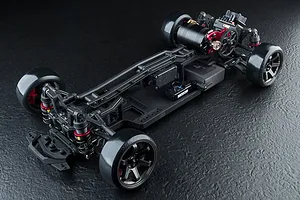

MST RMX 4 Classic RC Drift Car Electric RWD 1/10 Scale Kit

  • 1/10
  • Kit

Part no. 532218

1 in stockNo reviews yet
1 / 20
1 / 20

$344.65

or 4 fortnightly payments of $86.16 with afterpay or PayPal, or zip

The MST RMX 4 Classic RC Drift Car Kit 1/10 RWD Delivers Professional Handling With ATK V3 Hubs, Dual Vertical Decks And Hydraulic Shocks

  • Versatile Design Features Three Adjustable Wheelbase Options
  • Customise Weight Balance Using The Triple Level Motor Mount
  • Smooth Handling Uses Hydraulic Shocks And Short Springs
  • Sharp Steering Through ATK V3 High Angle Drift Hubs
  • An Excellent Choice For Experienced Drifters To Go Sideways

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Order in 11h 33m, dispatched today

  • Checking delivery dates…

  • Free 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

$344.65

Overview

Engineered to provide a rock-solid foundation for sideways driving, the MST RMX 4 Classic RC Drift Car brings proven geometry and bold structural innovations to the 1/10 scale racing scene. Built using glass fibre reinforced nylon, the chassis features a torsion-type dual vertical deck layout that improves longitudinal rigidity while maintaining the lateral flex necessary for deep cornering side bite. Builders can easily fine-tune the centre of gravity using a triple-level adjustable motor mount and flexible electronic speed controller positioning. To accommodate a massive variety of aftermarket polycarbonate bodies, the platform offers three distinct wheelbase configurations ranging from 257mm to 275mm.

Precision handling is at the core of this Rear Wheel Drive chassis. The newly developed steering system incorporates ATK V3 high-angle drift hubs and a redesigned steering arm to deliver massive throw at full lock and highly agile initial turn-in. Power transfers smoothly to the rear wheels through an innovative four-gear reverse torque transmission that converts to a standard three-gear layout without requiring additional parts. Suspension travel is managed by hydraulic Shocks and bullhorn-style shock towers for infinite angle tuning. Trackside maintenance is fast and highly efficient thanks to a quick-release gearbox and a modular subframe design that allows you to easily remove the entire rear suspension system.

Grab your tools and prepare to execute highly technical drift lines. Build your ultimate custom chassis today and master the local circuit with unmatched style and sideways precision!

Note

Please refer to the instruction manual for operation, safety, waterproof standards and maintenance instructions.

Features

  • Glass fibre reinforced nylon chassis with dual vertical decks
  • Innovative rear subframe design enables quick suspension removal
  • Four gear reverse torque transmission converts to a three gear layout
  • Triple level adjustable motor mount allows precise weight tuning

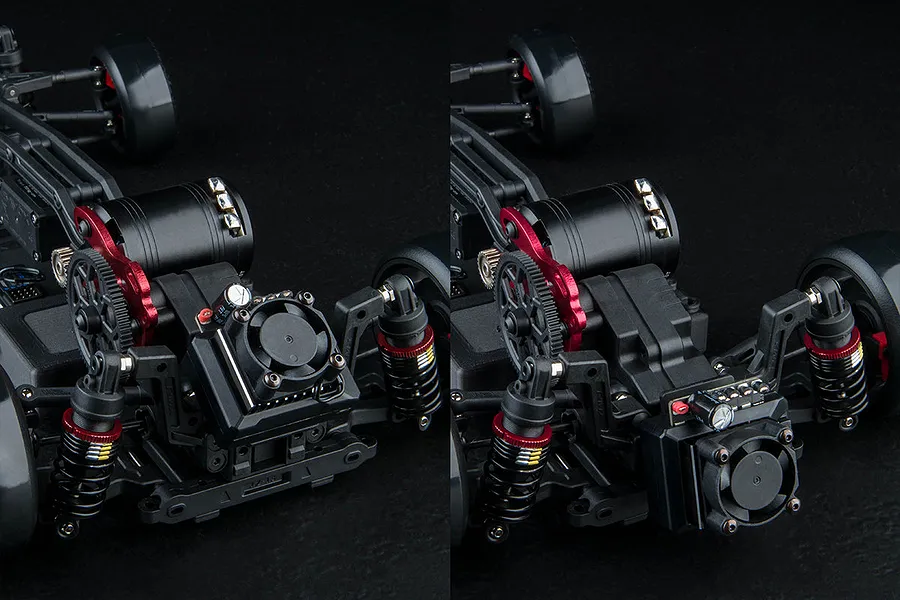

  • Flexible ESC mount supports high and low centre of gravity setups
  • Floating servo mount prevents interference with chassis flex during corners
  • Redesigned steering arm system features fine Ackermann adjustment
  • High angle ATK V3 steering hubs provide extreme drift angles
  • Bullhorn style shock towers allow continuous shock angle adjustment
  • Smooth hydraulic Shocks include progressive DK short competition springs
  • Quick release battery mount holds standard and low profile shorty LiPo packs
  • Genuine MST Product

In the box

  • 1x MST RMX 4 Classic RWD Drift Chassis Kit
  • 1x Decal Sheet
  • 1x Instruction Manual

You'll need

  • 1x 2-Channel Radio System
  • 1x Low Profile Steering Servo
  • 1x 1/10 Scale Electronic Speed Control
  • 1x 1/10 Scale Brushless Drift Motor
  • 1x Pinion Gear
  • 1x Drift Gyro
  • 1x 7.4V 2S Shorty LiPo Battery
  • 1x Compatible LiPo Charger
  • 1x LiPo Safe Charging/Storage Bag
  • 1x 1/10 Scale Drift Body Shell
  • 4x 1/10 Scale Drift Wheels And Tyres
  • 1x Polycarbonate Paint And Assembly Tools

Highlights

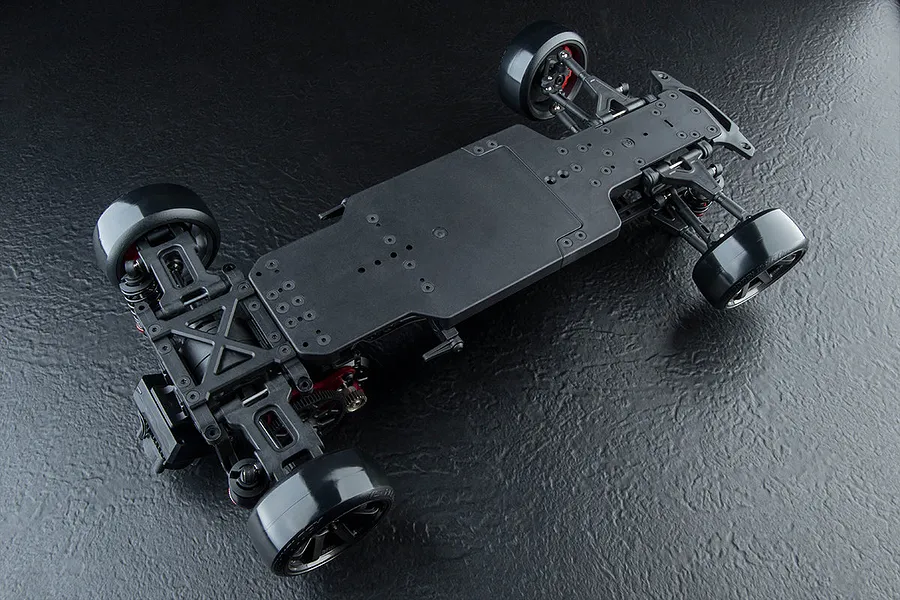

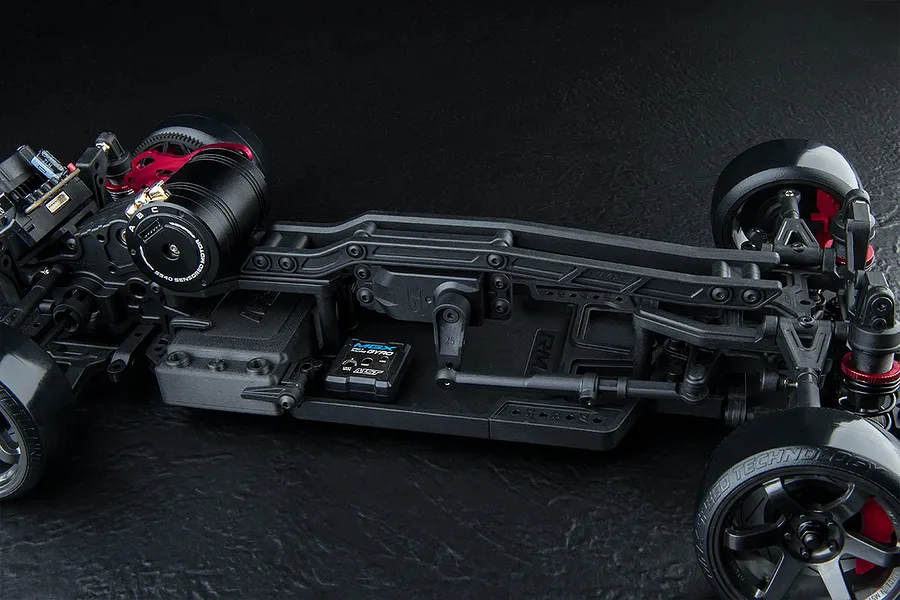

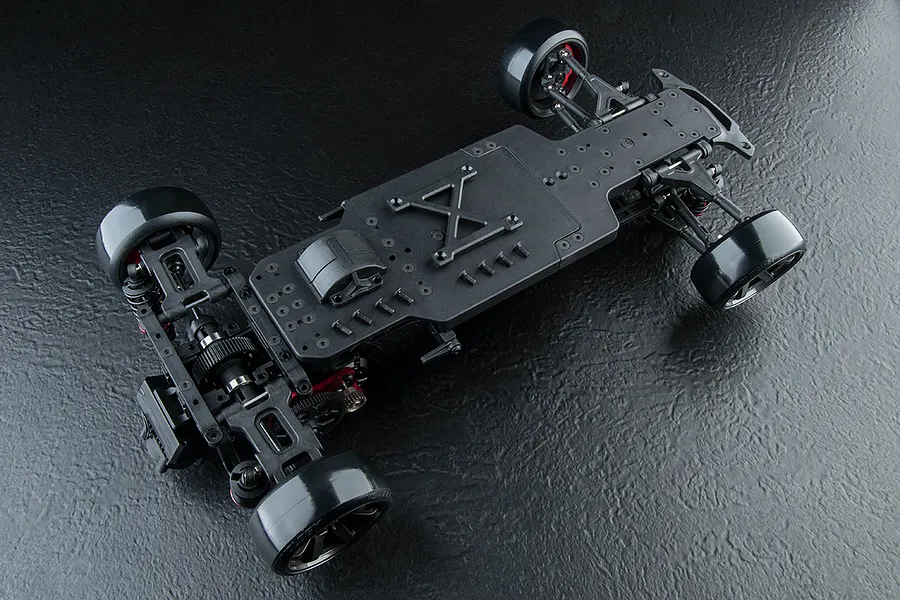

Torsion Type Dual Vertical Deck Layout

Torsion Type Dual Vertical Deck Layout

Torsion-type dual vertical deck layout significantly improves longitudinal rigidity while maintaining optimal lateral flex. Chassis performance remains stable during aggressive transitions, allowing the 1/10 scale drift car to maintain grip. Proper flex management ensures the rear tyres bite into the surface for consistent drift control on technical track layouts.

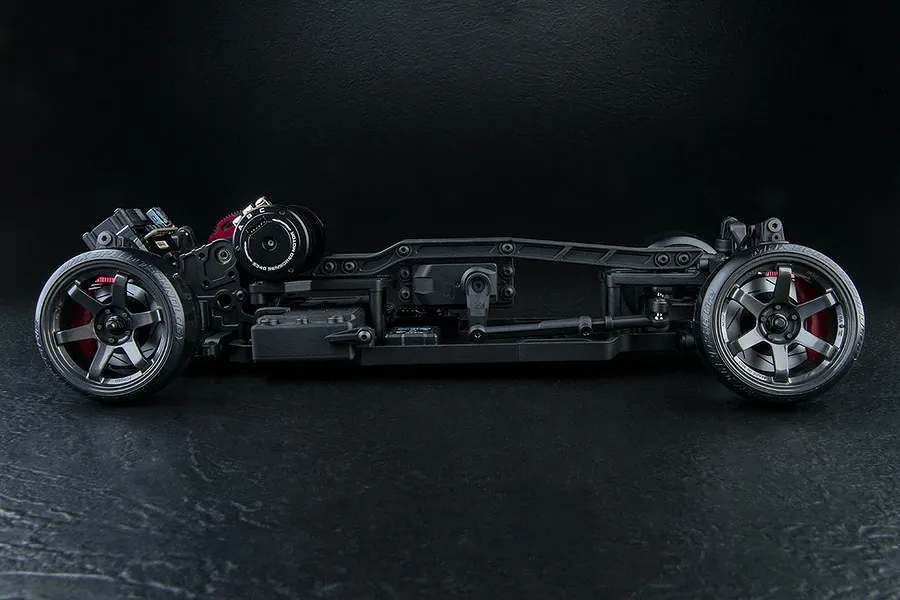

Three Level Adjustable Wheelbase Options

Three Level Adjustable Wheelbase Options

Adjusting the wheelbase between 257mm (10.12"), 266mm (10.47"), or 275mm (10.83") allows compatibility with a massive range of body shells. Multiple mounting options mean you can fit various scale bodies without chassis modification. Tuning the length also alters handling characteristics to suit different drift styles or specific club racing requirements.

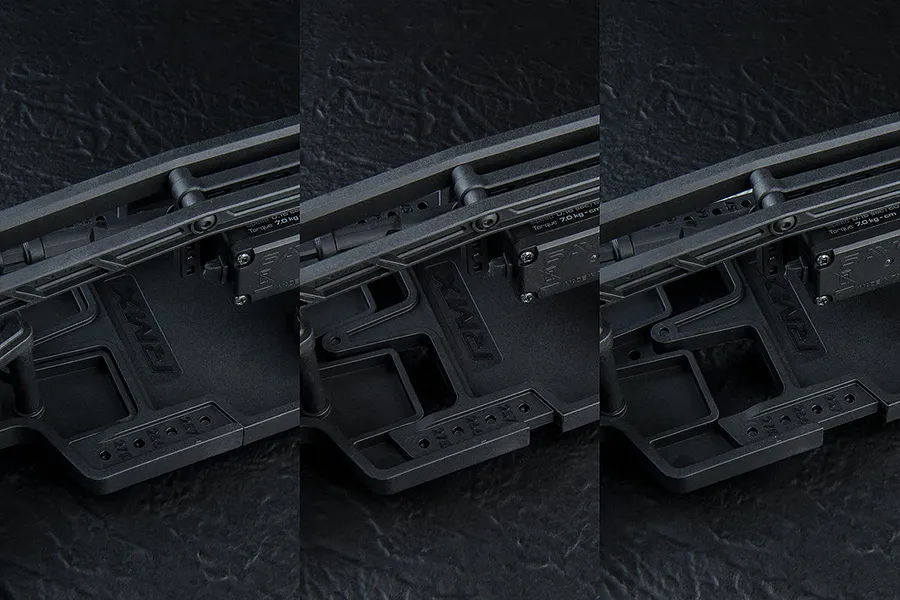

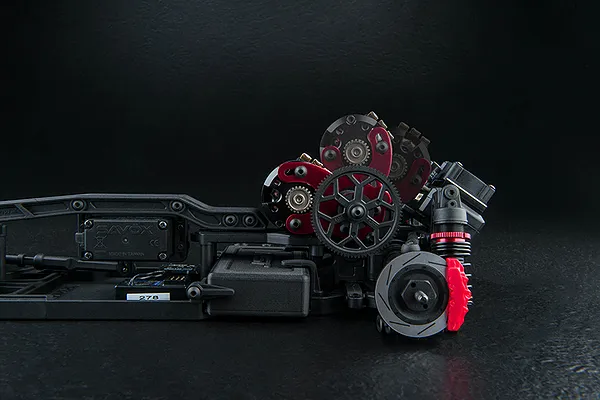

Triple Level Centre Of Gravity Tuning

Triple Level Centre Of Gravity Tuning

Fine-tuning chassis balance is simple with a triple-level adjustable motor position. High or low placement changes how weight transfers during transitions, helping you find the perfect centre of gravity. Coupled with flexible ESC mounting options, the layout provides the mechanical grip needed to excel during high-stakes RWD competition drifting.

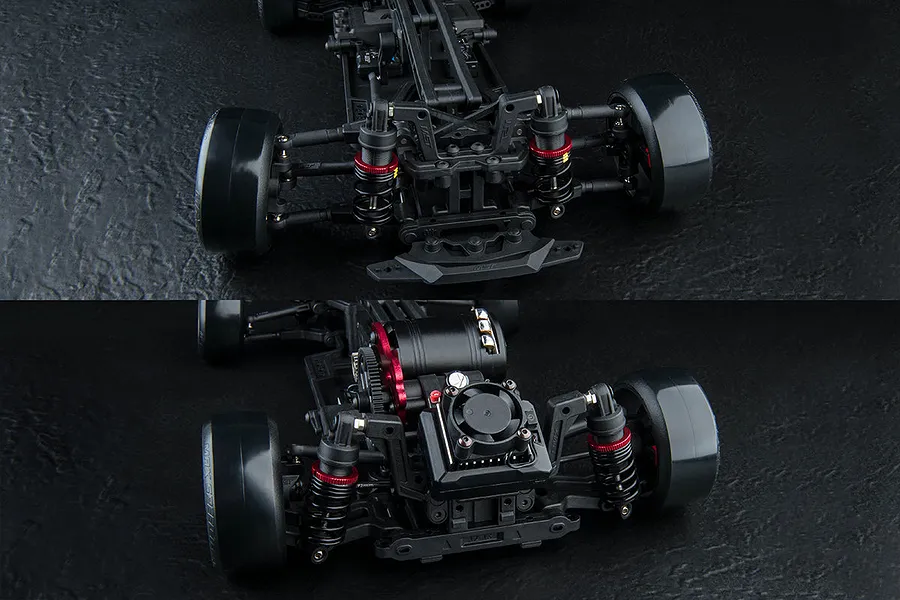

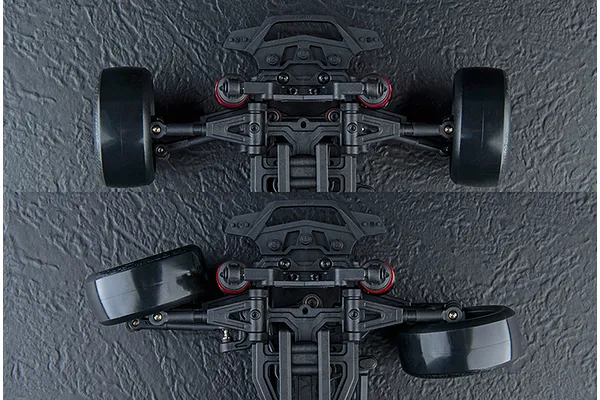

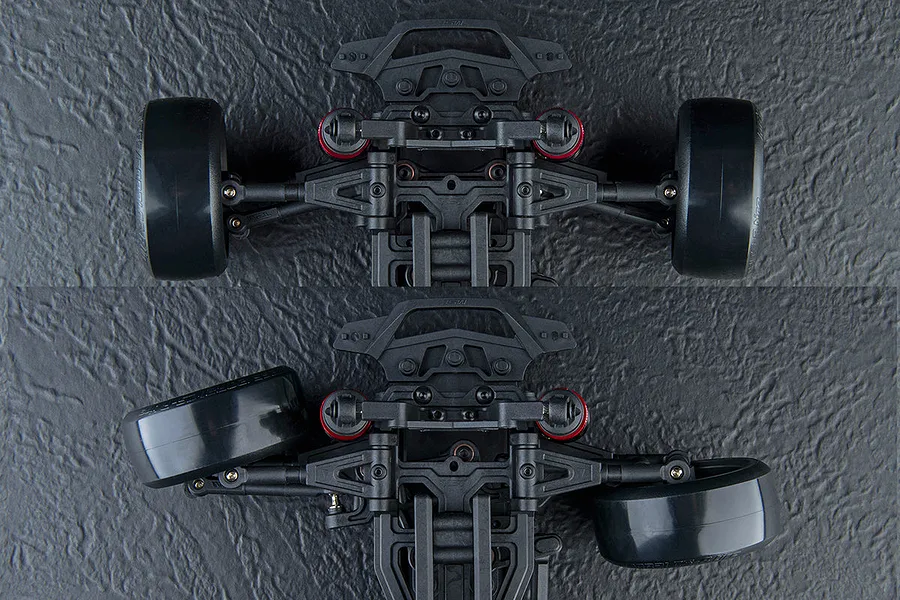

ATK V3 High Angle Steering

ATK V3 High Angle Steering

All-new ATK V3 hub sets are optimised for extreme steering angles required for deep drifting. 0-degree trail provides a fast initial response, ensuring the car follows driver inputs immediately. A wide throw allows for maximum counter-steer, preventing spin-outs and enabling impressive sideways action through high-speed sweepers on any surface.

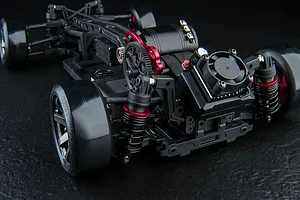

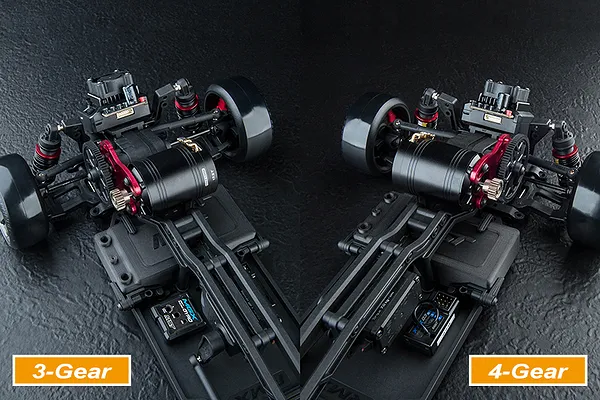

Anti Torque 4 Gear Transmission

Anti Torque 4 Gear Transmission

Anti-torque 4-gear transmission comes standard to help push the rear tyres into the ground during acceleration. Converting to a standard 3-gear layout is possible without additional parts to suit different traction requirements. Flexibility in the drivetrain allows drivers to adapt the mechanical setup to suit slippery polished concrete or high-grip carpet tracks.

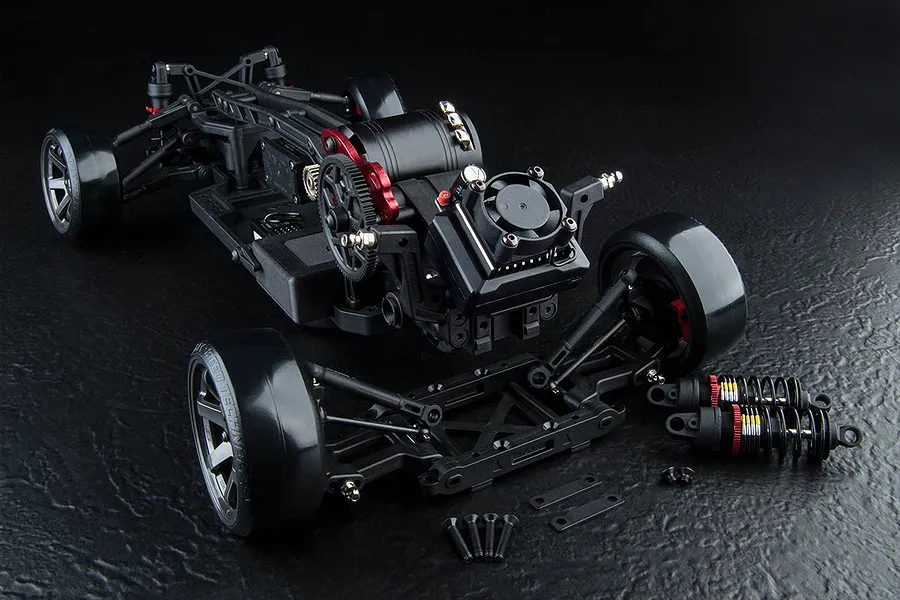

Quick Release Gearbox Design

Quick Release Gearbox Design

Maintenance is simplified with an innovative subframe design that allows quick removal of the rear suspension. Accessing the differential is faster than ever through the quick-release gearbox housing. Efficient mechanical access means less time spent at the workbench and more time perfecting drift lines and chasing the lead car on the circuit.

Specifications

WheelbaseAdjustable 257mm (10.12") / 266mm (10.47") / 275mm (10.83")
WeightN/A
ChassisGlass Fibre Reinforced Nylon
SuspensionFully Independent With Hydraulic Shocks
DrivetrainRWD
MotorN/A (Sold Separately)
ESCN/A (Sold Separately)

Dimensions

LengthN/A
WidthAdjustable 182mm (7.17") Front / 172mm (6.77") Rear
HeightN/A

RC Car

Scale1/10
Power SourceElectric
DrivetrainRWD
Chassis TypeDrift
CompletionKit
On/Off RoadOn Road
Skill LevelIntermediate, Experienced
Max LiPo Power3S (11.1v)

Factory Specs

Battery IncludedIncluded battery type or if sold separately.Not Included
Spur Gear80T
Wheel Hex Size12mm
