Team Associated

Team Associated Rival MT10 Classic Kit RC Monster Truck Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit

Part no. 20519

Incoming stockWrite a review
1 / 15
1 / 15

Videos

Coming soon

Team Associated Rival MT10 Classic Kit RC Monster Truck 4WD 1/10 Scale Features Gold Anodised Aluminium Parts And A Heavy Duty Four Wheel Drivetrain

  • Durable Steel CVD Driveshafts Transfer Power Effectively
  • Customise Your Look Using White Dyeable Plastic Parts
  • Smooth Handling With Gold Aluminium Oil Filled Shocks
  • Four Wheel Independent Suspension Crawls Over Obstacles
  • An Absolute Blast For All Skill Levels To Bash And Jump

Videos

Overview

The Team Associated Rival MT10 Classic Kit RC Monster Truck brings reliable off-road performance to the 1/10 scale dirt category. Built to withstand heavy backyard use, the chassis features gold anodised aluminium top and bottom deck supports that deliver immense structural rigidity. Customisation sits at the forefront of the design with all-white dyeable plastics and Method Race Wheels, allowing builders to create a truly unique look. A clear polycarbonate body and a new livery decal sheet let you finish the exterior exactly how you envision it before hitting the track.

Navigating rough terrain is simple using the long travel independent suspension system, which is managed by four threaded gold aluminium oil-filled shock absorbers. These heavy-duty components allow the vehicle to easily absorb harsh impacts and clear massive obstacles without breaking a sweat. High-traction all-terrain tyres claw through loose dirt and thick grass while the highly capable four-wheel drive drivetrain transfers power evenly. Three sealed gear differentials and strong steel CVD driveshafts ensure every drop of electric energy reaches the ground efficiently, resulting in consistent driving characteristics.

Grab your tools and prepare to experience genuine high-speed off-road excitement. Build your own highly unique racing machine and tear up the local dirt track today with serious style.

Note

Please refer to the instruction manual for operation, safety, waterproof standards and maintenance instructions.

Features

  • Clear polycarbonate body shell includes a highly detailed new livery decal sheet
  • Strong steel CVD driveshafts are equipped on the front and rear of the drivetrain
  • Customisable all-white dyeable plastics let you create a unique exterior finish
  • Highly rigid gold anodised aluminium top and bottom chassis deck support plates
  • White dyeable twelve millimetre hex wheels inspired by the famous Method Race Wheels

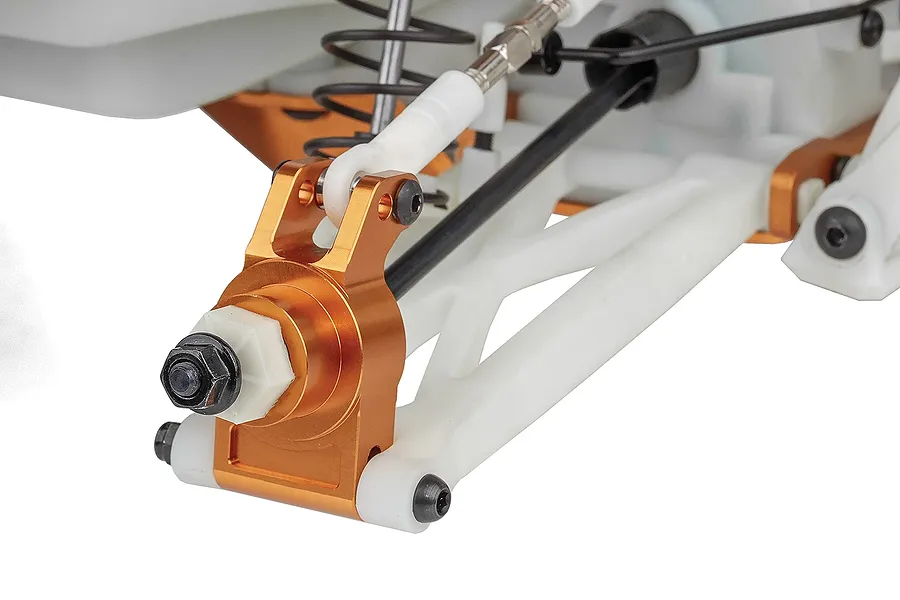

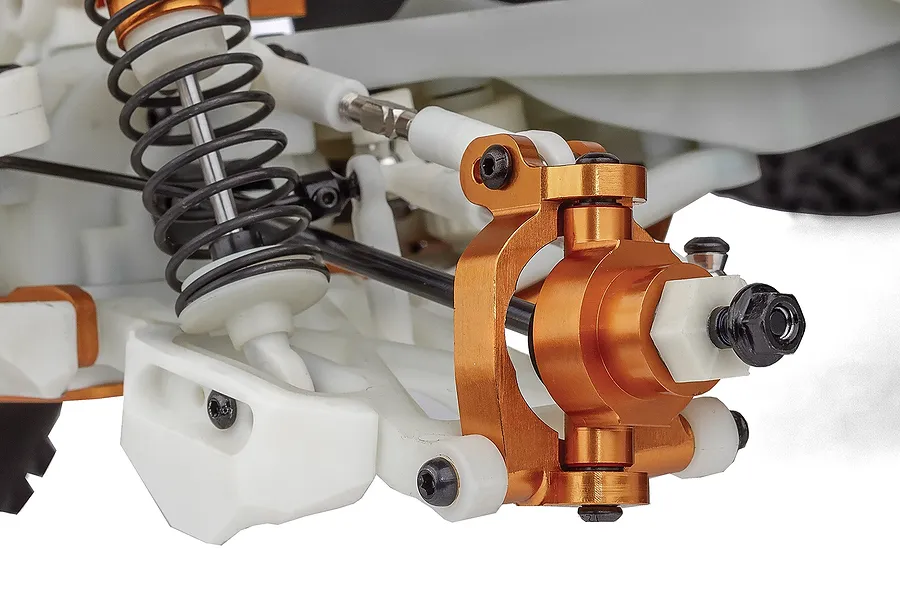

  • Precision CNC-machined gold anodised caster blocks and strong steering spindles
  • Three sealed gear differentials effectively transfer power to all four corners
  • Four-wheel independent suspension system soaks up massive off-road jumps easily
  • Threaded gold aluminium oil-filled shock absorbers provide smooth dampening
  • Four millimetre heavy-duty adjustable steel turnbuckles improve vehicle steering
  • Rugged adjustable wheelie bar prevents the chassis from flipping during launches
  • Genuine Team Associated Product

In the box

  • 1x Team Associated Rival MT10 Classic Kit RC Monster Truck
  • 1x Clear Polycarbonate Body
  • 1x New Livery Decal Sheet
  • 4x White Dyeable Method Wheels
  • 4x High Traction All Terrain Tyres
  • 1x Product Manual

You'll need

  • 1x 2-Channel Radio System
  • 1x Steering Servo
  • 1x 1/10 Scale Electronic Speed Control
  • 1x 1/10 Scale Electric Motor
  • 1x Pinion Gear
  • 1x 7.2V NiMH or 7.4V/11.1V LiPo Battery (w/ Charging/Storage Bag)
  • 1x Compatible Battery Charger
  • 1x Polycarbonate Paint

Highlights

Durable Steel CVD and Centre Driveshafts

Durable Steel CVD and Centre Driveshafts

High-strength steel CVD drive shafts are utilised at both front and rear axles to ensure reliable power transmission. A steel centre drive shaft connects the drivetrain, providing the robustness needed to handle high-torque brushless power. Such a rigid setup minimises mechanical loss and extends the life of the 2800g (6.17 lbs) monster truck during aggressive off-road use.

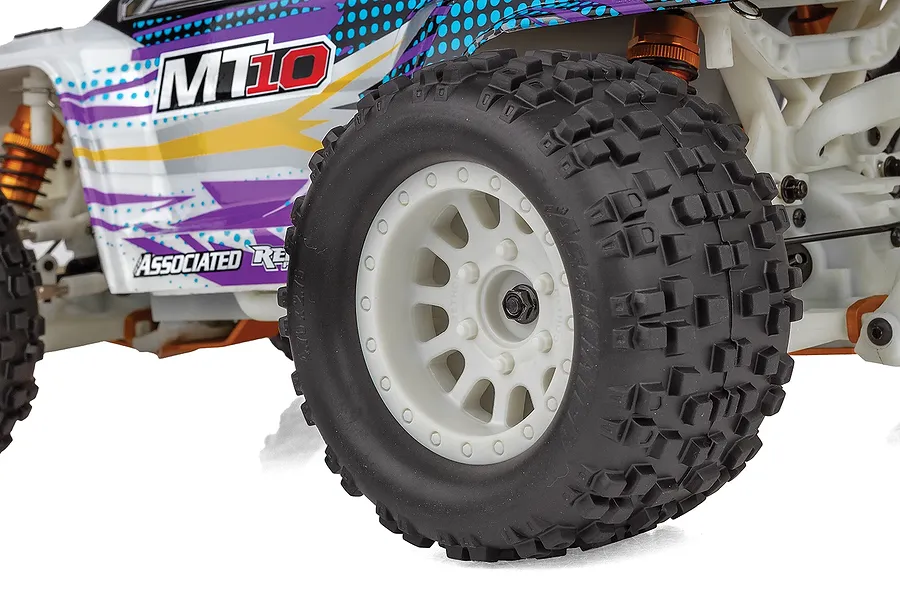

White Dyeable Plastics and Method Wheels

White Dyeable Plastics and Method Wheels

The kit features all-white, dyeable plastics, allowing you to customise the look of your rig with fabric dye. Included are 12 mm hex wheels inspired by Method Race Wheels, fitted with high-traction all-terrain tyres. These wheels provide a unique aesthetic while ensuring the truck maintains a firm grip on surfaces from pavement to loose dirt.

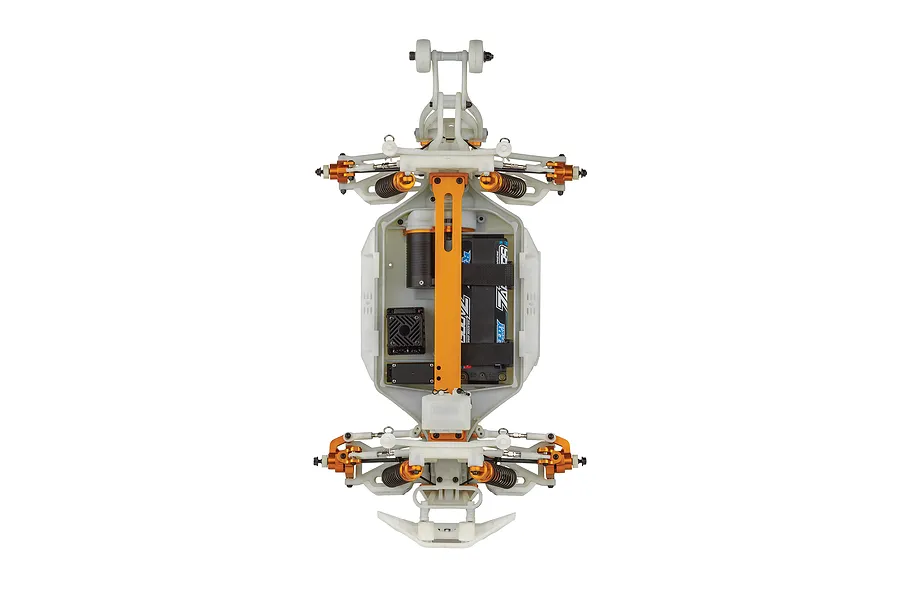

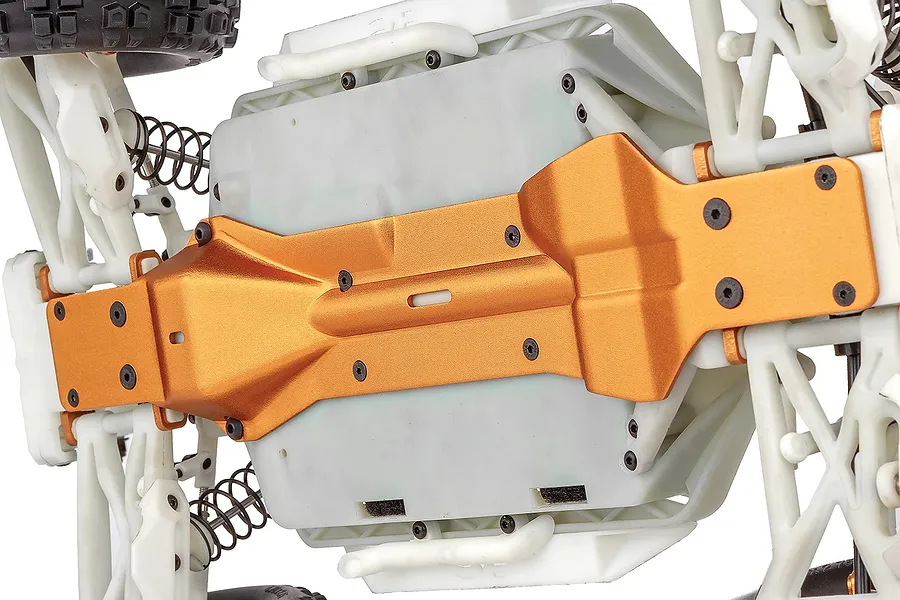

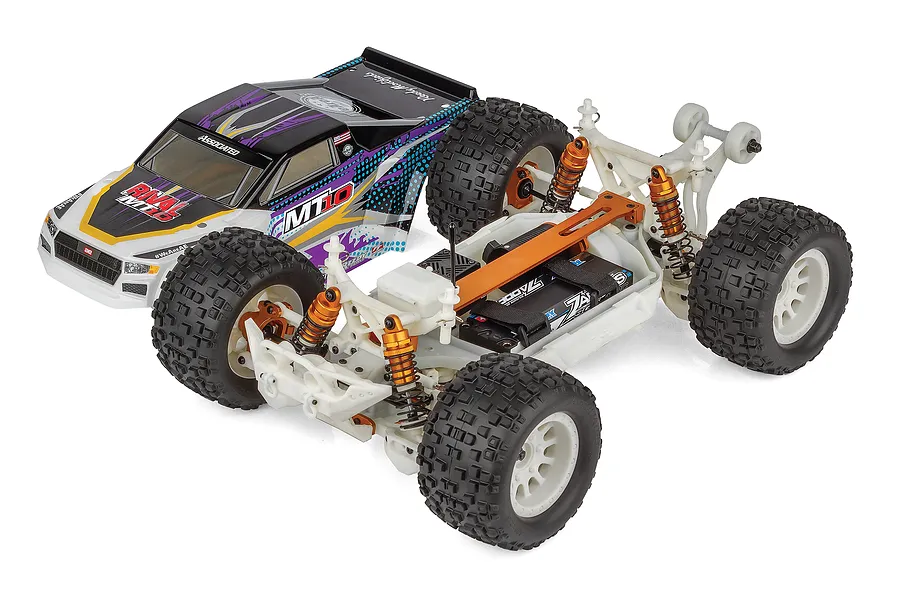

Gold Anodised Aluminium Chassis Supports

Gold Anodised Aluminium Chassis Supports

Structural strength is significantly improved through new gold anodised aluminium bottom and top deck chassis supports. Bracing the main frame reduces unwanted flex under extreme loads and hard landings. Enhanced durability and precise suspension geometry are maintained by these rigid metal reinforcements, making the platform more predictable.

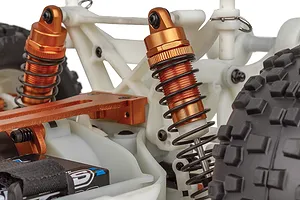

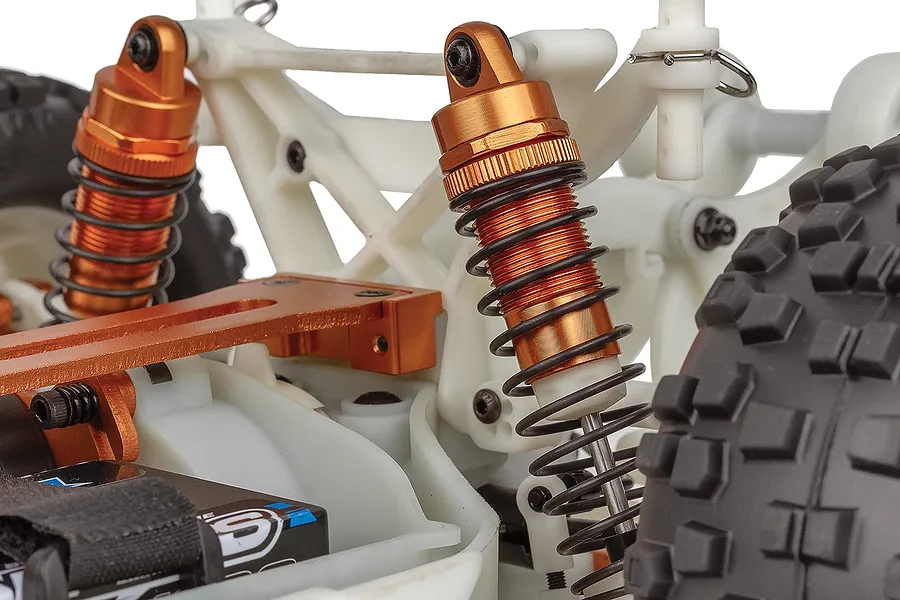

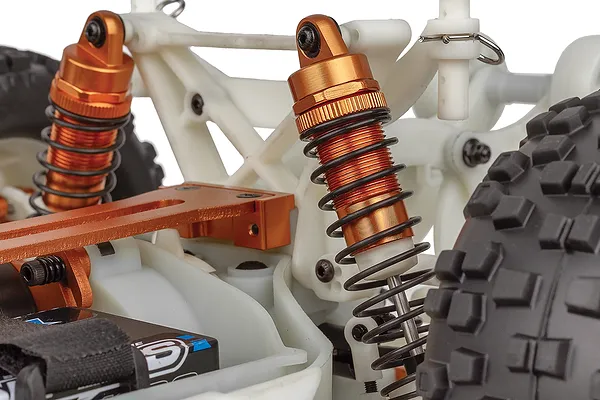

Gold Aluminium Threaded Oil-Filled Shocks

Gold Aluminium Threaded Oil-Filled Shocks

Threaded gold aluminium oil-filled shocks allow for precise damping and a premium appearance. Fluid-filled coil-over absorbers soak up big jumps and rough terrain with ease, keeping the truck stable on technical courses. Adjusting the ride height is quick and easy, allowing you to tune the suspension to match specific track conditions or bash spots.

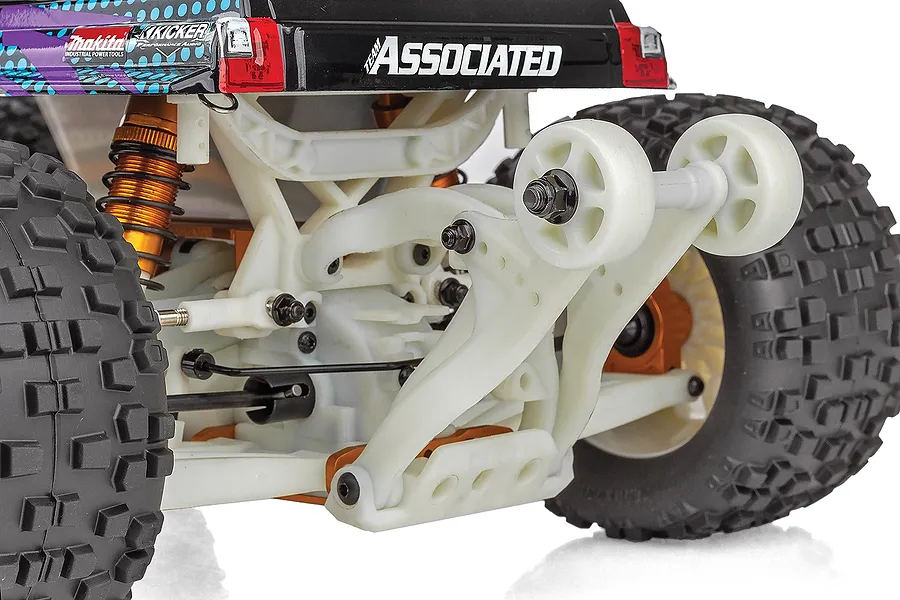

Adjustable Rear Stunt Wheelie Bar

Adjustable Rear Stunt Wheelie Bar

An adjustable wheelie bar is factory-integrated to help manage high-torque launches and standing stunts. Multiple adjustment positions let you set the maximum pitch angle of the truck to prevent accidental backflips during full-throttle bursts. Keeping the front end controlled improves steering authority and helps maintain forward momentum.

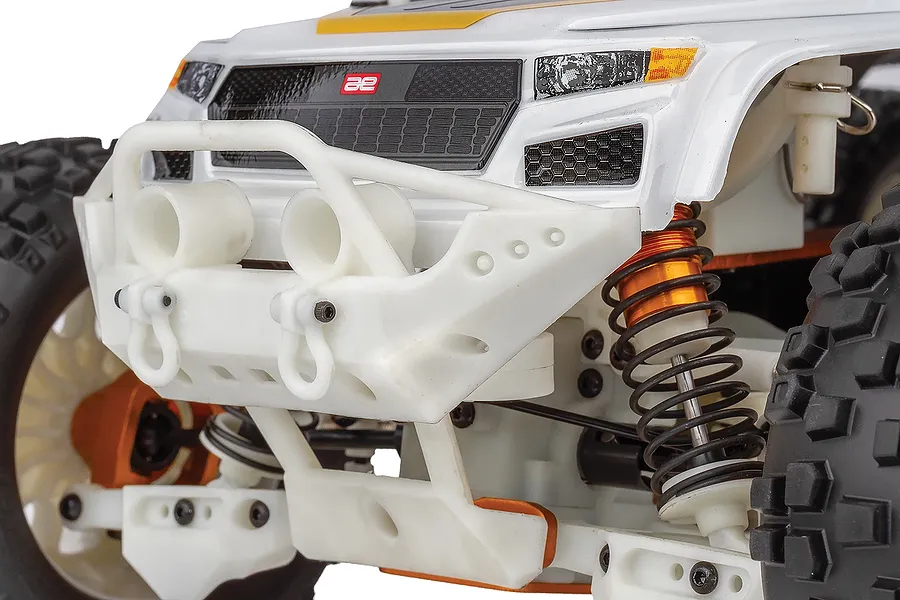

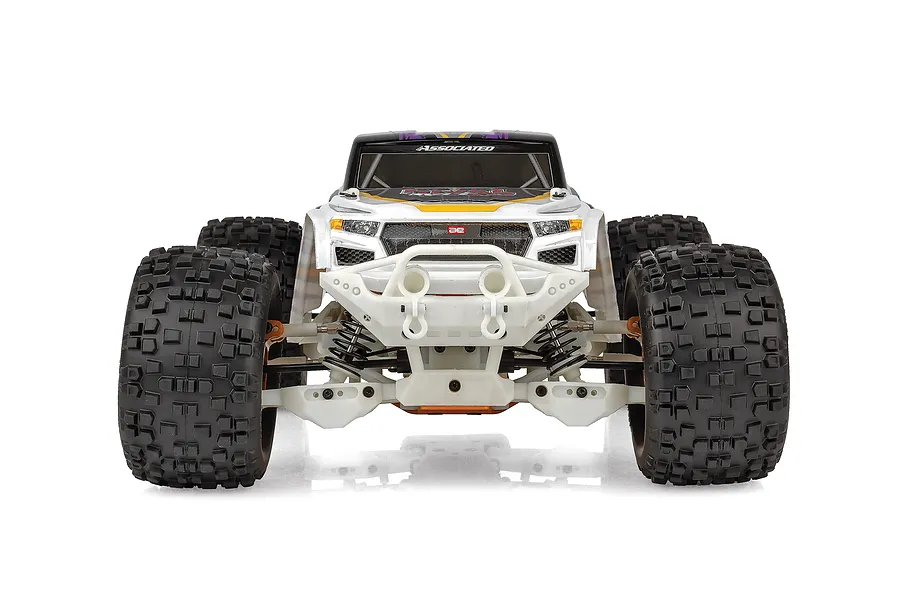

Impact Absorbing Front Bumper LED Mounts

Impact Absorbing Front Bumper LED Mounts

A durable, impact-absorbing front bumper is designed to protect internal steering and suspension parts from head-on collisions. Integrated LED mounts provide a secure location for adding optional lighting systems to extend your racing sessions into the night. Flexible yet tough materials dissipate energy during impacts, increasing the overall longevity of the monster truck.

Specifications

Length507mm (19.96")
Width325mm (12.8")
HeightAdjustable
Wheelbase285mm (11.22")
Weight2.8kg (6.17lbs)
ChassisComposite And Aluminium
SuspensionFour Wheel Independent
Drivetrain4WD
MotorN/A (Sold Separately)
ESCN/A (Sold Separately)

RC Car

Scale1/10
Max LiPo Power3S (11.1v)
CompletionKit
Skill LevelIntermediate, Experienced
Power SourceElectric
Chassis TypeMonster Truck
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery IncludedIncluded battery type or if sold separately.Not Included
Front Shock Oil40wt
Rear Shock Oil40wt
Spur Gear54T 32dp/0.8Mod
Wheel Hex Size12mm
