Tamiya

Tamiya TT-02B Plasma Edge II Gunmetal RC Buggy Electric 4WD 1/10 Scale Kit - Black

  • 1/10
  • 4WD
  • Kit

Part no. 47446

DiscontinuedWrite a review
1 / 5
1 / 5

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

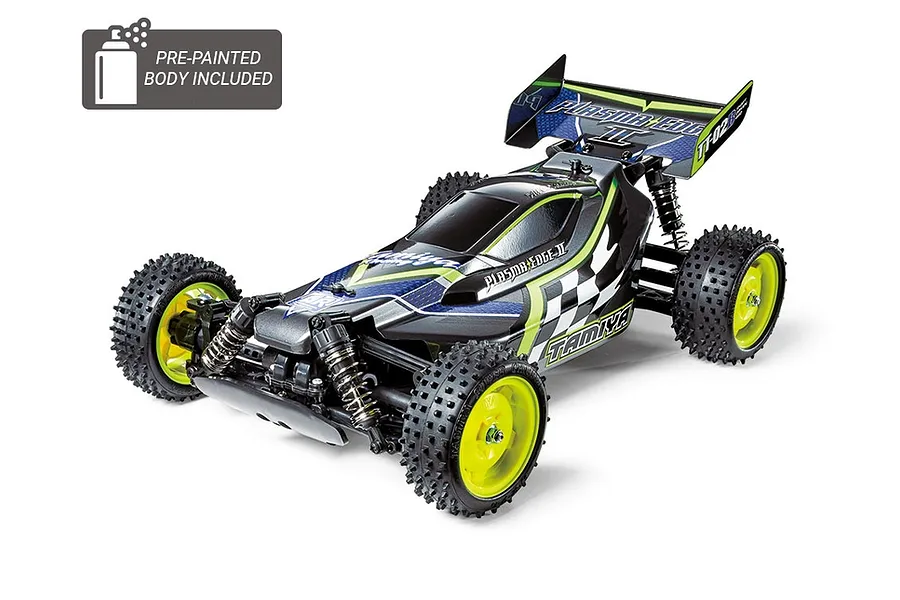

This shaft-driven 4WD R/C buggy assembly kit creates the Plasma Edge II. The Limited-Edition version comes with a Gun Metal colour finish. The body sits on top of the TT-02B, a dedicated off-road buggy chassis that offers hassle-free assembly and maintenance, as well as superb controllability. The TT-02B employs a skid-shaped frame. Its suspension uses 4-wheel independent double wishbone suspension with long arms plus white CVA oil shock units, giving the car assured handling. Left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation and are sealed to keep dust out. The top can be removed by loosening a few screws, making maintenance a breeze. Four different gear ratios can be applied using 3 separately-sold types of pinion gear. The chassis also includes a receiver case and motor cover to protect components from dirt and debris.

Features

  • Pre-painted Gun Metal body
  • Super tough bathtub-type chassis (TT-02B)
  • Shaft-driven 4WD system
  • Front/rear 4-bevel differentials
  • 4-wheel double wishbone suspension
  • Front/rear oil dampers
  • Powerful brushed 540 motor

You'll need

  • Radio
  • Steering servo
  • Battery
  • Charger
  • Paint
  • Tools

Highlights

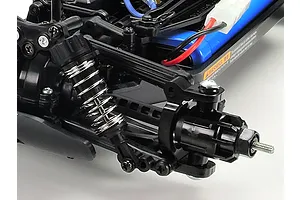

Long Arm Front Suspension

Long Arm Front Suspension

The long arm front suspension is equipped with CVA oil-filled shocks for excellent performance. This setup allows the machine to absorb impacts from jumps and rough terrain with ease. It is a high-performance configuration that keeps the front end stable and responsive.

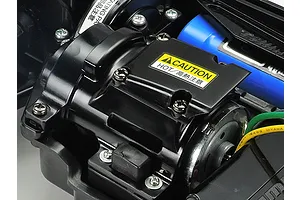

Motor Cover And Receiver Case

Motor Cover And Receiver Case

The included motor cover and receiver case minimise the chance of dust causing damage to the electronics. These protective parts ensure the internal hardware stays clean during intense outdoor driving. It is a practical solution that enhances the overall reliability of the chassis.

Shaft-Driven 4WD System

Shaft-Driven 4WD System

The reliable shaft-driven 4WD system uses gear differentials in the front and rear sealed gearboxes for protection. This mechanical setup ensures a steady flow of power while keeping dirt and debris away from the gears. It provides the mechanical toughness required for consistent trail performance.

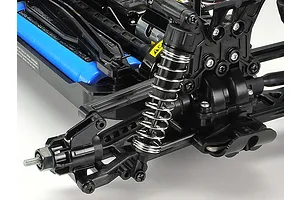

Symmetrical Rear Suspension Parts

Symmetrical Rear Suspension Parts

The rear suspension uses identical arm and upright parts to simplify assembly and maintenance. This design ensures that repairs are easy to manage and keeps the parts list minimal for the user. It is a dependable setup that maintains consistent traction on varied surfaces.

Factory Painted Bodyshell

Factory Painted Bodyshell

The body shell comes factory painted in a sleek gunmetal colouring so you can focus on the build and applying your choice of decals to create a fully custom look. Follow the detailed instructions or carve your own path; the choice is yours.

Specifications

Length370mm
Width250mm
Height160mm
Wheelbase266mm
Drivetrain4WD

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelIntermediate, Beginner, Experienced
Power SourceElectric
Chassis TypeBuggy
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery IncludedIncluded battery type or if sold separately.Not Included
Battery ConnectorTamiya
Front Shock Oil400cSt
Rear Shock Oil400cSt
Pinion Gear17T 0.6Mod
Spur Gear70T 0.6Mod
Wheel Hex Size12mm
