Tamiya TRF421X RC Car Electric 4WD 1/10 Scale Kit
Tamiya TRF421X RC Car Electric 4WD 1/10 Scale Kit

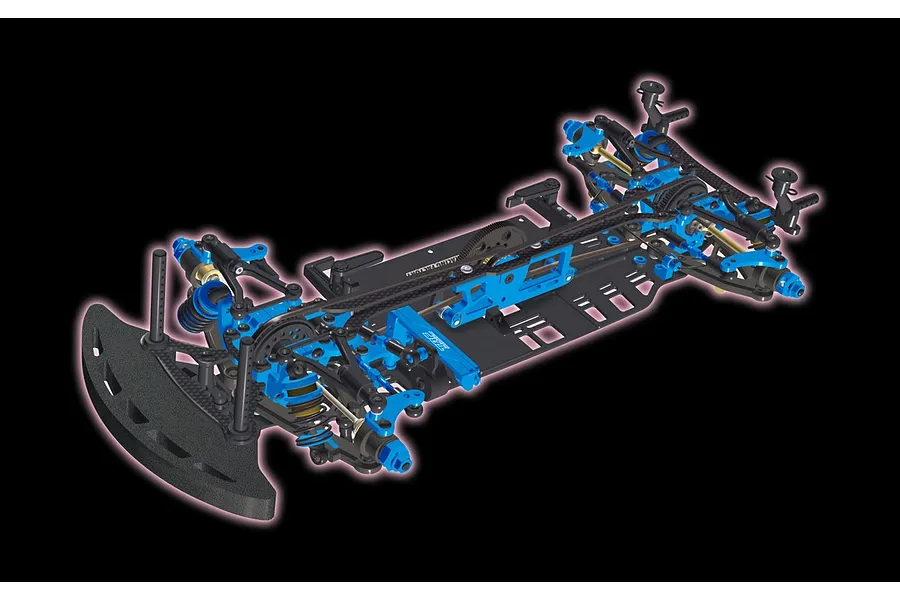

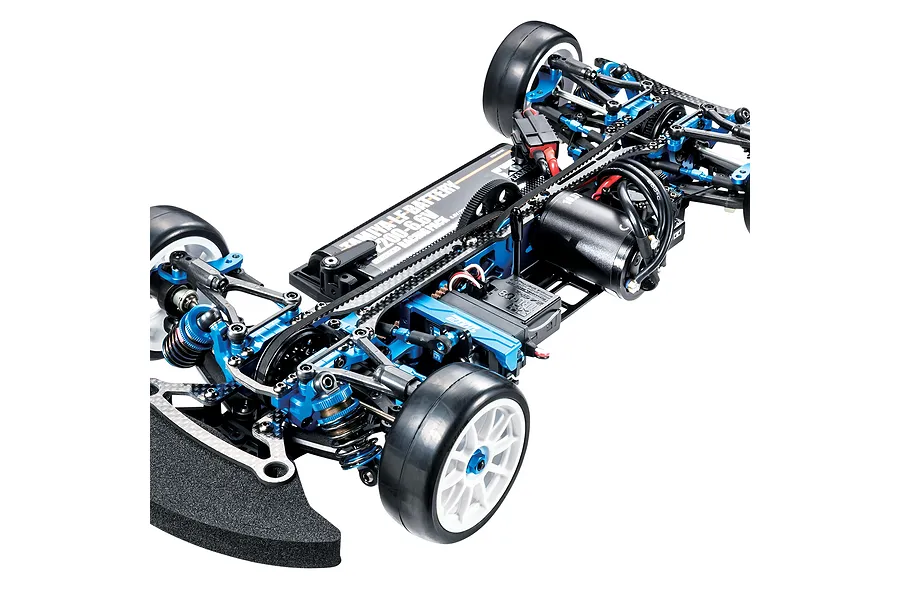

The Tamiya TRF421X RC On-Road Chassis Features A 2mm Aluminium Deck And Carbon Upper For Elite 1/10 Scale On Road Racing
Rigid Aluminium Lower Deck For Optimal Balance
Carbon-Reinforced Nylon Arms For Handling Performance
Strong Steel Drive Cups For Maximum Durability
Narrow Arm Mounts Offer Improved Cornering Response
Ideal For Experienced Racing Kit Builders
The Tamiya TRF421X RC On-Road Chassis represents the peak of touring car engineering, designed specifically for those who demand the highest level of performance on the track. This 2-belt 4WD racing powerhouse builds on extensive race data to provide a platform that handles high-traction surfaces with incredible precision. With a revised layout that lowers the motor position and optimises weight distribution, every lap feels more composed and predictable even as speeds increase.
Finding the perfect setup is a breeze because this kit offers a wide range of tuning options, including adjustable knuckle arms and precision stabilisers. The combination of an aluminium lower deck and carbon upper deck creates the ideal balance of chassis flex and rigidity for competitive racing. This chassis is the real deal for anyone looking to push their driving skills to the absolute limit because it is built to handle the heat of top-tier competition.
Low aluminium motor mount lowers the centre of gravity for stable cornering
Thick 2.0mm aluminium lower deck optimises weight distribution for better balance
Carbon-reinforced nylon arms improve suspension stability during high-grip racing
Integrated bearings in the front double cardans limit friction for efficiency
Hardened steel drivetrain components provide extreme durability under heavy racing loads.
Narrower upper arm mounts refine the pivot width for faster cornering responses
Adjustable knuckle arms allow custom ackerman positions for more direct steering
Multiple precision stabilisers enable fine-tuned handling on any track surface
Dedicated receiver and battery weights create a consistent and stable balance
Genuine Tamiya Product
1x Tamiya TRF421X Chassis RC Car Kit
1x 20g Receiver Weight
1x 30g Battery Weight
1x Set of Precision Stabilisers
1x Instruction Manual
1x 190mm TC or Sports Car Body
1x 540 Sized Brushless Motor
1x Compatible Brushless ESC
1x Low-Profile Steering Servo
1x 2-Channel Radio System
1x Set of TC Tyres and Wheels
1x 7.4V LiPo Battery Pack
1x Compatible LiPo Balance Charger
1x LiPo Safe Bag
-
Length
- 397mm (15.63")
-
Width
- N/A
-
Height
- N/A
-
Wheelbase
- N/A
-
Weight
- N/A
-
Chassis
- 2.0mm Aluminium Lower Plate
-
Suspension
- Independent Carbon Reinforced Nylon Arms With Coil Over Shock Absorbers
-
Drivetrain
- 2-Belt 4WD
-
Motor
- Not Included
-
ESC
- Not Included
-
Scale
- 1/10
-
Max LiPo Power
- 2S (7.4v)
-
Completion
- Kit
-
Skill Level
- Experienced
-
Power Source
- Electric
-
Chassis Type
- Car
-
On/Off Road
- On Road
-
Drivetrain
- 4WD
-
Battery IncludedIncluded battery type or if sold separately.
- Not Included
-
Max LiPo Power
- 2S (7.4v)
-
Battery Connector
- Not Included
-
Front Shock Oil
- 400cSt
-
Rear Shock Oil
- 400cSt
-
Rear Differential Oil
- 10000cSt
-
Pinion Gear
- 30T
-
Spur Gear
- 116T
-
Wheel Hex Size
- 12mm
