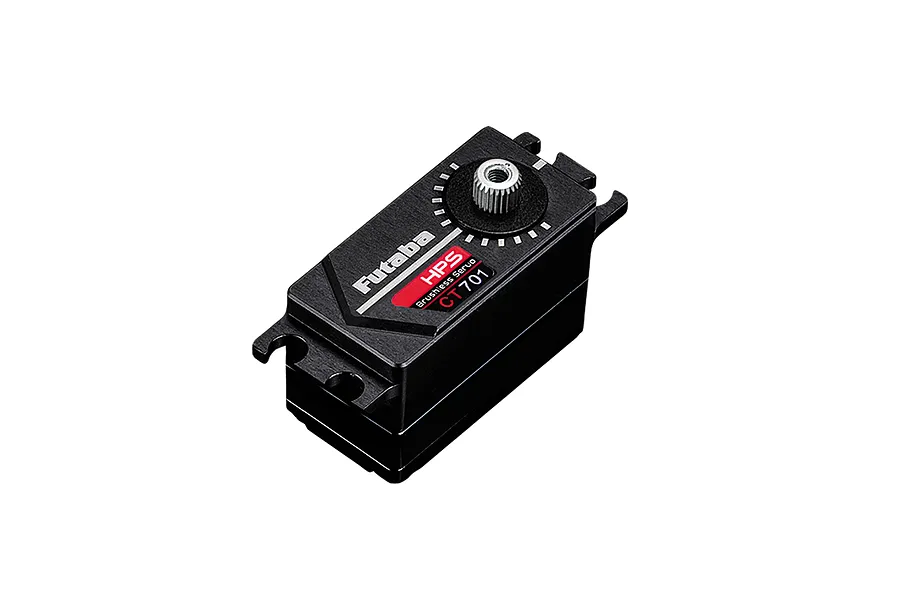

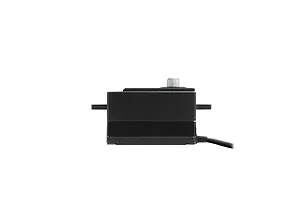

Futaba Standard HPS-CT701 7.4V HV Brushless 30kg Servo

Videos

Futaba Standard HPS-CT701 7.4V HV Brushless 30kg Servo

Brand: Futaba | SKU: HPS-CT701

discontinued

write a review

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

HPS-CT700 S.Bus2 High-Voltage Low-Profile Surface Servo, High Performance Brushless Servo.

Features

Suitable for RC cars 1/10 scale on/off road and drifting.
Programmable/HV Brushless Servo.
Custom New high power Brushless Motor.
Upper/middle/bottom: Aluminium Case.

Supports SR mode with T7PX.
Programmable and compatible with S.Bus and S.Bus2 systems.
Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.

Specifications

Torque(6V): 23 kg-cm (50.07 oz/in)
Torque(7.4V): 30 kg-cm (66.1 oz/in)
Speed: 0.08 sec (6V) ? 0.07 sec (7.4V)

Operating Voltage?4.8 ~ 8.4V DC Volts
Weight: 54 g (.119 oz)
Gear Type?Metal

Servo Specifications

Total Height (A) = 26.2mm
Body Width (B) = 40.5mm
Below Mount (C) = 16.5mm
Above Mount (D) = 14.5mm
Total Length (E) 49.5mm
Total Width (F) = 21mm

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items

Description	QTY
HPS-CT701 Standard HV S-Bus2 Brushless 30kg 7.4V Servo	1
Accessory Pack	1

Note

Only for cars smaller than 1/5 scale.

Specifications

Servo

Servo Spline Count: 25Tooth
Total Length: 49.5mm
Total Width: 21mm
Bottom to Under Mount: 16.5mm
Top to Under Mount: 14.5mm
Total Height: 31mm
Body Length: 40.5mm
Case Material: Aluminium
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.08
Signal Type: Digital
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 30
Gear Material: Metal
Drive Motor Type: Brushless
Size Conventionally sized servo names: Standard
