Futaba SBus2 HV Brushless Servo
Futaba SBus2 HV Brushless Servo
Brand:
Futaba
|
SKU: HPS-CB701
$341.33
or 4 fortnightly payments of $85.33 with
Futaba HPS-CB701 S.Bus2 HV brushless servo — programmable, full aluminium case, SR/UR mode support, suits 1/10 and 1/8 scale RC cars.
Pay later with
Want more than 1?
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

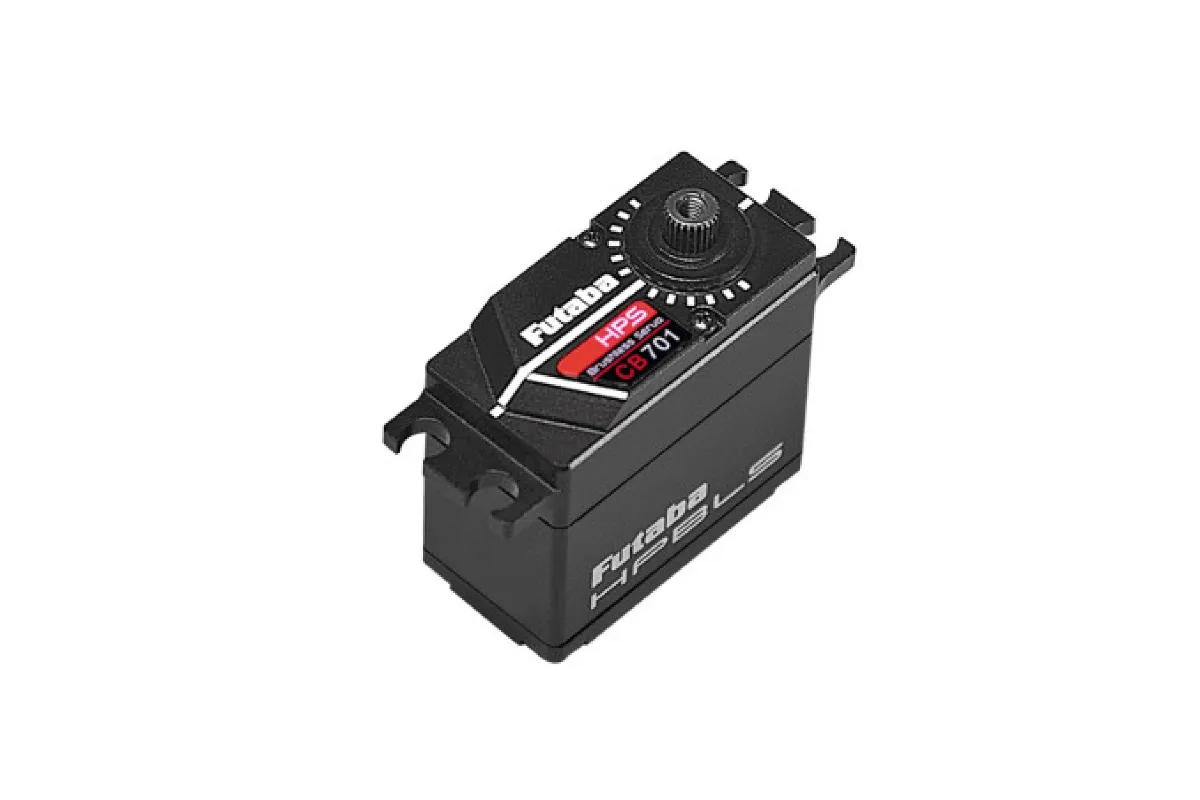

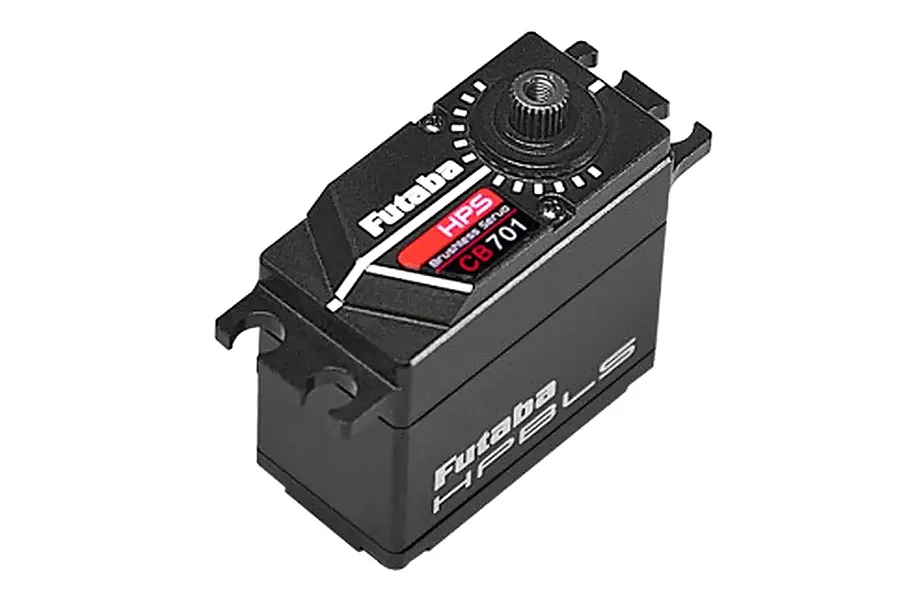

The Futaba HPS-CB701 is a programmable, high-voltage brushless servo suitable for RC cars in 1/10 scale on-road and off-road, and 1/8 scale on-road and off-road applications.
Features
- Programmable HV Brushless Servo
- Custom high power brushless motor
- Supports SR mode with T4PM/P, T7PX/R, T10PX
- Supports UR mode with T10PX
- Programmable and compatible with S.Bus and S.Bus2 systems
- Full aluminium case (upper/middle/bottom)
Specifications
- Total Height (A): 44.0mm
- Body Width (B): 40.6mm
- Below Mount (C): 28.5mm
- Above Mount (D): 15.0mm
- Total Length (E): 54.5mm
- Total Width (F): 19.0mm
Note
Can be connected to a PC using the CIU-2/-3 USB adapter (sold separately).
Specifications
Servo
-
Height (A)
- 44mm
-
Body Length (B)
- 40.5mm
-
Bottom to Under Mount (C)
- 28.5mm
-
Top to Under Mount (D)
- 15mm
-
Length (E)
- 54.5mm
-
Width (F)
- 19mm
-
SizeConventionally sized servo names
- Standard
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 42
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.09
-
7.4V Torque kg/cm
- 49
-
7.4V Sec/60 Degrees
- 0.075
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
