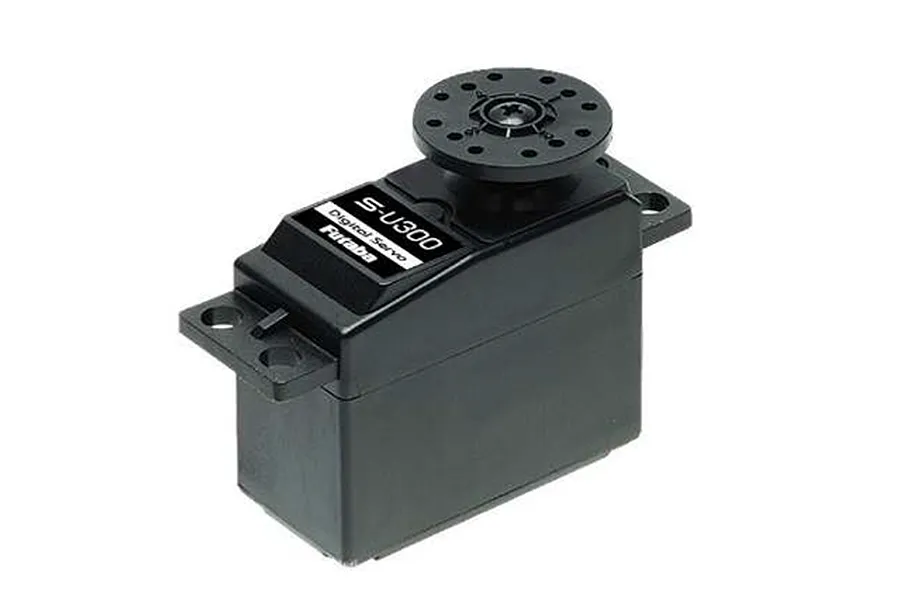

Futaba Standard S-U300 S-Bus2 4.5kg 6V Servo
Videos
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Standard Digital and S.Bus2 Capable Airplane Servo with Accessory Pack.
Features
- Compatible with a wide range of genres such as airplanes, helicopters, and cars.
- Resin Gearing.
- S.Bus servo.
- Programmable.
Specifications
- Torque(4.8V): 3.5 kg-cm (3.04 oz/in)
- Torque(6V): 4.5 kg-cm (3.91 oz/in)
- Speed: 0.23 sec (4.8V) ? 0.19 sec (6V)
- Operating Voltage?6.0 ~ 8.4V DC Volts
- Weight: 36 g (1.52 oz)
- Gear Type?Plastic
Servo Dimensions
- Total Height (A) = 36mm
- Body Width (B) = 40.4mm
- Below Mount (C) = 26.6mm
- Above Mount (D) = 9.5mm
- Total Length (E) 50.5mm
- Total Width (F) = 19.8mm
How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Included items
| Description | QTY |
|---|---|
| S-U300 S-Bus2 Standard 4.5kg 6V Servo | |
| Accessory Pack | 1 |
Specifications
Servo
-
Servo Spline Count
- 25Tooth
-
Total Length
- 50.5mm
-
Total Width
- 19.8mm
-
Bottom to Under Mount
- 26.6mm
-
Top to Under Mount
- 9.5mm
-
Total Height
- 36mm
-
Body Length
- 40.4mm
-
Case Material
- Plastic
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.19
-
Signal Type
- Digital
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 4.5
-
Gear Material
- Metal
-
Drive Motor Type
- 3-Pole
-
SizeConventionally sized servo names
- Standard
