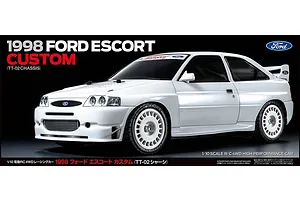

Tamiya TT-02 Ford Escort Custom 1998 RC On Road Car Electric 4WD 1/10 Scale Kit

Tamiya TT-02 Ford Escort Custom 1998 RC On Road Car Electric 4WD 1/10 Scale Kit image 129125

Tamiya TT-02 Ford Escort Custom 1998 RC On Road Car Electric 4WD 1/10 Scale Kit

Brand: Tamiya | SKU: 58691

sold out

5.0

1 reviews

$217.72

Add to Wishlist

Shop replacement & upgrade parts for this model

Shop Parts

WRC On The Streets

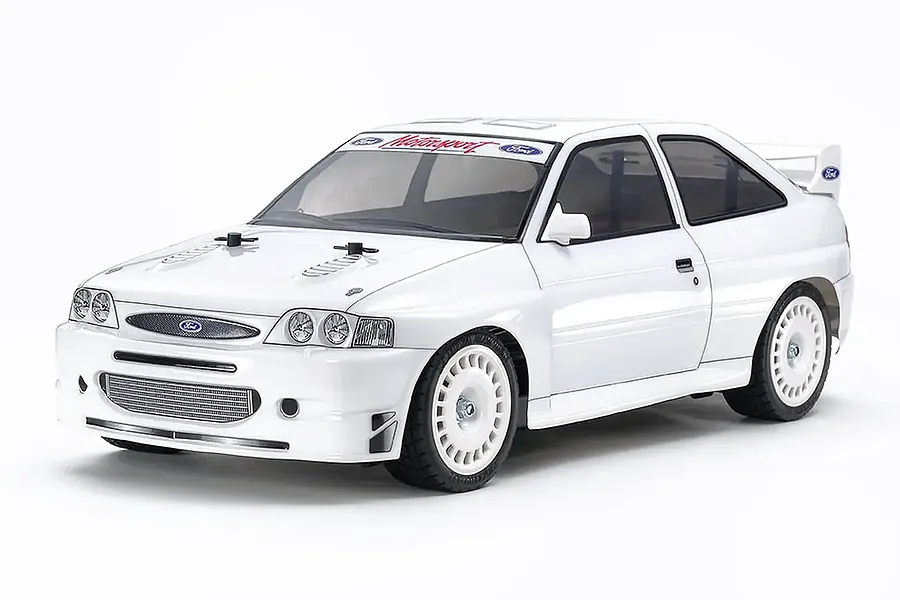

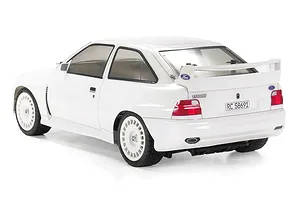

This is a special custom (street spec) version of the 1998 Ford Escort. The body depicts the Ford Escort as a customized street version of the WRC car and is based upon the TT-02 chassis. The actual car was powered by an inline-4 2-litre engine offering 300PS and 50Kgm of torque.

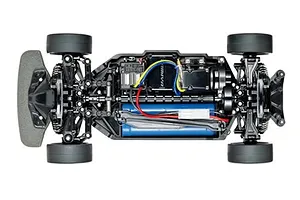

TT-02 Chassis: Adaptable, Balanced Shaft-Driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Features a polycarbonate body, which is unpainted for export. Stickers are also included.

Separate parts are included for side mirrors and rear wing. Stickers and masking stickers are also included.

The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub.

Features

1/10 scale R/C model assembly kit
Features a 1.0mm thick polycarbonate body
Dish-type wheels are moulded in white ABS plastic, and paired with treaded tyres
Stickers and window painting masking stickers for use in the painting process included
The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub
4-wheel independent double-wishbone suspension has identical arm and upright parts for ease of maintenance
A wide range of Hop-Up Option parts is available to customize your chassis
Includes 540-brushed type motor
Includes ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over

Specifications

Type: 1/10 Scale R/C Model Assembly Kit
Terrain: On-Road
Dimensions

Length: 425mm (16.7")
Width: 189mm (7.44")
Height: 145mm (5.7")
Wheelbase: 257mm (10.1")

Motor

Wheel Drive: 4WD
Motor Type: 540-Brushed

Differential

Gear Ratio: Adjustable
Bearings: Plastic Bushing

Steering & Suspension

Friction Dampers: Front & Rear
4-Wheel Independent Double-Wishbone Suspension

Included items

Description	QTY
TT-02 Ford Escort Custom 1998 Electric On Road RC Car Kit	1
Decal Set	1

Required Items

2Ch+ Transmitter & Receiver
Standard Servo
7.2V Battery Pack w/ Tamiya Plug & Compatible Charger
Tools
Paint

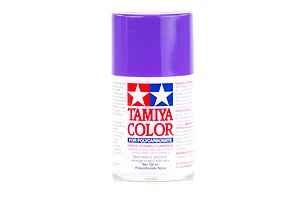

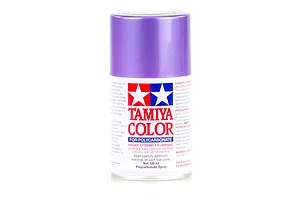

Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. To view the entire range of polycarbonate safe paints, please CLICK HERE

Specifications

Factory Specs

Max LiPo Power
Battery Connector
Front Shock Oil

RC Car

Drivetrain: 4WD
Completion: Kit
On/Off Road: On Road
Chassis Type: Car
Power Source: Electric Brushed
Skill Level: Intermediate
Scale: 1/10
