Name: Tamiya TT-02 Lancia Delta Integrale RC Rally Car Electric 4WD 1/10 Scale Kit (no ESC)
Brand: Tamiya
SKU: TAM-58570
Price: 205.47 AUD
Availability: OutOfStock

Overview

Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

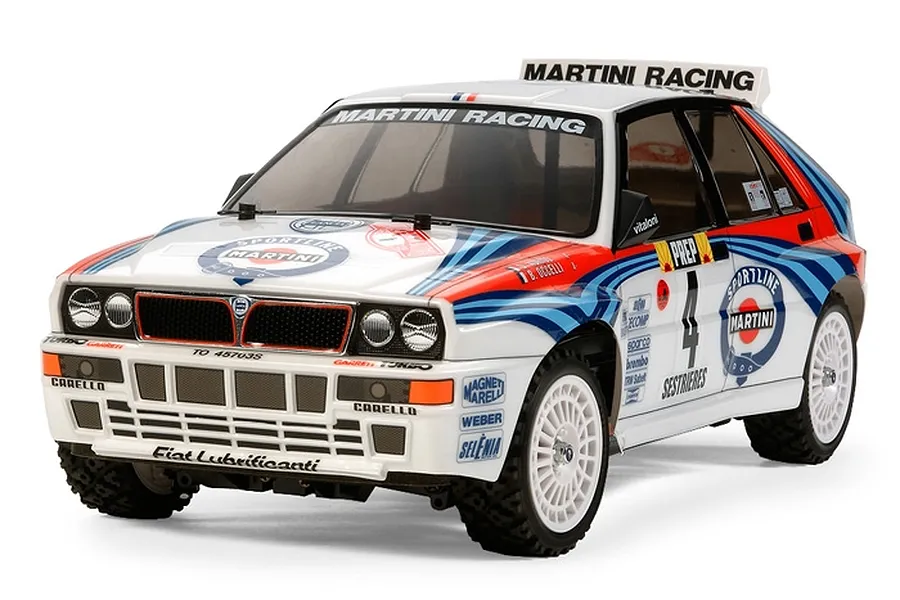

The Lancia Delta Integrale, a legendary rally warrior, won 6 consecutive World Rally Championship titles at the end of the 1980s and start of the 1990s. This 1/10 R/C model assembly kit recreates the 1992 Champion, with a polycarbonate body that captures the angular 4-door hatchback look, complete with front/rear blister fenders, the bonnet bulge, numerous air intakes in the front bumper, separate side mirror and roof spoiler parts, and stickers recreating the Martini Racing stripes. The model runs on the shaft-driven 4WD TT-02 chassis — the successor to the TT-01 — which features a longitudinal layout with the battery on the left and motor on the right for excellent stability. It offers 2 different wheelbases, 2 ground clearance settings, 2 tread set-ups, and 10 possible gear ratios. Rally block tyres allow it to drive on road or flat dirt. R/C hobbyists can expand its potential by adding any of the many Ho-Up-Options available.

Note

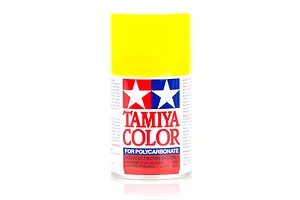

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

Highly detailed 1/10 Lancia Delta Integrale clear polycarbonate body
Front/rear blister fenders, bonnet bulge, and numerous front bumper air intakes
Separate parts for side mirrors and roof spoiler
Stickers recreate Martini Racing stripes and markings
Rally block tyres — drives on road or flat dirt

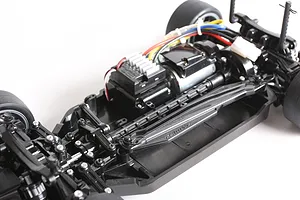

Super tough bathtub-type chassis with balanced longitudinal layout
Identical left and right suspension arms and uprights for ease of assembly
Easy-to-maintain gearboxes
Brake disc-shaped wheel hubs and stylish front bumper supports
Adjustable wheelbase (257mm or 251mm)
Shaft-driven 4WD system
Front/rear 4-bevel resin differentials
3-piece steering tie-rod system
4-wheel double wishbone suspension
Front/rear friction dampers
Powerful brushed 540 motor included
Compatible with a wide range of Ho-Up-Option upgrade parts

In the box

1x Tamiya TT-02 Lancia Delta Integrale RC Car Kit (requires assembly)
1x 540 brushed motor
1x Polycarbonate body shell (requires painting)
1x Sticker sheet (Martini Racing livery)
1x Set of rally block tyres

You'll need

Radio (transmitter and receiver)
Steering servo
Electronic speed controller (ESC)
Battery
Charger
Paint (polycarbonate-safe, e.g. Tamiya PS series)
Tools

Highlights

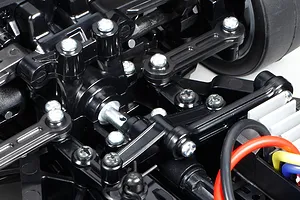

Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

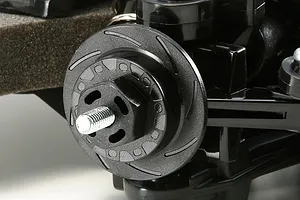

Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

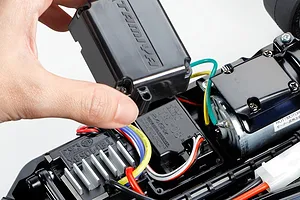

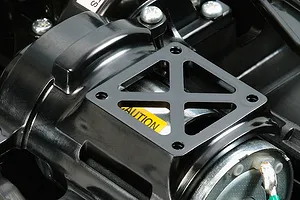

Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

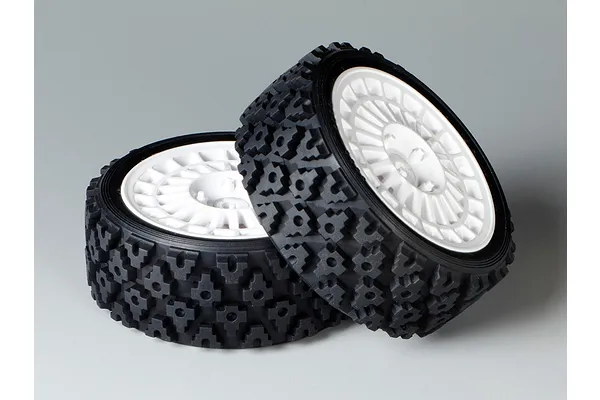

Rally Block Tyres

Tamiya has made sure to stay true to this Lancias rally look. The wheels are a rally style white rim and have been wrapped in block tread tyres that not only look good, but provide ample grip on any surface.

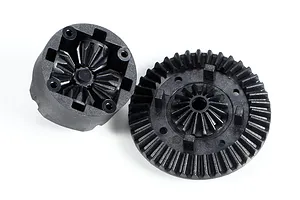

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

Specifications

Scale	1/10
Length	407mm (16.02")
Width	186mm (7.32")
Height	159mm (6.25")
Wheelbase	257mm (higher ground clearance position) or 251mm
Tyre width/diameter (front and rear)	27/69mm
Gear ratio	9.58:1 (9 further ratios from 11.38:1 to 7.28:1 possible with separately-sold pinion)
Drive type	Shaft-driven 4WD
Differentials	Front/rear 4-bevel resin
Suspension	4-wheel double wishbone, front/rear friction dampers
Motor	Type 540 brushed
ESC	Sold separately
Chassis	Bathtub-type frame
