Part no. 58718
Please Note:
This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

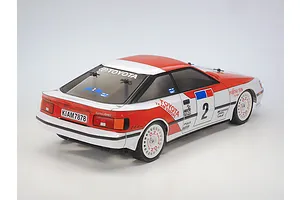

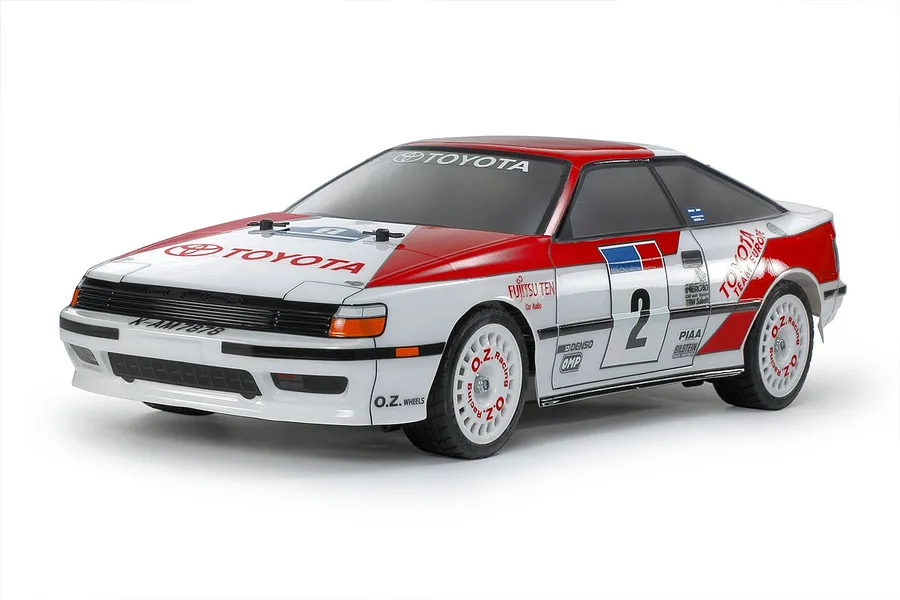

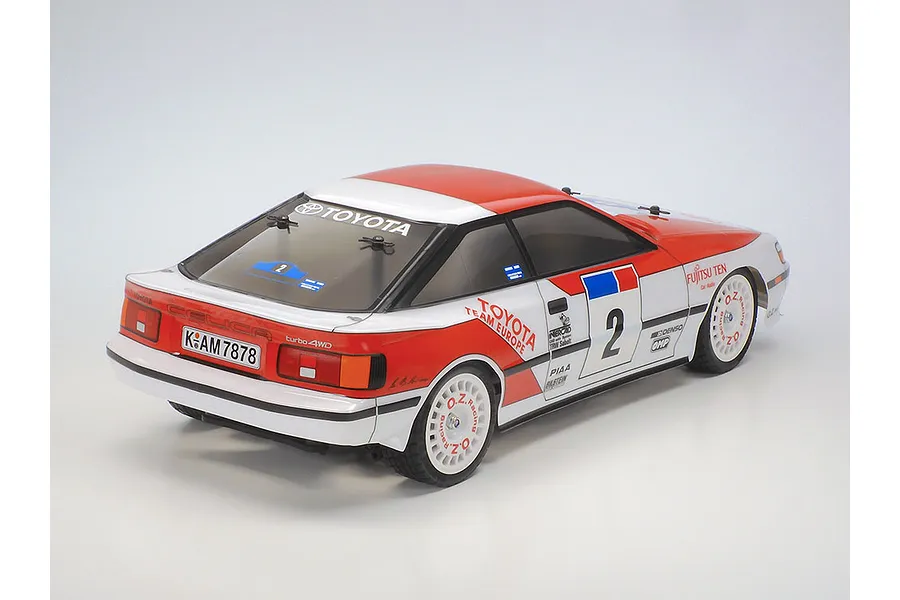

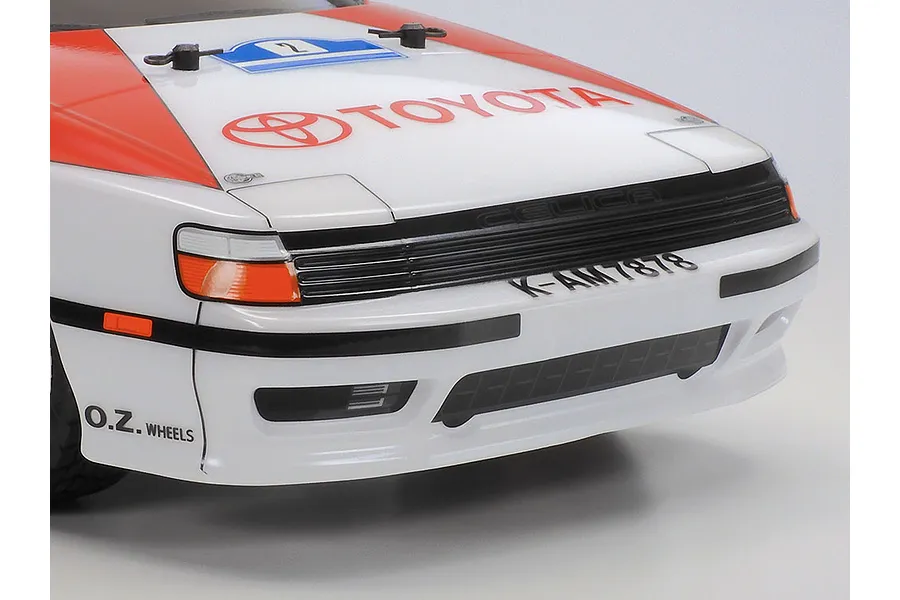

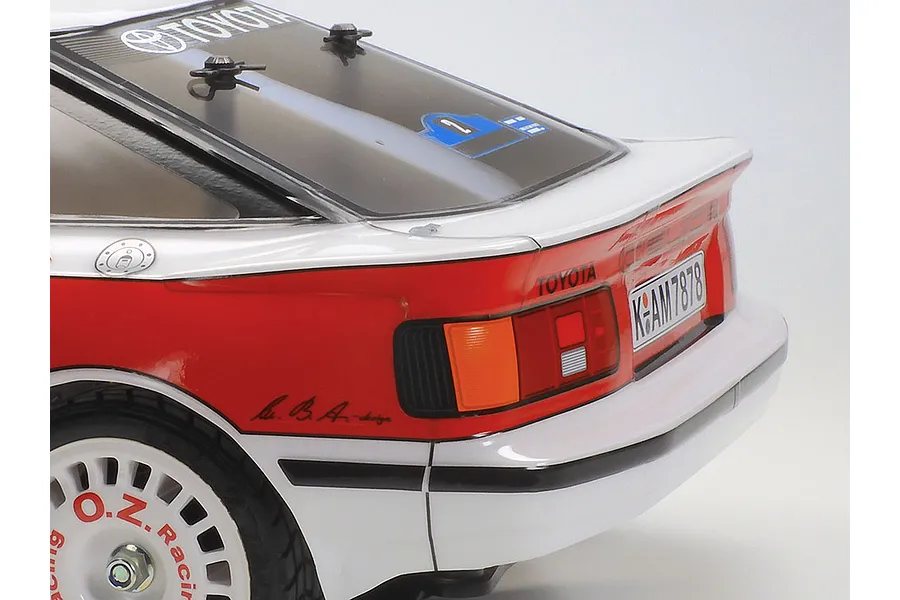

This R/C model assembly kit recreates the Toyota Celica GT-Four (ST165) with a stunning and highly detailed pre-painted polycarbonate body. The kit is based on the beginner friendly and highly customizable TT-02 chassis, which is highly capable on asphalt and flat dirt for fun rally action.
The TT-02 chassis is a shaft-driven 4WD platform that offers great stability with its longitudinal layout of the battery and motor. It is also easy to assemble and maintain, thanks to its symmetrical suspension arms and uprights, and simple gearboxes. You can customise the chassis to suit your preferences, as it has 2 options for wheelbase, ground clearance and tread, as well as 10 possible gear ratios. The chassis also looks cool, with wheel hubs that look like brake discs and sleek front bumper supports.
Note
This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

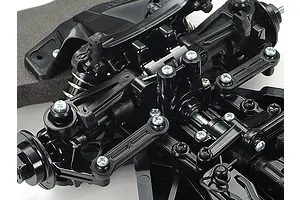

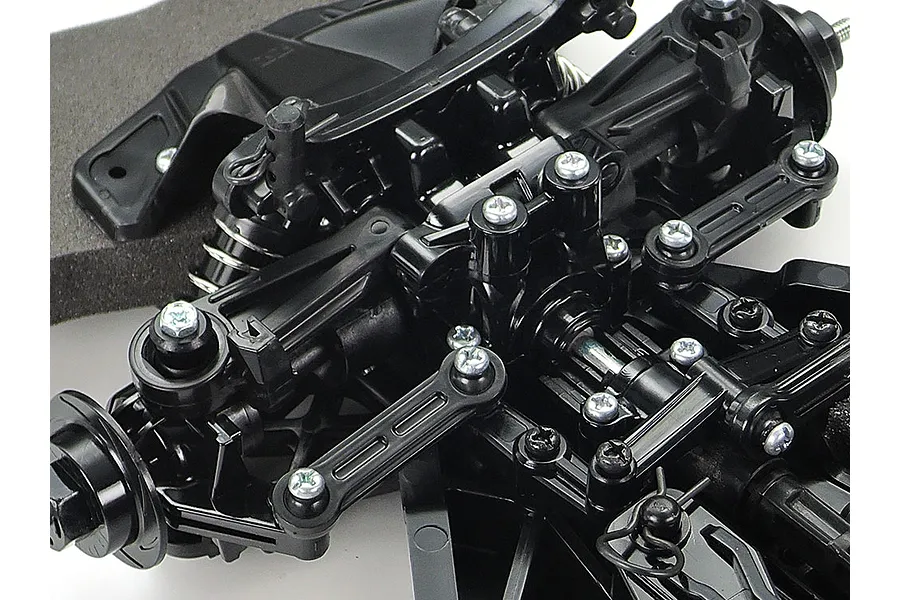

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

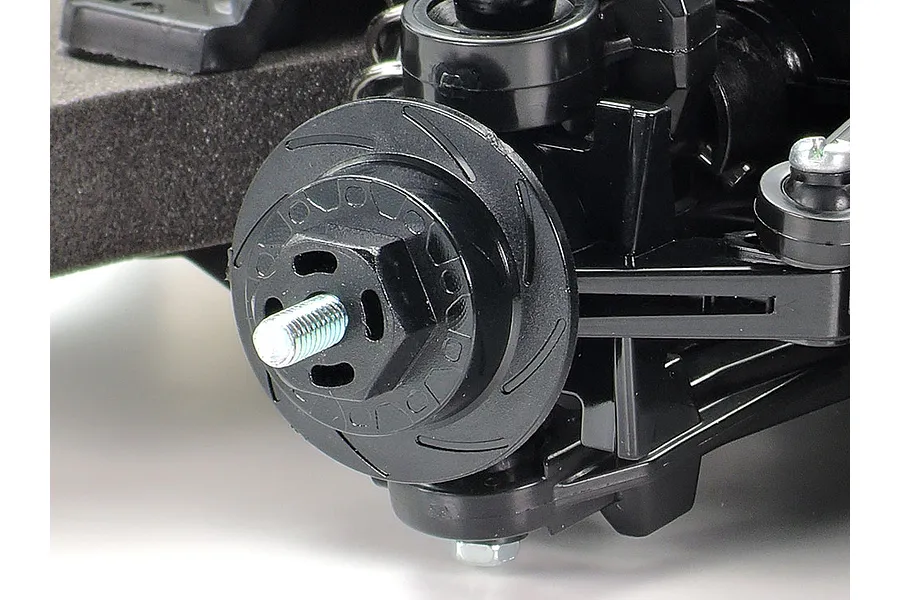

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

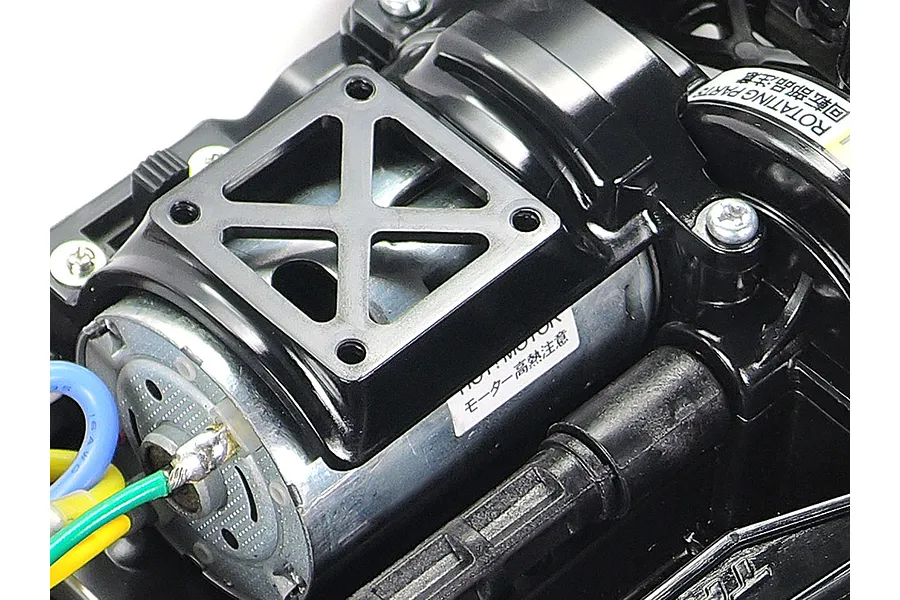

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

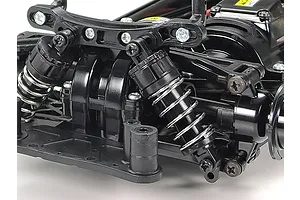

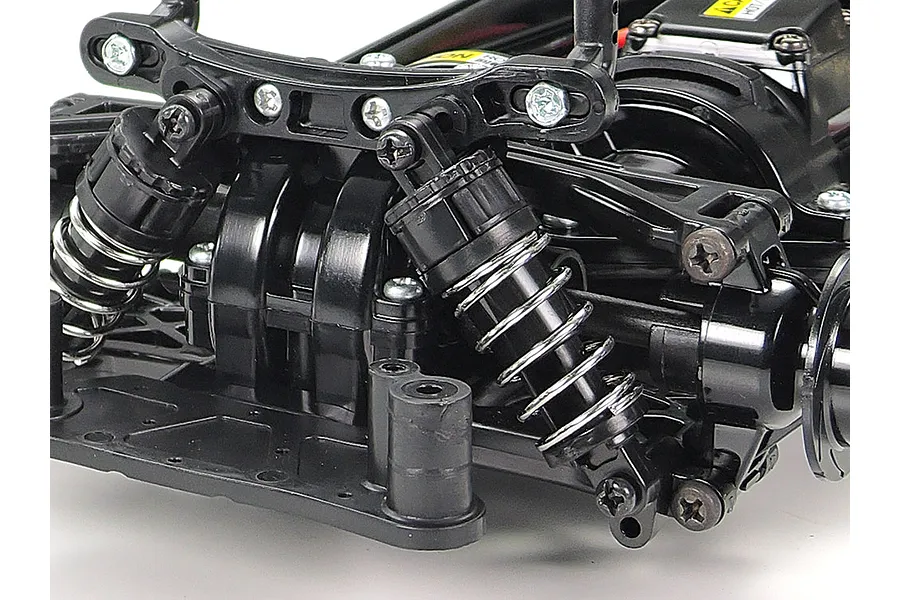

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.
Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.
The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.
| Length | 450mm (17.72 in) |
|---|---|
| Width | 185mm (7.28 in) |
| Height | 130mm (5.12 in) |
| Wheelbase | 257mm (10.12 in) |
| Weight | N/A |
| Tyre Diameter | 67mm (2.64 in) |
| Chassis | TT-02 On Road Chassis |
| Drivetrain | 4WD |
| Gear Ratio | 8.27:1 |
| Suspension | Coil Over Shock Absorbers |
| Motor | Tamiya 540 Sized Brushed Motor |
| ESC | Not Included |
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 3S (11.1v) |
| Completion | Kit |
| Skill Level | Beginner |
| Power Source | Electric |
| Chassis Type | Car |
| On/Off Road | On Road |
| Drivetrain | 4WD |
| Battery Connector | Tamiya |
|---|---|
| Pinion Gear | 22T |
| Spur Gear | 70T |
| Wheel Hex Size | 12mm |
