Part no. 58732
This product has been discontinued.
Contact usNow $439.99was $480.84 Save $40
Please Note:
This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.
The MB-01 is the latest addition to the M-chassis series, which has been popular among users of all levels since its inception in December 1994. The series is known for its cost-effective kits, a wide variety of bodies to choose from, and ease of maintenance and control.

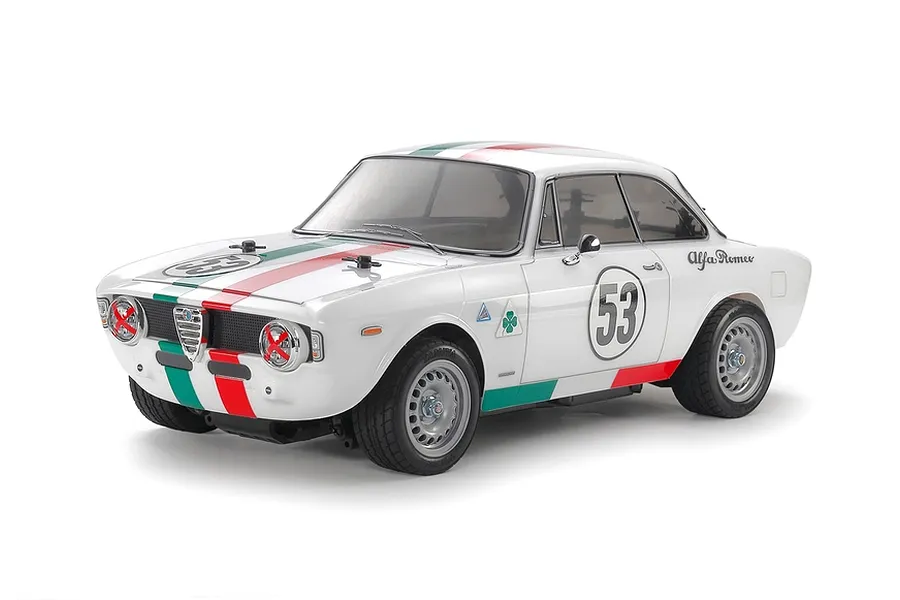

The all-new MB-01 chassis offers a continuation of the popular M-chassis series by providing cost-effective kits with easy maintenance and control for users of all levels. With the ability to choose from three types of wheelbases and a front or rear-wheel drive system, the MB-01 allows for six unique setups. In this iteration, the MB-01 adopts a mid wheelbase configuration with a rear motor and rear-wheel drive (MR) setup, on top of which sits the Alfa Romeo Giulia Sprint GTA.
Born in 1965, it was the result of a dedicated effort to create a lightweight, high-performance racing version of the 2-door coupe Giulia Sprint GT. Limited to just 500 units, this iconic model went on to achieve class champion status multiple times in the European Touring Car Championship during the late 1960s.
Note
This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.
The MB-01 chassis is built with performance and customisability in mind. The MB-01 has a highly adjustable platform that's perfect for a variety of driving styles and can be adjusted to a wide range of wheelbase options, 209mm for short, 224mm for medium, and 239mm for long.

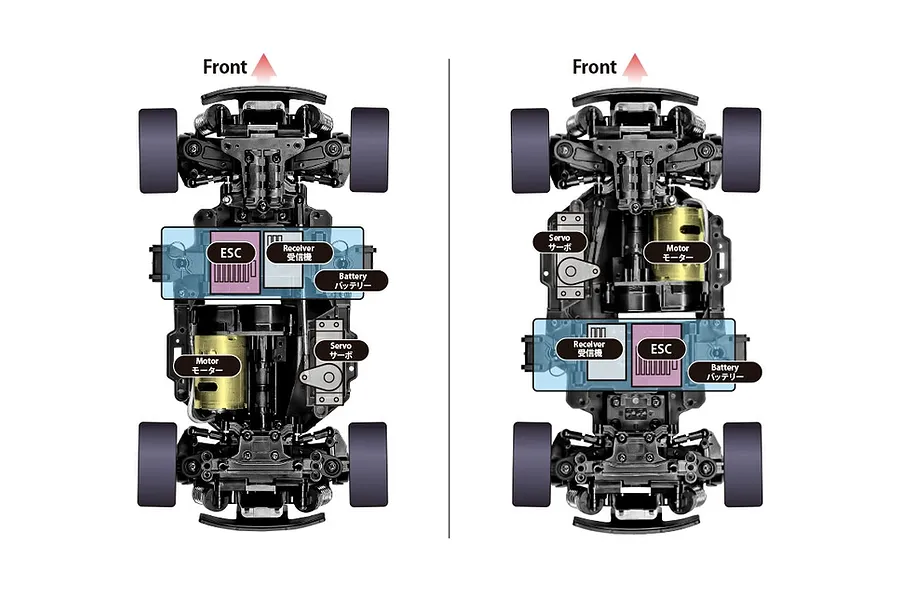

Additionally, you can set this versatile chassis up in a front wheel drive or rear wheel drive setting, making the MB-01 one of the most customisable machines!

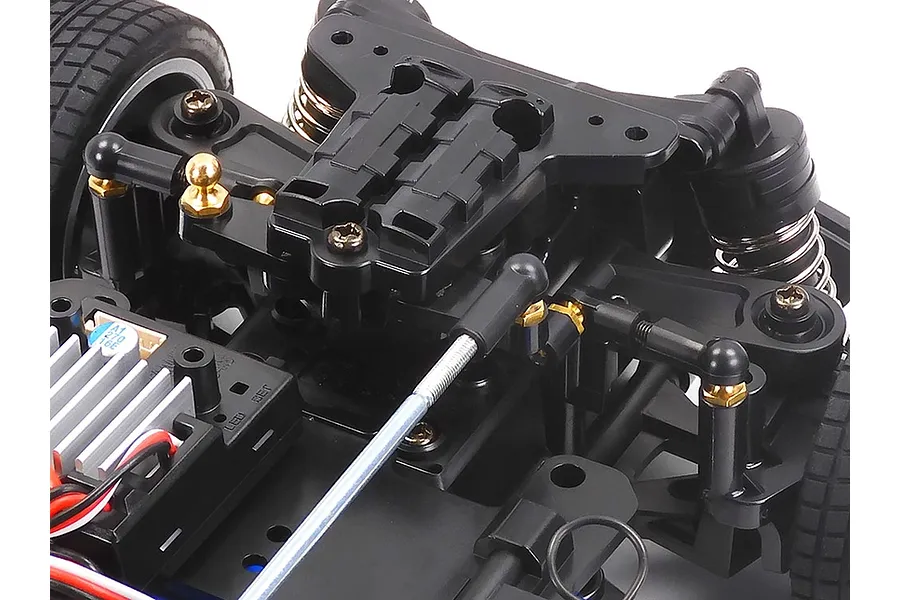

The three-section steering system, operated by a long link rod connected to a rear-mounted servo, provides precise and responsive steering control for confident handling on a wide range of terrains.

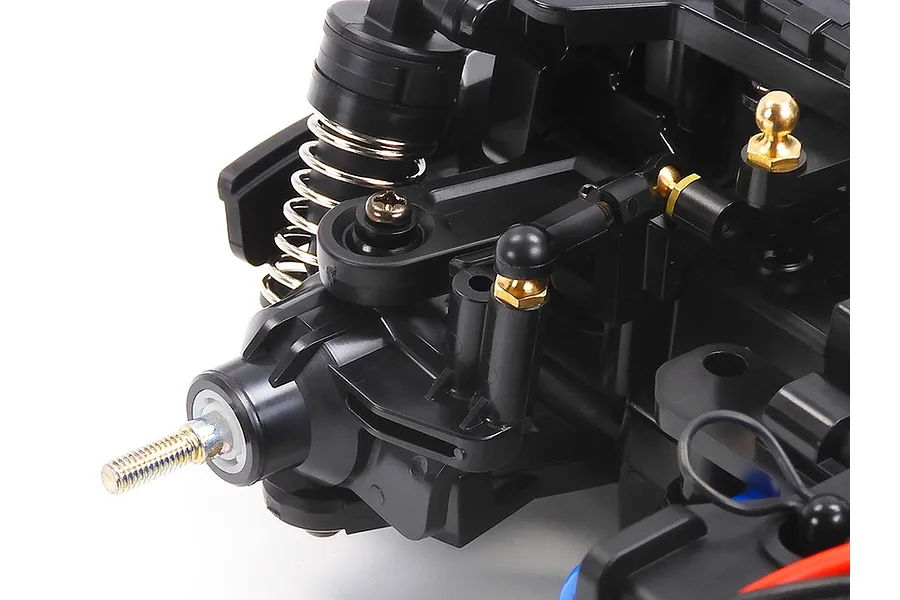

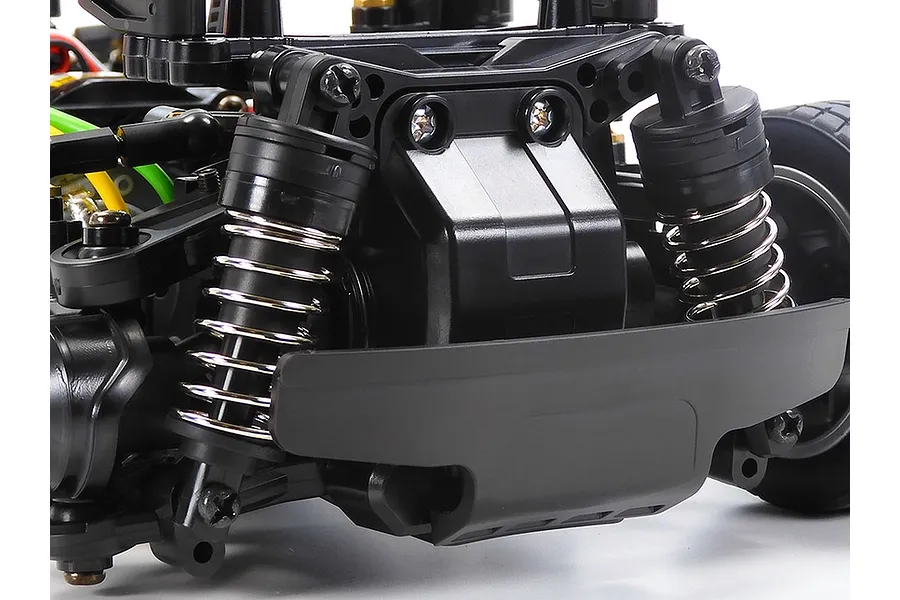

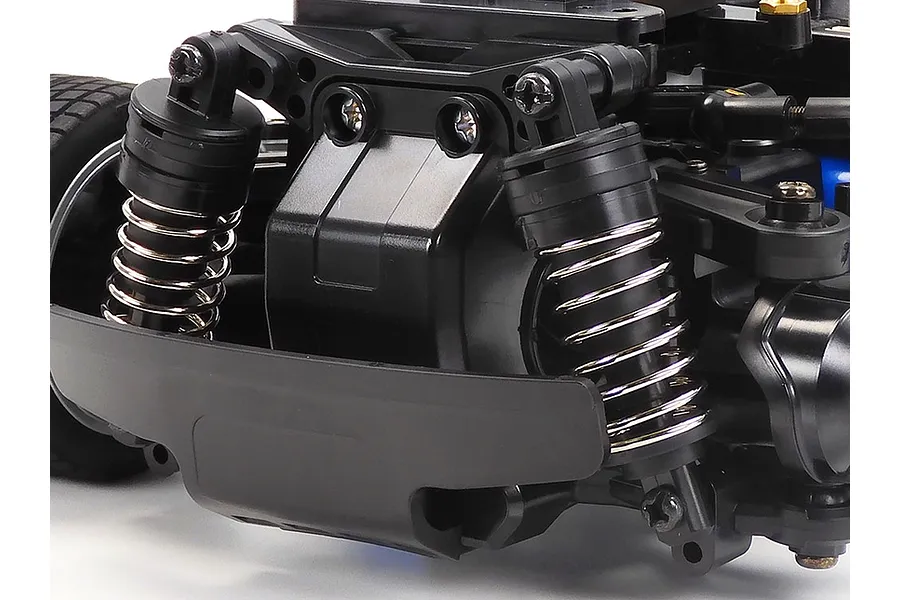

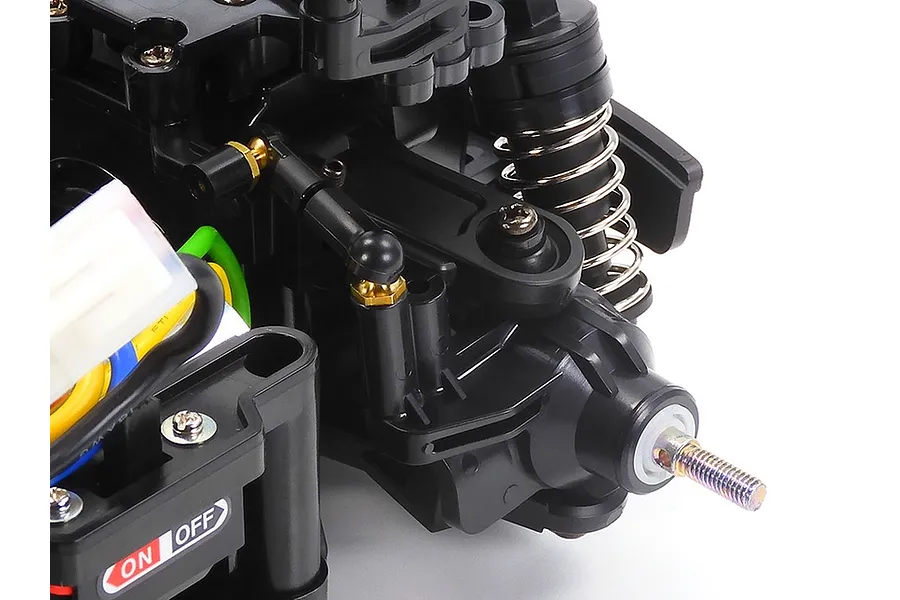

The double wishbone suspension, with its symmetrical suspension arms, provides balanced handling and predictable performance. This design ensures consistent response and control, allowing you to hit the apex everything time.

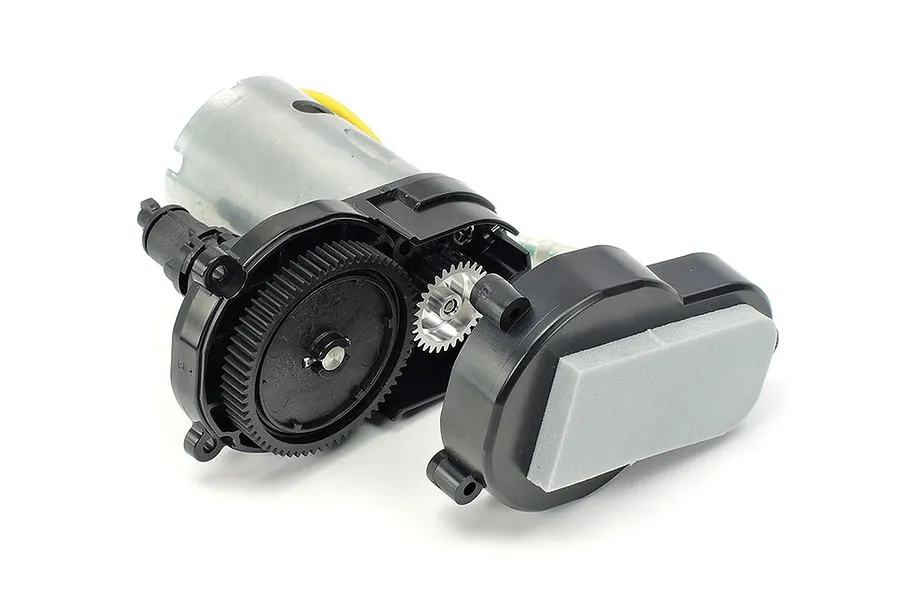

Maintenance is a breeze thanks to the MB-01's unitised motor mount. Secured with just two screws, it allows for quick and easy access to the motor for adjustments or upgrades.
The rear left mounted motor delivers power directly to the rear wheels via a driveshaft, providing a classic rear-wheel-drive driving experience with fast and responsive acceleration and exciting handling.
Additionally, this central motor mounting position creates better weight bias.

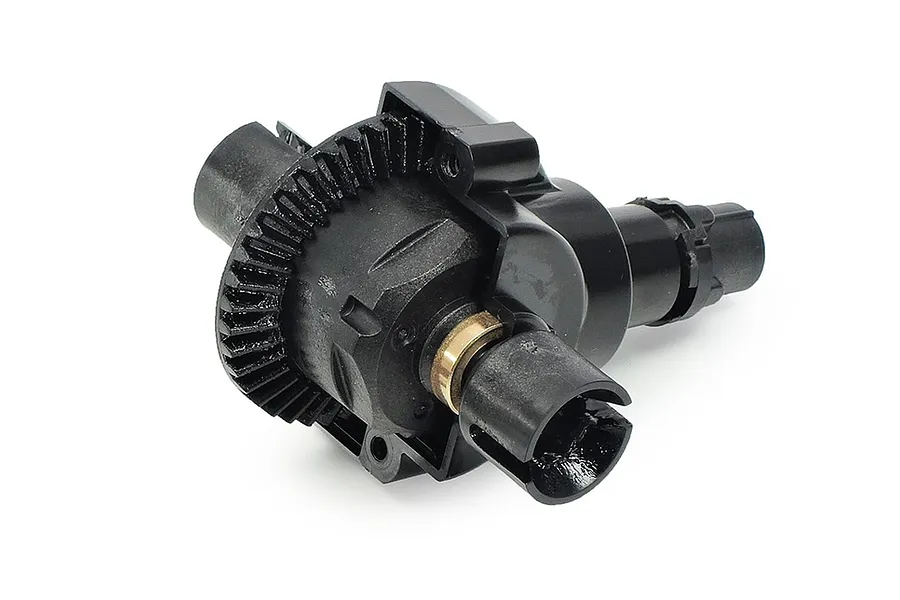

The MB-01 chassis utilises the same durable 4-bevel differential gear as the TT-02 chassis, making access to replacement parts much easier. For those seeking further customisation, the differential can be upgraded with optional TT-02 ball differentials or oil-filled gear differentials.

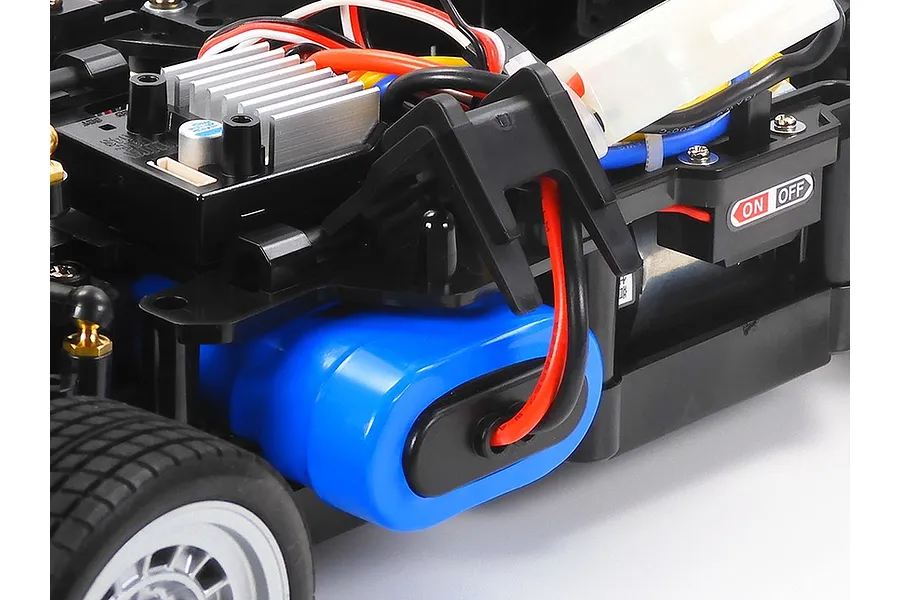

Designed for hassle-free battery replacement, the MB-01 features an innovative flip-up battery holder. This clever design allows you to quickly swap out batteries without any fuss, keeping the action going.
Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.
| Length | 385mm (15.16in) |
|---|---|
| Width | 167mm (6.57in) |
| Height | 132mm (5.20in) |
| Wheelbase | 209mm (S) / 225mm (M) / 239mm (L) — Alfa Romeo uses the Medium wheelbase setup |
| Tyre Diameter F/R | 60mm |
| Chassis | MB-01 |
| Drivetrain | 2WD |
| Suspension | Friction Shocks |
| Gear Ratio | N/A |
| Motor | 540 Brushed Motor |
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 2S (7.4v) |
| Completion | Kit |
| Skill Level | Intermediate |
| Power Source | Electric |
| Chassis Type | Car |
| On/Off Road | On Road |
| Drivetrain | 2WD |
| Max LiPo Power | 3S (11.1v) |
|---|---|
| Battery Connector | Tamiya |
