Next Dispatch:
Part no. 58607A
This product has been discontinued.
Contact usPlease Note:
This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

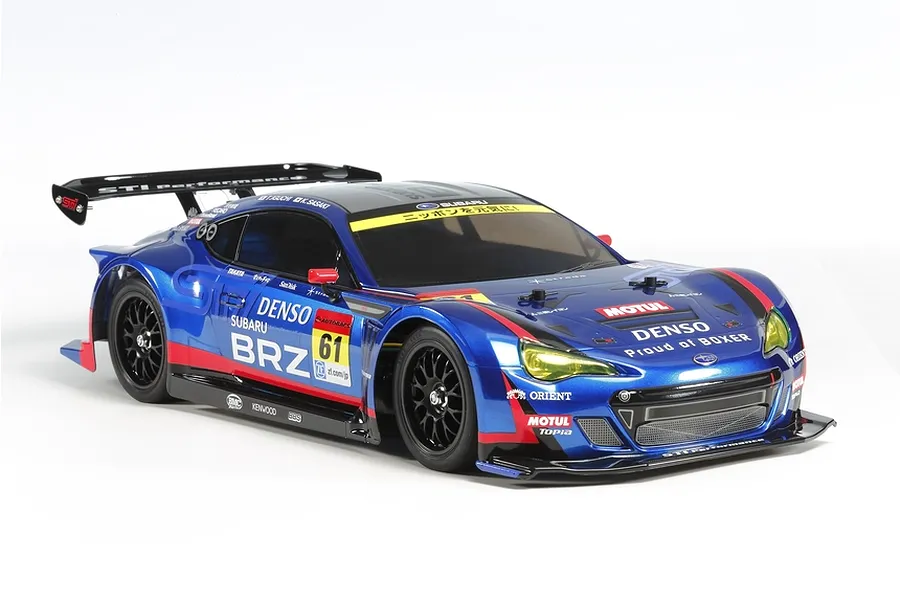

This radio control model recreates the R&D Sport-run Subaru BRZ, a car entered in the GT300 class of the Japanese Super GT series. While the car retains the general atmosphere of the road-going BRZ, it has been significantly modified for the racing series with a racy wide and low form. Subaru's motorsports arm STI tuned the 2-litre 4-cylinder boxer engine to an output of 350ps and 45kgf·m of torque. This model recreates the car as it appeared in Round 2 of the 2014 season at Fuji. Separate parts are included to recreate the side mirrors and rear wing, and markings are provided to recreate BRZ and sponsor logos as well as car numbers.

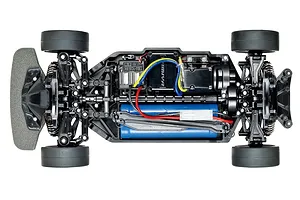

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. It features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes, and offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. Black mesh-type rims are paired with racing slick tyres.
Note
This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

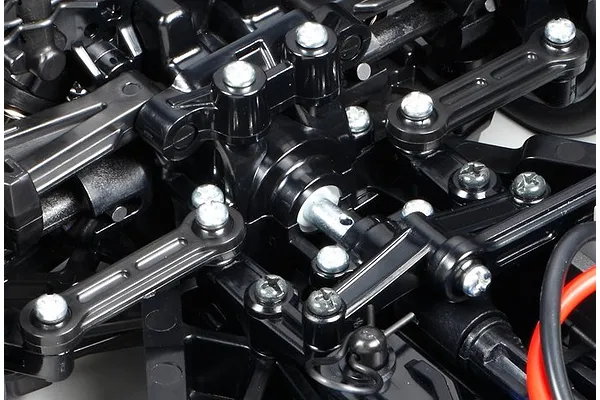

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.
Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

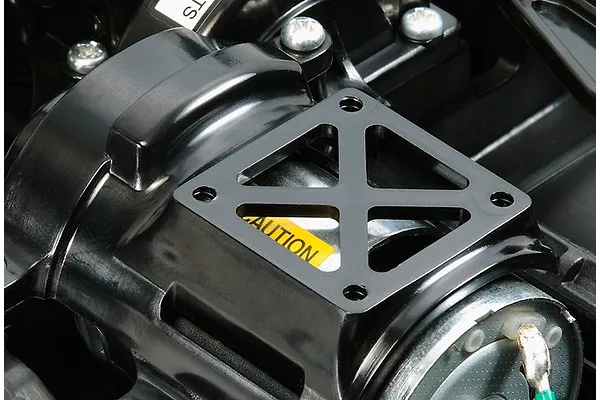

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).
The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

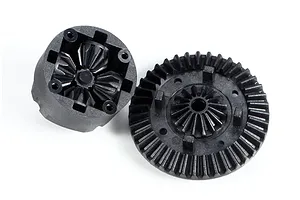

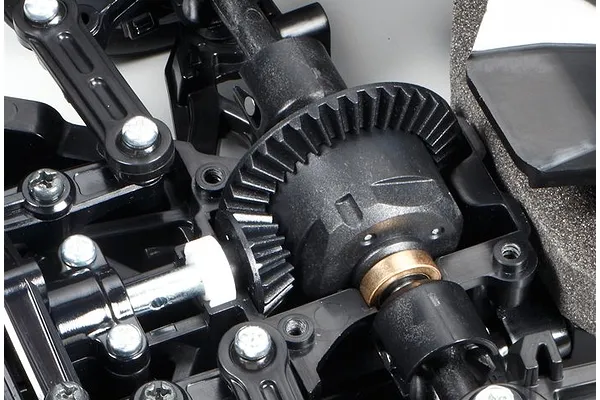

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

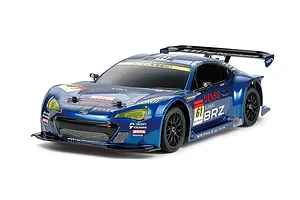

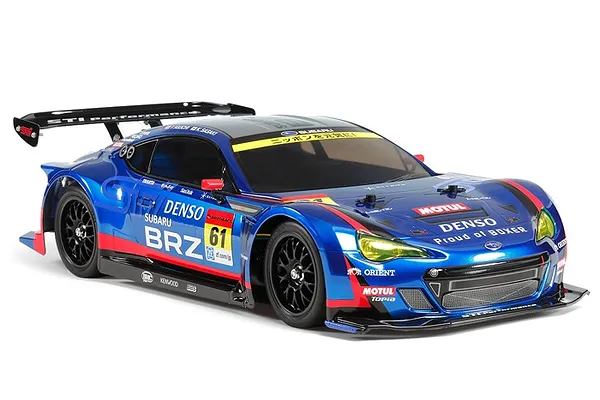

The 2014 R&D Sport Subaru BRZ has been carefully recreated in 1/10 scale with incredible scale detail.
Featuring a GT spec rear wing, Racing style rims and LED ready light buckets, this kit is sure to impress.
This radio control model recreates the R&D Sport-run Subaru BRZ, a car entered in the GT300 class of the Japanese Super GT series.

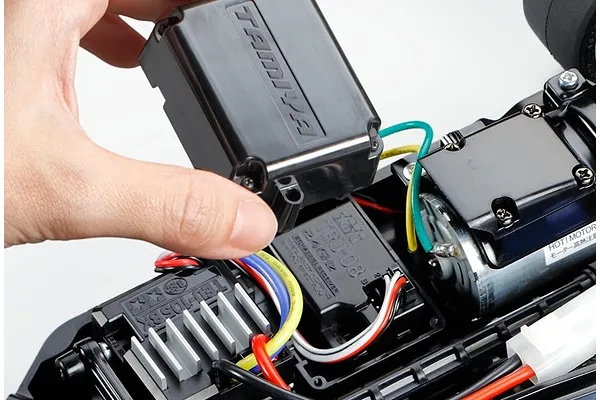

The gearbox cover can be removed by simply loosening screws on the frame.
Separate parts are included in the kit to recreate the side mirrors and rear wing.

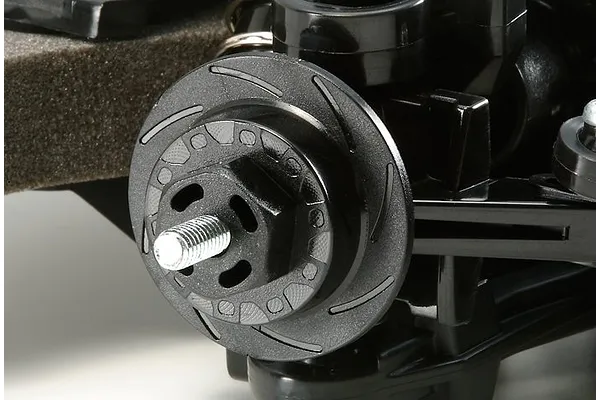

The wheel hubs are designed to look like brake discs.
Black mesh-type rims are paired with racing slick tyres.
| Scale | 1/10 |
|---|---|
| Length | 442mm (17.4") |
| Width | 191mm (7.51") |
| Height | 115mm (4.52") |
| Wheelbase | 257mm (10.1") |
| Body Shell | Clear Polycarbonate |
| Chassis Type | TT-02 |
| Construction Type | Kit |
| Motor | 540-Brushed Type |
| Electronic Speed Control (ESC) | Not Included |
| Wheel Drive | 4WD |
| Gear Ratio | 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) |
| Shocks | Friction Front & Rear |
| Suspension | Fully independent double wishbone |
| Terrain Use | On-Road |
| Scale | 1/10 |
|---|---|
| Completion | Kit |
| Skill Level | Beginner |
| Power Source | Electric |
| Chassis Type | Car |
| On/Off Road | On Road |
| Drivetrain | 4WD |
| Max LiPo Power | 3S (11.1v) |
|---|---|
| Battery Connector | Not Included |
| Pinion Gear | 22T |
| Spur Gear | 70T |
| Wheel Hex Size | 12mm |
