Tamiya TT-02 Subaru BRZ (ZD8) RC Car Electric 4WD 1/10 Scale Kit (no ESC) - Blue

Tamiya TT-02 Subaru BRZ (ZD8) RC Car Electric 4WD 1/10 Scale Kit (no ESC) - Blue

Tamiya TT-02 Subaru BRZ (ZD8) RC Car Electric 4WD 1/10 Scale Kit (no ESC) - Blue

Brand: Tamiya | SKU: 58702A
discontinued
Description
Please Note:

This kit comes without an, ESC, Servo, Battery, Charger, or Transmitter and will come with a painted body that may require cutting and drilling.

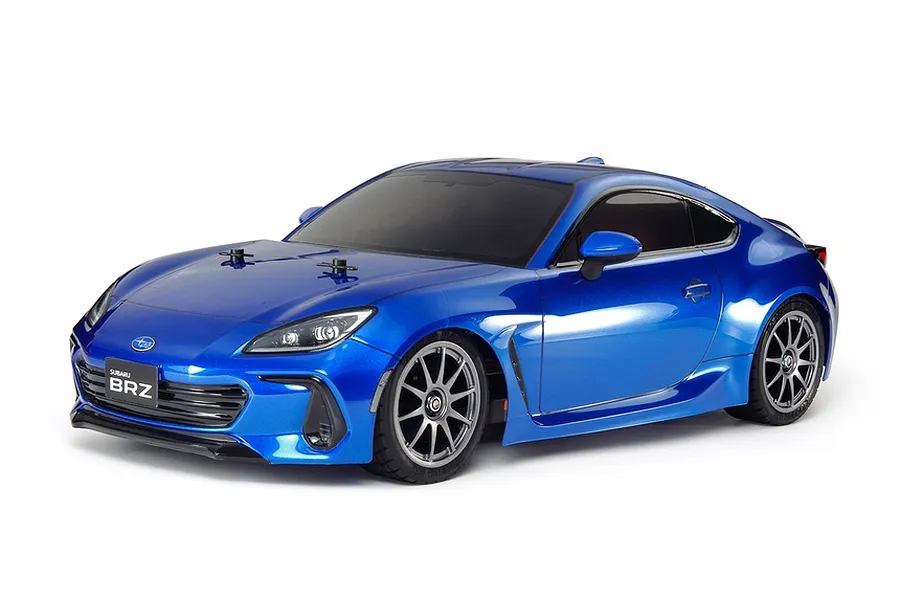

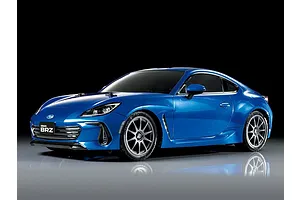

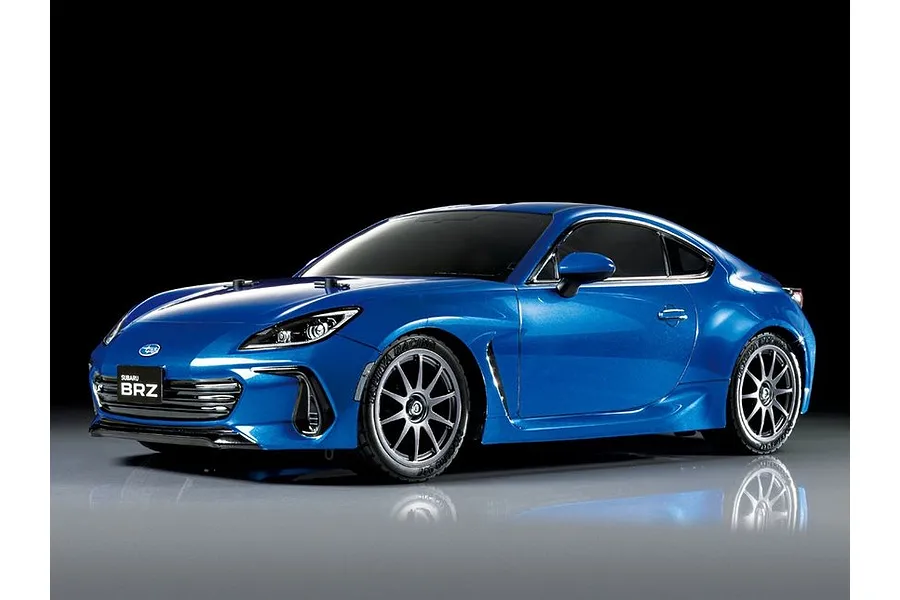

The Tamiya TT-02 Subaru BRZ (ZD8) is a 1/10 scale electric 4WD RC car kit built on the TT-02 chassis. The TT-02 is a shaft-driven 4WD platform with a longitudinal layout of the battery and motor for stability. It features symmetrical suspension arms and uprights, simple gearboxes, and 2 options for wheelbase, ground clearance and tread, as well as 10 possible gear ratios. The body shell is officially licensed by Subaru and faithfully recreates the Subaru BRZ (ZD8).

Smooth Precision Steering Linkages
Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

Efficient Motor Cooling Cover
Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

Stylish Brake Disc Wheel Hubs
Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

Rear Double-Wishbone Suspension
Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Smooth Planetary Gear Diffs
Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

Designed for Easy Maintenance
Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

Features
  • Body shell made from high quality polycarbonate
  • Officially Licensed by Subaru
  • Exquisite detail faithfully recreating the Subaru BRZ (ZD8)
  • Includes a 540 sized brushed motor for reliable performance
  • Comes with trim detail stickers for added customisation
  • Built on the TT-02 chassis, known for its superior adaptability and stability
  • TT-02 chassis is shaft-driven 4WD
  • Rims paired with racing radial tyres
  • Wheel hubs designed to resemble brake discs
  • Easy-to-remove gearbox cover
  • 4-bevel differential gears moulded for performance and cornering
  • Resin ball links for smooth steering motion and easy adjustment
  • 4-wheel double wishbone suspension with friction dampers
  • Dust-proof and dirt-proof receiver case
  • Removable cooling duct on motor cover
Specifications
  • Length: 426mm (16.77")
  • Width: 188mm (7.40")
  • Height: 131mm (5.16")
  • Wheelbase: 257mm (10.12")
  • Weight: Varies
  • Tyre Diameter/Width F/R: 67mm/27mm (2.64"/1.06")
  • Chassis: On Road (TT-02)
  • Drivetrain: Shaft drive 4WD
  • Gear Ratio: 8.27:1
  • Suspension: Coil Over Shock Absorbers (Friction Style)
  • Motor: 540 Sized Brushed Motor
  • ESC: Not Included
Included Items
  • 1x Tamiya 1/10 TT-02 Subaru BRZ (ZD8) Electric On Road RC Car Kit
  • 1x 540 Sized Brushed Motor
Required Items
  • Compatible 7.4V LiPo Battery or 7.2V NiMH Battery
  • Compatible Charger
  • Compatible 1/10 Scale ESC
  • Compatible 1/10 Scale Servo
  • 2+ Channel Transmitter & Receiver
  • AA Batteries For Transmitter
  • PS Series Polycarbonate Safe Paint
Note

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

Specifications
RC Car
Scale
1/10
Completion
Kit
Skill Level
Beginner
Power Source
Electric
Chassis Type
Car
On/Off Road
On Road
Drivetrain
4WD
Factory Specs
Max LiPo Power
3S (11.1v)
Battery Connector
Not Included
Pinion Gear
22T
Spur Gear
70T
Wheel Hex Size
12mm
