Tamiya TT-02 Subaru BRZ R&D Sport 2014 RC On Road Car Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit
  • Brushed

Part no. 58607

DiscontinuedNo reviews yet
1 / 10
1 / 10

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

This radio control model recreates the R&D Sport-run Subaru BRZ, a car entered in the GT300 class of the Japanese Super GT series. While the car retains the general atmosphere of the road-going BRZ, it has been significantly modified for the racing series, with a racy wide and low form. Subaru's motorsports arm STI tuned the 2-litre 4-cylinder boxer, which has an output of 350ps and impressive torque of 45kgf·m. The car enjoyed positive progress in the 2014 season, with a number of promising qualifying performances leading to improved results later in the year. This model recreates the car as it appeared in Round 2 of the season in Fuji. Separate parts are included in the kit to recreate the side mirrors and rear wing, and markings are provided to recreate BRZ and sponsor logos, as well as car numbers.The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black mesh-type rims are paired with racing slick tyres.The Gearbox cover can be removed by simply loosening screws on the frame.Resin ball links in the steering linkage joints make for smooth, comfortable motion.The Wheel hubs are designed to look like brake discs.A case is included to keep the all-important receiver protected from dust and dirt.The Motor cover includes a removable cooling duct (not attached in above image).

Note

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. To view the entire range of polycarbonate safe paints, please CLICK HERE

Features

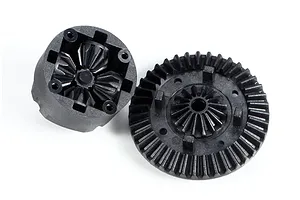

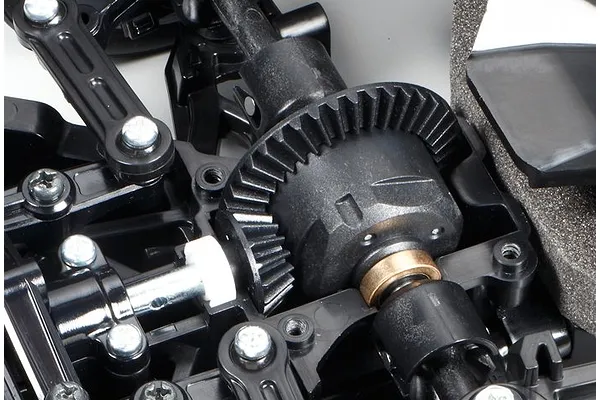

  • Highly Detailed 1/10 BRZ R&D Sport clear polycarbonate body shellSuper Tough Bathtub Type ChassisBalance Longitudinal Chassis LayoutAdjustable WheelbaseShaft-Driven 4WD SystemFront/Rear 4 Bevel Resin Differentials3-Piece Steering Tie-Rod System for Superior Handling4-Wheel Double Wishbone SuspensionFront/Rear Friction DampersPowerful Brushed 540 motor

In the box

  • 1x 1/10 TT-02 Subaru BRZ R&D Sport 2014 Electric On Road RC Car Kit1 set of Decals1x Product Manual

You'll need

  • 7.2V NiMH Battery & Compatible ChargerStandard Sized Servo2Ch Transmitter & ReceiverTamiya PS Paint

Highlights

2014 Super GT Round 2 BRZ

2014 Super GT Round 2 BRZ

This model recreates the R&D Sport-run Subaru BRZ as it appeared in Round 2 of the 2014 Super GT season at Fuji.

Black Mesh Rims And Slick Tyres

Black Mesh Rims And Slick Tyres

Black mesh-type rims are paired with racing slick tyres for authentic GT300-class appearance.

Wide-Body BRZ With Rear Wing

Wide-Body BRZ With Rear Wing

The car has a racy wide and low form replicating the significantly modified BRZ race car with side mirrors and rear wing.

Removable Gearbox Cover And Receiver Case

Removable Gearbox Cover And Receiver Case

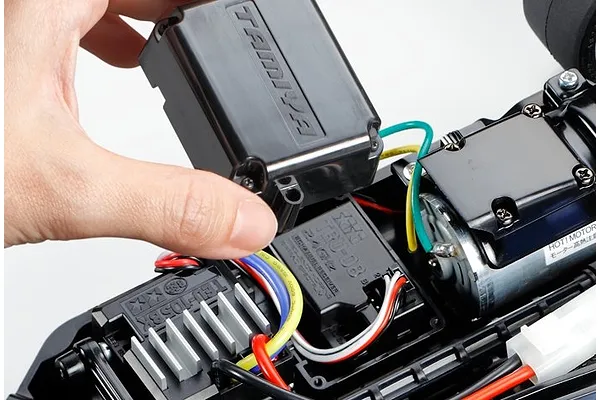

The gearbox cover can be removed by simply loosening screws on the frame, and a case protects the receiver from dust and dirt.

Side Mirrors And Sponsor Markings

Side Mirrors And Sponsor Markings

Separate parts are included to recreate the side mirrors and rear wing, with markings for BRZ and sponsor logos.

Tamiya TT-02 Subaru BRZ R&D Sport product photo

Tamiya TT-02 Subaru BRZ R&D Sport product photo

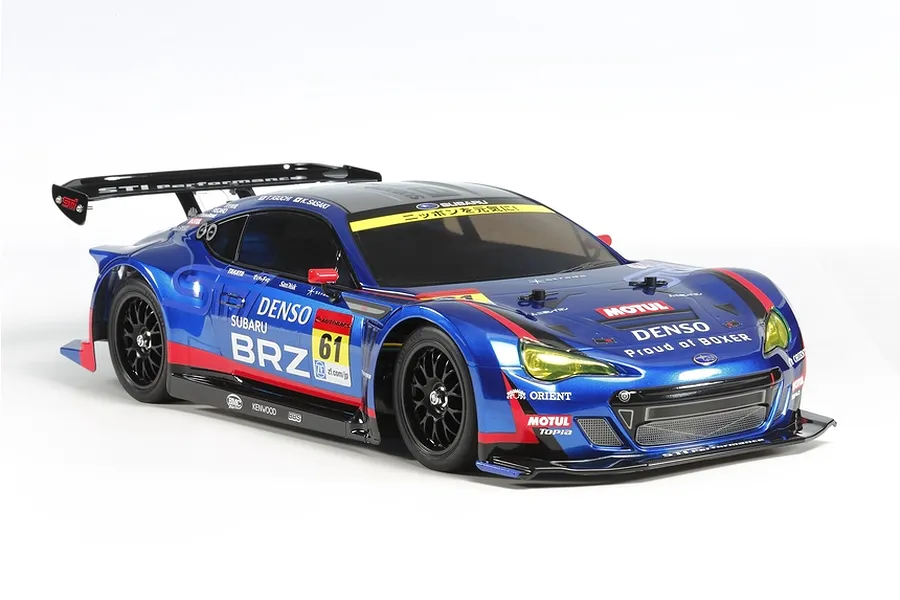

This radio control model recreates the R&D Sport-run Subaru BRZ entered in the GT300 class of the Japanese Super GT series.

Tamiya TT-02 Subaru BRZ R&D Sport product photo (alternate view)

Tamiya TT-02 Subaru BRZ R&D Sport product photo (alternate view)

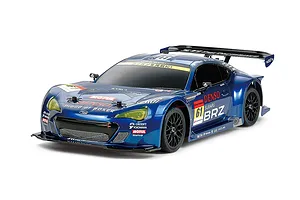

Separate parts are included in the kit to recreate the side mirrors and rear wing, and markings are provided to recreate BRZ and sponsor logos.

Tamiya TT-02 Subaru BRZ R&D Sport — chassis detail

Tamiya TT-02 Subaru BRZ R&D Sport — chassis detail

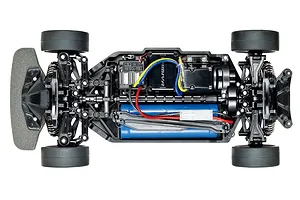

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability.

Tamiya TT-02 Subaru BRZ R&D Sport product photo (detail)

Tamiya TT-02 Subaru BRZ R&D Sport product photo (detail)

Black mesh-type rims are paired with racing slick tyres.

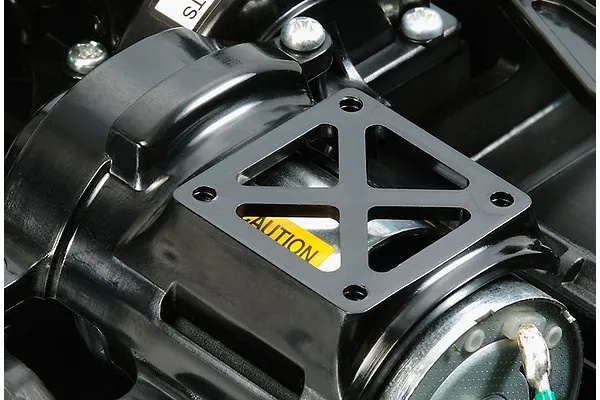

Tamiya TT-02 Subaru BRZ R&D Sport product photo (detail)

Tamiya TT-02 Subaru BRZ R&D Sport product photo (detail)

The motor cover includes a removable cooling duct.

Specifications

Scale1/10Length: 442mm (17.4")Width: 191mm (7.51")Height: 115mm (4.52")Wheelbase: 257mm (10.1")Body Shell: Clear PolycarbonateChassis Type: TT-02Construction Type: KitMotor: 540-Brushed TypeElectronic Speed Control (ESC): IncludedWheel Drive: 4WDGear Ratio: 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)Shocks: Friction Front & RearSuspension: Fully independent double wishboneTerrain Use: On Road

RC Car

Scale1/10
CompletionKit
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeCar
On/Off RoadOn Road
Drivetrain4WD
