Tamiya TT-01E 2004 Subaru Impreza Mexico Limited Edition RC Touring Car Electric 4WD 1/10 Scale Kit (no ESC)

  • 1/10
  • 4WD
  • Kit
  • Brushed

Part no. 47372A

DiscontinuedNo reviews yet
1 / 3
1 / 3

Overview

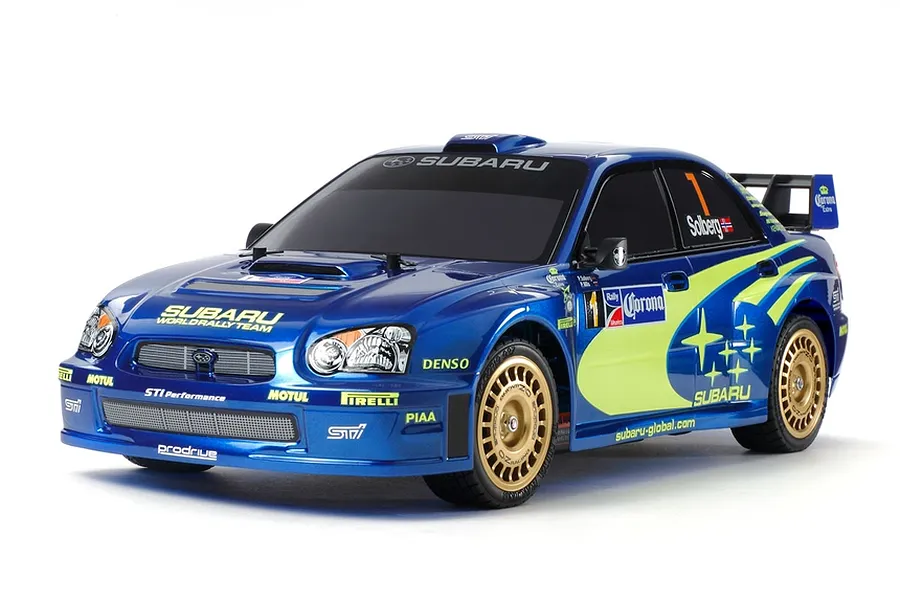

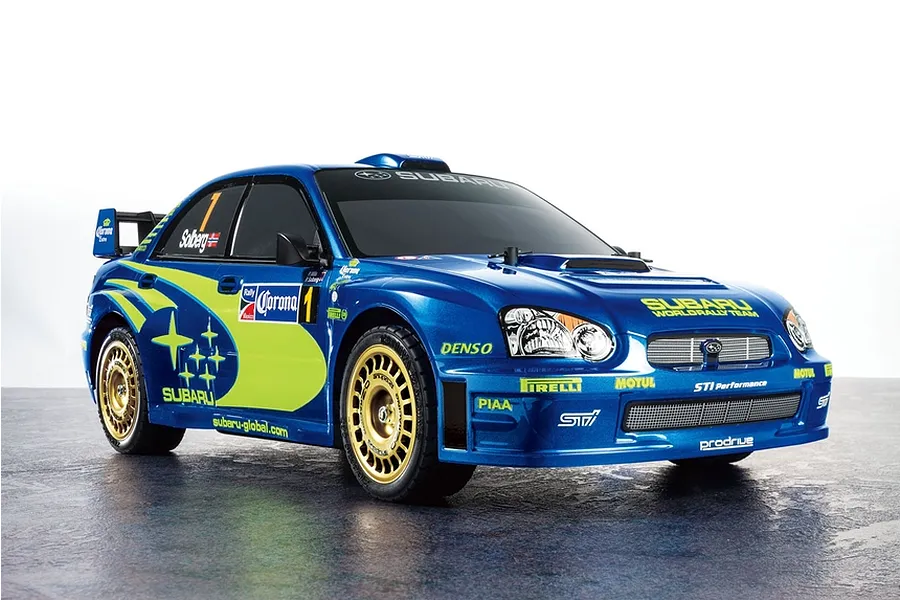

This Limited-Edition Re-release R/C assembly kit recreates the Subaru Impreza as it raced in the 2004 WRC season. The kit includes an accurately reproduced polycarbonate body, rear view mirrors, and sectioned rear wing. It also includes all necessary vinyl sticker markings for the 2004 Rally of Mexico. The body is mated to the high performance, easy to assemble 4WD shaft-driven TT-01 Type E chassis, which will make you feel like a real WRC driver.

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower centre of gravity and optimum balance. Mounted on the bathtub frame are a fiberglass reinforced nylon upper deck and gear covers which improve rigidity, as well as a 3-piece tie rod to provide smooth steering action. The low centre of gravity, great balanced design, 4-wheel double wishbone suspension system, and front and rear differential gears all come together to result in superb driving characteristics.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

  • Highly Detailed 1/10 2004 Subaru Impreza Clear Body
  • Super Tough Bathtub Type Chassis
  • Balanced Longitudinal Chassis Layout
  • Shaft-Driven 4WD System
  • Front/Rear 3 Bevel Differentials
  • 3-Piece Steering Tie-Rod System for Superior Handling
  • 4-Wheel Double Wishbone Suspension
  • Front/Rear Friction Dampers
  • Powerful Brushed 540 Motor

You'll need

  • 7.2V NiMH Battery & Compatible Charger
  • Standard Sized Servo
  • 2Ch Transmitter & Receiver
  • Tamiya PS Paint
  • Hobbywing ESC

Specifications

Length441mm
Wheelbase257mm
Drivetrain4WD

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeCar
On/Off RoadOn Road
Drivetrain4WD

Factory Specs

Wheel Hex Size12mm
