Subaru WRX STI Nürburgring Challenge

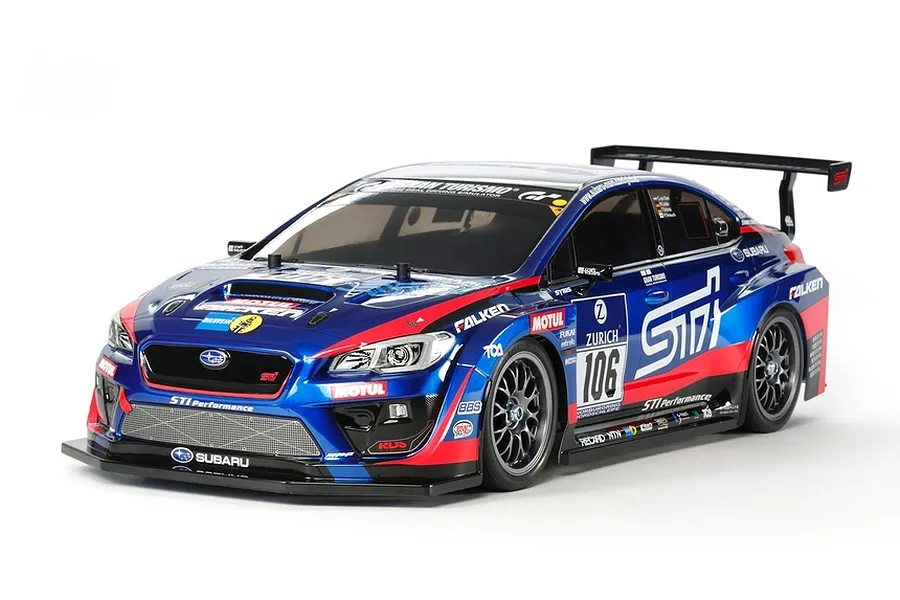

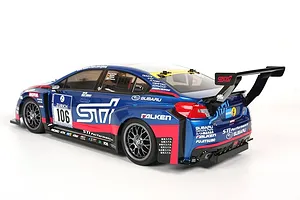

Designed for a 24-hour endurance race on the gruelling Nürburgring, the WRX STI NBR Challenge car took Subaru's high-performance WRX STI sport sedan as a base. It certainly did the business, winning its class in the 2016 running of the race, and this R/C model assembly kit recreates that car. Its complex lines are gracefully depicted by a polycarbonate body, capturing features such as the bonnet air intake and vents, plus the sharp front fenders and diffuser-shaped rear end. Side mirrors and rear wing are depicted using separate parts, while stickers are included to recreate the multitude of sponsor logos.

TT-02 Chassis: Adaptable, Balanced Shaft-Drive 4WD

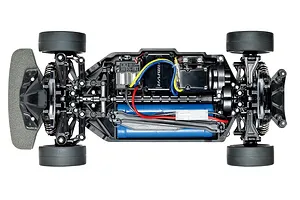

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color mesh wheels are paired with slick tires for a racy finish.

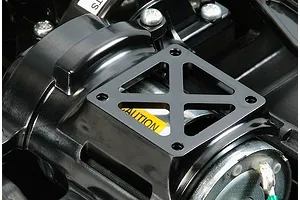

The Gearbox cover can be removed by simply loosening screws on the frame.

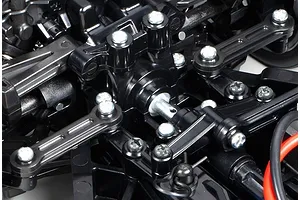

Resin ball links in the steering linkage joints make for smooth, comfortable motion.

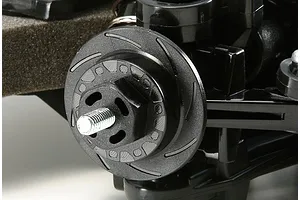

The Wheel hubs are designed to look like brake discs.

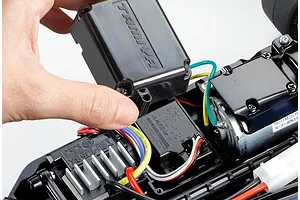

A case is included to keep the all-important receiver protected from dust and dirt.

The Motor cover includes a removable cooling duct (not attached in above image).

Features

The aerodynamically-optimised form of the race version of the WRX STI is accurately rendered in lightweight and durable polycarbonate
Separately moulded parts are included in the kit to recreate side mirrors and rear wing
The beginner-friendly yet highly adaptable TT-02 is a versatile and easy-to-maintain chassis
Gun metal colour mesh type wheels are paired with slick tyres
Stickers are included to recreate the markings of the car, as are masking stickers for use when painting
Super Tough Bathtub Type Chassis
Balanced Longitudinal Chassis Layout
Adjustable Wheelbase
Shaft-Driven 4WD System

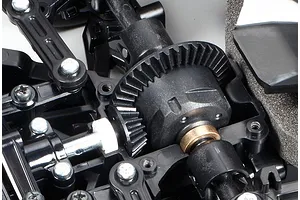

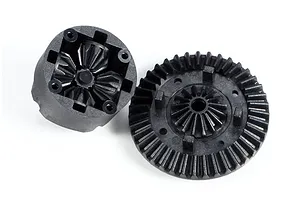

Front/Rear 4 Bevel Resin Differentials
3-Piece Steering Tie-Rod System for Superior Handling
4-Wheel Double Wishbone Suspension
Front/Rear Friction Shocks

Specifications

Length: 497mm (19.5")
Width: 189mm (7.44")
Height: 135mm (9.25")
Wheelbase: 257mm (10.1")
Body Shell: Clear Polycarbonate
Chassis Type: TT-02
Construction Type: Assembly Kit
Motor: Type 540 Brushed
Motor Mount: Longitudinal
Wheel Drive: 4WD
Gear Ratio: Adjustable
Friction Shocks: Front & Rear
4-Wheel Independent Double-Wishbone Suspension
Terrain Use: On-Road

Included items

Description	QTY
1/10 TT-02 Subaru WRX STI Nürburgring Challenge Kit	1

Required Items

Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. To view the entire range of polycarbonate safe paints, please CLICK HERE

Specifications

Factory Specs

Max LiPo Power
Battery Connector
Front Shock Oil

RC Car

Drivetrain: 4WD
Completion: Kit
On/Off Road: On Road
Chassis Type: Car
Power Source: Electric Brushed
Skill Level: Intermediate
Scale: 1/10
